Vents VS EC Series Inline Centrifugal Metal Fans – Models VS 315-630 EC

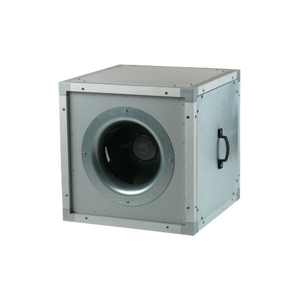

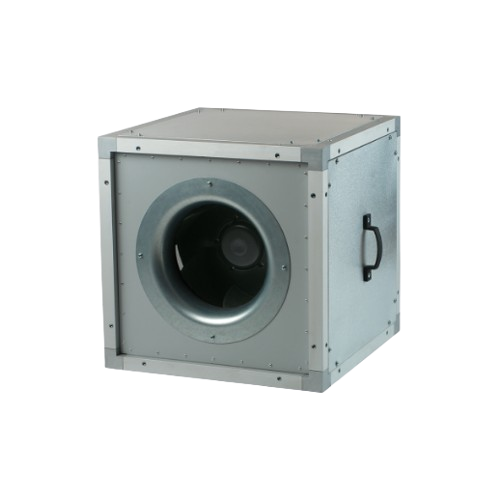

Vents VS EC Series – Inline Centrifugal Metal Fans

Centrifugal inline fans with EC motors housed in a sound-insulated casing. Designed for high efficiency, quiet performance, and reliable airflow in demanding ventilation systems.

• Motor Type: EC (energy efficient with variable speed control)

• Impeller Type: Centrifugal with backward curved blades

• Design: Sound-insulated casing ensures quiet operation while delivering powerful airflow

⚙️ Available Models:

• VS 315 EC
  Duct Dia. 12ʺ. Air flow capacity up to 1295 CFM. Power consumption up to 121 W. Sound level up to 39 dB(A).

• VS 355 EC
  Duct Dia. 14ʺ. Air flow capacity up to 2354 CFM. Power consumption up to 274 W. Sound level up to 44 dB(A).

• VS 400 EC
  Duct Dia. 16ʺ. Air flow capacity up to 3331 CFM. Power consumption up to 500 W. Sound level up to 39 dB(A).

• VS 450 EC
  Duct Dia. 18ʺ. Air flow capacity up to 4002 CFM. Power consumption up to 703 W. Sound level up to 50 dB(A).

• VS 500 EC
  Duct Dia. 20ʺ. Air flow capacity up to 6150 CFM. Power consumption up to 1320 W. Sound level up to 45 dB(A).

• VS 560 EC
  Duct Dia. 22ʺ. Air flow capacity up to 7357 CFM. Power consumption up to 1750 W. Sound level up to 50 dB(A).

• VS 630 EC
  Duct Dia. 25ʺ. Air flow capacity up to 9852 CFM. Power consumption up to 2750 W. Sound level up to 50 dB(A).

Technical Documents:

• VS EC series leaflet
