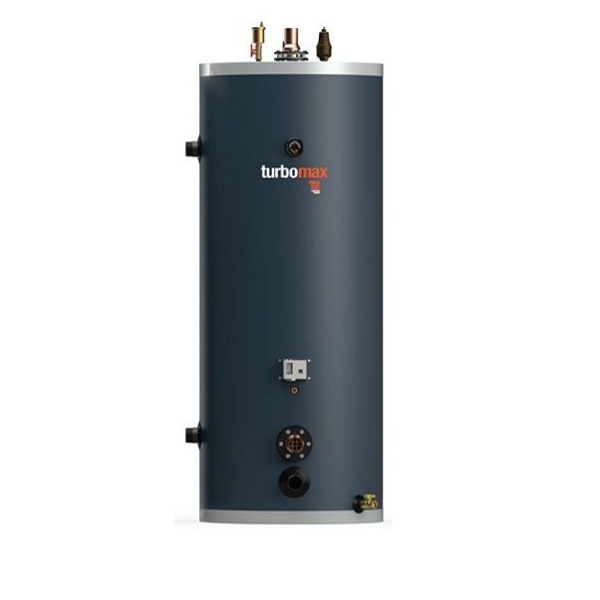

TURBOMAX 30 Instantaneous Indirect Water Heater

Thermo2000 TurboMax 30 – High-Efficiency Instantaneous Indirect Water Heater

The Thermo2000 TurboMax 30 is a high-performance, indirect water heater engineered for instantaneous, on-demand domestic hot water. Heating water from 40°F to 140°F in under 7 seconds, this 30-gallon copper coil water heater outperforms conventional storage tanks by delivering twice the hot water output while reducing energy consumption by up to 30%.

Ideal for residential homes, multi-family buildings, and light commercial applications, the TurboMax 30 features a durable steel tank, HFC-free 2” polyurethane insulation, and copper heat exchangers with 99% thermal efficiency. Built to last over 30 years, this maintenance-free water heater is compatible with all thermal energy sources, including boilers, heat pumps, solar systems, and geothermal systems.

⚡ Why Choose the Thermo2000 TurboMax 30?

• Instant Hot Water on Demand – No waiting, no storage, no standby heat loss

• Copper Heat Exchanger – 17x more thermally conductive than stainless steel

• No Bacterial Growth or Scale Build-up – No stagnant water or internal corrosion

• Energy Efficient – Up to 30% savings on energy bills

• Zero Maintenance – No cleaning or descaling required

• Compact Footprint – High output with minimal space requirements

• Environmentally Friendly – HFC-free insulation and no chemical discharge

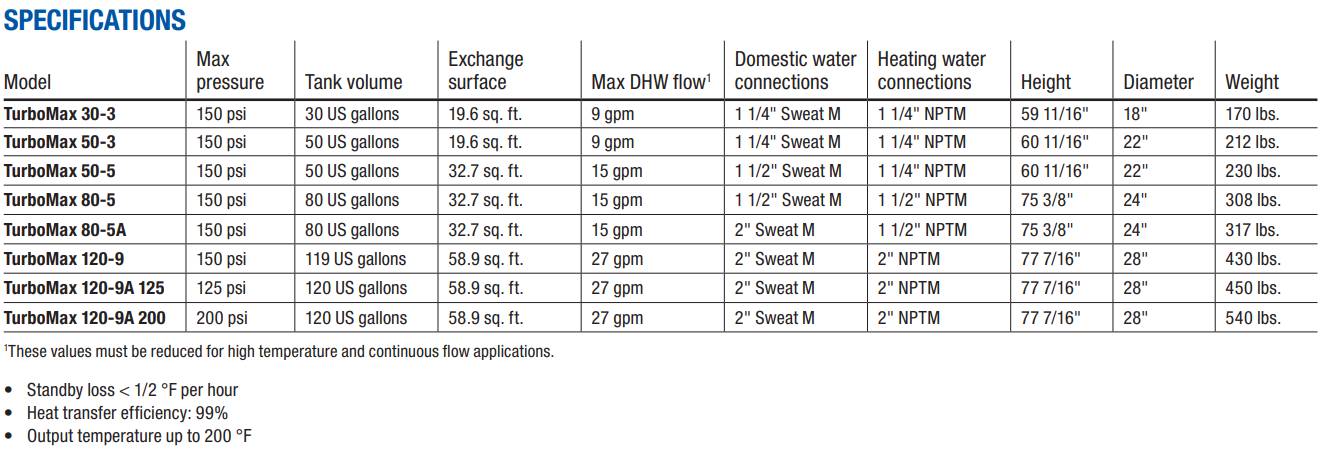

🔧 Specifications & Features

• ✅ 99% heat transfer efficiency

• ✅ Instantaneous domestic hot water delivery

• ✅ More than 30-year expected lifespan

• ✅ Works with any thermal energy source (boilers, solar, geothermal, etc.)

• ✅ 2" high-performance HFC-free polyurethane tank insulation

• ✅ Increased thermal mass volume for system stability

• ✅ Multiple standard connections for versatile installation

• ✅ 15-year residential / 10-year commercial warranty

🔩 Standard Connection Points

1. Heating water supply

2. Heating water return

3. Domestic cold water inlet

4. Domestic hot water outlet

5. Pressure relief valve

6. Temperature and pressure indicator

7. Tank drain valve

8. Immersion well

9. Automatic air vent

10. Adjustable support feet

11. Additional plumbing connections

12. 2" polyurethane tank insulation

13. Adjustable aquastat with temperature differential

Dimensions and Measurements

🔒 Long-Term Reliability – Backed by Warranty

Enjoy zero-maintenance performance with a 15-year warranty for residential use and a 10-year warranty for commercial applications. The TurboMax 30 is the smart, sustainable, and reliable solution for endless hot water without compromise.

Technical Documents:

• Brochure
• Manual
• Spec Sheet

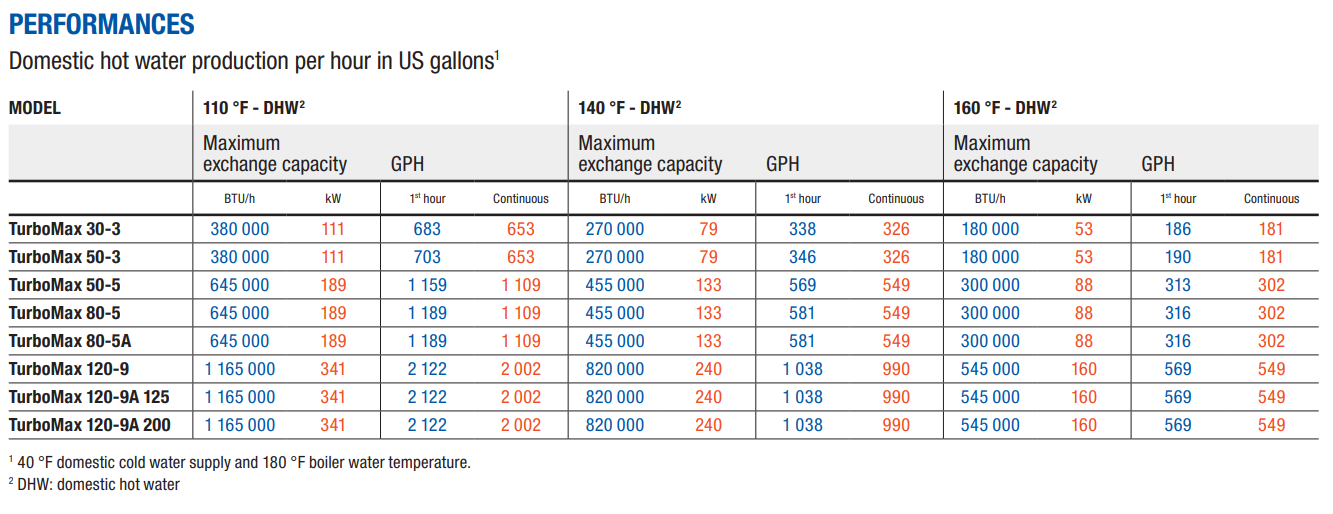

• Performance Table
• Commercial Sizing Guide
• Residential Sizing Guide
• Equivalence Chart
• Installation Drawings
