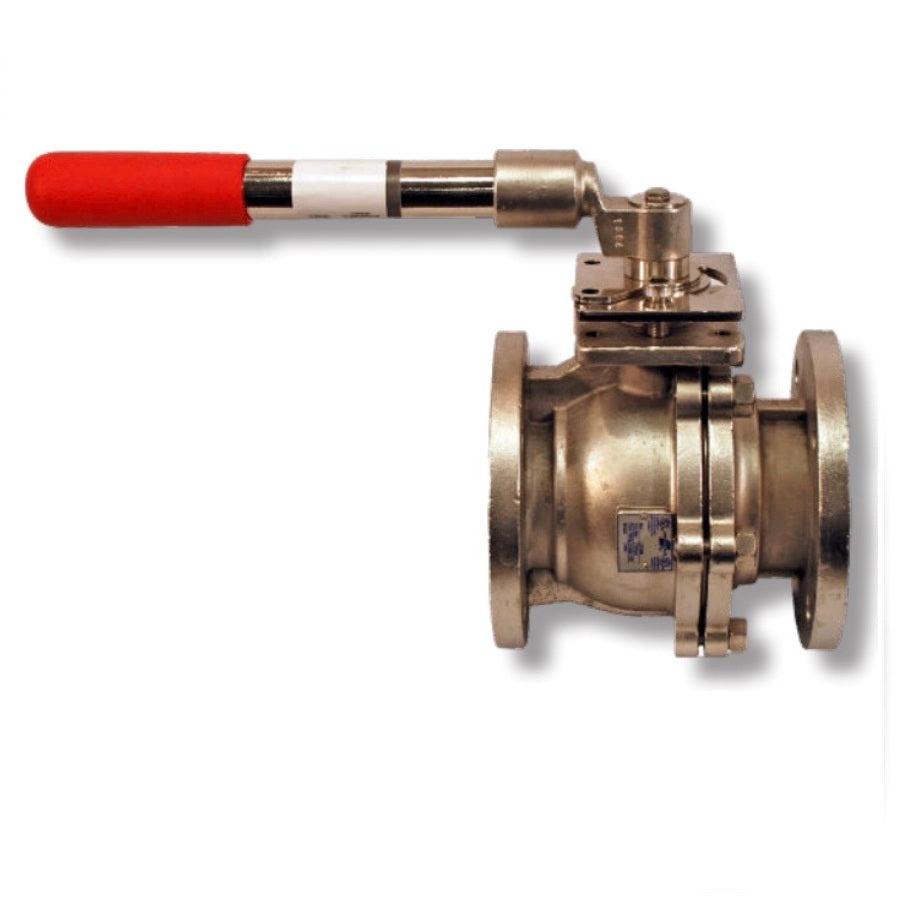

AV 4000 Series - CF8M Stainless Steel Flanged -Raised Face - Full Port Ball Valve 150# (4001 1 1/2" - 6")

Reliable Valve Solutions for Everyday Water Challenges

For over 100 years, American Valve has delivered high-performance valves trusted across plumbing, HVAC, and industrial applications. Known globally for our expertise in ball valves, thermoplastic valves, plumbing valves, and water treatment components, we engineer solutions that solve critical flow control challenges with long-lasting performance and reliability.

💧 Why Gate Valves Fail — And What Makes the 4000 Series Better

Gate valves are prone to leakage by design. With a Class IV shutoff, their discs and seat rings remain exposed to wear and debris buildup, making them difficult to operate—often requiring excessive force or cheater bars just to turn.

🔧 The 4000 Series: Performance Without Compromise

The 4000 Series Flanged Ball Valve is the ultimate gate valve replacement. It’s engineered for maximum unobstructed flow, protected valve seats, and smooth automation with low operating torque and an ISO 5211 mounting pad.

Unlike traditional gate, butterfly, or eccentric plug valves that are prone to failure in demanding environments, the 4000 Series is the trusted solution for critical water, air, and industrial fluid applications around the world.

🛡️ Built to Last: The PFA*-Fused Ball Advantage

At the heart of the 4000 Series is a PFA-fused solid cast iron ball*—a breakthrough innovation offering industry-leading durability and chemical resistance.

Benefits of the PFA-Fused Ball:*

• Exceptional corrosion resistance

• Inhibits lime, calcium, and sludge buildup

• Lasts up to 10 times longer than unprotected balls

• Lower torque requirements, longer seat life

• Permanent bond—won’t chip, flake, or wear off

⚙️ Model 4001 Stainless Steel Flanged Ball Valve

Sample Specification:

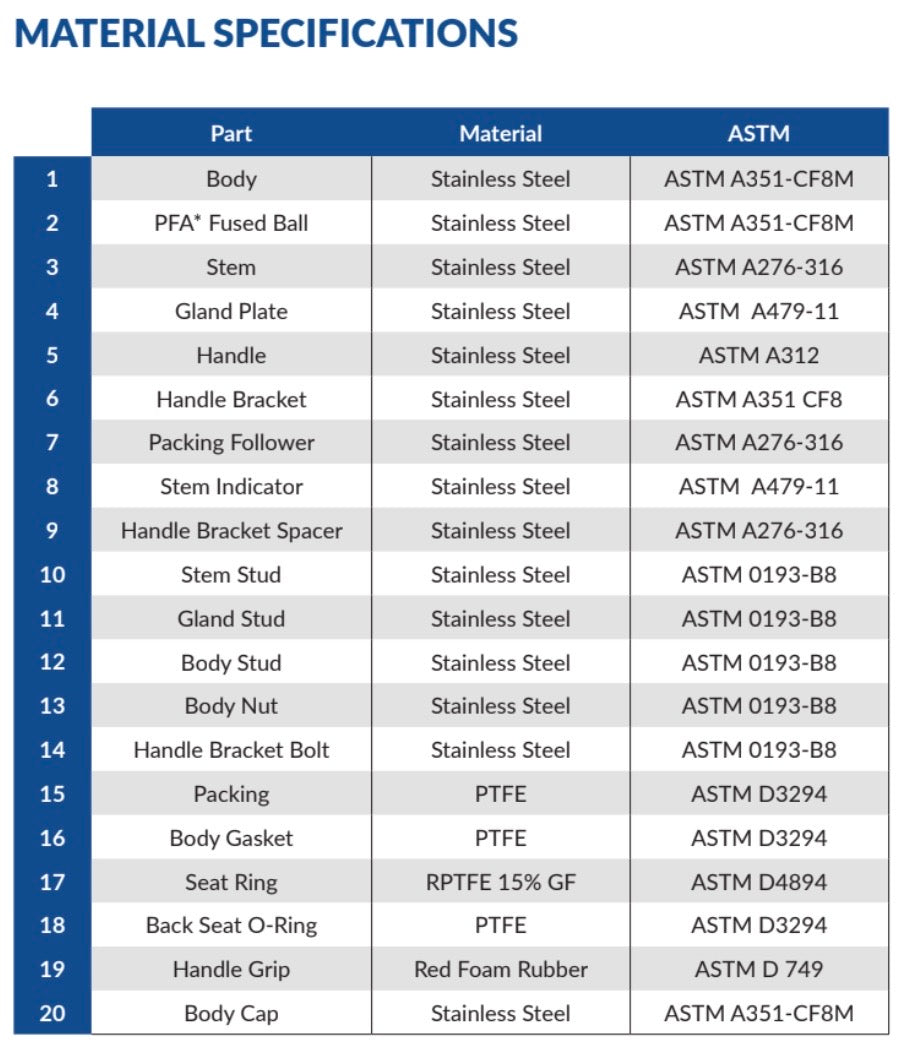

Valves shall be full port and of the floating-ball design, providing bidirectional tight shutoff in accordance with MSS SP-72. Valves shall be rated at 150 PSI WSP / 300 PSI WOG. The body shall be cast 316 stainless steel (ASTM A351-CF8M) with ANSI Class 150 raised-face flanges. The ball shall be PFA-fused solid stainless steel*, paired with a 316 stainless steel blowout-proof stem.

Seats and body seals shall be reinforced PTFE, with a PTFE externally adjustable chevron-type stem seal. Valves shall include locking handles as standard. Optional configurations include 2” square operating nuts, manual gear operators, or pneumatic, electric, or hydraulic actuators. Model: Series 4001 by American Valve or approved equivalent.

Features:

• Cast 316 stainless steel body (CF8M)

• PFA*-fused solid stainless steel ball

• Blowout-proof stainless steel stem

• Reinforced PTFE seats and body seals

• Full port for unrestricted flow

• Lockable in full open or closed positions

• API 607 fire-safe design

• ISO 5211 mounting pad for easy actuation

• Adjustable-length/removable handles for space-limited installations

• Certified to:
  ◦ NSF/ANSI 61
  ◦ NSF/ANSI 372
  ◦ MSS SP-72

Ratings:

• 150 PSI WSP

• 300 PSI WOG

• Up to 366°F

• Engineered to offer superior corrosion resistance and extended valve life in harsh environments

✅ Trust American Valve for Proven, Long-Lasting Flow Control

Upgrade your valve systems with reliable, corrosion-resistant, and maintenance-friendly solutions from American Valve—where innovation meets performance.

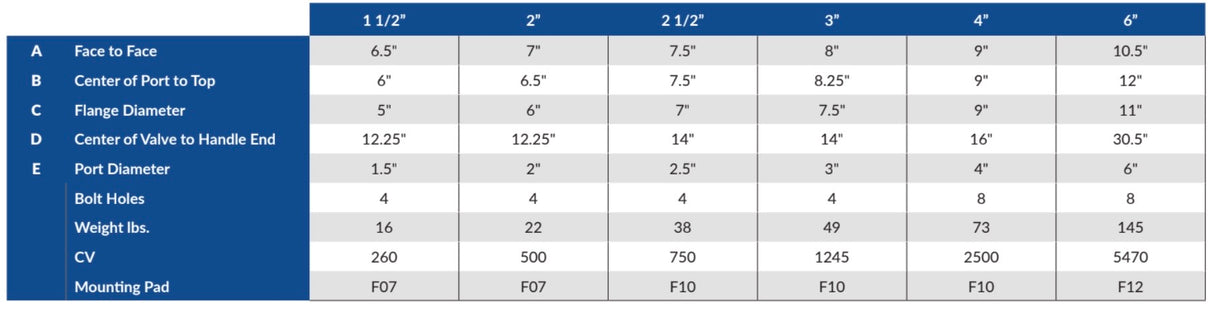

Dimensions:

Warranty:

5 Year Manufacturers Warranty

Technical Documents:

• Brochure
• Installation, Operation, & Maintenance Guide
