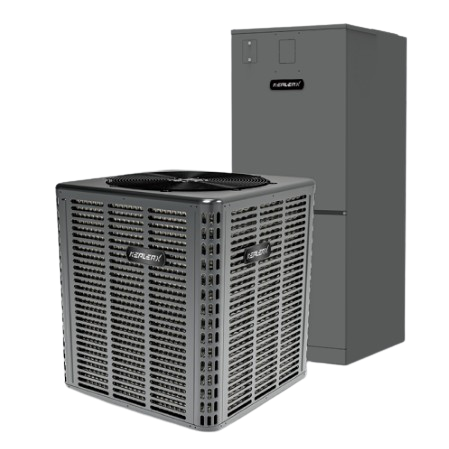

KeplerX 15.0 SEER2 R32 Heat Pump + Air Handler Package

KeplerX 15.0 SEER2 R32 Heat Pump + Air Handler Package

The KeplerX 15.0 SEER2 R32 Heat Pump and Air Handler Package delivers a complete, high-efficiency comfort system designed for reliable year-round heating and cooling. This paired solution combines an inverter-driven top-discharge heat pump with a precisely matched air handler to maximize performance, efficiency, and long-term dependability—all while using environmentally friendly R32 refrigerant.

❄️ System Performance

• Cooling Capacity: 18,000 – 53,000 Btu/h

• Heating Capacity: 19,000 – 55,000 Btu/h

• SEER2: 14.2 – 15.6

• EER2: 7.5 – 10.0 Btu/W

• HSPF2: 8.0 – 8.3

• Low-Temp Heating (5 °F / –15 °C): 13,000 – 37,500 Btu/h

• COP: 1.68 – 1.82

🌡️ Operation Range

• Cooling: 5 °F – 122 °F (–15 °C – 50 °C)

• Heating: –4 °F – 75 °F (–20 °C – 24 °C)

🔌 Electrical Ratings

• Voltage / Phase / Frequency: 208 – 230 V / 1 Ph / 60 Hz

• Minimum Circuit Ampacity (MCA): 22 – 39 A

• Max Overcurrent Protection (MOP): 35 – 63 A

• Voltage Range: 173 – 253 V

🔧 Compressor

• Brand: GMCC

• Type: DC Inverter Rotary

• Rated Power Input: 1,050 – 2,500 W

💨 Air Handler Specifications

• ECM Variable-Speed Blower Motor

• Airflow: 600 – 1,400 CFM

• Multi-position (upflow / horizontal left / right)

• Noise Level: 38 – 52 dB(A)

🧊 Refrigerant System

• Refrigerant Type: R32

• Charge Volume: 1,500 – 3,000 g (53 – 106 oz)

• Additional Charge: 30 g/m (0.32 oz/ft)

• Max Suction Pressure: 1.2 MPa

• Max Discharge Pressure: 4.5 MPa

🔩 Refrigerant Piping

• Liquid Line: Φ3/8"

• Gas Line: Φ3/4"

• Max Line Length: 98 – 246 ft (30 – 75 m)

• Max Elevation Difference: 66 – 98 ft (20 – 30 m)

📏 Dimensions (W×D×H)
Air Handler: 21 – 24.5 × 17.3 – 21 × 45 – 53 in
Outdoor Unit: 36 – 38 × 13.6 – 15.7 × 25.6 – 31.9 in

⚖️ Weight
Air Handler: 110 – 150 lbs
Outdoor Unit: 120 – 185 lbs
