KeplerX R32 Free Match Cassette Indoor Unit Series
Ceiling Cassette Indoor Units for Free Match Multi-Zone Systems
Models: KACH9R2N3A • KACH12R2N3A • KACH18R2N3A • KACH24R2N3A
The KeplerX R32 Free Match Cassette Indoor Unit Series offers efficient and stylish comfort for both residential and commercial spaces. Designed for installation in suspended ceilings, these compact 4-way cassette units provide even air distribution and seamless integration with KeplerX Free Match outdoor systems. Operating on eco-friendly R32 refrigerant, they deliver powerful, quiet, and energy-efficient performance.
⚙️ Performance Highlights
-
Cooling Capacity: 9,000 – 24,000 Btu/h
-
Heating Capacity: 10,000 – 24,000 Btu/h
-
Power Supply: 208/230V, 1Ph, 60Hz
-
Voltage Range: 187 – 253V
-
System Type: Free Match Cassette IDU, AHRI & ETL Certified
-
Refrigerant: R32 – low GWP, environmentally responsible
🌬️ Airflow & Fan System
-
Fan Brand: Panasonic
-
Fan Quantity: 1 per unit
-
Fan Speed (Hi/Mi/Lo):
-
9K–12K: 720 / 610 / 530 r/min
-
18K: 840 / 720 / 660 r/min
-
24K: 580 / 530 / 470 r/min
-
-
Airflow Rate (CFM):
-
9K–12K: 412 / 365 / 312
-
18K: 447 / 382 / 341
-
24K: 823 / 764 / 676
-
🔇 Sound Performance
Indoor Sound Pressure Level (dB(A)):
-
9K–12K: 40 / 36 / 33
-
18K: 45 / 41 / 38
-
24K: 47 / 46 / 43
Quiet operation ensures minimal noise impact, ideal for living spaces, offices, and retail settings.
📏 Construction & Dimensions
| Model | Dimensions (W×D×H) mm | Packing (W×D×H) mm | Net/Gross Weight (kg) | Dimensions (in) | Weight (lb) |
|---|---|---|---|---|---|
| 9K–12K | 700×450×198 | 865×535×255 | 14.0 / 17.0 | 27.56×17.72×7.8 | 30.9 / 37.5 |
| 18K | 700×700×245 | 930×830×300 | 15.0 / 17.5 | 27.56×27.56×9.65 | 33.1 / 38.6 |
| 24K | 1000×700×245 | 1230×830×300 | 24.0 / 28.0 | 39.37×27.56×9.65 | 52.9 / 61.7 |
Panel Dimensions:
-
9K–18K: 650×650×55 mm (25.59×25.59×2.17 in)
-
24K: 950×950×55 mm (37.40×37.40×2.17 in)
Construction: Durable steel housing with insulated interior and elegant flat panel design for a clean ceiling appearance.

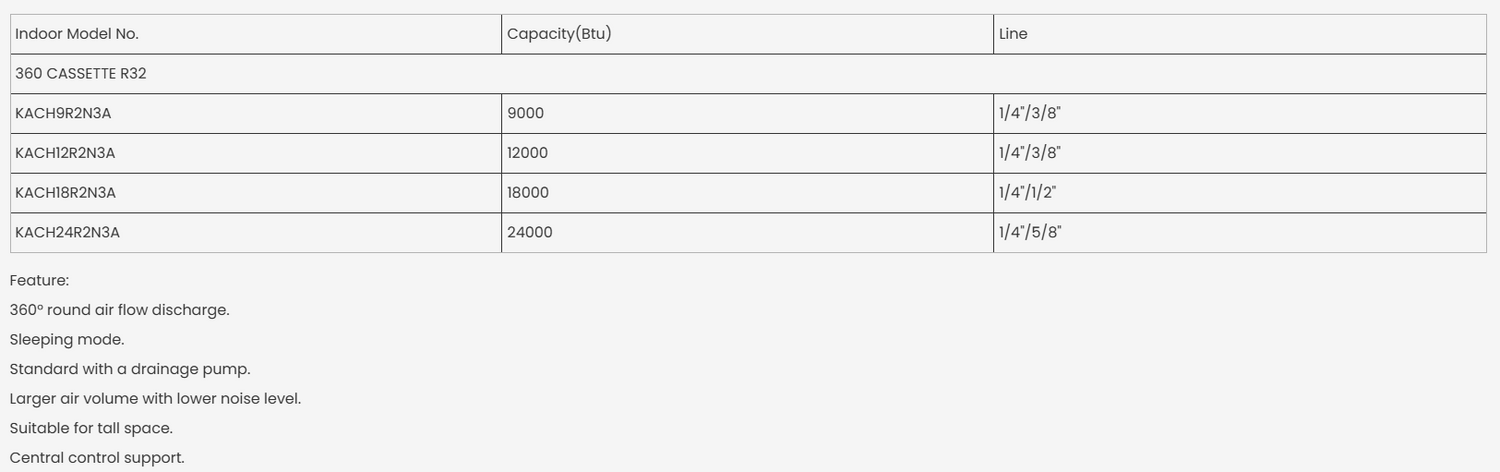

🔧 Refrigerant & Piping
-
Refrigerant Type: R32
-
Liquid Line: 6.35 mm (¼")
-
Gas Line:
-
9K–12K: 9.52 mm (⅜")
-
18K: 12.7 mm (½")
-
24K: 15.88 mm (⅝")
-
-
Connection Type: Flare-type fittings for secure installation
🌡️ Design Advantages
-
4-way air distribution for uniform comfort
-
Compact cassette body with decorative panel
-
Compatible with KeplerX R32 Free Match outdoor systems
-
Quiet and efficient Panasonic fan motor
-
Easy maintenance and flexible installation
-
Eco-friendly refrigerant with lower GWP
🏢 Ideal Applications
-
Residential apartments and homes
-
Office spaces and meeting rooms
-
Hotels, restaurants, and retail stores
-
Multi-zone commercial environments using KeplerX Free Match systems
