KeplerX R32 Free Match Cassette Indoor Unit Series

Ceiling Cassette Indoor Units for Free Match Multi-Zone Systems

Models: KACH9R2N3A • KACH12R2N3A • KACH18R2N3A • KACH24R2N3A

The KeplerX R32 Free Match Cassette Indoor Unit Series offers efficient and stylish comfort for both residential and commercial spaces. Designed for installation in suspended ceilings, these compact 4-way cassette units provide even air distribution and seamless integration with KeplerX Free Match outdoor systems. Operating on eco-friendly R32 refrigerant, they deliver powerful, quiet, and energy-efficient performance.

⚙️ Performance Highlights

Cooling Capacity: 9,000 – 24,000 Btu/h
Heating Capacity: 10,000 – 24,000 Btu/h
Power Supply: 208/230V, 1Ph, 60Hz
Voltage Range: 187 – 253V
System Type: Free Match Cassette IDU, AHRI & ETL Certified
Refrigerant: R32 – low GWP, environmentally responsible

🌬️ Airflow & Fan System

Fan Brand: Panasonic
Fan Quantity: 1 per unit
Fan Speed (Hi/Mi/Lo):
- 9K–12K: 720 / 610 / 530 r/min
- 18K: 840 / 720 / 660 r/min
- 24K: 580 / 530 / 470 r/min
Airflow Rate (CFM):
- 9K–12K: 412 / 365 / 312
- 18K: 447 / 382 / 341
- 24K: 823 / 764 / 676

🔇 Sound Performance

Indoor Sound Pressure Level (dB(A)):

9K–12K: 40 / 36 / 33
18K: 45 / 41 / 38
24K: 47 / 46 / 43

Quiet operation ensures minimal noise impact, ideal for living spaces, offices, and retail settings.

📏 Construction & Dimensions

Model	Dimensions (W×D×H) mm	Packing (W×D×H) mm	Net/Gross Weight (kg)	Dimensions (in)	Weight (lb)
9K–12K	700×450×198	865×535×255	14.0 / 17.0	27.56×17.72×7.8	30.9 / 37.5
18K	700×700×245	930×830×300	15.0 / 17.5	27.56×27.56×9.65	33.1 / 38.6
24K	1000×700×245	1230×830×300	24.0 / 28.0	39.37×27.56×9.65	52.9 / 61.7

Panel Dimensions:

9K–18K: 650×650×55 mm (25.59×25.59×2.17 in)
24K: 950×950×55 mm (37.40×37.40×2.17 in)

Construction: Durable steel housing with insulated interior and elegant flat panel design for a clean ceiling appearance.

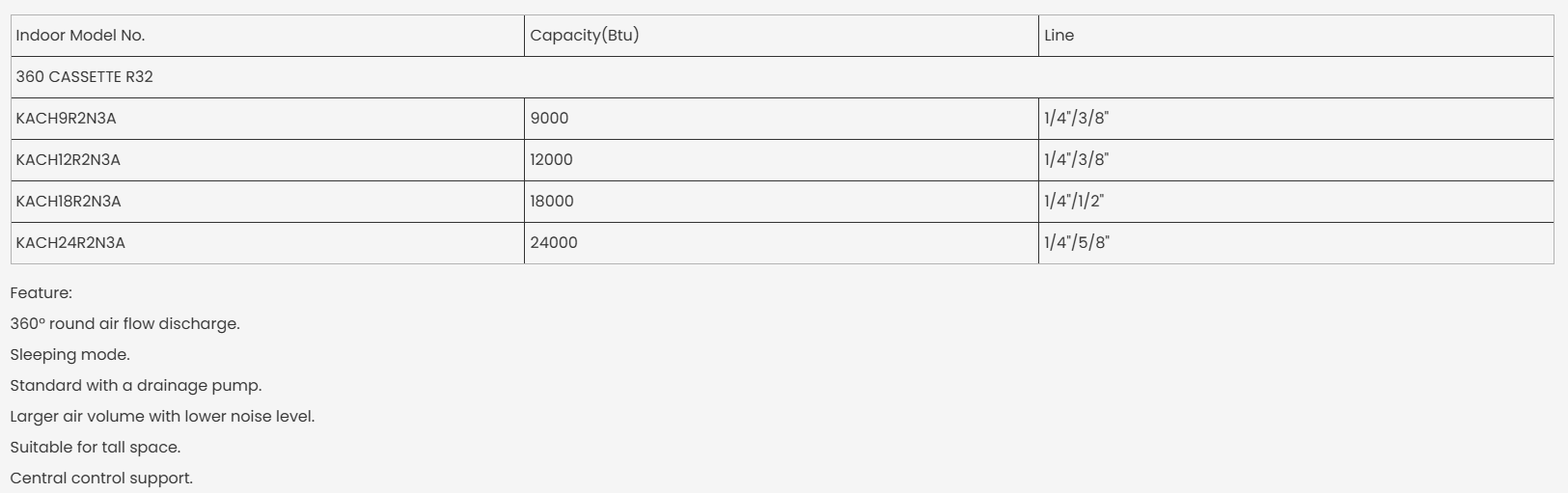

🔧 Refrigerant & Piping

Refrigerant Type: R32
Liquid Line: 6.35 mm (¼")
Gas Line:
- 9K–12K: 9.52 mm (⅜")
- 18K: 12.7 mm (½")
- 24K: 15.88 mm (⅝")
Connection Type: Flare-type fittings for secure installation

🌡️ Design Advantages

4-way air distribution for uniform comfort
Compact cassette body with decorative panel
Compatible with KeplerX R32 Free Match outdoor systems
Quiet and efficient Panasonic fan motor
Easy maintenance and flexible installation
Eco-friendly refrigerant with lower GWP

🏢 Ideal Applications

Residential apartments and homes
Office spaces and meeting rooms
Hotels, restaurants, and retail stores
Multi-zone commercial environments using KeplerX Free Match systems
