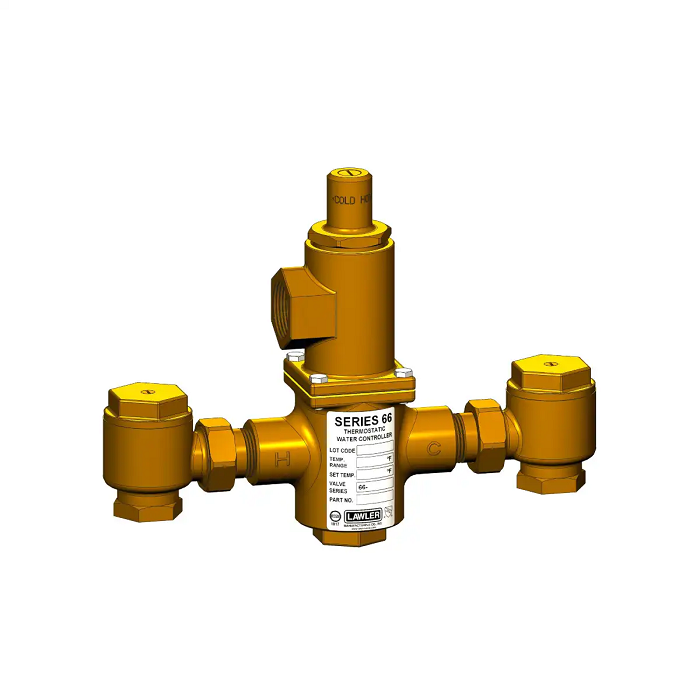

Lawler 66® Master Mixing Valve (71762-06) – High-Volume Water Temperature Control
The Lawler 66® Master Mixing Valve (71762-06) is built for large-scale water systems that demand precise temperature control and maximum safety. Designed for commercial, industrial, and institutional use, this valve efficiently blends hot and cold water while providing Lawler’s exclusive Three-Way Protection™ against runaway temperatures, thermal shock, or scalding—even in the event of thermostat, hot water, or cold water supply failure.
With a flow capacity of up to 200 GPM, the Model 66® ensures consistent delivery of tempered water while maintaining outlet temperature accuracy within ±3°F. Trusted across industries, it meets and exceeds the ASSE 1017 standard, guaranteeing safe and reliable operation.
🔑 Key Features & Benefits
-
High-Capacity Flow – Handles up to 200 GPM, ideal for large-volume systems.
-
Three-Way Protection™ – Guards against scalding, thermal shock, and unsafe temperature fluctuations.
-
Precision Control – Maintains water temperature within ±3°F.
-
Exceeds Standards – Certified to exceed ASSE 1017 performance requirements.
-
Durable Design – Engineered for long-term reliability in demanding applications.
-
Efficient Operation – Provides steady, tempered water under varying system conditions.
🏢 Ideal Applications
The Lawler Model 66® (71762-06) is perfect for:
-
Hospitals & healthcare facilities
-
Universities & schools
-
Hotels & resorts
-
Correctional facilities
-
Industrial plants
-
Large commercial complexes
⚡ Why Choose the Lawler 66®?
The Model 66® Master Mixing Valve offers unmatched reliability, safety, and efficiency for large plumbing systems. With its high-flow capacity, precise temperature regulation, and proven safety design, it is the trusted solution for facilities requiring large volumes of tempered water.
📞 Order the Lawler 66® Today
Upgrade your system with the Lawler 71762-06 Model 66® Master Mixing Valve. Contact us today for pricing, technical support, and availability.
Specifications:
| Series: 66 |
| Model: 66-25 |
| Configuration: Standard |
| Application: Master Controller |
| Certification/s: ASSE 1017, CSA B125.3, Lead Free |
| Connection Type: NPT |
| Inlet Connection Size: 3/4" |
| Outlet Connection Size: 3/4" |
| Min Flow: 3-3/4 GPM |
| Min Flow with Recirculation: 1/2 GPM" |
| Rated Flow at 10 PSI: 12 GPM" |
| Rated Flow at 45 PSI: 25 GPM" |
| Temperature Range: 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Weight: 17 lbs |
| Part Number: 71762-06 Rough Bronze, 71762-36 Rough Chrome, 71762-36-P Polished Chrome |
