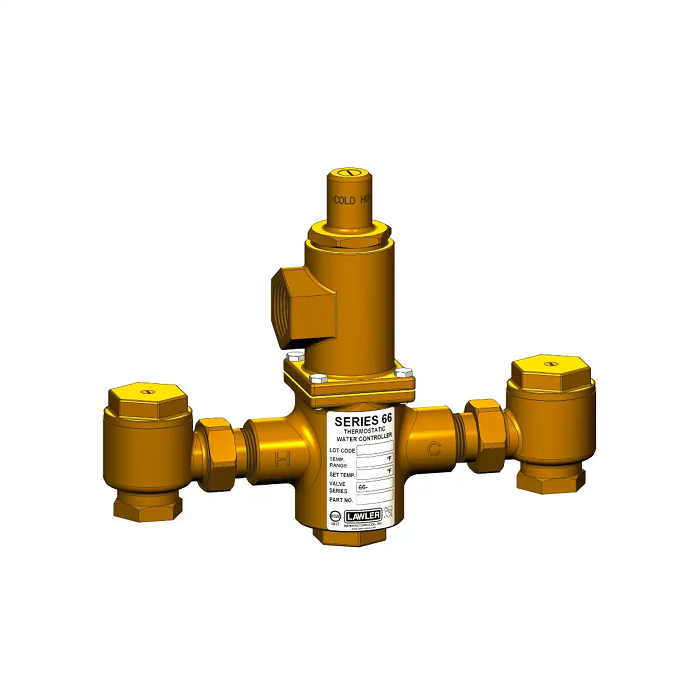

Lawler 66® Master Mixing Valve (71762-11) – High-Capacity Water Temperature Control

The Lawler 66® Master Mixing Valve (71762-11) is engineered to handle large-scale water temperature control with unmatched safety and reliability. Designed for demanding commercial and institutional applications, this valve efficiently blends hot and cold water while providing Lawler’s exclusive Three-Way Protection™ against runaway temperatures, thermal shock, or scalding in the event of thermostat, hot, or cold water supply failure.

With a capacity of up to 200 GPM, the Model 66® ensures steady delivery of tempered water, maintaining outlet temperature accuracy within ±3°F. Built with precision and durability, it is a trusted choice for large plumbing systems requiring consistent and safe performance.


🔑 Key Features & Benefits

  • High-Flow Capacity – Handles up to 200 GPM, ideal for large-volume systems.

  • Three-Way Protection™ – Protects against scalding, thermal shock, and runaway temperatures.

  • Temperature Accuracy – Maintains outlet temperature within ±3°F.

  • Exceeds Standards – Meets and exceeds ASSE 1017 for safety and performance.

  • Durable Construction – Built with premium materials for long-lasting reliability.

  • Efficient & Reliable – Ensures consistent tempered water even under high-demand conditions.


🏢 Ideal Applications

The Lawler Model 66® (71762-11) is perfectly suited for:

  • Hospitals & medical centers

  • Schools & universities

  • Hotels & resorts

  • Correctional facilities

  • Industrial plants

  • Large commercial buildings


⚡ Why Choose the Lawler 66®?

With its high-flow design, precise temperature regulation, and industry-leading safety features, the Lawler 66® Master Controller is the proven solution for facilities that require large volumes of tempered water without compromising safety or efficiency.


📞 Order the Lawler 66® Today

Upgrade your plumbing system with the Lawler 71762-11 Model 66® Master Mixing Valve. Contact us today for pricing, technical details, and expert support.



Specifications:

Series: 66
Model: 66-50
Configuration: Standard
Application: Master Controller
Certification/s: ASSE 1017, CSA B125.3, Lead Free
Connection Type: NPT
Inlet Connection Size: 3/4"
Outlet Connection Size: 1"
Min Flow: 7-1/2 GPM
Min Flow with Recirculation: 1/2 GPM"
Rated Flow at 10 PSI: 25 GPM"
Rated Flow at 45 PSI: 50 GPM"
Temperature Range: 100°F – 150°F, 50°F – 100°F, 85°F – 135°F
Weight: 17 lbs
Part Number: 71762-11 Rough Bronze, 71762-41 Rough Chrome, 71762-41-P Polished Chrome
