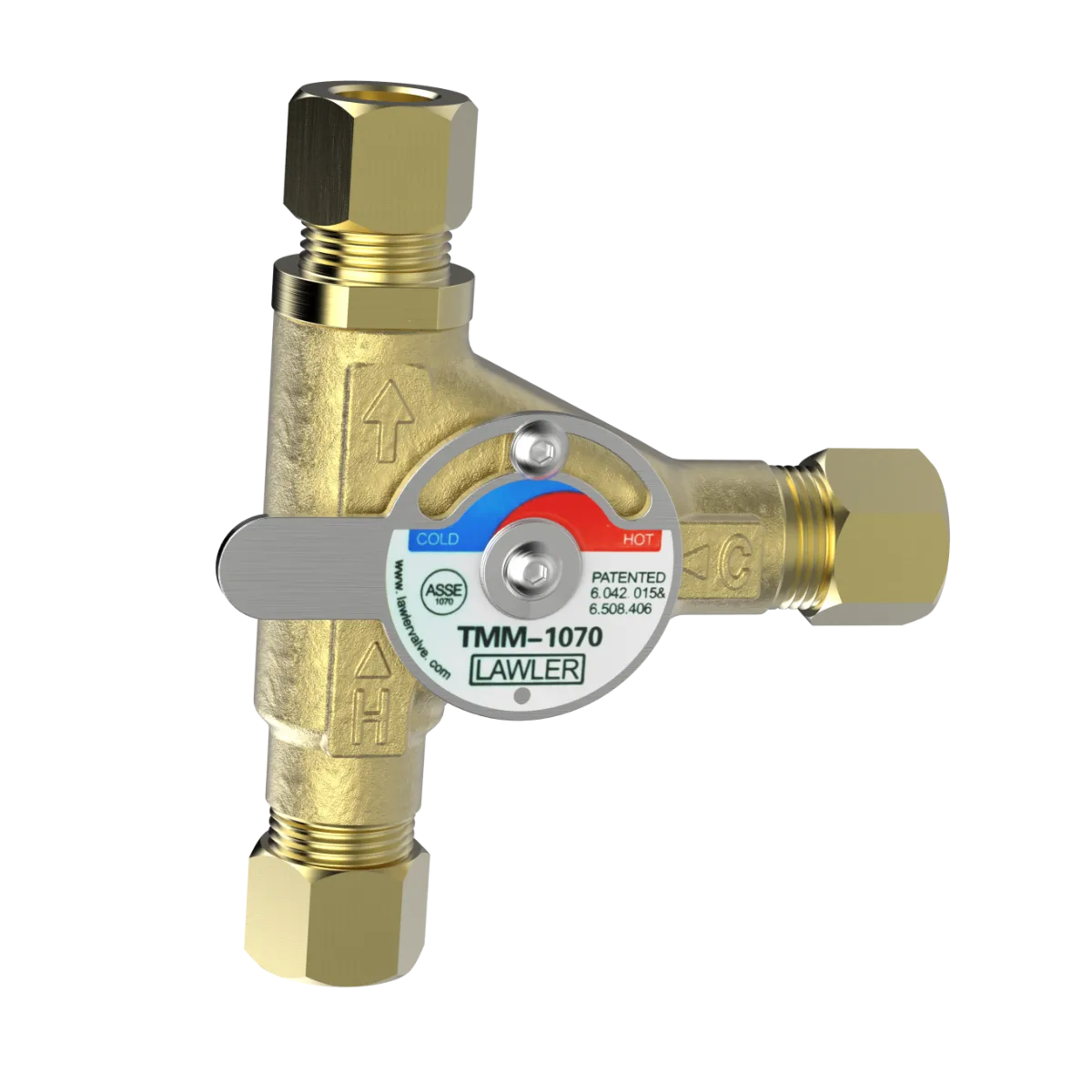

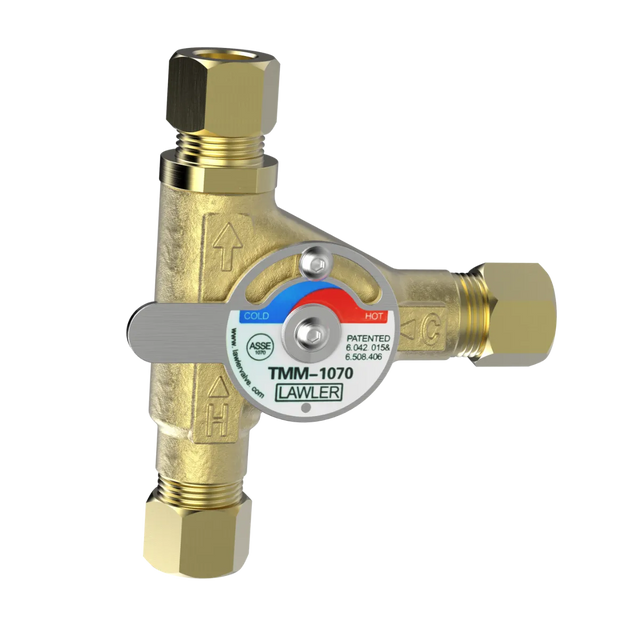

Lawler 87500-00 TMM-1070 Under the Counter Valves

Lawler 87500-00 TMM-1070® Thermostatic Mechanical Mixing Valve – Point-of-Use Safety
The Lawler 87500-00 TMM-1070® Thermostatic Mechanical Mixing Valve provides a reliable and economical solution for safely mixing hot and cold water at the point-of-use. Designed for under-the-counter applications, this compact valve ensures water temperature consistency while preventing scalding with an integrated high-temperature limit stop.
🔑 Key Features & Benefits
-
High Temperature Limit Stop – Shuts down water flow if the temperature rises above 120°F for enhanced safety.
-
Compact Design – Small Type T valve with 3/8” compression fittings for easy installation under sinks and counters.
-
Point-of-Use Applications – Ideal for hand lavatories, electronic faucets, sensor faucets, and metering faucets.
-
Built-In Backflow Protection – Integral rubber duck-bill backflow checks are included within the inlets.
-
Simple Adjustment – Rotate the dial clockwise to lower outlet temperature or counterclockwise to raise it.
-
Maximum Safety – Valve cannot be adjusted above its 120°F shut-off point, ensuring reliable scald protection.
📍 Applications
Perfect for use in:
-
Public restrooms
-
Schools & universities
-
Healthcare facilities
-
Commercial buildings
-
Anywhere point-of-use tempered water is required
📦 Order the Lawler 87500-00 TMM-1070® Today
Upgrade your plumbing system with the Lawler TMM-1070® Thermostatic Mechanical Mixing Valve (87500-00) for dependable point-of-use temperature control and safety. Most orders ship the same day, with free shipping included.
Specifications:
Series: TMM1070 |
Model: TMM-1070 |
Configuration: Standard |
Application: Point of Use |
Certification/s: ASSE 1070, Lead Free |
Connection Type: Compression |
Inlet Connection Size: 3/8" |
Outlet Connection Size: 3/8" |
Min Flow: 1/2 GPM |
Min Flow with Recirculation: N/A |
Rated Flow at 10 PSI: 1 GPM" |
Rated Flow at 45 PSI: 2-1/10 GPM" |
Temperature Range: Full Cold to 115°F |
Weight: .5 lbs |
Part Number: 87500-00 |
