Senville SENTC Top-Discharge Central Heat Pump Systems | 2–5 Ton
Senville SENTC Top-Discharge Central Heat Pump Systems | 2–5 Ton - 24000 BTU 2 Ton / 16Ft is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.
Description

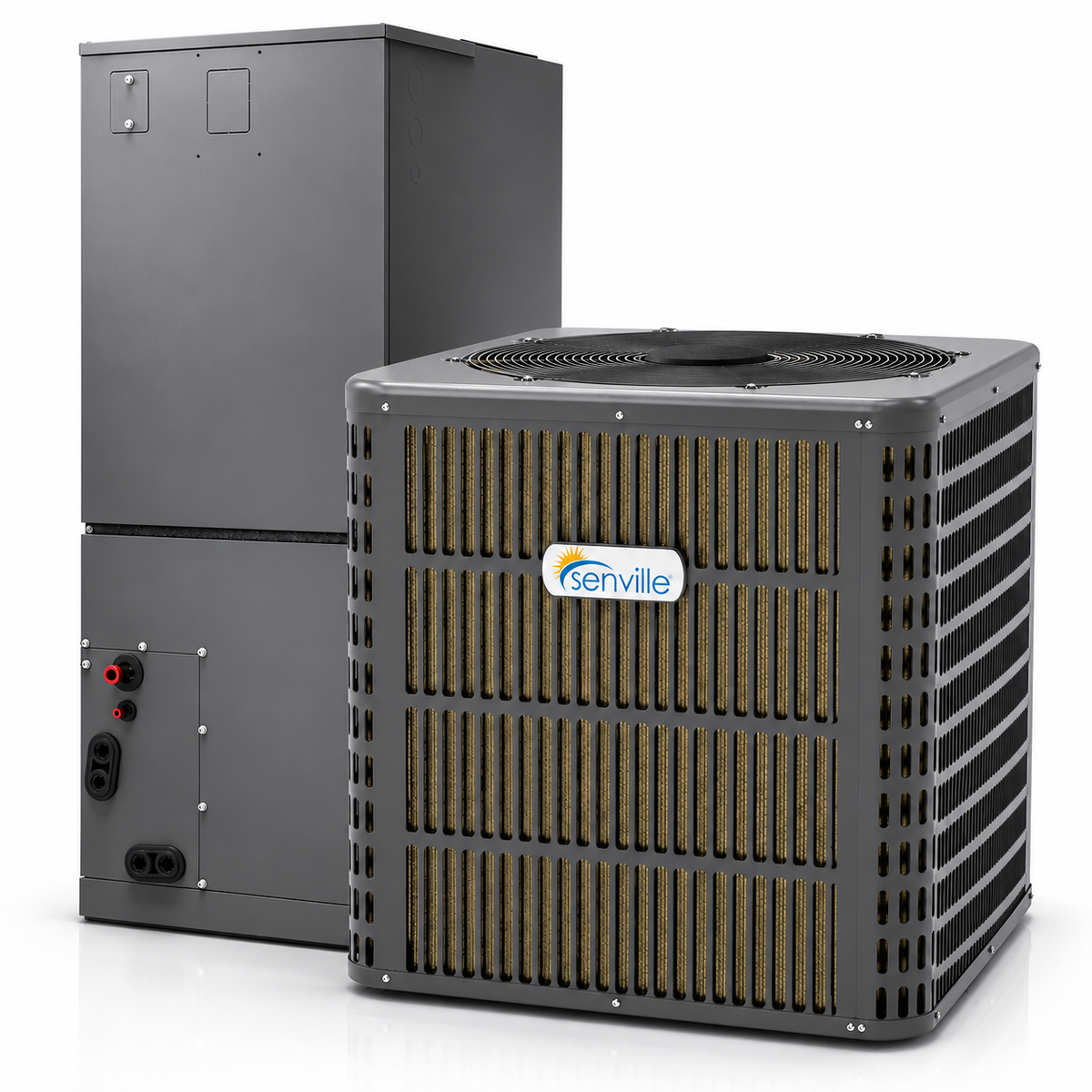

The Senville SENTC-TD Top-Discharge Central Heat Pump Series provides complete ducted heating and cooling in 2, 3, 4 and 5 ton sizes. Each system includes a matched indoor air handler and outdoor heat-pump condenser, with a choice of 16 ft or 50 ft installation kit.
Inverter technology adjusts output to heating and cooling demand. The series uses R-32 refrigerant and 208/230V, 60 Hz, single-phase power. Published outdoor heating operation extends down to −4°F / −20°C. Select the system size using a professional load calculation and duct assessment.
Key Features
- Complete matched indoor air handler and outdoor top-discharge heat pump.
- Central ducted heating and cooling from one system.
- Variable-capacity DC inverter operation.
- Four nominal sizes from 24,000 to 60,000 BTU/h.
- Cooling efficiency up to 20.0 SEER2, depending on capacity.
- Choice of 16 ft or 50 ft installation kit.
| Feature | Details |
|---|---|
| Manufacturer / series | Senville / SENTC-TD |
| System type | Complete ducted central heat pump |
| Outdoor configuration | Top discharge |
| Refrigerant | R-32 |
| Power supply | 208/230V, 60 Hz, single phase |
| Outdoor heating range | −4°F to 75°F |
| Outdoor cooling range | 5°F to 131°F |
| Liquid / gas line sizes | 3/8 in. / 3/4 in. |
Capacity, Efficiency & Dimensions
Tonnage and the BTU values in the column headings identify nominal system sizes. Rated cooling capacity is listed separately. Dimensions are width × depth × height; weights are equipment net weights.
2 & 3 Ton Systems
| Specification | 2 Ton 24,000 BTU/h |
3 Ton 36,000 BTU/h |
|---|---|---|
| Capacity & Efficiency | ||
| Model family | SENTC-24TD | SENTC-36TD |
| Rated cooling (BTU/h) | 24,000 | 34,000 |
| Rated heating (BTU/h) | 24,000 | 36,000 |
| SEER2 | 20.0 | 18.6 |
| EER2 | 13.3 | 11.7 |
| HSPF2 (Region IV) | 9.4 | 9.0 |
| Indoor Air Handler | ||
| Width (in.) | 21-1/32 | 21-1/32 |
| Depth (in.) | 21-1/32 | 21-1/32 |
| Height (in.) | 49-7/32 | 49-7/32 |
| Net weight (lb) | 125 | 137 |
| Outdoor Heat Pump | ||
| Width (in.) | 29-9/64 | 29-9/64 |
| Depth (in.) | 29-9/64 | 29-9/64 |
| Height (in.) | 25 | 25 |
| Net weight (lb) | 143 | 143 |
4 & 5 Ton Systems
| Specification | 4 Ton 48,000 BTU/h |
5 Ton 60,000 BTU/h |
|---|---|---|
| Capacity & Efficiency | ||
| Model family | SENTC-48TD | SENTC-60TD |
| Rated cooling (BTU/h) | 47,000 | 55,000 |
| Rated heating (BTU/h) | 50,000 | 57,000 |
| SEER2 | 17.6 | 17.7 |
| EER2 | 11.3 | 8.6 |
| HSPF2 (Region IV) | 9.1 | 8.0 |
| Indoor Air Handler | ||
| Width (in.) | 24-31/64 | 24-31/64 |
| Depth (in.) | 21-1/32 | 21-1/32 |
| Height (in.) | 52-63/64 | 52-63/64 |
| Net weight (lb) | 164 | 164 |
| Outdoor Heat Pump | ||
| Width (in.) | 29-9/64 | 29-9/64 |
| Depth (in.) | 29-9/64 | 29-9/64 |
| Height (in.) | 32-7/8 | 32-7/8 |
| Net weight (lb) | 187 | 187 |
Installation Kit Options
| System size | 16 ft kit SKU | 50 ft kit SKU |
|---|---|---|
| 2 Ton | SENTC-24TD-16 | SENTC-24TD-50 |
| 3 Ton | SENTC-36TD-16 | SENTC-36TD-50 |
| 4 Ton | SENTC-48TD-16 | SENTC-48TD-50 |
| 5 Ton | SENTC-60TD-16 | SENTC-60TD-50 |
50 ft kit: A 50 ft communication wire is not included and must be supplied separately. Your installer must confirm piping length, refrigerant requirements and wiring for the selected configuration.
What Comes with the System
| Item | Included equipment |
|---|---|
| Indoor unit | Matched ducted air handler |
| Outdoor unit | Top-discharge inverter heat-pump condenser |
| Installation kit | 16 ft or 50 ft kit, according to the selected SKU |
| Auxiliary electric heater | Not included in the configurations listed above |
Professional installation is required. Have a qualified HVAC contractor confirm the building load, ductwork, electrical service, equipment clearances and commissioning requirements.
Limited Warranty
Senville provides a limited manufacturer warranty, subject to the applicable product coverage periods, installation requirements, conditions and exclusions. Installation must be completed by a licensed HVAC professional. Labor and service-call costs are not covered. Refer to the full Senville Manufacturer Warranty and the warranty documentation supplied with your system for complete details.
