Senville SENDC Central Ducted Outdoor Heat Pump Units — 3, 4 & 5 Ton
Senville SENDC Central Ducted Outdoor Heat Pump Units — 3, 4 & 5 Ton - 3 Ton is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.
Description
The Senville SENDC Central Ducted Outdoor Heat Pump Unit family provides inverter-driven outdoor equipment for compatible Senville central heating and cooling systems. Choose a 3, 4 or 5 ton nominal size to match the indoor equipment and building load.
These outdoor units are sold separately from the indoor air handler. Each uses R-454B refrigerant and 208/230V, single-phase, 60 Hz power. A compatible, approved indoor unit and professional installation are required for operation.
Nominal tonnage identifies the equipment size. Actual heating and cooling capacity and efficiency depend on the complete approved indoor/outdoor combination.
Key Features
| Feature | Details |
|---|---|
| Manufacturer / series | Senville / SENDC |
| Product type | Central ducted outdoor heat pump unit |
| Nominal sizes | 3 / 4 / 5 ton |
| Nominal capacity classes | 36,000 / 48,000 / 60,000 BTU |
| Compressor technology | Inverter / variable speed |
| Refrigerant | R-454B |
| Power supply | 208/230V, single phase, 60 Hz |
| Application | Heating and cooling with approved indoor equipment |
| Indoor air handler included | No — sold separately |
Capacity & Compatibility
| Outdoor unit | Nominal size / matching indoor air handler |
|---|---|
| SENDC-36HF-OG | 3 ton / SENDC-36HF-IG |
| SENDC-48HF-OG | 4 ton / SENDC-48HF-IG |
| SENDC-60HF-OG | 5 ton / SENDC-60HF-IG |
Outdoor unit only. Have your HVAC contractor verify the approved indoor/outdoor combination, refrigerant compatibility, building load, ductwork and installation requirements before ordering. Do not select a replacement solely by nominal tonnage.
Product Highlights
- Variable-speed inverter technology adjusts system output.
- Supports central ducted heating and cooling with matched indoor equipment.
- R-454B refrigerant platform.
- Three nominal capacities for different system requirements.
- Outdoor equipment available separately for approved system configurations.
Electrical & Outdoor Operating Data
Outdoor data below follow Senville's corresponding SENDC system listings. Confirm the delivered unit's nameplate and installation manual for final electrical sizing.
| Specification | 36,000 BTU | 48,000 BTU | 60,000 BTU |
|---|---|---|---|
| Minimum circuit ampacity | 41 A | 38 A | 40 A |
| Maximum fuse rating | 50 A | 40 A | 40 A |
| Outdoor airflow, maximum | 4,500 CFM | 3,037.1 CFM | 2,648.6 CFM |
| Outdoor sound level | 64 dB | 65 dB | 65 dB |
| Listed refrigerant charge | 165.79 oz | 134.04 oz | 183.42 oz |
Technical Specifications
Dimensions are width × depth × height. Weights are outdoor unit weights, not shipping weights. Allow installation clearances specified in the manual.

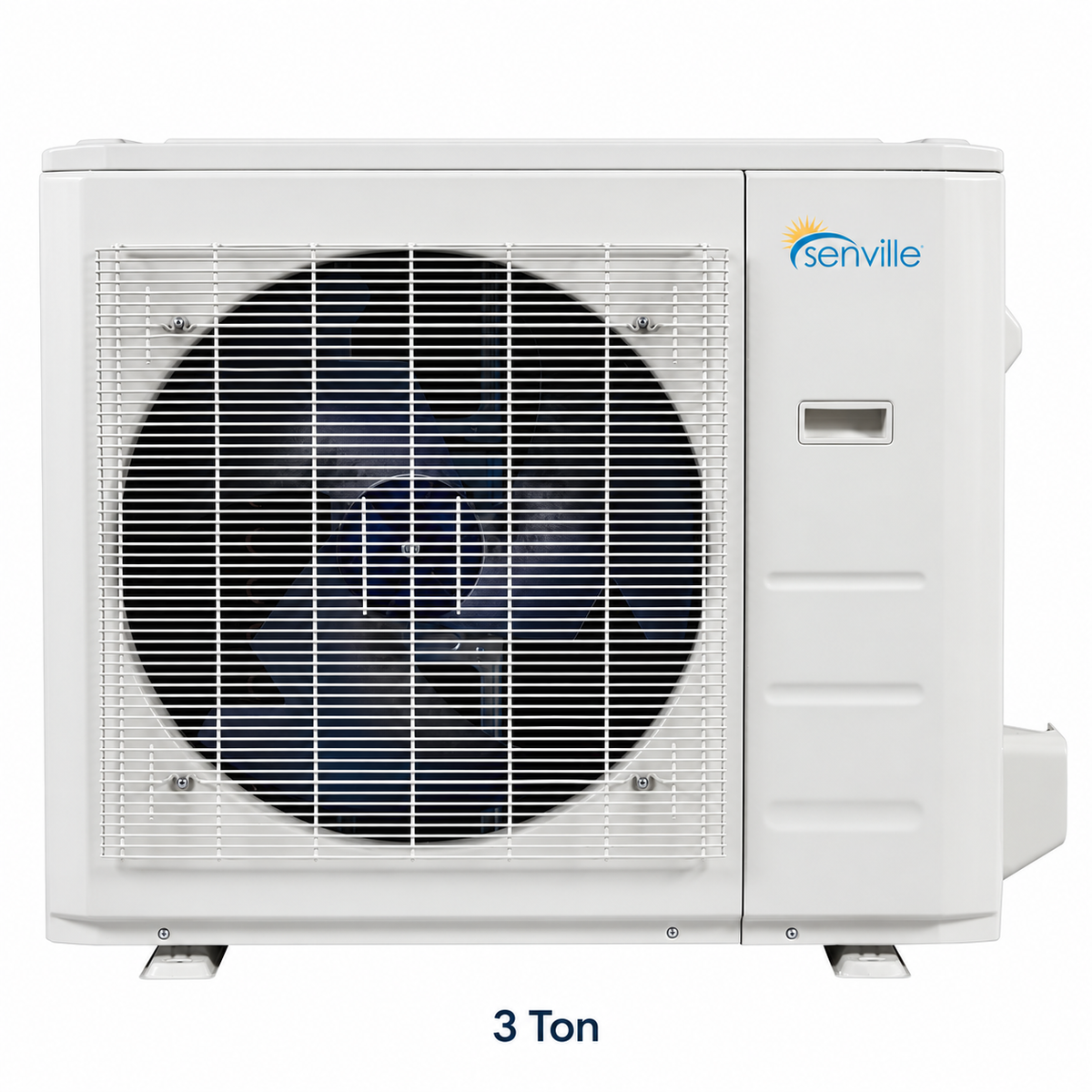

36,000 BTU — SENDC-36HF-OG
| Specification | Outdoor unit |
|---|---|
| Dimensions | 38.58 × 16.34 × 38.39 in. |
| Unit weight | 227 lb |

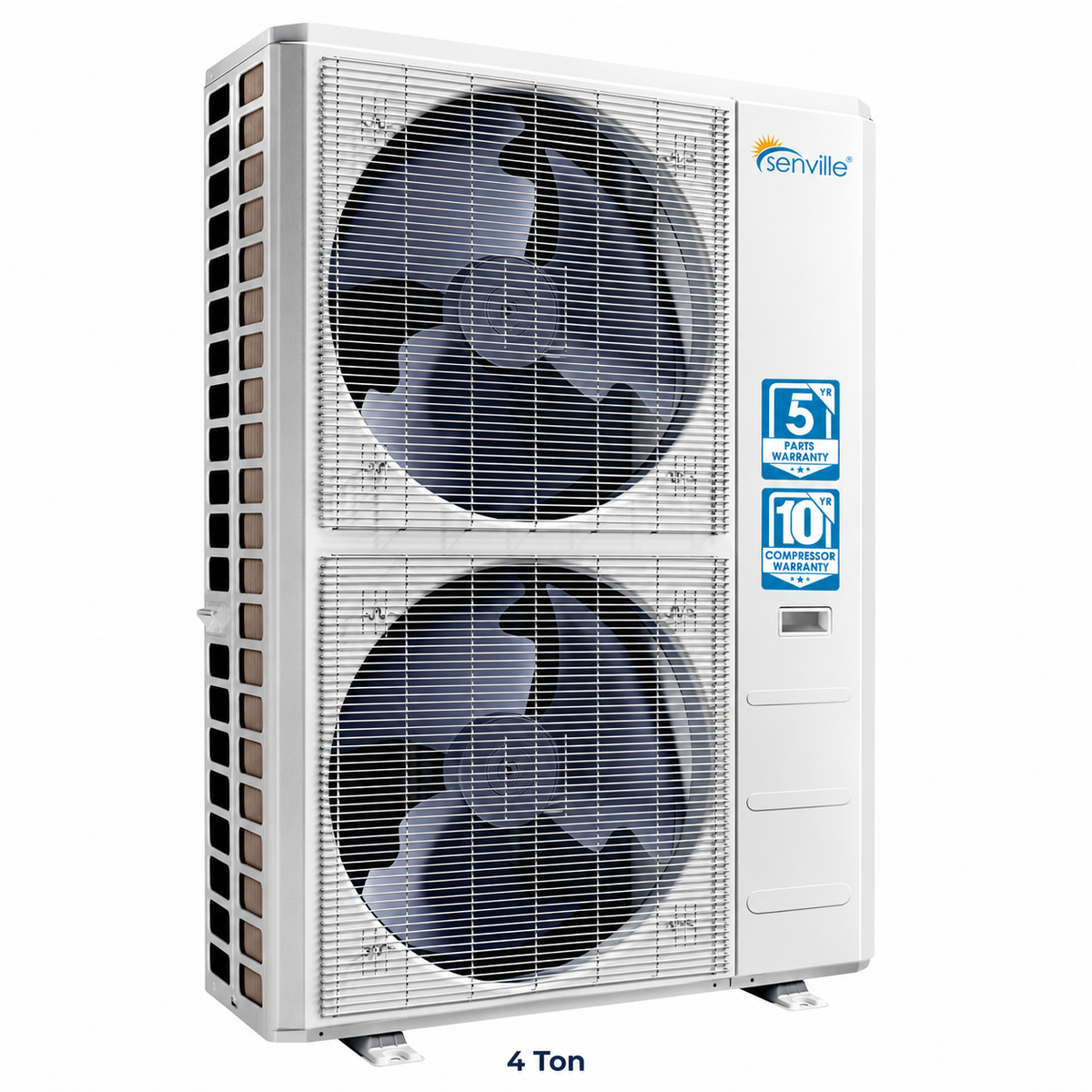

48,000 BTU — SENDC-48HF-OG
| Specification | Outdoor unit |
|---|---|
| Dimensions | 38.58 × 16.34 × 38.39 in. |
| Unit weight | 201.06 lb |

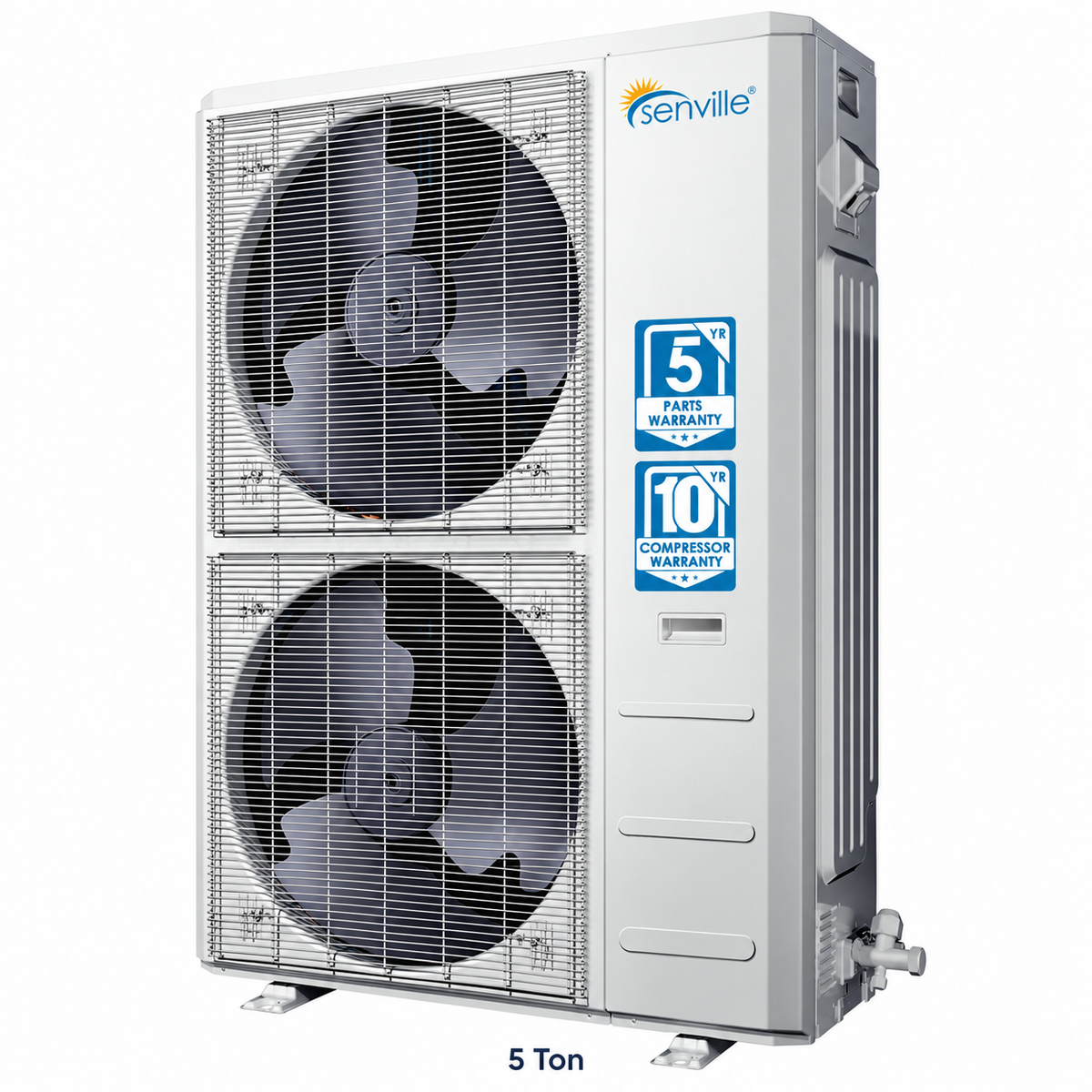

60,000 BTU — SENDC-60HF-OG
| Specification | Outdoor unit |
|---|---|
| Dimensions | 37.48 × 16.34 × 52.48 in. |
| Unit weight | 242.95 lb |
Limited Warranty
Senville lists 10-year compressor coverage and 5-year parts coverage for these SENDC systems, subject to the manufacturer's warranty terms and applicable installation requirements. This is a brief summary; refer to the full manufacturer warranty for coverage, exclusions and claim requirements.
Technical Documents
