Senville SENDC EUL Auxiliary Heater Kits | 5, 10, 15 & 20 kW
Senville SENDC EUL Auxiliary Heater Kits | 5, 10, 15 & 20 kW - 5 kW is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.

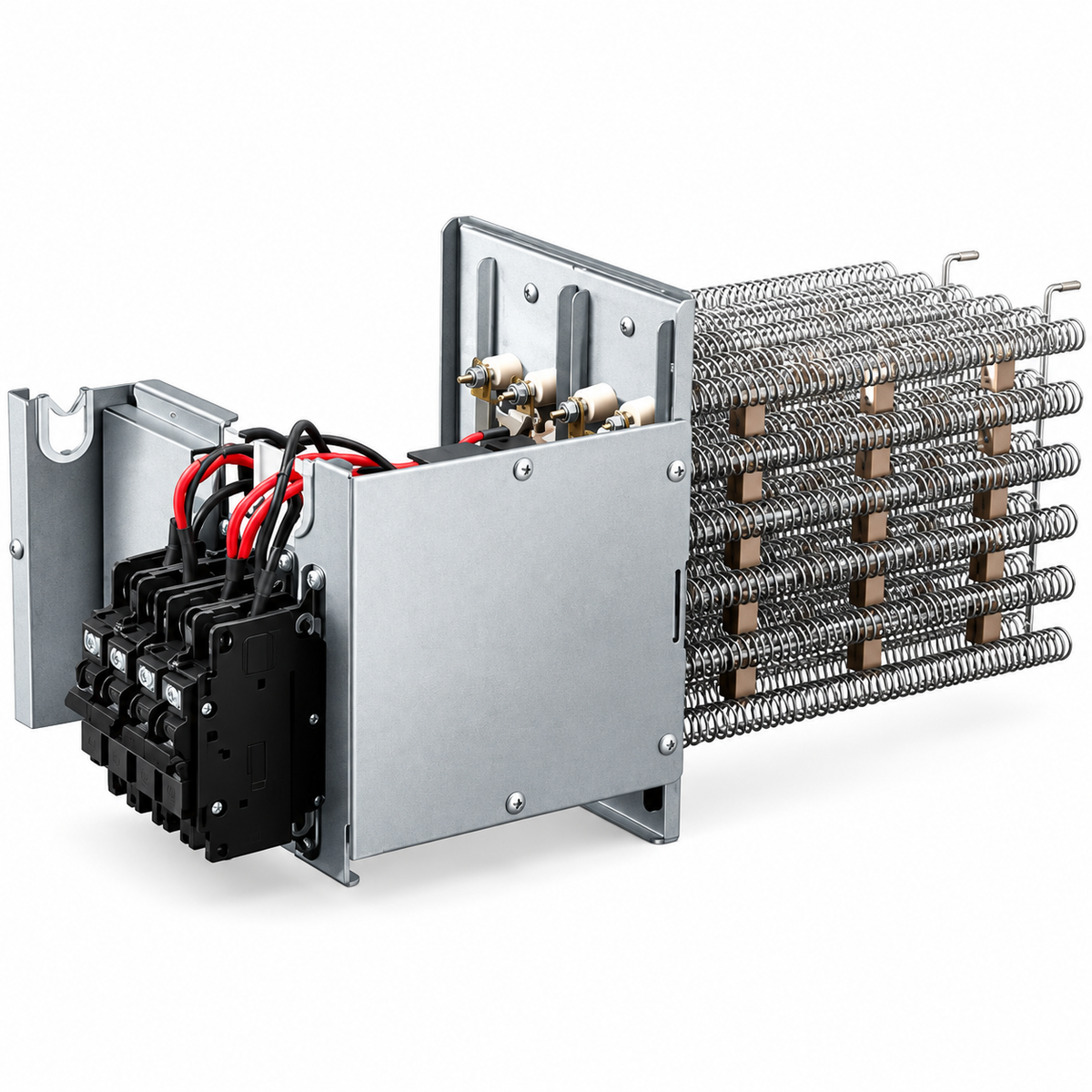

The Senville SENDC EUL Auxiliary Heater Kit family provides supplemental electric resistance heat for compatible SENDC central ducted air-handler systems. Available in 5, 10, 15, and 20 kW capacities, these internal heater modules provide backup or supplemental heating when additional output is needed during colder conditions.
Senville SENDC EUL Auxiliary Heater Kit Key Features
| Feature | Value |
|---|---|
| Manufacturer | Senville |
| Series | SENDC |
| Product Type | EUL Electric Auxiliary Heater Kit |
| Available Capacities | 5 / 10 / 15 / 20 kW |
| Application | Supplemental / backup electric heat |
| Installation | Internal compatible air-handler accessory |
| Electrical Type | Hardwired electric resistance heat |
| System Platform | Compatible SENDC central ducted systems |
| Important Restriction | Not compatible with top-discharge central systems |
| Installation Recommendation | Professional HVAC installation |
Senville SENDC EUL Technical Specifications
| Specification | 5 kW EUL | 10 kW EUL | 15 kW EUL | 20 kW EUL |
|---|---|---|---|---|
| Heating Capacity | 5 kW | 10 kW | 15 kW | 20 kW |
| Voltage | 240V | 240V | 240V | 240V |
| Product Dimensions (W × H × L) | 21.06 × 10.16 × 8.03 in | 21.06 × 10.16 × 8.03 in | 21.06 × 10.16 × 8.03 in | 21.06 × 10.16 × 8.03 in |
| Product Weight | 7 lb | 15 lb | ~15 lb | 15 lb |
| Circuit Breaker | 1 × 30A | 1 × 60A | Verify with Manufacturer | 2 × 60A |
Senville SENDC EUL Product Highlights
| Highlight | Detail |
|---|---|
| Capacity Choices | 5, 10, 15, or 20 kW |
| Heating Type | Electric resistance supplemental heat |
| Application | SENDC central ducted air handlers |
| Installation | Internal heater module |
| Highest Output | 20 kW |
| Critical Compatibility Note | Not for top-discharge central systems |
| Shipping | Compact parcel accessory |
Senville SENDC EUL Technical Documents
Senville SENDC EUL Auxiliary Heater Kits | 5, 10, 15 & 20 kW
