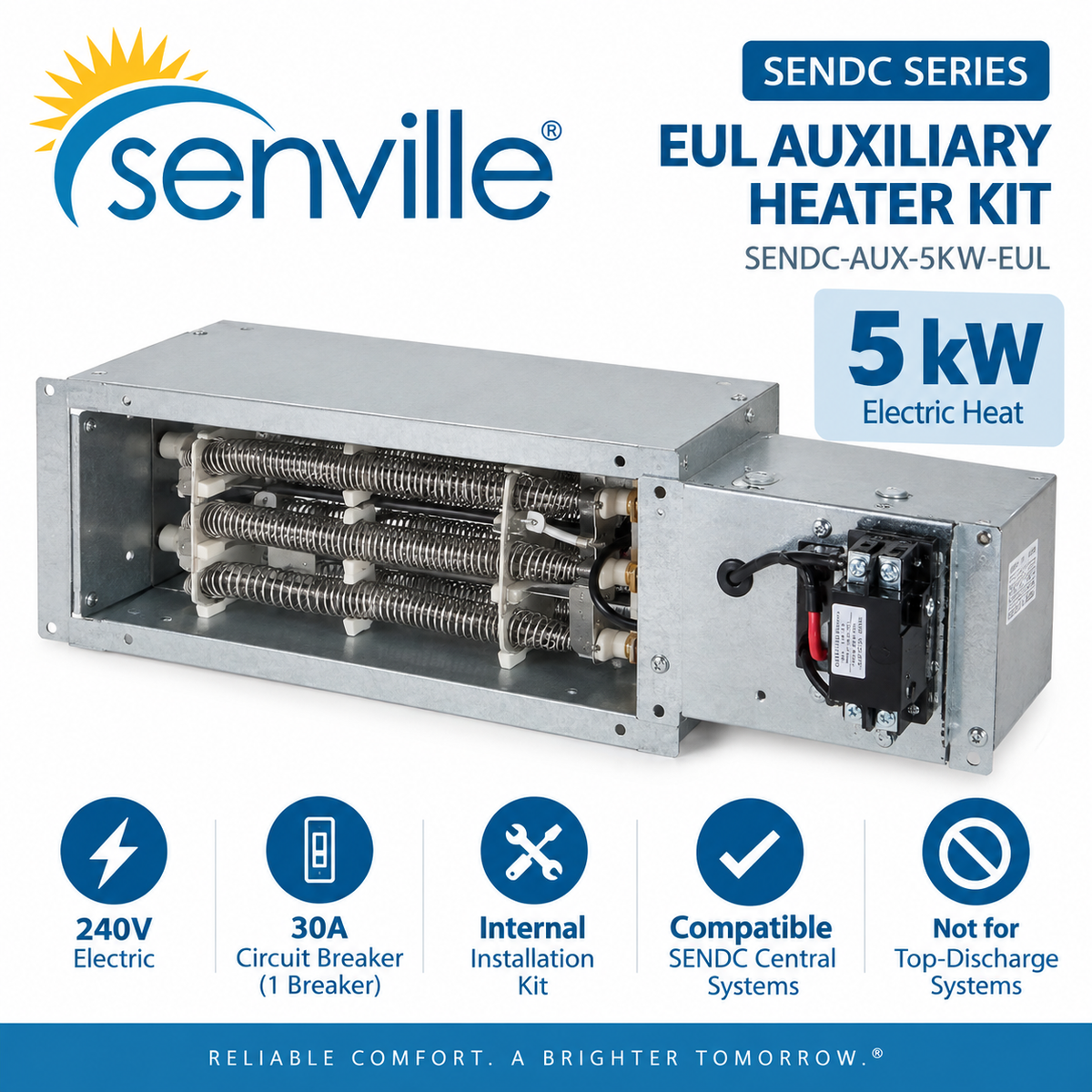

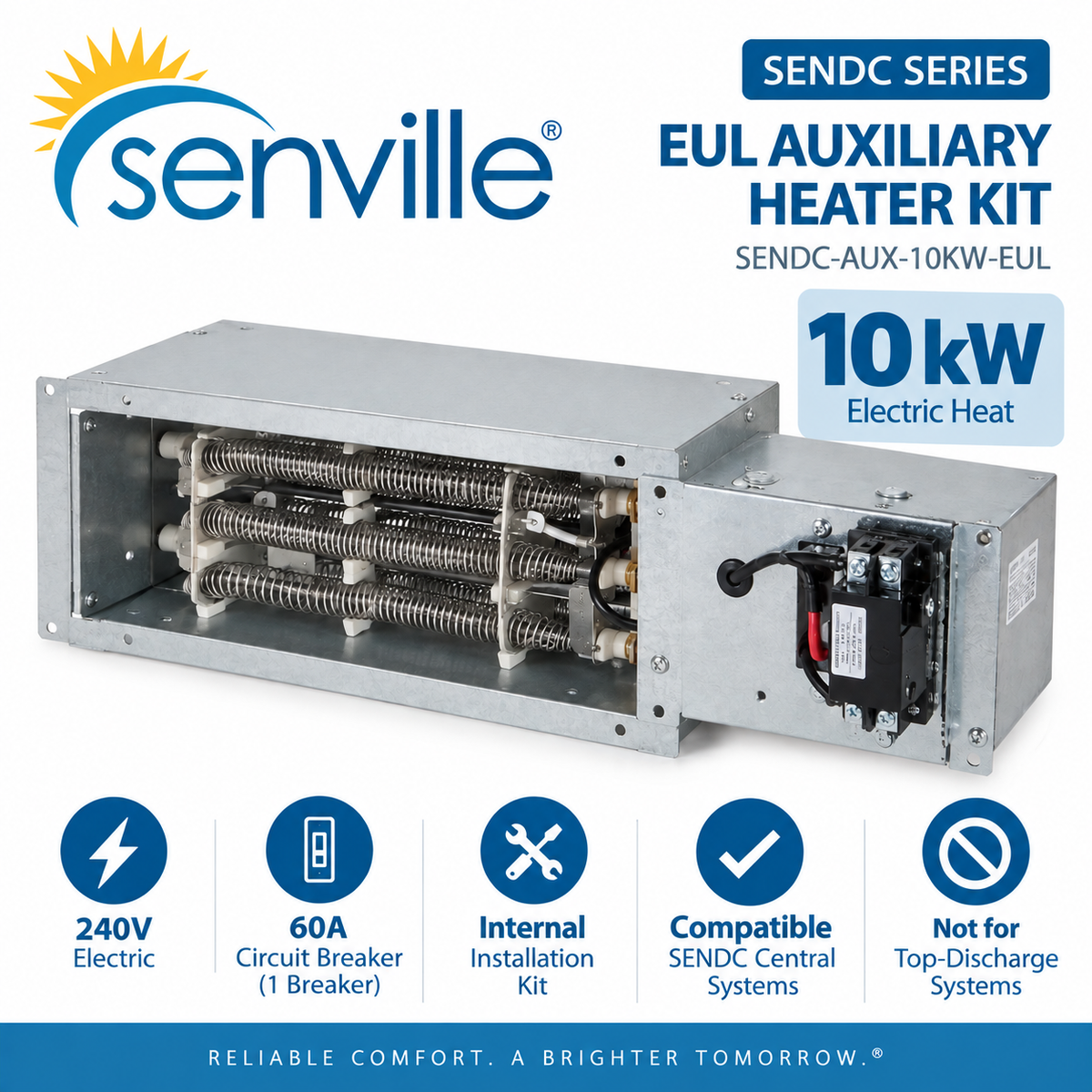

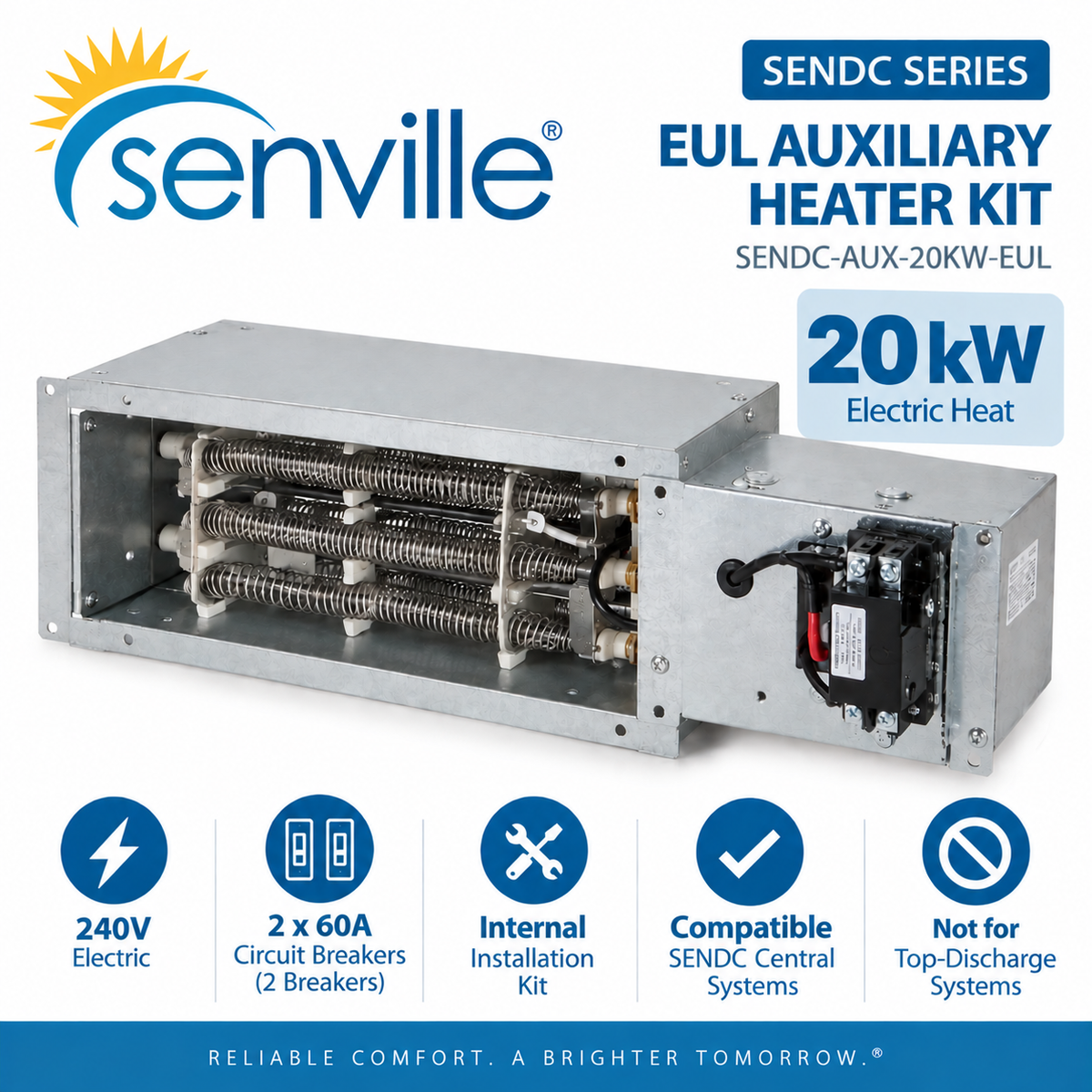

Senville SENDC EUL Auxiliary Heater Kits | 5, 10, 15 & 20 kW
Senville SENDC EUL Auxiliary Heater Kits | 5, 10, 15 & 20 kW - 5 kW is backordered and will ship as soon as it is back in stock.
The Senville SENDC EUL Auxiliary Heater Kit family provides supplemental electric resistance heat for compatible SENDC central ducted air-handler systems. Available in 5, 10, 15, and 20 kW capacities, these internal heater modules provide backup or supplemental heating when additional output is needed during colder conditions.
These EUL heater kits are not compatible with top-discharge central systems.
⚙️ Key Features
| Feature | Value |
|---|---|
| Manufacturer | Senville |
| Series | SENDC |
| Product Type | EUL Electric Auxiliary Heater Kit |
| Available Capacities | 5 / 10 / 15 / 20 kW |
| Application | Supplemental / backup electric heat |
| Installation | Internal compatible air-handler accessory |
| Electrical Type | Hardwired electric resistance heat |
| System Platform | Compatible SENDC central ducted systems |
| Important Restriction | Not compatible with top-discharge central systems |
| Installation Recommendation | Professional HVAC installation |
⚙️Technical Specifications
| Specification | 5 kW EUL | 10 kW EUL | 15 kW EUL | 20 kW EUL |
|---|---|---|---|---|
| Heating Capacity | 5 kW | 10 kW | 15 kW | 20 kW |
| Voltage | 240V | 240V | 240V | 240V |
| Product Length WxHxL |
21.06 in. x 10.16 in. x 8.03 in. | 21.06 in. x 10.16 in. x 8.03 in. | 21.06 in. x 10.16 in. x 8.03 in. | 21.06 in. x 10.16 in. x 8.03 in. |
| Product Weight | 7 lb | 15 lb | ~15 lb | 15 lb |
| Circuit Breaker | 1 × 30A | 1 × 60A | Verify with Manuf | 2 × 60A |
Product Highlights
| Highlight | Detail |
|---|---|
| Capacity choices | 5, 10, 15, or 20 kW |
| Heating type | Electric resistance supplemental heat |
| Application | SENDC central ducted air handlers |
| Installation | Internal heater module |
| Highest output | 20 kW |
| Critical compatibility note | Not for top-discharge central systems |
| Shipping | Compact parcel accessory |
⚙️Technical Documents:
Senville SENDC EUL Auxiliary Heater Kits | 5, 10, 15 & 20 kW
