Lawler 86820-01 570 3/8" Standard Under the Counter Valves
Lawler 86820-01 570 3/8" Standard Under the Counter Valves is backordered and will ship as soon as it is back in stock.

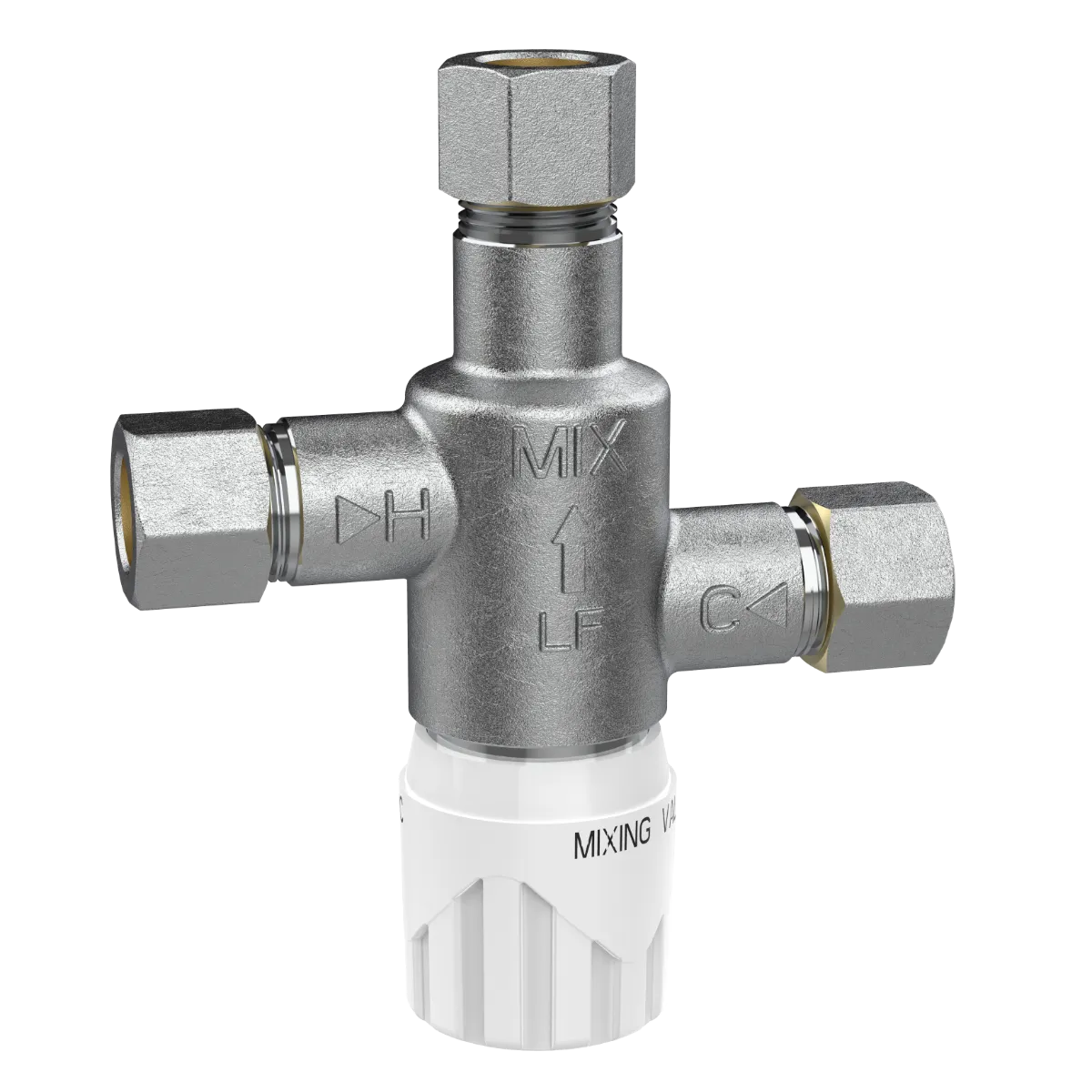

Lawler 86820-01 Model 570® Under-the-Counter Mixing Valve
The Lawler 86820-01 Model 570® is an under-the-counter mixing valve designed to provide tempered water at the point of use.
Its compact design supports point-of-use installations where controlled outlet-water temperature and tamper resistance are required.
Key Features & Benefits
- Point-of-Use Temperature Control: Designed to provide tempered water directly at the fixture.
- Adjustable Temperature: Allows outlet-water temperature adjustment within the specified operating range.
- Tamper-Resistant Design: Designed to resist unauthorized adjustments.
- Flexible Installation: Suitable for under-the-counter installations with or without cabinet enclosures.
- Compact Construction: Designed for point-of-use plumbing applications where installation space is limited.
Specifications
| Series | 570 |
|---|---|
| Model | 570-38 |
| Configuration | Standard |
| Application | Point of Use |
| Certifications | ASSE 1070, NSF 372, NSF 61 |
| Connection Type | Compression |
| Inlet Connection Size | 3/8" |
| Outlet Connection Size | 3/8" |
| Minimum Flow | 1 GPM |
| Minimum Flow with Recirculation | 1/2 GPM |
| Rated Flow at 10 PSI | 1-3/4 GPM |
| Rated Flow at 45 PSI | 3-1/2 GPM |
| Temperature Range | 80°F – 120°F |
| Weight | 2 lbs |
| Part Number | 86820-01 |
