ARCTIC-PUMP-FLANGE 1"
Most Items Ship Same Day
(Warranty, Return and Refunds)
Description–

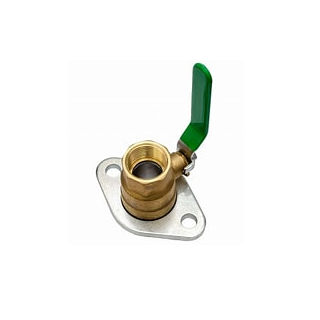

The 1" isolation pump flange is designed to isolate circulator pumps to facilitate circulator pump replacement or repairs. It features a brass body and flange with bottom loaded blowout proof stem, Buna-N stem O-Ring seal, virgin PTFE seat, integral press fitting end connection, and optional T-handle included.
Features:
Features:
- Buna-N stem and O-ring seal
- Press end connection
- Virgin PTFE seats
- Brass body and flange
- Actuation: No
- Assembled Dry: Yes
- Balance Stop Plate: No
- Ball Material: Chrome Plated Brass
- Body Finish: Brass
- Body Material: Brass
- Buy American Act Compliant: NO
- Control Type: Lever Handle
- EAN: 098268141160
- Inlet Connection Size: 1"
- Inlet Connection Type: Press
- Maximum Temperature-Fahrenheit: 406
- Minimum Temperature-Fahrenheit: 100
- Outlet Connection Size: 1"
- Outlet Connection Type: Press
- Seat Material: Virgin PTFE
- Series: IPF
- Stem Packing Material: Virgin PTFE
- Stem Shaft: Material Brass
- Stem Type: Bottom Loaded Blowout Proof
- Valve Style: 2-piece
- WOG Rating: 600 PSI
Specs:
Size: 1"
Connection Type: Press
Min Temp (F): 100' F
Max Temp (F): 406'F
Type: Isolation Flange
Disclaimer: Must be installed by a licensed contractor or warranty is void.
