Gol Pumps SBN 45-4 – Stainless Steel High-Efficiency Electric Pump Motor (3 PH Only)
22–30 kW IE3 Motor | SS316 Stainless Steel | 460V, 60Hz | Optional NEMA ANSI 300 Flanged Connections
The Gol Pumps SBN 45-4 is a heavy-duty, high-efficiency electric pump motor designed for continuous operation in demanding industrial, commercial, and sanitary environments. Available in 22 kW and 30 kW IE3-rated motor configurations, this model delivers high-output performance with reduced energy consumption on 460V, 60Hz three-phase power.
Constructed from premium SS316 stainless steel, the SBN 45-4 offers outstanding corrosion resistance, hygienic integrity, and durability. For installations requiring standardized high-pressure connectivity, the NEMA ANSI 300 flanged version provides secure and code-compliant integration into robust fluid systems.
✔ Key Features:
-
Available in 22 kW (ANSI 300) or 30 kW (standard) IE3 motor options
-
Operates on 3-phase, 460V, 60Hz power
-
SS316 stainless steel housing for corrosion and chemical resistance
-
Optional NEMA ANSI 300 flanged configuration for high-pressure applications
-
Built-in thermal overload protection
-
Quiet, low-vibration performance
-
Designed for continuous-duty use with minimal maintenance
✔ Recommended Applications:
-
Industrial Water Systems & Circulation
-
Clean Water & Reverse Osmosis Processes
-
Food & Beverage Processing
-
Pharmaceutical & Laboratory Use
-
Chemical Transfer & High-Pressure Pumping
-
Sanitary or Corrosive Fluid Environments
The Gol Pumps SBN 45-4 delivers superior flow capacity, material strength, and flexible configuration options—making it a powerful and reliable solution for high-demand, high-pressure fluid handling systems.

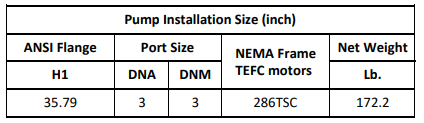

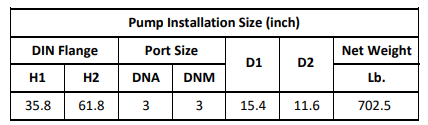

SBN 45-4:
