Gol Pumps SBN 64-4 – High-Efficiency Stainless Steel Pump Motor (3 PH Only)
45 kW or 37 kW IE3 Motor | SS316 Stainless Steel | 460V, 60Hz Three-Phase | Optional NEMA ANSI 300 Flanged Connections
The Gol Pumps SBN 64-4 is a heavy-duty, high-performance pump motor designed for demanding industrial and commercial fluid transfer applications. This model is available in two powerful configurations:
-
45 kW IE3 Motor in SS316 Stainless Steel for maximum flow and durability in corrosive or sanitary environments.
-
37 kW NEMA Motor with ANSI 300 flanged connections for integration into high-pressure piping systems.
Both configurations operate on 3-phase, 460V, 60Hz power, delivering exceptional energy efficiency and reliability. The SS316 stainless steel construction provides superior corrosion resistance, making it ideal for potable water, chemical processing, food and beverage, and pharmaceutical applications.
✔ Key Features:
-
Available in 45 kW IE3 stainless steel or 37 kW NEMA ANSI 300 motor options
-
460V, 60Hz, 3-phase operation for industrial-grade performance
-
SS316 stainless steel option for hygienic and corrosive environments
-
NEMA ANSI 300 flanged connection option for high-pressure systems
-
Energy-efficient IE3-rated motors reduce operating costs
-
Built for continuous-duty operation with minimal maintenance
-
Low-noise, low-vibration design for smooth performance
✔ Ideal Applications:
-
Municipal & Industrial Water Supply
-
RO Filtration & High-Flow Transfer
-
Food & Beverage Manufacturing
-
Pharmaceutical & Sanitary Processing
-
Chemical Circulation & Corrosive Media Handling
-
High-Pressure ANSI 300 Piping Systems
The Gol Pumps SBN 64-4 offers powerful performance, premium materials, and versatile connection options—making it the perfect choice for facilities that demand both strength and efficiency.

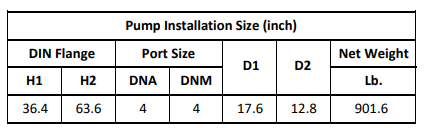

SBN 64-4:

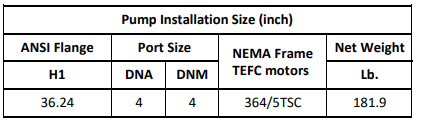

SBN 64-4 NEMA MOTOR ANSI 300:
Warranty:
Contact Manufacturer For Warranty Details - (786) 615-8984
