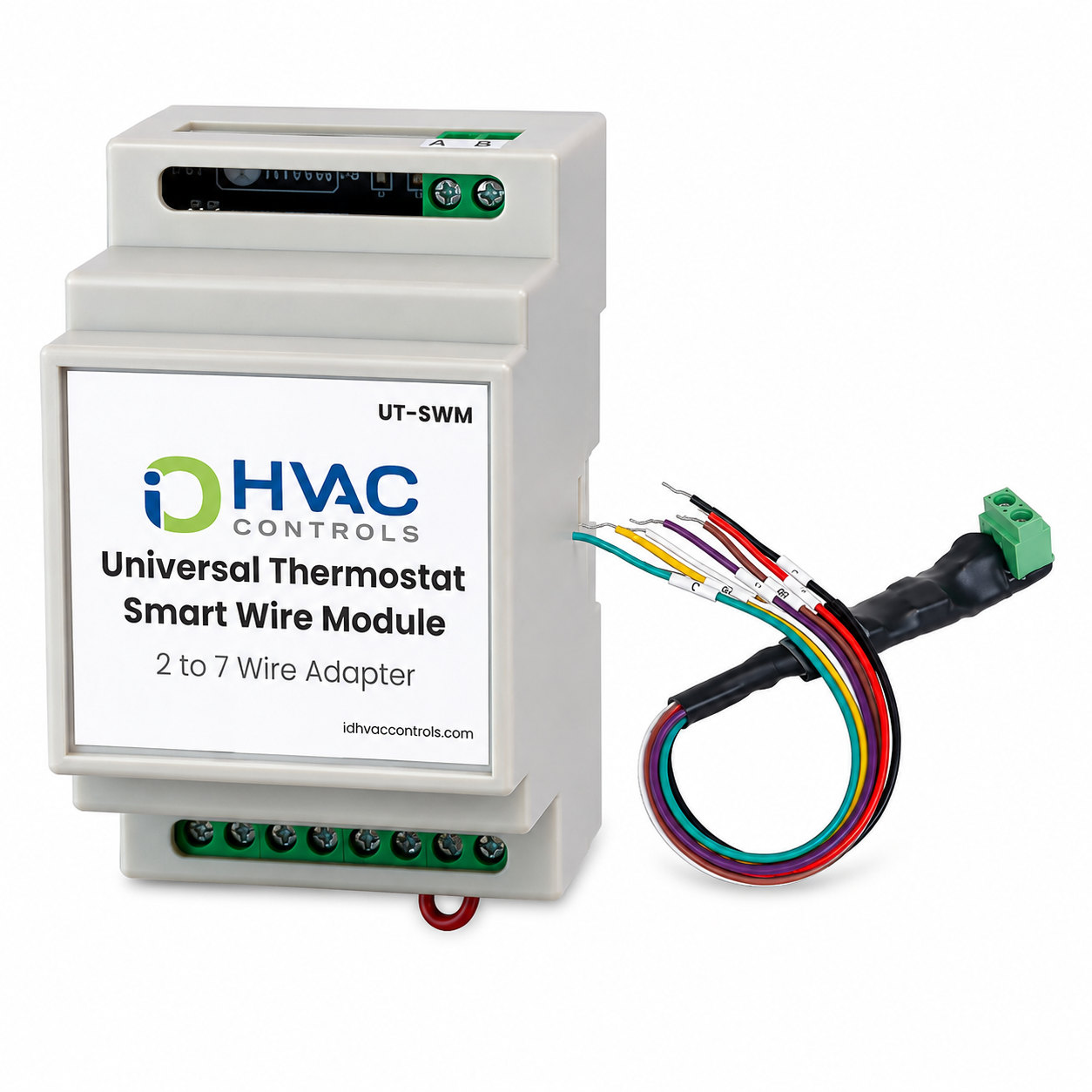

iO HVAC Controls UT-SWM Universal Thermostat Smart Wire Module
iO HVAC Controls UT-SWM Universal Thermostat Smart Wire Module is backordered and will ship as soon as it is back in stock.
UT-SWM Universal Thermostat Smart Wire Module | iO HVAC Controls
The iO HVAC UT-SWM Universal Thermostat Smart Wire Module is an innovative 2-to-7 wire adapter designed to expand thermostat capabilities without the need to run additional wiring. Perfect for retrofit applications, the UT-SWM allows contractors to add up to five additional outputs over a single pair of existing thermostat wires, saving both installation time and labor costs.
Ideal for situations where pulling new wire is difficult or impossible, the UT-SWM provides a simple and cost-effective solution for upgrading HVAC systems. Compatible with both heat pump and conventional HVAC systems, this universal smart wire module works with virtually all major thermostat brands.

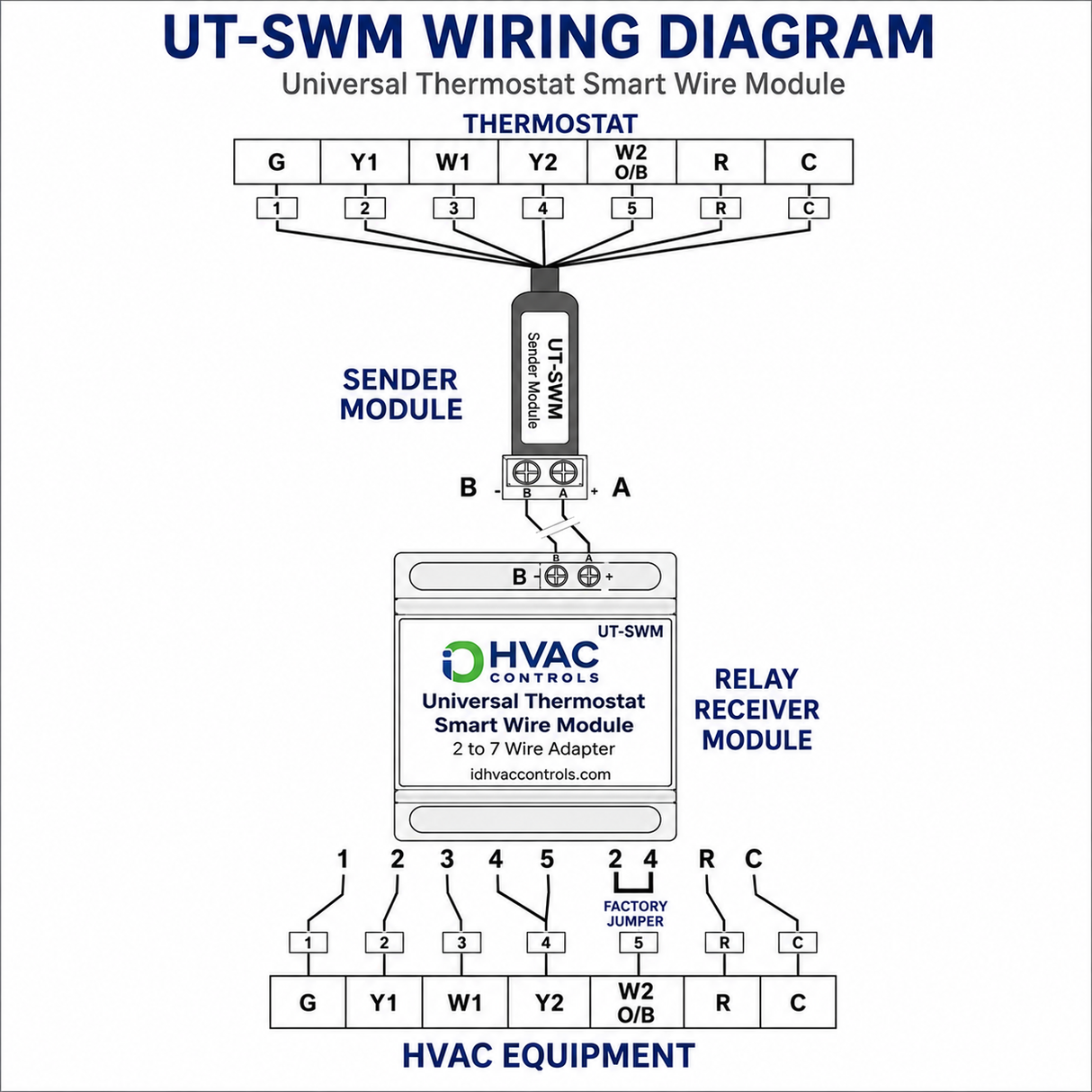

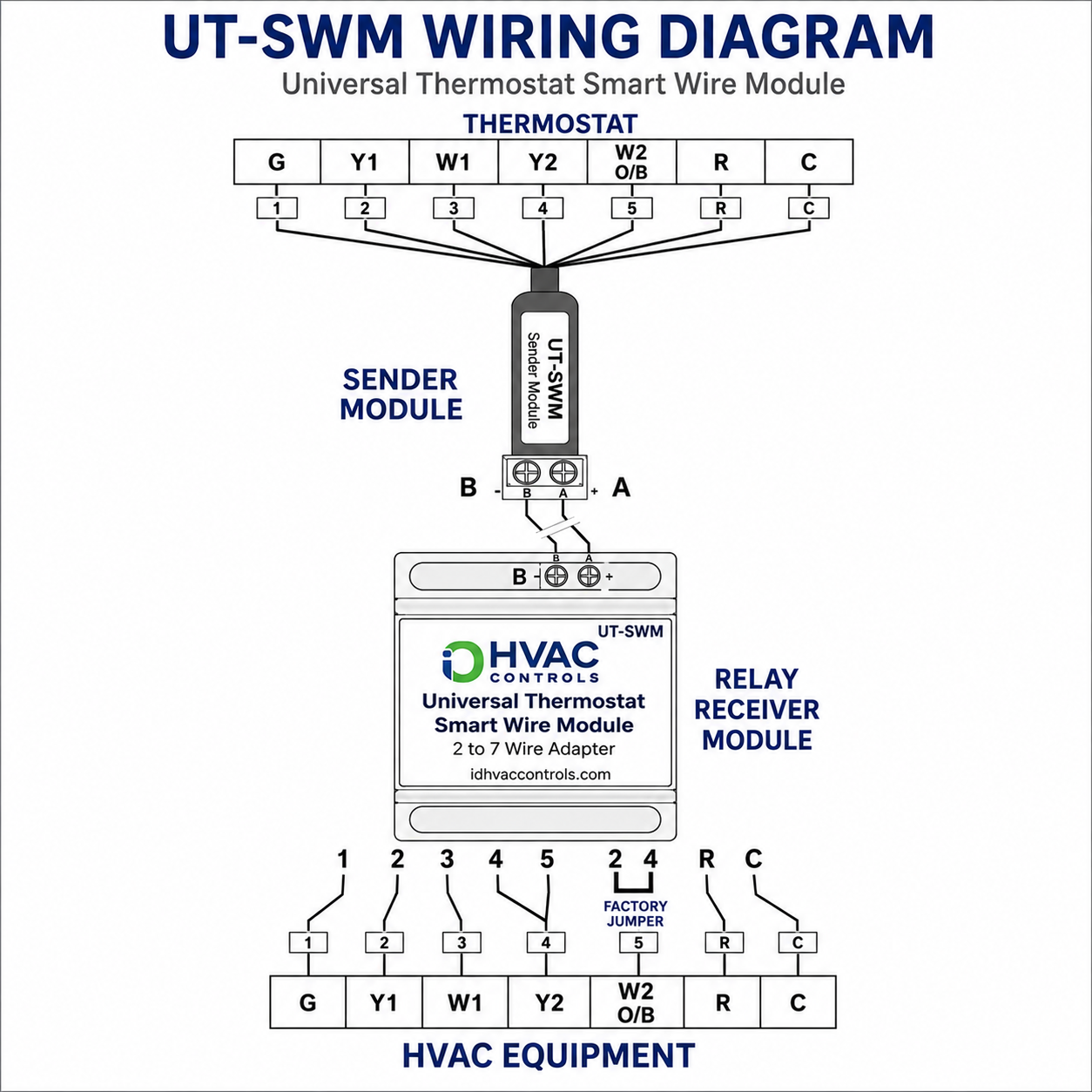

The compact system includes both a sender module and a relay receiver module, making it easy to add functionality between the thermostat and indoor HVAC equipment while utilizing existing wiring.
Whether you're replacing an outdated thermostat, upgrading equipment, or solving limited wiring issues, the UT-SWM Universal Thermostat Smart Wire Module delivers reliable performance and simplified installation.
Key Features
- Converts 2 existing wires into up to 7 thermostat wires
- Adds up to 5 additional outputs over a single pair of wires
- Eliminates the need to run new thermostat wiring
- Reduces installation time and labor costs
- Compatible with both heat pump and conventional HVAC systems
- Works with virtually all major thermostat brands
- Includes compact sender module and relay receiver module
- Ideal for retrofit and upgrade applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | UT-SWM |
| Product Type | Universal Thermostat Smart Wire Module |
| Application | 2-to-7 Wire Adapter |
| Power Supply | 24 VAC |
| Power Consumption | 0.15mA (No Relays), 0.45mA (All Relays On) |
| Maximum Load Current | 0.5 Amp @ 24 VAC |
| Relay Switching Current | 1 Amp per contact |
| Maximum Distance | 250 ft |
| Transmission Lag | Up to 5 Seconds |
| Maximum Operating Temperature | 122°F (150°F Storage) |
| Maximum Relative Humidity | 95% RH (Non-Condensing) |
| Warranty | 1 Year |
Technical Documents:
iO HVAC Controls UT-SWM Universal Thermostat Smart Wire Module
