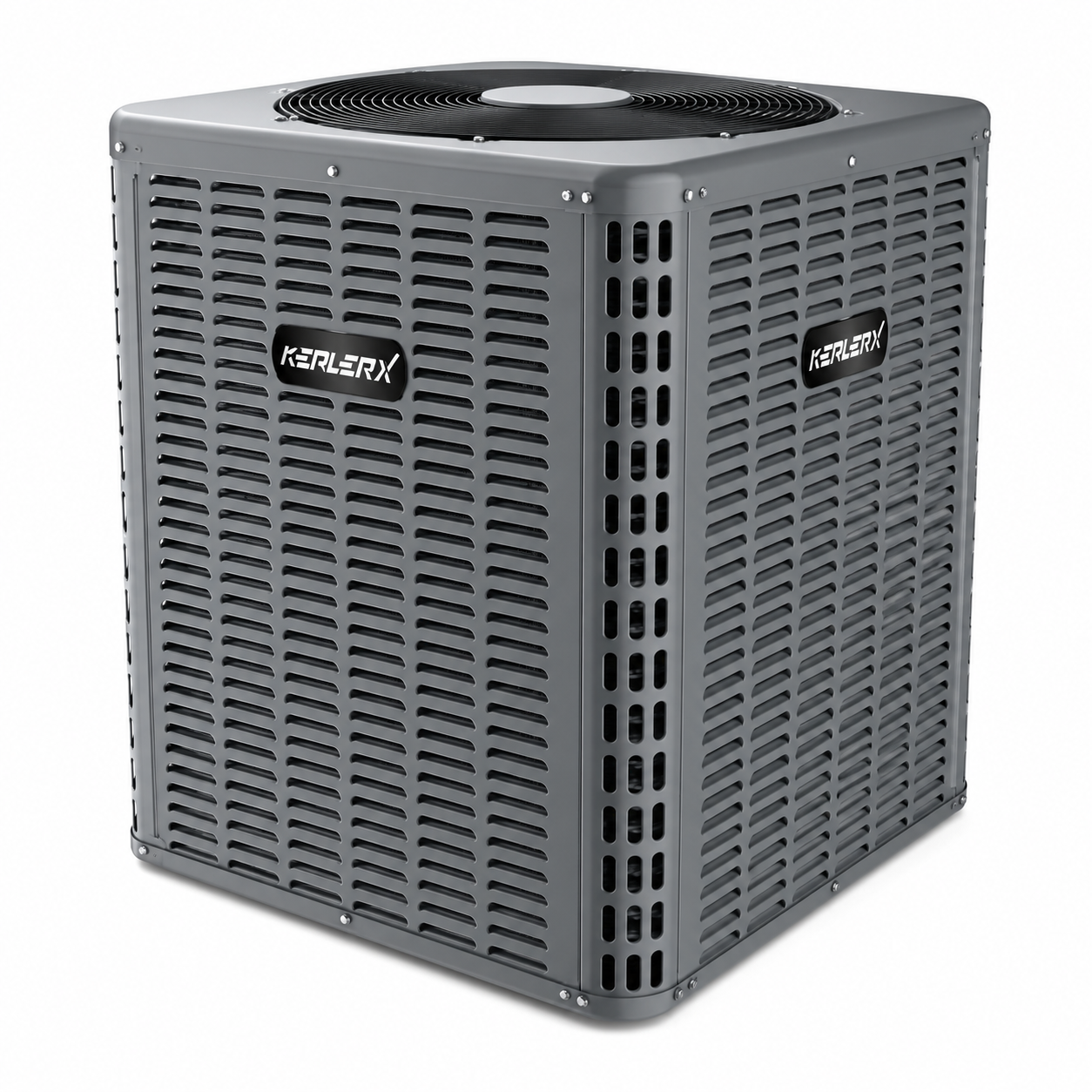

KeplerX 14.3 SEER2 Heat Pump Top Discharge R410A Dry Unit Series

$2,069.00

Most Items Ship Same Day (Warranty, Return and Refunds)

KeplerX 14.3 SEER2 Heat Pump Top Discharge R410A Dry Unit Series

The KeplerX 14.3 SEER2 Top Discharge Heat Pump Series is designed for high-efficiency performance, reliability, and simplified installation. These R410A “dry” outdoor heat pump units range from 1.5 to 5 tons, making them ideal for residential and light commercial applications. Each model is AHRI and ETL certified and engineered for long-term durability and quiet operation.

🌟 Key Features

High Efficiency: Up to 14.3 SEER2 cooling efficiency and 7.5 HSPF2 heating efficiency for optimal energy savings.
Scroll Compressor by LG: Reliable, quiet operation with thermal protection and internal overload safeguard.
Durable Construction: Hydrophilic aluminum fins and inner-grooved copper tubing maximize heat transfer and corrosion resistance.
Smart Fan System: GREEN-INTELLIGENCE or Panasonic fan motors ensure consistent airflow with quiet performance (as low as 60 dB).
Wide Operating Range: Cooling from 64°F to 118°F and heating from 17°F to 80°F ambient.
Environmentally Friendly: Uses R410A refrigerant with efficient charge management and standard piping connections.
Compact & Service-Friendly: Top-discharge design allows for space-saving installation and easy access for maintenance.

⚙️ Model Lineup & Performance

Model	Capacity	Compressor	SEER2	HSPF2	Power (V/Ph/Hz)	Max Current (A)	Cooling (Btu/h)	Heating (Btu/h)	Sound (dB[A])
K15HVH18W2V	1.5 Ton	LG APG016KAC Scroll	14.3	7.5	208/230V 1Ph 60Hz	11.5	17,500	17,500	60
K15HVH24W2V	2.0 Ton	LG APG020KAC Scroll	14.3	7.5	208/230V 1Ph 60Hz	15.0	22,000	22,000	60
K15HVH30W2V	2.5 Ton	LG APG024KAC Scroll	14.3	7.5	208/230V 1Ph 60Hz	17.0	28,000	26,000	63
K15HVH36W2V	3.0 Ton	LG APG029KAC Scroll	14.3	7.5	208/230V 1Ph 60Hz	23.0	33,000	33,000	63
K15HVH42W2V	3.5 Ton	LG ABG036KAC Scroll	14.3	7.5	208/230V 1Ph 60Hz	28.0	40,000	40,000	65
K15HVH48W2V	4.0 Ton	LG ABG039KAC Scroll	14.3	7.5	208/230V 1Ph 60Hz	29.5	45,000	44,000	65
K15HVH60W2V	5.0 Ton	LG ABG051KAC Scroll	14.3	7.5	208/230V 1Ph 60Hz	37.0	56,000	53,000	63

🔧 Technical Highlights

Refrigerant: R410A
Refrigerant Piping: Liquid 3/8", Gas 3/4" (≤3.5 ton) or 7/8" (≥4 ton)
Max. Line Length: 148 ft | Max. Elevation Difference: 66 ft
Design Pressure: 2.7–2.8 MPa | Max Pressure: 4.5 MPa
Airflow Range: 2,000 – 4,000 CFM
Noise Level: 60 – 65 dB(A)
Net Weight: 142 – 232 lbs (depending on model)

🏅 Certifications

AHRI Certified
ETL Listed
Complies with DOE 2023 Efficiency Standards

🔒 Warranty & Peace of Mind
