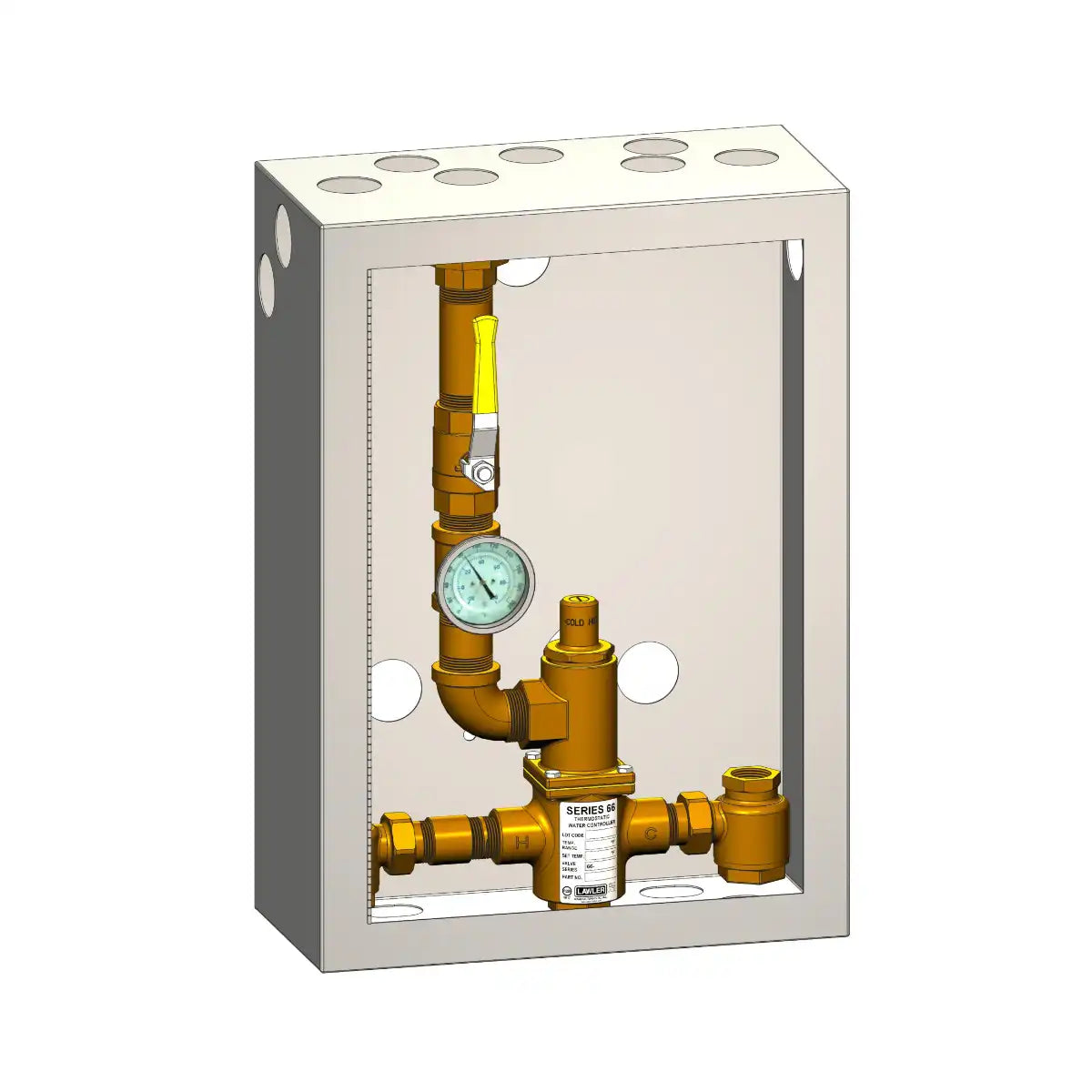

Lawler 83014 6625 Piped Thermometer Ball Valve Union Cabinet
Most Items Ship Same Day
(Warranty, Return and Refunds)
Lawler’s Model 66® meets your specifications for efficiently mixing large quantities of hot and cold water while delivering Three-Way Protection™ against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. The largest 66® valve can flow up to 200 GPM and accurately maintain outlet temperature within ±3°. Lawler Model 66®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.
Specifications:
| Series: 66 |
| Model: 6625 |
| Configuration: Piped Thermometer Ball Valve Union |
| Engineering Number: 83014 |
| Application: Master Controller |
| Certification/s: ASSE 1017, CSA B125.3, Lead Free |
| Connection Type: NPT |
| Inlet Connection Size: 3/4" |
| Outlet Connection Size: 3/4" |
| Min Flow: 3-3/4 GPM |
| Min Flow with Recirculation: 1/2 GPM" |
| Rated Flow at 10 PSI: 12 GPM |
| Rated Flow at 45 PSI: 25 GPM |
| Temperature Range: 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Finish: Rough Chrome, Polished Chrome, Rough Brass |
| Cabinet Mounting: 83014 Exposed, 83006 Recessed, Semi Recessed |
| Cabinet Finish: Carbon Steel (Baked White Enamel), Stainless Steel |
Documents and guides:
- Exposed Technical Documents
- Recessed Technical Documents
Disclaimer: Must be installed by a licensed contractor or warranty is void.
