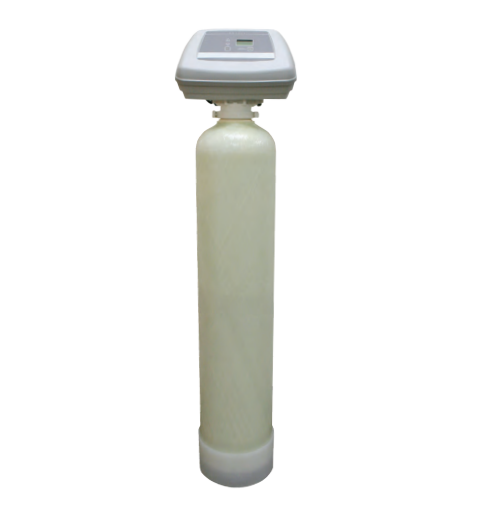

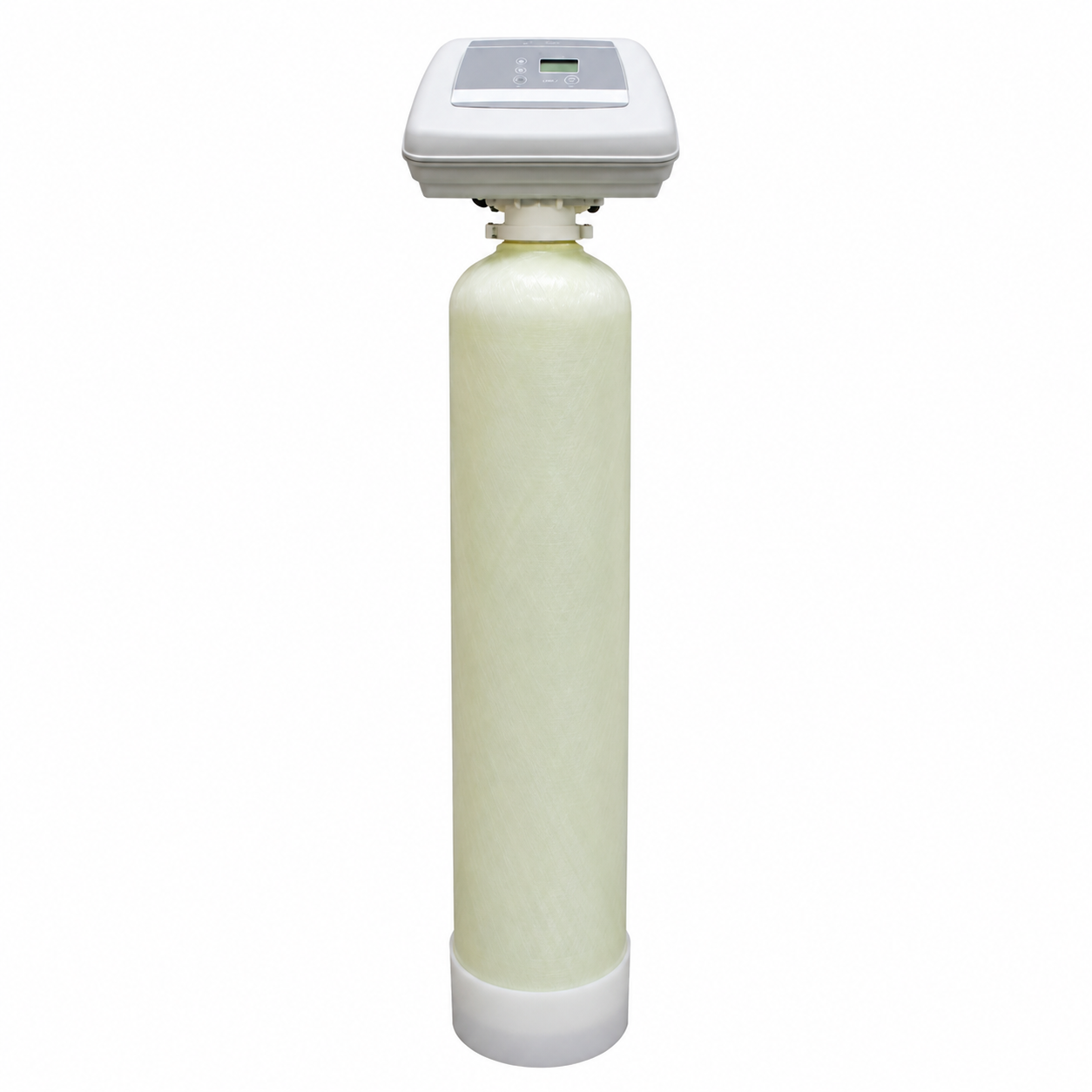

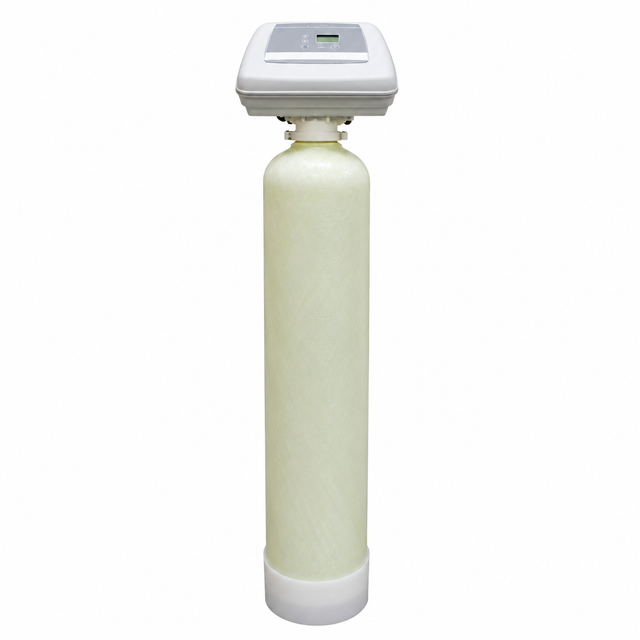

North Star All Purpose Filter (Empty) NSAPFSSA
Benefits:
- Select the mineral and configuration for your application
- Full one-inch diameter riser tube — for increased flow rate
- One inch plumbing connections
- Easy-to-use 24-volt controller — just plug transformer into wall outlet
- Multi-wrapTM fiberglass reinforced resin tank
- Does not include filtering mineral
FEATURES
• Automatic solid state, all purpose tank filter (media not included)
• 10" x 47" empty tank
• Select the mineral type and configuration that best treat the problem water
• Solid-state control provides precise control of all functions
• Capacitor maintains setting up to 6 hours
• Vacation setting
• Extra regeneration for high water use
• Large 1" Connection
Specifications:
Part Number: 7263154 |
House Hold Size: All |
Nominal Mineral Tank Size: 10" x 47" |
Supply Water pH Limitation Level: Variable |
Mineral Type: Not Supplied |
Amount of Mineral: 1 cu. ft. |
Amount of Filter Sand: 10 lbs. |
Amount of Gravel Base: 17 lbs. |
Inlet Water Pressure Limits: 25-125 PSI |
Max Water Temperature: 120◦F |
Min. Inlet Water Flow: 270 gal/hour |
Pipe Size: 1" |
Electrical Rating: 24V 60 Hz |
Service Flow Rates: NA |
Backwash Flow Rate: 5 gpm |
Type of Backwash Process: Automatic |
Documents and guides:
Disclaimer: Must be installed by a licensed contractor or warranty is void.
