Rusco 1-1/4" Hot Water Spin-Down Filter | High Temperature Sediment Filtration
Rusco 1-1/4" Hot Water Spin-Down Filter | High Temperature Sediment Filtration - 30 Mesh (500 Microns) is backordered and will ship as soon as it is back in stock.

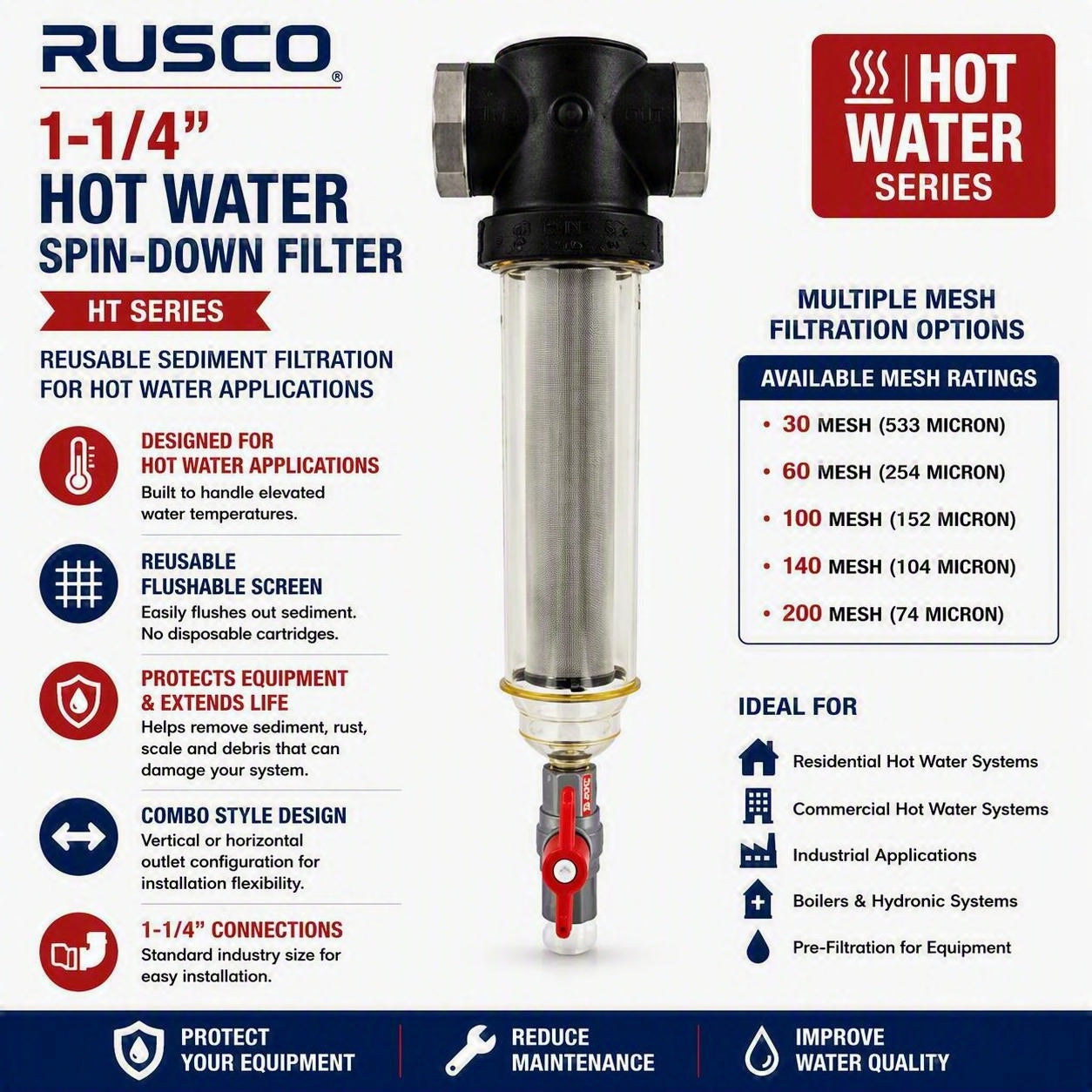

Rusco 1-1/4" Hot Water Spin-Down Filter
The Rusco 1-1/4" Hot Water Spin-Down Filter provides reusable sediment filtration for water systems where water temperatures are consistently elevated and a standard sediment filter may not be appropriate.
Rusco's Hot Water filter uses a durable thermoplastic construction with a reusable stainless steel filter element. The filter helps capture sediment, rust, scale, and other suspended debris before it reaches water heaters, pumps, valves, fixtures, and downstream equipment.
The transparent cover allows sediment buildup to be visually monitored, while the built-in flush valve allows collected sediment to be discharged during routine maintenance. The stainless steel element can also be removed, cleaned, and returned to service.
The 1-1/4" Hot Water Spin-Down supports a 10–50 GPM flow range, uses 1-1/4" FPT inlet and outlet connections, and measures approximately 15-3/8" L × 5-1/4" W.
Key Features
| Feature | Verified Data |
|---|---|
| Manufacturer | Rusco |
| Series | Hot Water |
| Product Type | Spin-Down Sediment Filter |
| Connection Size | 1-1/4" |
| Connection Type | FPT |
| Flow Range | 10–50 GPM |
| Product Dimensions | 15-3/8" L × 5-1/4" W |
| Filter Media | Stainless Steel Mesh |
| Mesh Options | 30, 60, 100, 140, 200 |
| Maximum Pressure | 150 PSI at 73°F (23°C) |
| Maximum Temperature | 165°F at 80 PSI |
| Reusable Element | Yes |
| Flush Valve | Included |
Hot Water 1-1/4" SKUs
| SKU | Mesh | Approx. Micron |
|---|---|---|
| 1-1/4-30 HT-F | 30 | 533 |
| 1-1/4-60 HT-F | 60 | 254 |
| 1-1/4-100 HT-F | 100 | 152 |
| 1-1/4-140 HT-F | 140 | 104 |
| 1-1/4-200 HT-F | 200 | 74 |
Product Highlights
| Highlight | Benefit |
|---|---|
| Hot Water Construction | Designed for applications where water is consistently above 100°F |
| Stainless Steel Element | Reusable and available in five mesh sizes |
| Transparent Cover | Allows visual inspection of sediment buildup |
| Flush-Clean Maintenance | Built-in flush valve simplifies routine sediment removal |
| No Disposable Cartridge | Reusable screen can be cleaned and reinstalled |
Typical Applications
- Hydronic heating systems
- Outdoor wood boilers
- Water heaters
- Instantaneous water heaters
- Hot-water equipment protection
- Sediment pre-filtration in elevated-temperature systems
