SANCO2 200 Gallon + 30kw ECO-200SW30

ECO-200SW30 – 200 Gallon & 30kW Swing Tank

The ECO-200SW30 Swing Tank is a high-capacity, ASME-certified hot water storage tank engineered for GS5-45HPC & -D heat pumps. With a 200-gallon volume and dual 15kW Incoloy elements, this tank provides instant, reliable hot water for commercial or industrial applications where high performance and efficiency are essential.

🔧 Construction & Durability

• Carbon steel tank with Ultonium glass lining, fired to 1600°F for long-term corrosion resistance.

• Built to ASME code standards.

• Certified for indoor installation only.

• Equipped with 3 x Magnesium Anodes for superior protection against corrosion.

🔥 Performance & Capacity

• Tank Volume (Actual/Nominal): 200 Gallons

• Capacity per Heat Pump: 4.5kW or 15,400 Btu/h

• Recovery per HP @ 90°F Rise: 20.6 GPH

• Installed Tank Weight: 550 lbs | Shipping Weight: 742 lbs

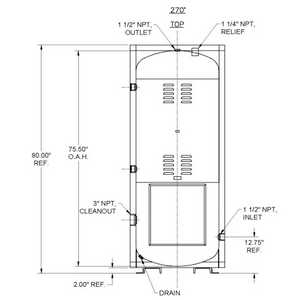

💧 Connections

• Recirculation/Heat Pump Manifold Inlet: 1 ½” NPT

• Hot Water Outlet: 1 ½” NPT

⚡ Electric Heating Elements

• 2 Low Watt Density Incoloy Elements resist corrosion, scaling, high temperatures, and thermal shock.

• Total Output: 30 kW

• Number of Element Contactors: 2

• Voltage & Amperage Draw:

  • 208V-1Ph: 144.0A

  • 240V-1Ph: 125.0A

  • 208V-3Ph: 83.0A

  • 240V-3Ph: 72.0A

🌡 Controls & Safety

• Magnetic contactors with immersion thermostats.

• 120V control circuit with built-in transformer.

• Elements thermostatically controlled in 54 kW (Max) increments.

• Internal fusing in 48A increments ensures protection.

• Supplied with ASME-approved Pressure Relief Valve (150 Psig).

• Electric panel designed for indoor use only.

🛡 Insulation & Efficiency

• High-density closed-cell foam insulation to minimize heat loss.

• Meets ASHRAE 90.1b efficiency standard (max 4 watts/sq. ft. energy loss).

✅ Certifications & Warranty

• ASME Certified Tank.

• ETL & ETLc Approved.

• 5-Year Tank Warranty.

• Building Management System (BMS) interface contacts included for remote operation.

Technical Documents:

• Submittal
