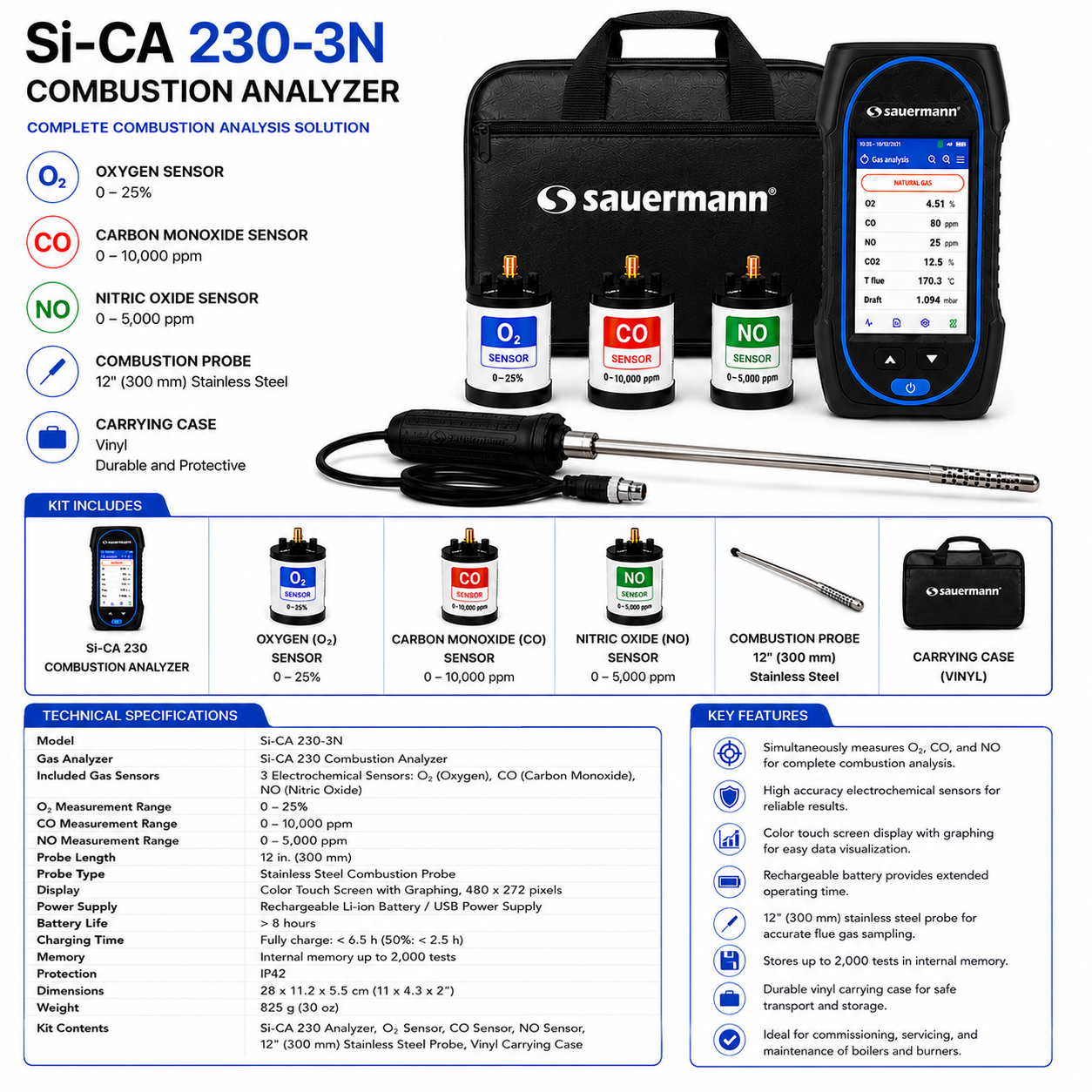

Sauermann Si-CA 230-3N
Sauermann Si-CA 230-3N is backordered and will ship as soon as it is back in stock.
With double the number of cells and expanded measurement capabilities, the Si-CA 230 is suited to the most powerful industrial machines. And with support for more gases and a high CO tolerance threshold, its versatility makes it the ideal choice across residential, commercial and industrial applications.
Si-CA 230-2 kit content
• Si-CA 230 analyzer
• O2 & CO gas sensors(other gas sensors available,see Optional accessories)
• CO Dilution Auto-Range to 50,000 ppm
• Protective rubber holster
• 300 mm flue gas probe with 3 m dual hose (other probe lengths available)
• Water trap with filter
• AC power supply / charger
• USB cable
• Mobile app & PC software
• Internal wireless communication module
• Carrying case
• Quick Start Guide
• Calibration certificate
Apps and software
• Free apps for iOS & Android mobile devices
• PC software with USB & wireless connectivity
• Fast, easy wireless connection
• Remote live view of combustion analysis data as list or graph
• Remote control to change settings
• Data saving, including automatic logging
• Report creation in PDF, CSV (for Excel) and XML formats
• Databases for customers, operators, & equipment
| Specification | Details |
|---|---|
| Dimensions | 28 × 11.2 × 5.5 cm (11 × 4.3 × 2 in.) |
| Weight | 825 g (30 oz) |
| Display | Color Touch Screen with Graphing, 480 × 272 pixel resolution |
| Keypad | 1 On/Off key |
| Housing Material | ABS-PC |
| Protection Rating | IP42 |
| Wireless Connection | Bluetooth® Class 2, frequency range 2402 MHz to 2480 MHz, transmit power 1 dBm, range up to 15 m (50 ft) depending on smartphone radio strength |
| Mobile Compatibility | Android 8.0 or later, iOS 12.4 or later, BLE 4.0 Low Energy |
| USB Connection | USB interface for charging and data transfer |
| Power Supply | Rechargeable Li-Ion battery, 5100 mAh, 3.6 V; USB power supply |
| Mains Power Supply | 100-240 Vac, 50-60 Hz; Output: 5 Vdc / 2 A |
| Battery Life | > 8 hours |
| Charging Time | 50% charge: < 2.5 hours; Full charge: < 6.5 hours |
| Memory Capacity | Internal memory stores up to 2,000 tests |
| Operating Temperature | -5 to 45 °C (23 to 113 °F) |
| Operating Humidity | Non-condensing conditions (< 85% RH) |
| Maximum Operating Altitude | 2,000 m (6,561 ft) |
| Storage Temperature | -20 to 50 °C (-4 to 122 °F) |
| Available Languages | English, French, German, Spanish, Italian, Portuguese, Chinese |
| European Union Directives | 2014/53/EU (RED); 2015/863/EU (RoHS 3) |
| Standards & Regulations | EN 50379-1, EN 50379-2, UNI 7129, UNI 11137, UNI 10389, UNI 10845, BS 7967:2015, BS EN 50543:2011, UNE 60670-10, ES.02173.ES |
| Certifications | UL & cUL Listed, TÜV SÜD Certified |
