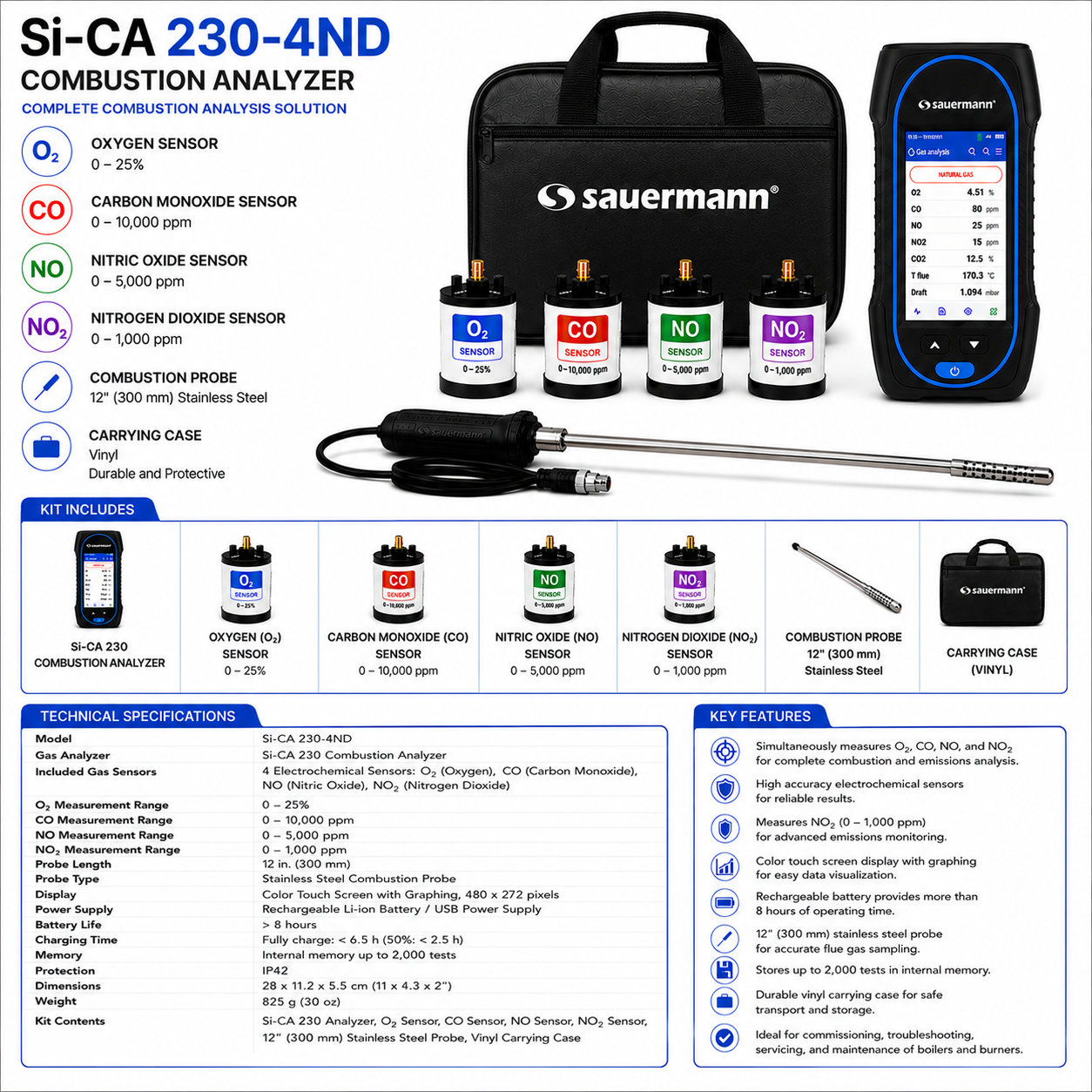

Sauermann Si-CA 230-4ND
Sauermann Si-CA 230-4ND is backordered and will ship as soon as it is back in stock.
With double the number of cells and expanded measurement capabilities, the Si-CA 230 is suited to the most powerful industrial machines. And with support for more gases and a high CO tolerance threshold, its versatility makes it the ideal choice across residential, commercial and industrial applications.
Si-CA 230-2 kit content
• Si-CA 230 analyzer
• O2 & CO gas sensors(other gas sensors available,see Optional accessories)
• CO Dilution Auto-Range to 50,000 ppm
• Protective rubber holster
• 300 mm flue gas probe with 3 m dual hose (other probe lengths available)
• Water trap with filter
• AC power supply / charger
• USB cable
• Mobile app & PC software
• Internal wireless communication module
• Carrying case
• Quick Start Guide
• Calibration certificate
Apps and software
• Free apps for iOS & Android mobile devices
• PC software with USB & wireless connectivity
• Fast, easy wireless connection
• Remote live view of combustion analysis data as list or graph
• Remote control to change settings
• Data saving, including automatic logging
• Report creation in PDF, CSV (for Excel) and XML formats
• Databases for customers, operators, & equipment
Technical Specifications
| Specification | Details |
|---|---|
| Model | Si-CA 230-4ND |
| Gas Analyzer | Si-CA 230 Combustion Analyzer |
| Included Gas Sensors | 4 Electrochemical Sensors: O₂ (Oxygen), CO (Carbon Monoxide), NO (Nitric Oxide), NO₂ (Nitrogen Dioxide) |
| O₂ Measurement Range | 0 to 25% |
| CO Measurement Range | 0 to 10,000 ppm |
| NO Measurement Range | 0 to 5,000 ppm |
| NO₂ Measurement Range | 0 to 1,000 ppm |
| Probe Length | 12 in. (300 mm) |
| Probe Type | Stainless Steel Combustion Probe |
| Display | Color Touch Screen with Graphing, 480 × 272 pixels |
| Power Supply | Rechargeable Li-Ion Battery / USB Power Supply |
| Battery Life | > 8 hours |
| Charging Time | Full charge: < 6.5 hours; 50% charge: < 2.5 hours |
| Memory Capacity | Internal memory stores up to 2,000 tests |
| Protection Rating | IP42 |
| Dimensions | 28 × 11.2 × 5.5 cm (11 × 4.3 × 2 in.) |
| Weight | 825 g (30 oz) |
| Carrying Case | Soft Vinyl Carrying Case |
| Sensor Technology | Field-Replaceable Electrochemical Sensors |
| Application | Combustion Analysis, Emissions Monitoring, and Flue Gas Testing for HVAC Equipment |
| Kit Contents | Si-CA 230 Analyzer, O₂ Sensor, CO Sensor, NO Sensor, NO₂ Sensor, 12" (300 mm) Stainless Steel Probe, Vinyl Carrying Case |
Key Features
- Simultaneously measures Oxygen (O₂), Carbon Monoxide (CO), Nitric Oxide (NO), and Nitrogen Dioxide (NO₂) for complete combustion and emissions analysis.
- Advanced NO₂ measurement capability (0–1,000 ppm) for enhanced emissions monitoring.
- High-accuracy electrochemical sensors provide reliable and repeatable measurements.
- Large color touchscreen display with graphing capabilities for easy data visualization.
- Rechargeable Li-Ion battery provides more than 8 hours of continuous operation.
- Stores up to 2,000 combustion tests in internal memory.
- 12" (300 mm) stainless steel combustion probe ensures accurate flue gas sampling.
- Field-replaceable sensors minimize maintenance costs and downtime.
- Durable vinyl carrying case protects the analyzer during transport and storage.
- Ideal for commissioning, troubleshooting, servicing, emissions monitoring, and maintenance of boilers and burners.
Warranty:
Technical Documents:
