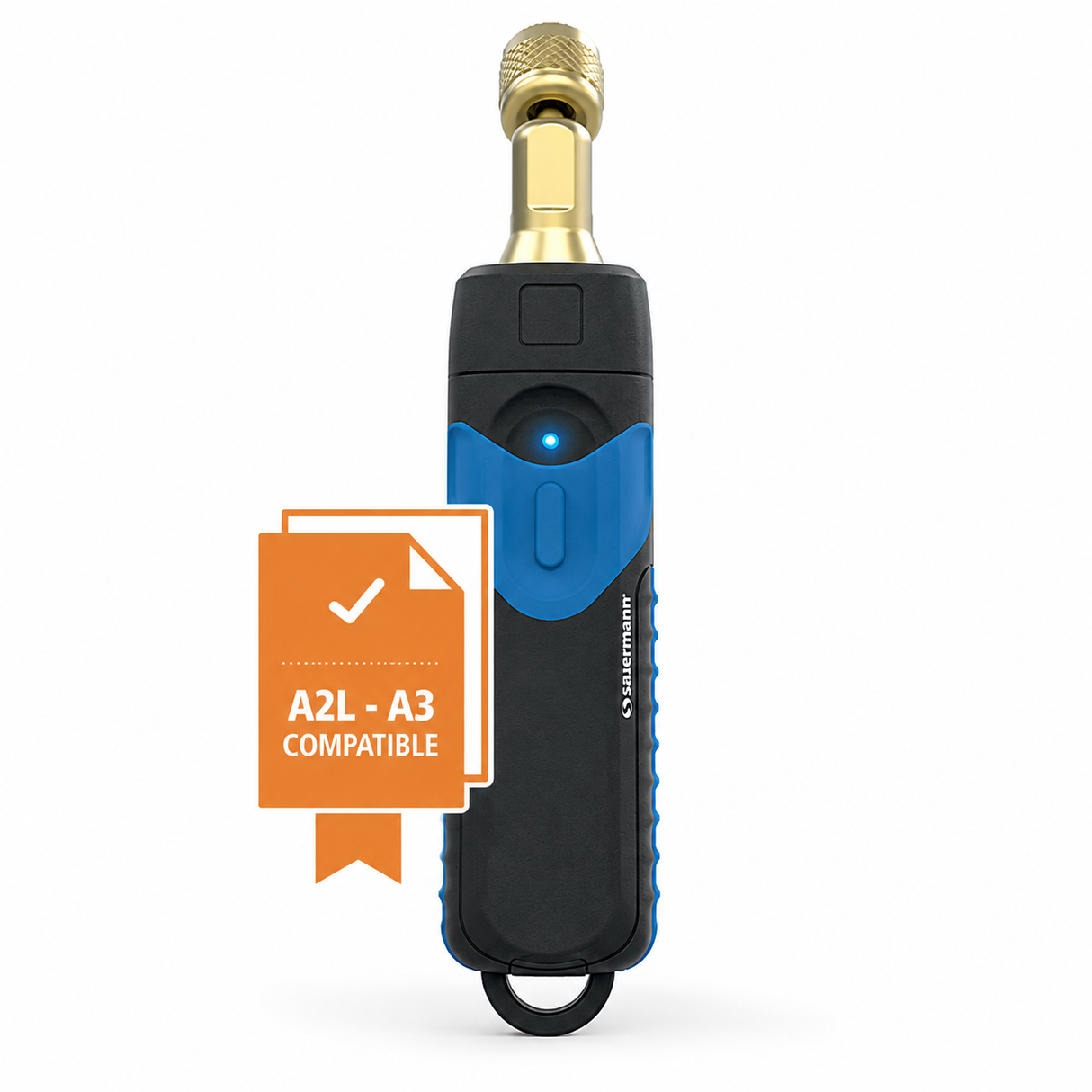

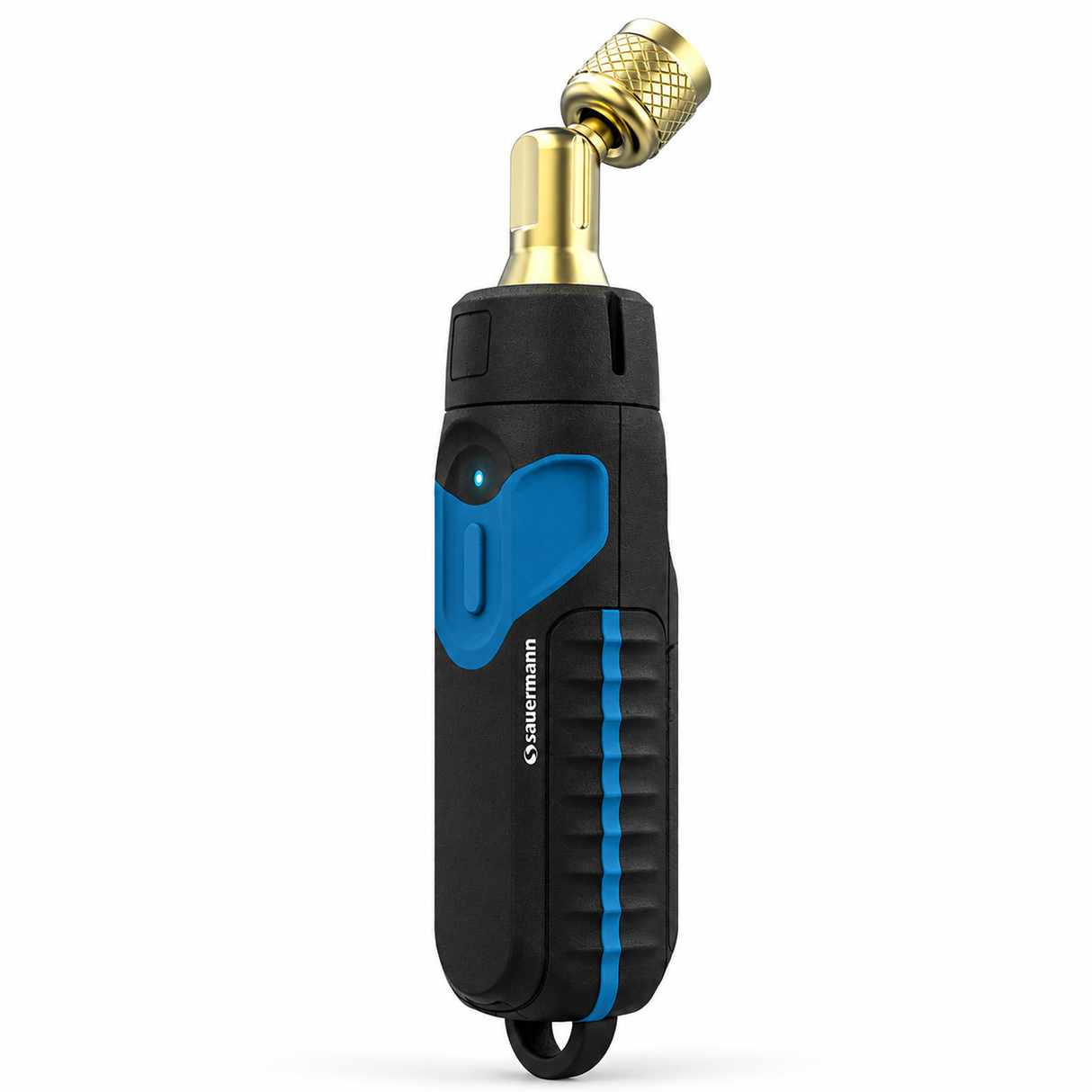

Sauermann Si-RP4 Wireless Vacuum Probe
Sauermann Si-RP4 Wireless Vacuum Probe is backordered and will ship as soon as it is back in stock.
Si-RP4 Wireless pressure probe
For Si-RM350 and Si-RM450 manifolds
This wireless pressure probe provides accurate high and low-pressure measurements for air conditioning, refrigeration and heat pump installations.
The Si-RP4 allows all types of refrigerant-based installations to be serviced quickly and safely. It connects easily to the mobile application Sauermann Pilot via a low-power wireless communication protocol.
A1 / A2L / A2 / A3 refrigerants compatible
Compatible with some B1 refrigerants, see list of refrigerants for details on which refrigerants are compatible. The device must not be used with ammoniac refrigerant (NH3 / R717).
Designation: Si-RP4 Sales reference: 28144
From -20 to 50°C (-4 to 122°F) This wireless probe provides accurate temperature measurement to enable the calculation of superheat and subcooling values in air conditioning, refrigeration and heat pump installations. Its parrot-shaped clamp ensures perfect contact with pipes from 6 to 42 mm. The Si-RT7 allows all types of refrigerant-based installations to be serviced quickly, thanks to the excellent responsiveness of its NTC sensor. It connects easily to the Si-RM350 and Si-RM450 manifolds, as well as to the mobile application Sauermann Pilot.
Key Features
- High accuracy Pirani® sensor, 50 microns deep vacuum
- A1, A2L and A3 refrigerants compatible
- Quick & Strong wireless auto connection (100 m range)
- Real time readings on manifold and mobile app
- IP54 dust & rain proof probe
Applications
- Superheat measurement
- Subcooling measurement
- Refrigeration service
- Heat pump diagnostics
- Air conditioning service
Technical Specifications
| Specification | Value |
|---|---|
| Pressure Measuring Range | -1 to 60 bar (-14 to 870 psi) |
| Pressure Accuracy | ±0.5% of Full Scale |
| Available Units | bar, psi, kPa, MPa |
| Resolution | 0.01 bar / 0.1 psi / 1 kPa / 0.001 MPa |
| Overload Pressure | 65 bar (943 psi) |
| Burst Pressure | 150 bar (2,175 psi) |
| Operating Temperature | -20 to 50°C (-4 to 122°F) |
| Storage Temperature | -20 to 50°C (-4 to 122°F) |
| Power Supply | 3 × LR03 AAA 1.5V Alkaline Batteries |
| Battery Life | 150 Hours @ 20°C (68°F) |
| Wireless Frequency | 2402 MHz to 2480 MHz |
| Transmission Power | 8 dBm |
| Wireless Range | Up to 100 m (328 ft) between manifold and wireless probes |
| App Connection Range | Up to 100 m (328 ft), depending on smartphone radio strength |
| Smartphone Compatibility | Android 11.0+, iOS 15+, BLE 5.0* |
| Connection Type | 1 × 1/4" FFL Female |
| Housing Material | Polyamide 6.6 + 30% Glass Fiber & TPE |
| Protection Rating | IP54 |
| Operating Conditions | Non-condensing environment Altitude: 0 to 2,000 m (0 to 6,561 ft) Non-corrosive gases only |
| Included in Box | Adjustment Certificate 3 × AAA Batteries Free Mobile App |
*Can work with BLE 4.0 devices; however, wireless range may be reduced.
**All accuracies specified were obtained under laboratory conditions and are guaranteed only for measurements performed under the same conditions or with calibration compensation.
