Sauermann Si-TH4 Wireless Hygrometry Temperature Probe
Sauermann Si-TH4 Wireless Hygrometry Temperature Probe is backordered and will ship as soon as it is back in stock.

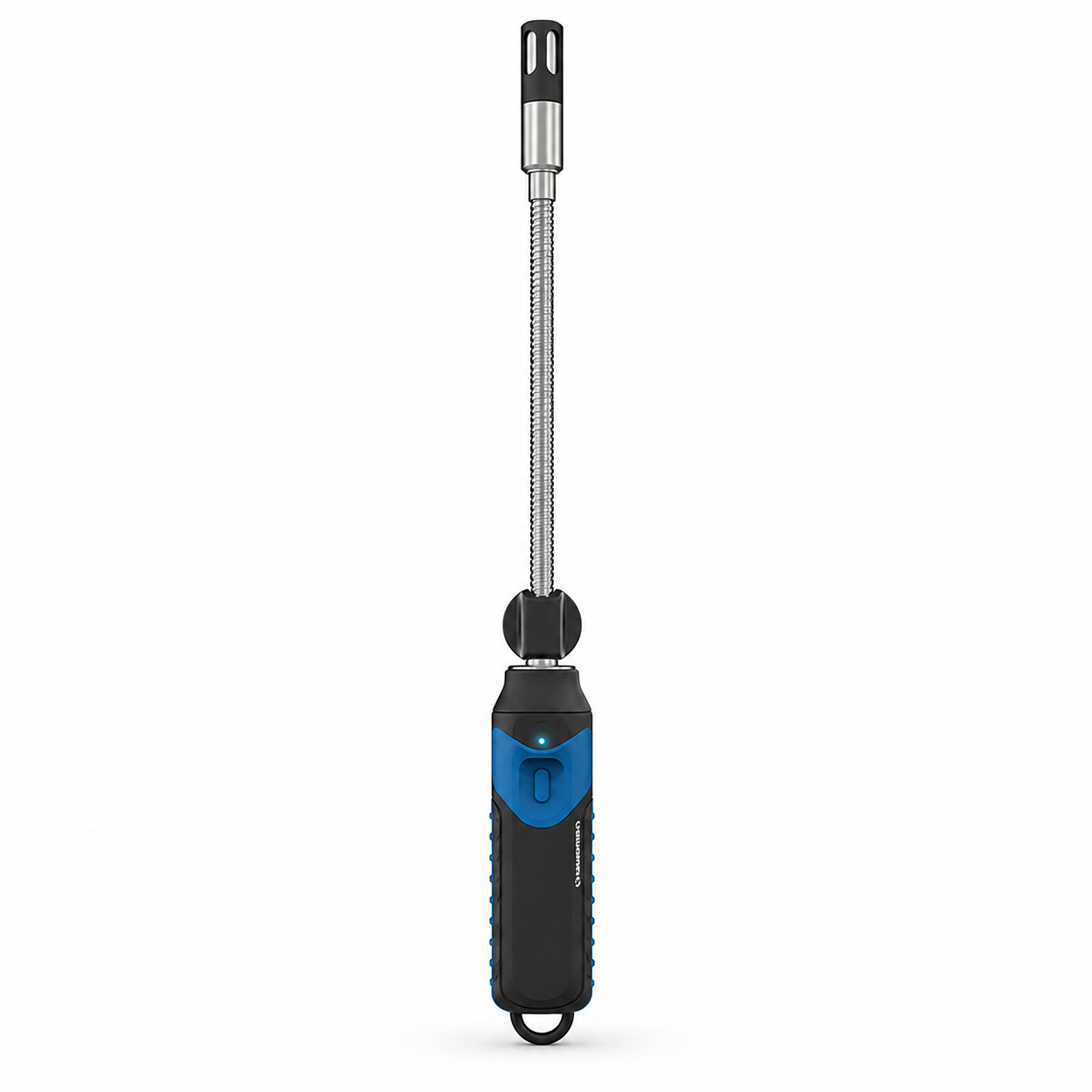

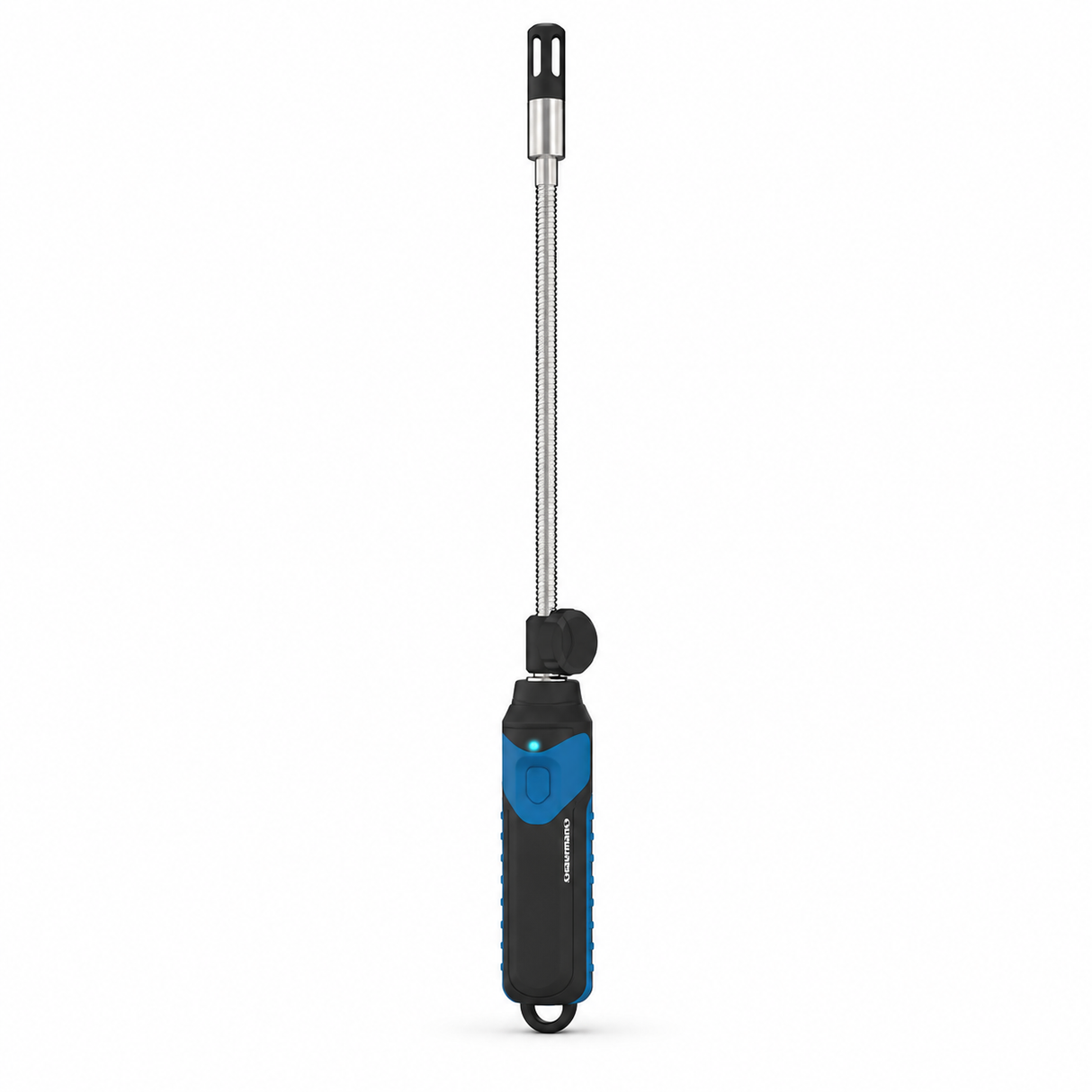

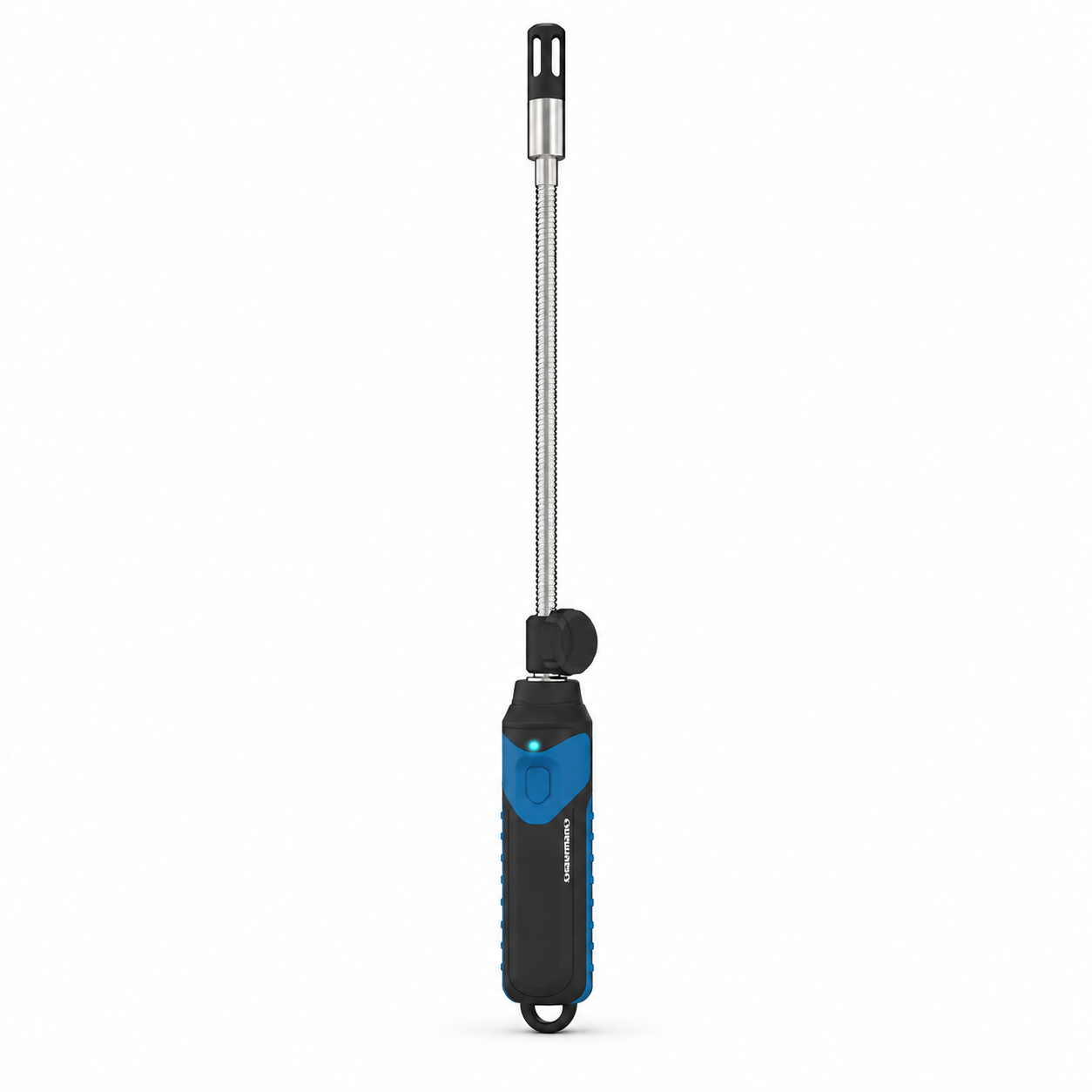

Si-TH4 Wireless Hygrometry Temperature Probe
This wireless psychrometric probe provides accurate indoor and outdoor temperature and hygrometry measurements to work on air
conditioning, refrigeration and heat pump installations.
The Si-TH4 calculates dry and wet bulb temperatures quickly and easily, using a flexible probe with a sliding magnet for convenient
positioning. It connects easily to the Si-RM350 and Si-RM450 manifolds, as well as to the mobile application Sauermann Pilot.
A1 / A2L / A2 / A3 refrigerants compatible
Compatible with some B1 refrigerants, see list of refrigerants for details on which refrigerants are compatible. The device must not be used with ammoniac refrigerant (NH3 / R717).
Designation: Si-TH4 Sales reference: 28145
From -20 to 50°C (-4 to 122°F) This wireless probe provides accurate temperature measurement to enable the calculation of superheat and subcooling values in air conditioning, refrigeration and heat pump installations. Its parrot-shaped clamp ensures perfect contact with pipes from 6 to 42 mm. The Si-RT7 allows all types of refrigerant-based installations to be serviced quickly, thanks to the excellent responsiveness of its NTC sensor. It connects easily to the Si-RM350 and Si-RM450 manifolds, as well as to the mobile application Sauermann Pilot.
Key Features
- High accuracy Pirani® sensor, 50 microns deep vacuum
- A1, A2L and A3 refrigerants compatible
- Quick & Strong wireless auto connection (100 m range)
- Real time readings on manifold and mobile app
- IP54 dust & rain proof probe
Applications
- Superheat measurement
- Subcooling measurement
- Refrigeration service
- Heat pump diagnostics
- Air conditioning service
Technical Specifications
| Specification | Value |
|---|---|
| Sensor Type | CMOS Temperature & Humidity Sensors |
| Temperature Measuring Range | -20 to 60°C (-4 to 140°F) |
| Humidity Measuring Range | 0 to 100% RH |
| Temperature Accuracy | -20 to 0°C (-4 to 32°F): ±0.3°C (±0.6°F) 0 to 60°C (32 to 140°F): ±0.5°C (±0.9°F) |
| Humidity Accuracy | ±2% RH (15°C to 25°C and 10% to 90% RH) ±5% RH (15°C to 25°C and 0% to 10% RH or 90% to 100% RH) Temperature Dependence: ±0.04 × (T-20)% RH when T < 15°C or T > 25°C |
| Available Units | °C, °F, %RH |
| Resolution | 0.1°C, 0.1°F, 0.1% RH |
| Response Time (T90) | 60 Seconds |
| Probe Length | 410.2 mm (16.1") |
| Probe Diameter | 34.85 mm (1.4") |
| Probe Tip Diameter | 37.7 mm (1.5") |
| Power Supply | 3 × LR03 AAA 1.5V Alkaline Batteries |
| Battery Life | 50 Hours @ 20°C (68°F) |
| Wireless Frequency | 2402 MHz to 2480 MHz |
| Transmission Power | 8 dBm |
| Wireless Range | Up to 100 m (328 ft) between manifold and wireless probe App connection range depends on smartphone radio strength |
| Smartphone Compatibility | Android 11.0+, iOS 15+, BLE 5.0* |
| Storage Temperature | -20 to 50°C (-4 to 122°F) |
| Operating Conditions | Non-condensing environment Altitude: 0 to 2,000 m (0 to 6,561 ft) Non-corrosive gases only |
| Compliance | 2011/65/EU RoHS II 2012/19/EU WEEE 2014/53/EU RED |
*All accuracies specified were obtained under laboratory conditions and are guaranteed only for measurements performed under the same conditions or with calibration compensation.
**Compatible with BLE 4.0 devices; however, wireless range may be reduced.
