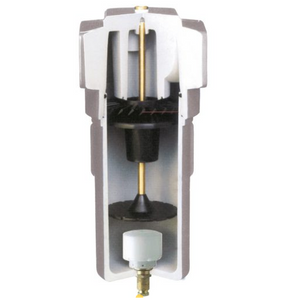

Schultz CONDENSATE SEPARATOR FILTERS FSCS Series (Cyclone Type)

Condensate Separator Filters – FSCS Series (Cyclone Type)

💧 Efficient Moisture & Contaminant Removal
The FSCS Series Cyclone Condensate Separators are designed to remove heavier liquid contaminants from compressed air systems. Using centrifugal separation and diffusion, these filters effectively eliminate water, oil, and other liquid impurities, ensuring a cleaner and more reliable air supply.

⚡ Optimized System Performance
Installed upstream of coalescing filters, the FSCS Series reduces the liquid load on downstream equipment, enhancing filtration efficiency, extending filter element life, and lowering overall maintenance costs.

🌍 Versatile Industrial Applications
Perfect for industrial and commercial compressed air systems, these cyclone separators protect equipment, improve system reliability, and maintain air quality for sensitive applications.

✅ Available Models

• FSCS 090 (1/2") – 88 CFM @ 100 PSI

• FSCS 145 (3/4") – 144 CFM @ 100 PSI

• FSCS 235 (1") – 232 CFM @ 100 PSI

• FSCS 375 (1-1/2") – 374 CFM @ 100 PSI

Technical Documents:

• Catalog
