Schulz 10120HL40X-3 10/3 HP Piston Air Compressor 932.9327-0

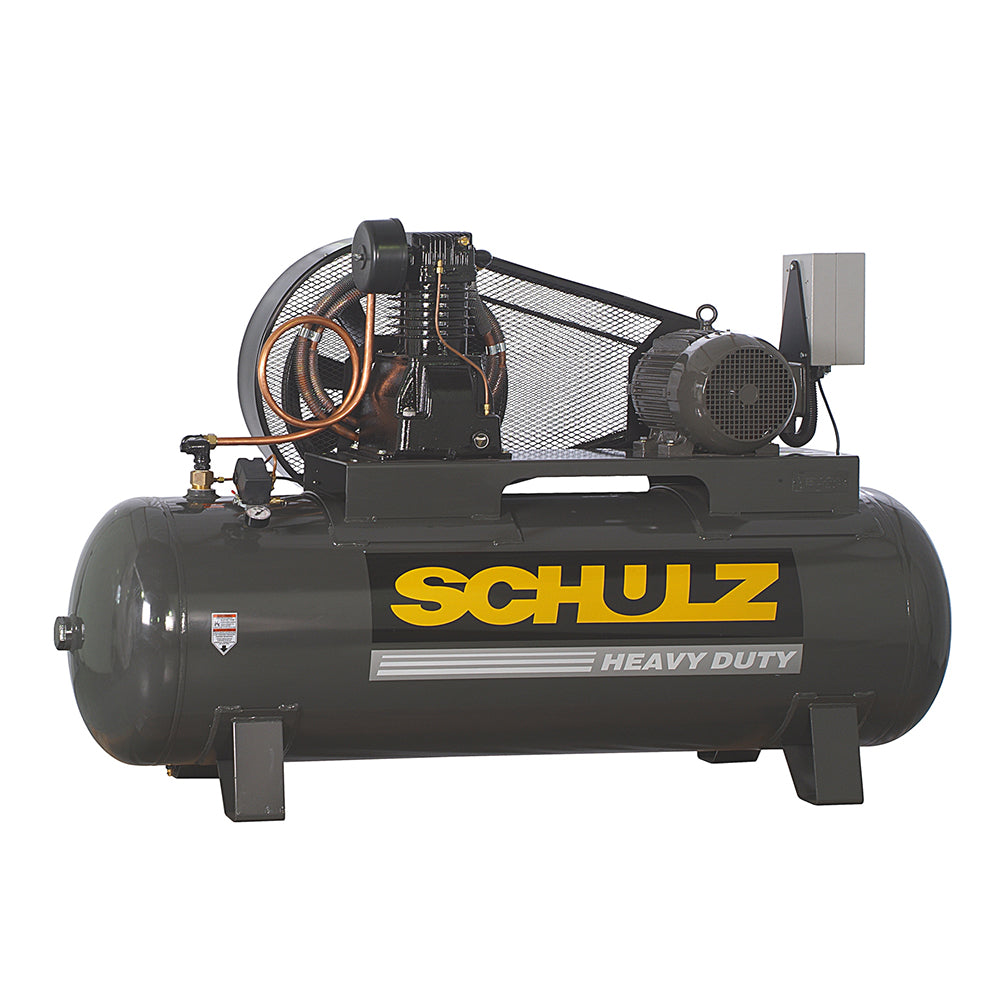

Schulz 10120HL40X-3 – 10/3 HP L-Series Two-Stage Piston Air Compressor, 120-Gallon Horizontal Tank
🔧 Powerful and Durable Performance
The Schulz 10120HL40X-3 delivers robust compressed air output with 28.4 CFM at 175 PSI, powered by a dual motor setup (10 HP and 3 HP). Designed for demanding industrial and commercial applications, this compressor offers consistent and efficient air supply for a wide range of uses.
🛠️ Built to Last with L-Series Engineering
Featuring Schulz’s renowned L-Series design, this compressor operates at low RPMs with a heavy-duty cast iron block for enhanced durability. The double-supported crankshaft reduces vibration and extends bearing life, while the modern reed-type valve system improves efficiency and prolongs service intervals.
⚙️ User-Friendly and Safe Operation
Mounted and prewired magnetic starters simplify installation and ensure safe, ready-to-use operation, minimizing downtime and maintenance.
🛡️ Certified for Quality and Safety
Equipped with an ASME-certified 120-gallon horizontal air tank and safety valve, this compressor meets rigorous industry safety standards, while high-efficiency motors help reduce energy consumption.
🏭 Ideal for Industrial and Commercial Environments
Perfect for manufacturing, automotive, and service industries, the Schulz 10120HL40X-3 provides reliable, high-quality compressed air that supports your operations day after day.
Performance Specifications:
Item Number: 932.9327-0 |
Model: 10120HL40X-3 |
HP: 10/3 |
Pump: MSL 40 MAX |
FAD CFM*: 28.4 |
Motor/Engine: 2P |
Tank Style: Horizontal |
Tank Gal: 120 |
Tank Weight LBS: 867 |
Power Requirements: 208/230/3/60 |
