Schulz 580HV20X-1 5 HP Two Stage Air Compressor 932.9345-0

Schulz 580HV20X-1 5 HP Two Stage Air Compressor 932.9345-0

  • $4,206.40
  • Save $321


  Most Items Ship Same Day   (Warranty, Return and Refunds)

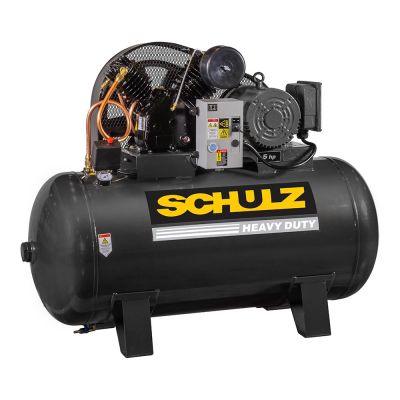

Schulz 580HV20X-1 – 5 HP V-Series Two-Stage Piston Air Compressor, 15.1 CFM, 175 PSI, 80-Gallon Horizontal Tank

🔧 Reliable and Efficient V-Series Compressor
The Schulz 580HV20X-1 delivers consistent compressed air output powered by a robust 5 HP motor, producing 15.1 CFM at 175 PSI. Featuring the signature V-cylinder design, this compressor provides excellent cooling by generating compressed air at lower temperatures, improving efficiency and durability.

🛠️ Built for Durability and Long Life
Constructed with a high-quality cast iron block and operating at low RPMs, this two-stage compressor reduces vibration and wear. The 80-gallon ASME-certified horizontal tank meets strict safety standards to ensure reliable performance.

⚙️ Safe and Ready to Use
Mounted and prewired magnetic starters offer easy installation and safe operation, delivering a simplified, ready-to-use compressor solution.

🛡️ Certified Safety and Energy Efficiency
Equipped with an ASME-certified safety valve and air receiver, combined with high-efficiency motors, the Schulz V-Series compressor guarantees dependable, energy-efficient performance for industrial and commercial applications.


Perfect for automotive, manufacturing, and industrial settings, the Schulz 580HV20X-1 combines rugged construction with efficient operation to meet your compressed air needs.

Performance Specifications:

Item Number: 932.9345-0
Model: 580HV20X-1
HP: 5/1
Pump: MSV 20 MAX
FAD CFM*: 15.1
Motor/Engine: 4P
Tank Style: Horizontal
Tank Gal: 80
Tank Weight LBS: 524
Power Requirements: 208/230/1/60
