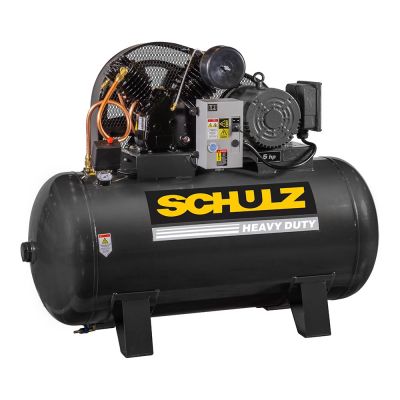

Schulz 580HV20X-3 5 HP Two Stage Air Compressor 932.9346-0

Schulz 580HV20X-3 – 5 HP V-Series Two-Stage Piston Air Compressor, 15.1 CFM, 175 PSI, 80-Gallon Horizontal Tank
🔧 Durable and Efficient V-Series Performance
The Schulz 580HV20X-3 delivers reliable compressed air with a powerful 5 HP motor, producing 15.1 CFM at 175 PSI. Designed with the signature V-cylinder configuration, this compressor provides superior cooling by generating compressed air at lower temperatures, increasing overall efficiency and extending equipment life.
🛠️ Built to Last with High-Quality Components
Featuring a high-quality cast iron block and operating at low RPMs, this two-stage compressor reduces wear and vibration. Available with an 80-gallon ASME-certified horizontal tank, it meets rigorous safety and performance standards.
⚙️ Safe and Ready for Immediate Use
Equipped with mounted and prewired magnetic starters, the unit ensures easy installation and safe operation, delivering a ready-to-use compressed air solution.
🛡️ Certified Safety and Energy Efficiency
The ASME-certified safety valve and air receiver, paired with high-efficiency motors, provide dependable, energy-conscious performance for demanding industrial and commercial applications.
Ideal for manufacturing, automotive, and industrial environments, the Schulz 580HV20X-3 V-Series compressor combines rugged construction with efficient, consistent operation to meet your compressed air needs.
Performance Specifications:
Item Number: 932.9346-0 |
Model: 580HV20X-3 |
HP: 5/3 |
Pump: MSV 20 MAX |
FAD CFM*: 15.1 |
Motor/Engine: 2P |
Tank Style: Horizontal |
Tank Gal: 80 |
Tank Weight LBS: 479 |
Power Requirements: 208/230/1/60 |
