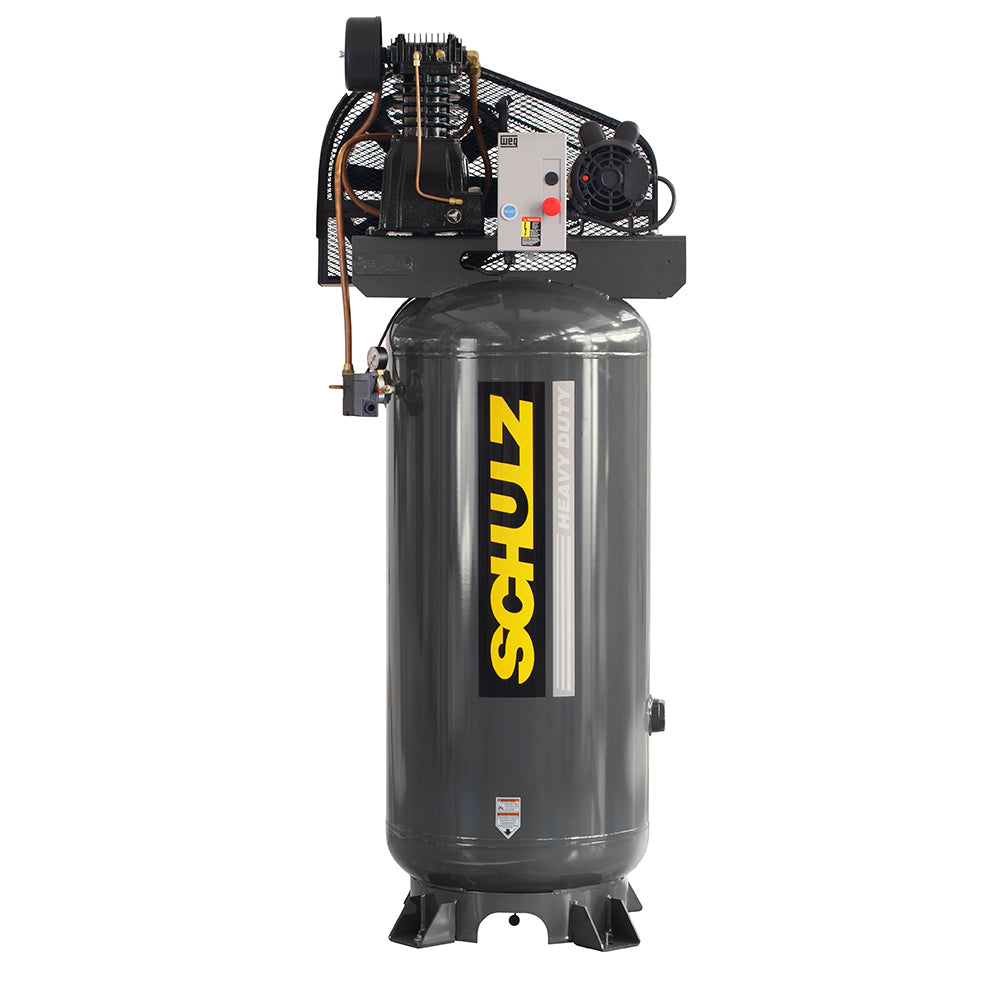

Schulz 580VL20X-1 5 HP Piston Air Compressor 932.9334-0

Schulz 580VL20X-1 – 5 HP L-Series Two-Stage Piston Air Compressor, 15.6 CFM, 175 PSI, 80-Gallon Vertical Tank
🔧 Industrial-Grade Performance You Can Rely On
The Schulz 580VL20X-1 is a heavy-duty, 5 HP two-stage piston air compressor delivering 15.6 CFM at 175 PSI. Designed for long-term performance, it features a high-quality cast iron block and operates at low RPMs—ideal for workshops, service bays, and industrial facilities.
🛠️ Engineered for Stability and Extended Life
This model incorporates a double-supported crankshaft to minimize vibration and improve bearing life. The reed-type valve system ensures greater efficiency, reliability, and longer service intervals.
⚙️ Safe, Plug-and-Play Operation
Equipped with mounted and prewired magnetic starters, the compressor provides convenient and secure startup—ready to use with minimal setup required.
🛡️ Certified for Safety and Efficiency
Outfitted with an ASME-certified 80-gallon vertical tank, safety valve, and a high-efficiency motor, the Schulz 580VL20X-1 meets industry standards for safety, energy efficiency, and dependable performance.
Perfect for professionals in automotive, manufacturing, and commercial settings, the Schulz 580VL20X-1 delivers consistent, clean compressed air in a vertical, space-saving footprint—built to perform under pressure.
Performance Specifications:
Item Number: 932.9334-0 |
Model: 580VL20X-1 |
HP: 5/1 |
Pump: MSL-20MAX |
FAD CFM*: 15.6 |
Motor/Engine: 2P |
Tank Style: Vertical |
Tank Gal: 80 |
Tank Weight LBS: 571 |
Power Requirements: 208/230/1/60 |
