Schulz 580VV20X-3 5 HP Piston Air Compressor 932.9340-0

Schulz 580VV20X-3 5 HP Piston Air Compressor 932.9340-0

  • $2,350.00
  • Save $1,055


  Most Items Ship Same Day   (Warranty, Return and Refunds)

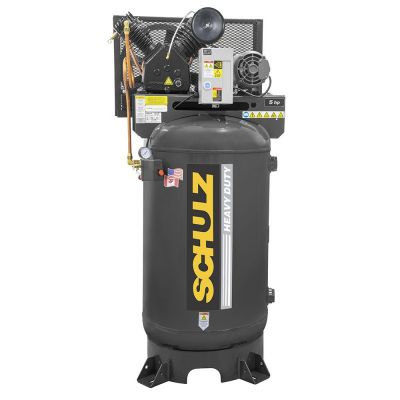

The Schulz 580VV20X-3, 5 HP V Air Compressor, 15.1 CFM, 175 PSI, 80 Gallon Vertical 932.9340-0

V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the product’s high cooling, generating compressed air with lower temperatures, with increased efficiency. These two stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready to use compressor. The ASME certified safety valve and air receiver and high efficiency motors make Heavy Duty V-Series compressors the best choice for your company.

Performance Specifications:

Item Number: 932.9340-0
Model: 580VV20X-3
HP: 5/3
Pump: MSV 20 MAX
FAD CFM*: 15.1
Motor/Engine: 2P
Tank Style: Vertical
Tank Gal: 80
Tank Weight LBS: 450
Power Requirements: 208/230/3/60
