Schulz 7580VL30X-3 7.5 HP Piston Air Compressor 932.9322-0
Most Items Ship Same Day
(Warranty, Return and Refunds)

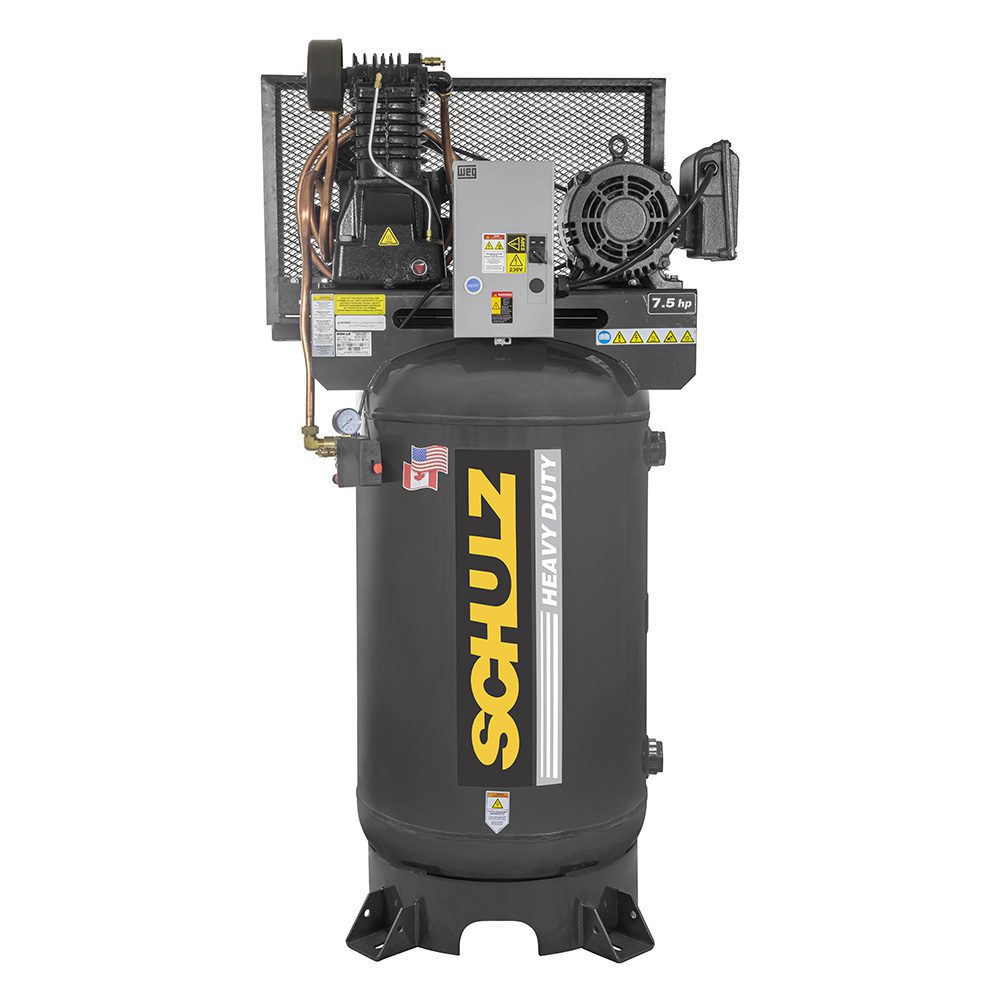

Schulz 7580VL30X-3 – 7.5 HP L-Series Two-Stage Piston Air Compressor, 21.6 CFM, 175 PSI, 80-Gallon Vertical Tank
🔧 Powerful and Durable L-Series Performance
The Schulz 7580VL30X-3 delivers reliable compressed air with a strong 7.5 HP motor, producing 21.6 CFM at 175 PSI. Built with a high-quality cast iron block and designed for low RPM operation, this two-stage compressor ensures long-lasting durability and efficient performance.
🛠️ Engineered for Reduced Vibration and Extended Life
Featuring a double-supported crankshaft design, the compressor minimizes vibration and extends bearing life. The modern reed-type valve system enhances efficiency and service life, making it a robust solution for demanding applications.
⚙️ Ready-to-Use and Safe Operation
Equipped with mounted and prewired magnetic starters, this compressor offers easy installation and safe operation, allowing for quick and convenient use.
🛡️ Certified Safety and High Efficiency
With an ASME-certified 80-gallon vertical tank and safety valve, plus high-efficiency motors, the Schulz L-Series compressor meets rigorous safety and quality standards, ensuring dependable and efficient operation.
Ideal for industrial, manufacturing, and automotive applications, the Schulz 7580VL30X-3 L-Series compressor combines rugged construction with efficient, reliable performance to meet your compressed air needs.
Performance Specifications:
| Item Number: 932.9322-0 |
| Model: 7580VL30X-3 |
| HP: 7.5/3 |
| Pump: MSL-30MAX |
| FAD CFM*: 21.6 |
| Motor/Engine: 2P |
| Tank Style: Vertical |
| Tank Gal: 80 |
| Tank Weight LBS: 621 |
| Power Requirements: 208/230/1/60 |
Documents and guides:
