Schulz 7580VV30X-1 7.5 HP Piston Air Compressor 932.9341-0

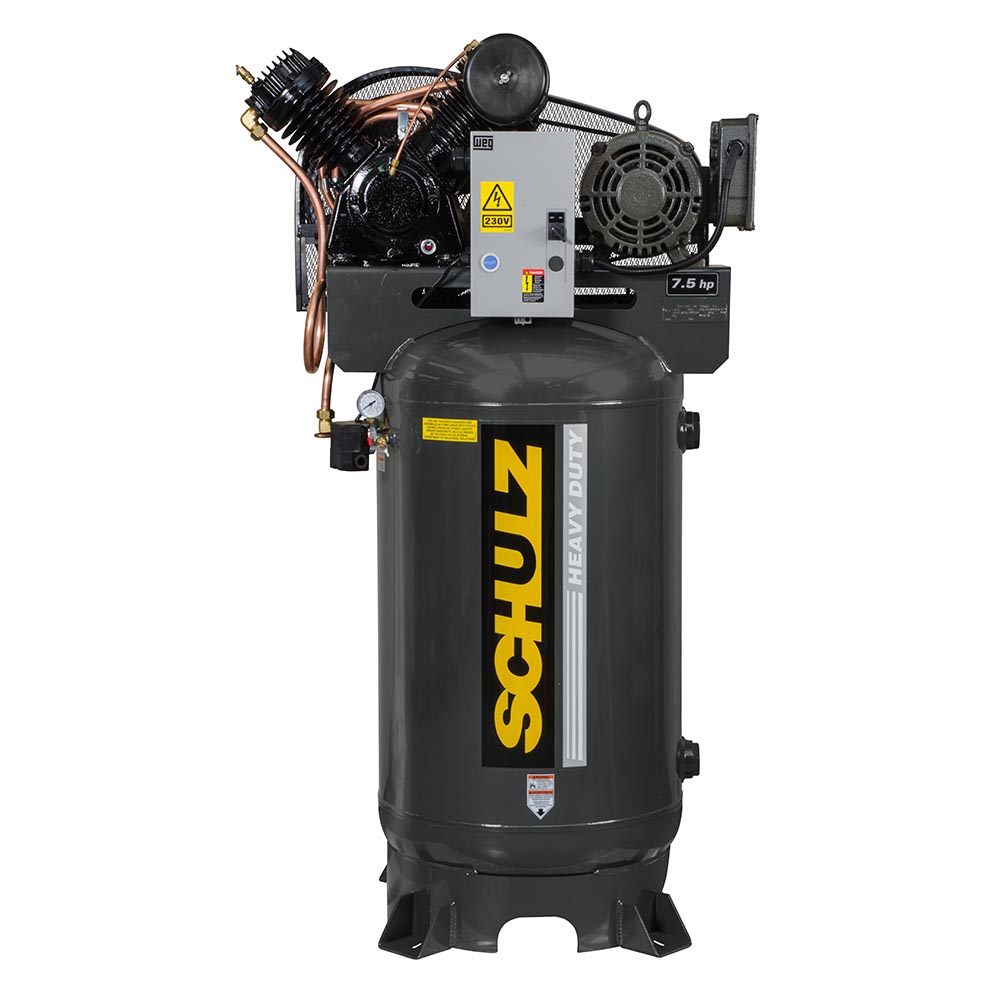

Schulz 7580VV30X-1 – 7.5 HP V-Series Two-Stage Piston Air Compressor, 20.1 CFM, 175 PSI, 80-Gallon Vertical Tank
🔧 Durable and Efficient V-Series Performance
The Schulz 7580VV30X-1 delivers powerful, reliable compressed air with a 7.5 HP motor producing 20.1 CFM at 175 PSI. Featuring the renowned V-cylinder design, it ensures superior cooling by generating compressed air at lower temperatures, improving overall efficiency and extending compressor lifespan.
🛠️ Engineered for Longevity and Low Maintenance
Built with a high-quality cast iron block and designed for low RPM operation, this two-stage compressor reduces wear and tear, providing a longer service life. The 80-gallon ASME-certified vertical tank meets stringent safety standards for dependable performance.
⚙️ Safe, Convenient, and Ready to Use
Mounted and prewired magnetic starters offer easy installation and safe operation, enabling a quick setup and efficient workflow.
🛡️ Certified Safety and High Efficiency
Equipped with an ASME-certified safety valve and air receiver, along with high-efficiency motors, the Schulz V-Series compressor is designed to deliver safe, energy-efficient performance for industrial and commercial use.
Ideal for manufacturing, automotive, and heavy industry settings, the Schulz 7580VV30X-1 combines rugged construction and efficient operation to meet your compressed air needs.
Performance Specifications:
Item Number: 932.9341-0 |
Model: 7580VV30X-1 |
HP: 7.5/1 |
Pump: MSV-30MAX |
FAD CFM*: 20.1 |
Motor/Engine: 4P |
Tank Style: Vertical |
Tank Gal: 80 |
Tank Weight LBS: 584 |
Power Requirements: 208/230/1/60 |
