Schulz 7580VV30X-3 7.5 HP Piston Air Compressor 932.9342-0
Schulz 7580VV30X-3 7.5 HP Piston Air Compressor 932.9342-0 is backordered and will ship as soon as it is back in stock.

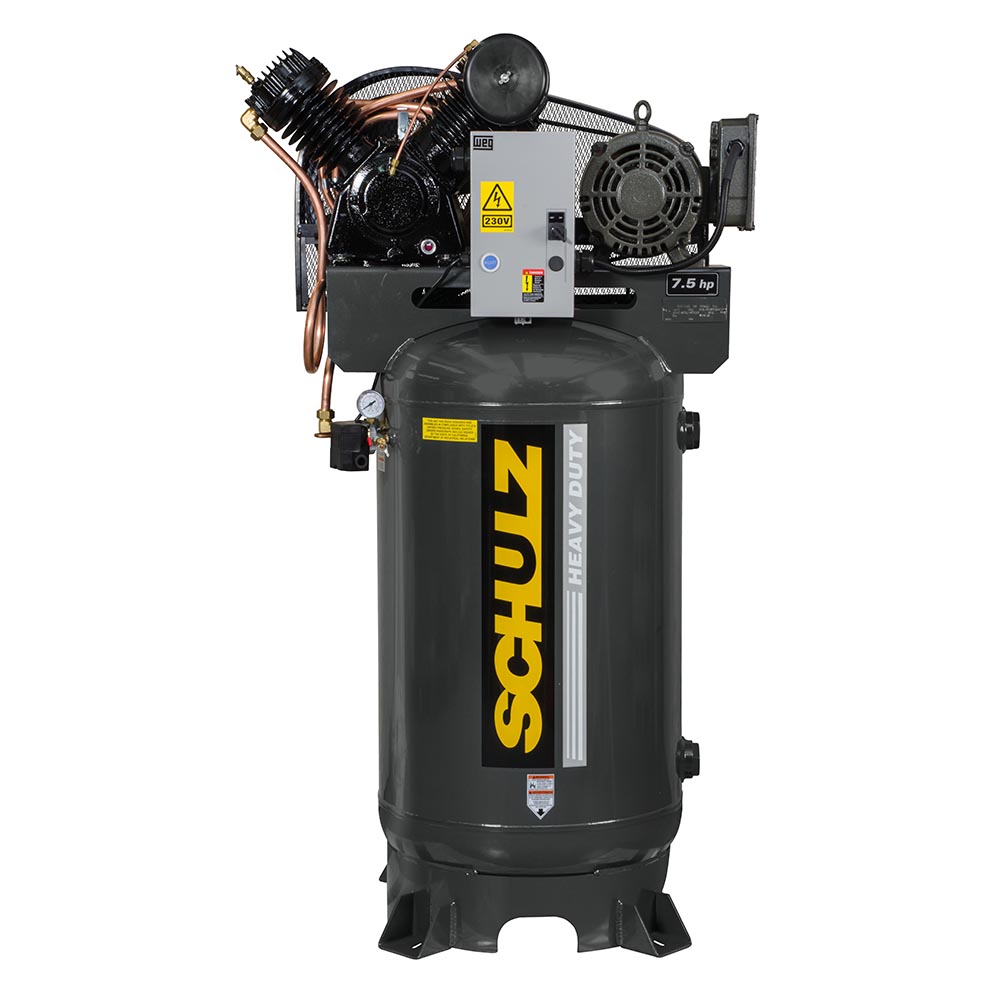

Schulz 7580VV30X-3 โ 7.5 HP V-Series Two-Stage Piston Air Compressor, 20.1 CFM, 175 PSI, 80-Gallon Vertical Tank
๐ง Powerful and Durable V-Series Performance
The Schulz 7580VV30X-3 is engineered to deliver reliable, efficient compressed air with a strong 7.5 HP motor, providing 20.1 CFM at 175 PSI. Its signature V-cylinder design promotes superior cooling by generating compressed air at lower temperatures, resulting in enhanced efficiency and longer equipment life.
๐ ๏ธ Built for Longevity and Low Maintenance
Constructed with a high-quality cast iron block and operating at low RPMs, this two-stage compressor minimizes wear and extends service intervals. Available with an 80-gallon ASME-certified vertical tank, it meets stringent safety and quality standards.
โ๏ธ Safe and Ready to Use
Mounted and prewired magnetic starters ensure simplified installation and safe, immediate operation for streamlined workflow.
๐ก๏ธ Certified Safety and Efficiency
Equipped with an ASME-certified safety valve and air receiver alongside high-efficiency motors, the Schulz V-Series compressor guarantees dependable, energy-efficient performance in demanding environments.
Ideal for industrial, automotive, and manufacturing applications, the Schulz 7580VV30X-3 offers rugged construction and consistent output to support your compressed air needs.
Performance Specifications:
| Item Number: 932.9342-0 |
| Model: 7580VV30X-3 |
| HP: 7.5/3 |
| Pump: MSV-30MAX |
| FAD CFM*:ย 20.1 |
| Motor/Engine:ย 2Pย |
| Tank Style:ย Vertical |
| Tank Gal: 80 |
| Tank Weight LBS:ย 565 |
| Power Requirements:ย 208/230/1/60 |
ย
Documents and guides:ย
Schulz 7580VV30X-3 7.5 HP Piston Air Compressor 932.9342-0
