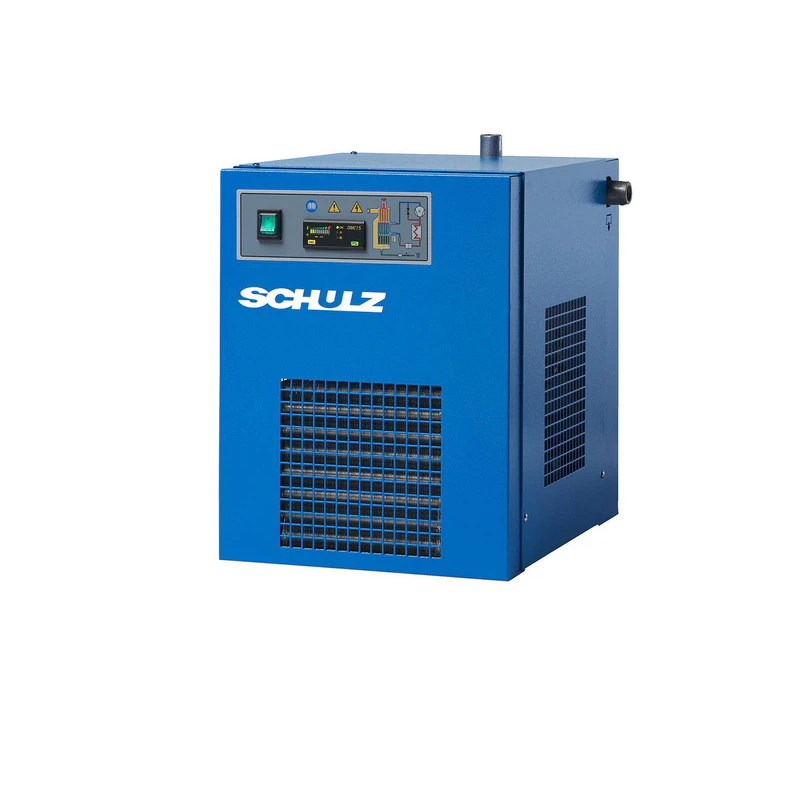

Schulz of America ADS-300 Non-Cycling Refrigerated Air Dryer

ADS Schulz Air Dryers – Designed for Easy Maintenance and Reliable Performance

The ADS Schulz line of Air Dryers is engineered to simplify inspection and maintenance operations. Featuring easily removable panels, these dryers provide immediate access to internal components for quick servicing.

🛠️ Equipped with a quick-disconnect automatic drain valve, no special tools are needed for maintenance or cleaning. The dryer’s operation is managed by an advanced electronic controller that digitally displays temperature and dew point, controls the drain valve via timer, and regulates the condenser fan through a sensor probe. Refrigerant circulation is optimized by high-efficiency compressors to ensure effective drying and energy savings.

⚙️ Key Operation Details:

• Minimum Pre-Filter Requirement: 1 micron pre-filter or separator to remove heavy moisture and debris

• Installation: Always install dryers in a vertical position

• Operation & Maintenance: Comprehensive instructions included

• Dew Point: 41°F

• Nominal Inlet Air Pressure: 100 PSI

• Maximum Ambient Temperature: 32°F minimum to 113°F maximum

• Certification: ISO 14001 certified

🔧 Recommended Filters:

• Pre-Filter: 1 micron, Model #007 0357-0, NPT: 2"

• After-Filter: 0.01 micron, Model #007 0358-0, NPT: 2"

⚠️ Important:
Refrigerated air dryers must be used together with a minimum 5 micron particulate filter, water separator, or coalescing filter. It is crucial to remove pooling liquid water from compressed air lines before air enters the dryer to ensure optimal performance and prevent damage.

Performance Specifications:
