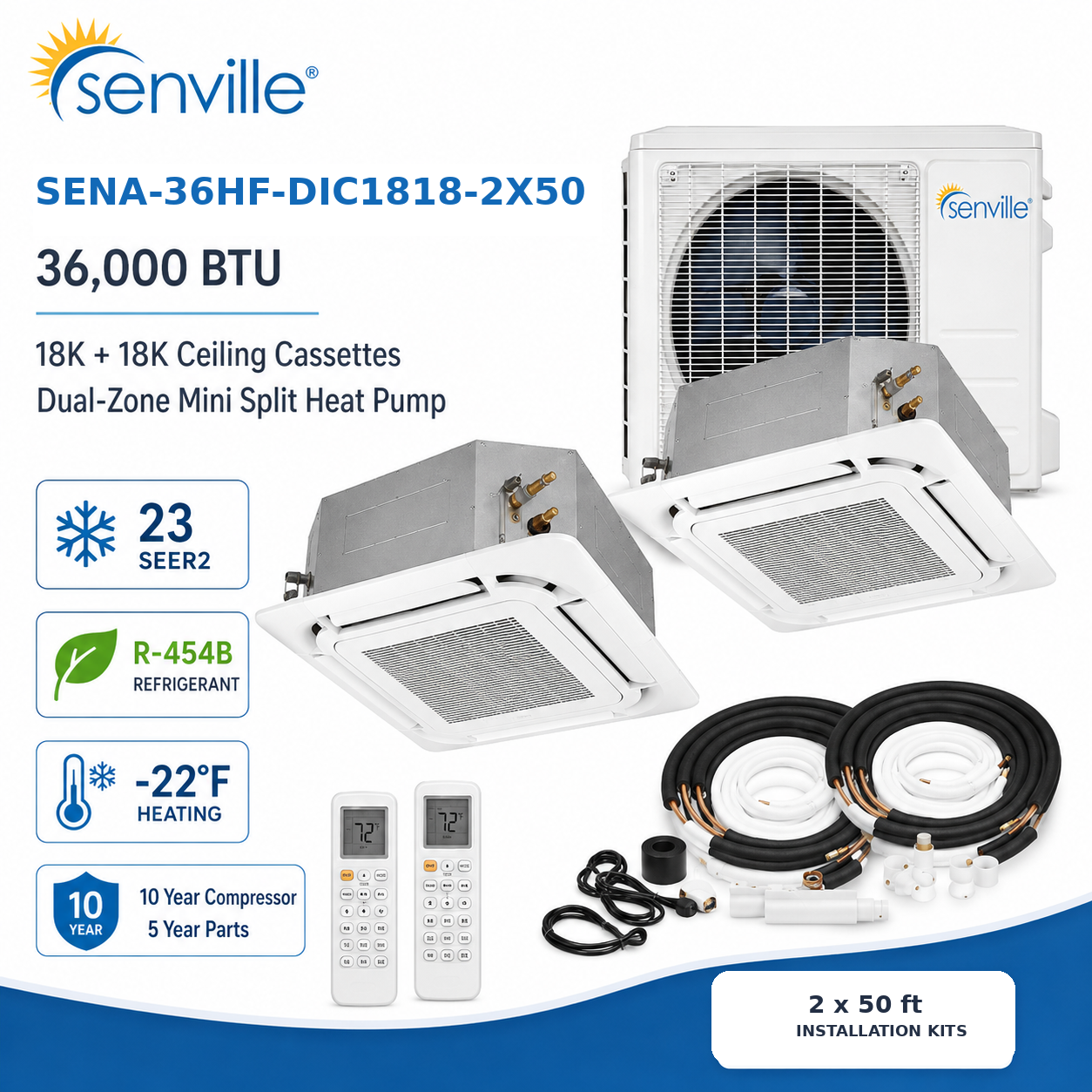

Senville AURA SENA-36HF/DIC 36,000 BTU Dual-Zone Ceiling Cassette Mini Split Heat Pump
The Senville AURA SENA-36HF/DIC is a high-efficiency 36,000 BTU dual-zone ceiling cassette mini split heat pump system designed to provide discreet, year-round heating and cooling for two separate spaces. The DIC1818 configuration pairs the outdoor condenser with two 18,000 BTU ceiling cassette indoor units, giving each zone independent temperature control while keeping the indoor equipment recessed into the ceiling for a clean, low-profile installation.
The system uses Senville’s inverter technology and delivers up to 23 SEER2 efficiency. It provides both cooling and heat-pump operation, including cold-climate heating down to -22°F / -30°C. Senville also includes features such as dehumidification, Follow Me control, self-diagnostics, refrigerant leak detection, and ultra-quiet operation.
The system is pre-charged with R-454B refrigerant and includes installation-kit components. Professional installation is required. Senville backs the system with a 10-year compressor warranty and 5-year parts warranty.
⚙️Key Features:
| Feature | Specification |
|---|---|
| Product Type | Dual-Zone Ceiling Cassette Mini Split Heat Pump |
| Series | Senville AURA |
| Family | SENA-36HF/DIC |
| Base SKU | SENA-36HF-DIC1818 |
| System Capacity | 36,000 BTU |
| Indoor Configuration | 18K + 18K Ceiling Cassettes |
| Number of Zones | 2 |
| SEER2 | 23 |
| EER2 | 13 |
| Heating | Heat Pump |
| Minimum Heating Temperature | -22°F / -30°C |
| Refrigerant | R-454B |
| Voltage | 208/230V, 1Ph, 60Hz |
| Compressor | DC Inverter |
| Controls | Remote / Follow Me |
| Dehumidification | Yes |
| Refrigerant Leak Detection | Yes |
| Self-Diagnostics | Yes |
| Low-Ambient Cooling | Down to 4°F / -15°C |
| Installation | Professional installation required |
| Warranty | 10-Year Compressor / 5-Year Parts |
📊 Technical Specifications
| Specification | Value |
|---|---|
| Outdoor Model | SENA-36HF-MOA |
| Cooling Capacity | 36,000 BTU |
| Cooling Range | 9,000–43,000 BTU |
| Heating Capacity | 36,000 BTU |
| Heating Range | 10,000–44,000 BTU |
| SEER2 | 23 |
| EER2 | 13 |
| HSPF2-4 | 10.7 |
| HSPF2-5 | 8.5 |
| COP | 4.0 |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253V |
| Minimum Circuit Ampacity | 37A |
| Maximum Fuse / Breaker | 40A |
| Outdoor Airflow | 3,037.2 CFM |
| Outdoor Noise | 65 dB |
| Outdoor Dimensions | 38.58 × 16.34 × 38.39 in |
| Outdoor Weight | 211.86 lb |
| Refrigerant | R-454B |
| Factory Refrigerant Charge | 134.04 oz |
| Refrigerant Pre-Charge | 100 ft |
| Minimum Heating Temperature | -22°F / -30°C |
| Warranty | 10-Year Compressor / 5-Year Parts |
