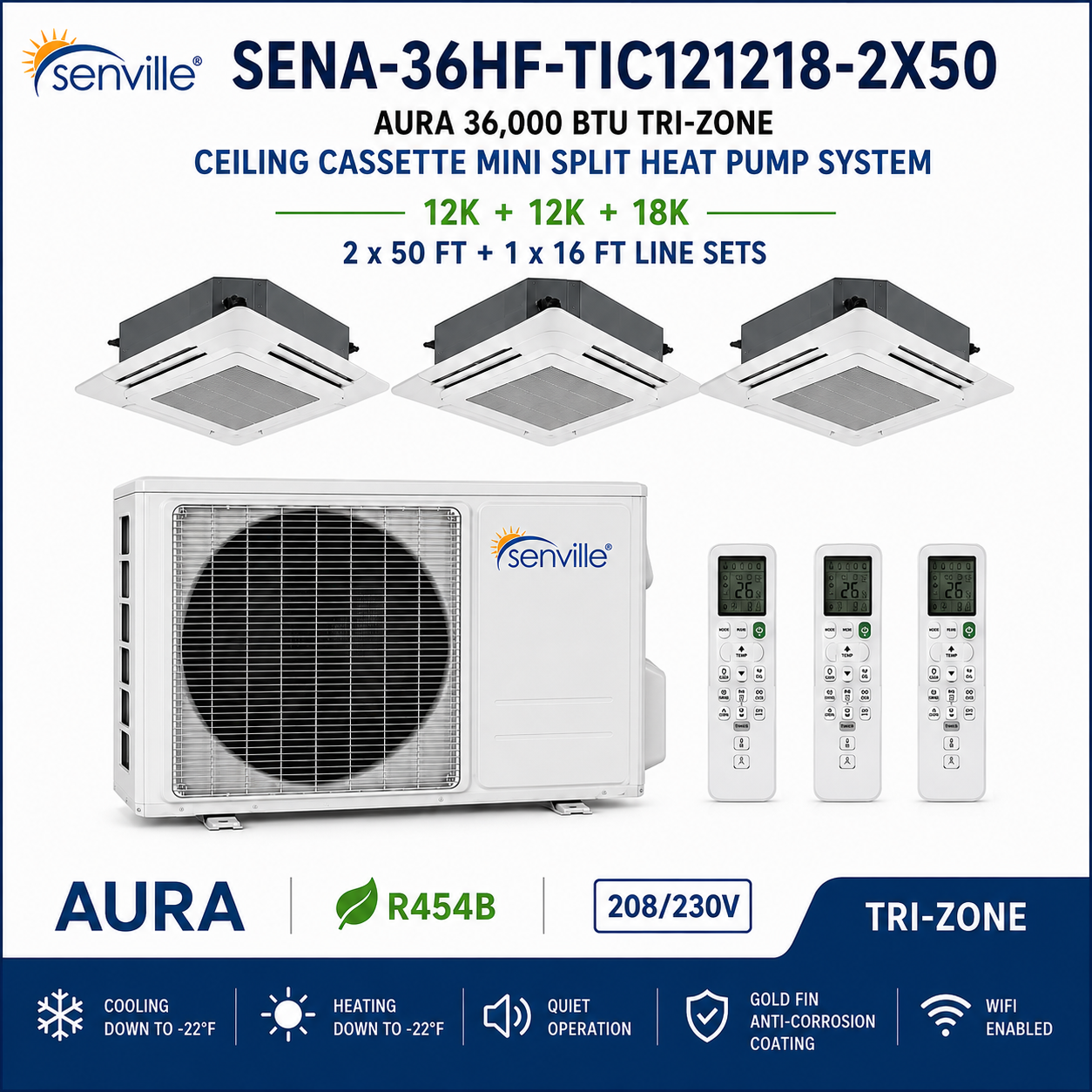

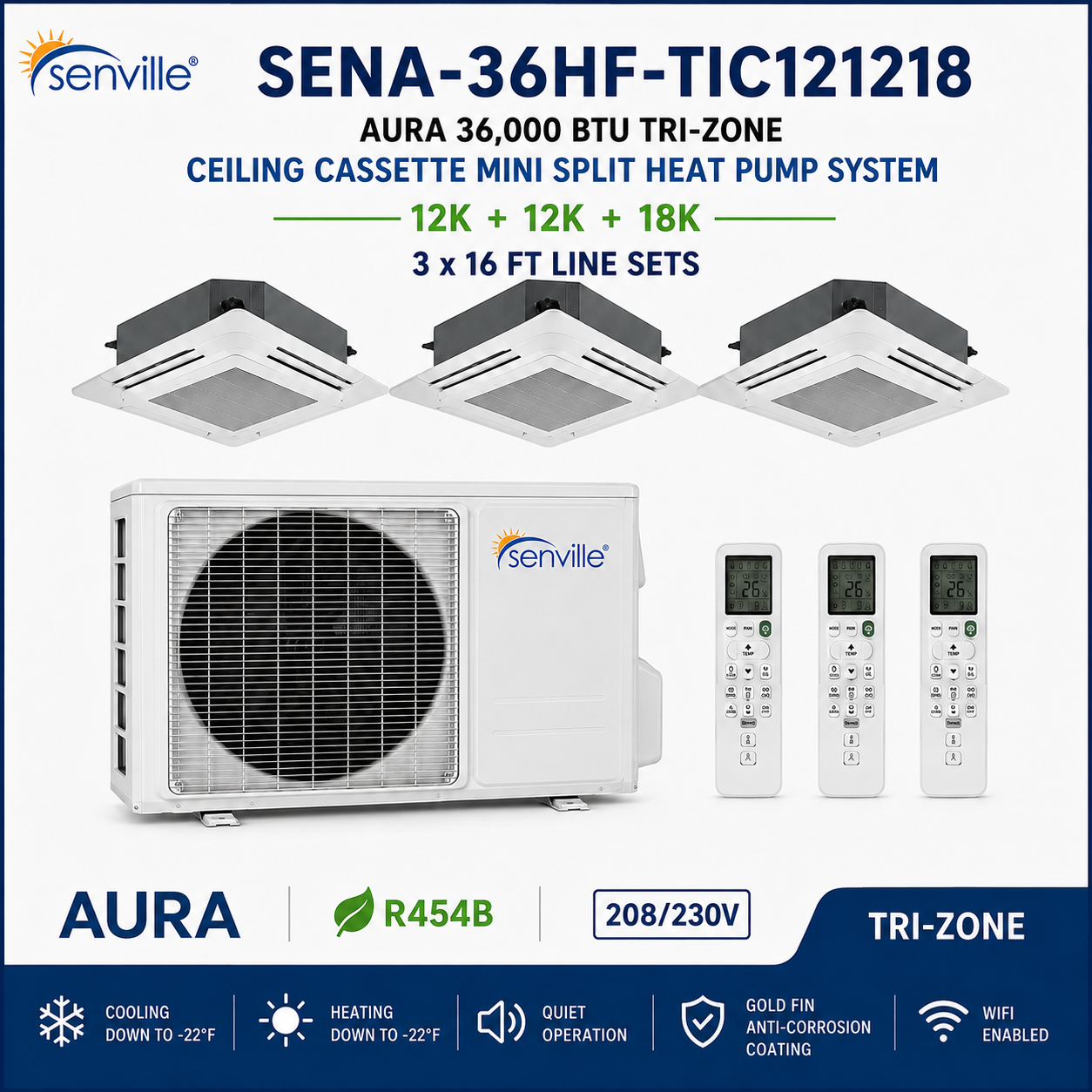

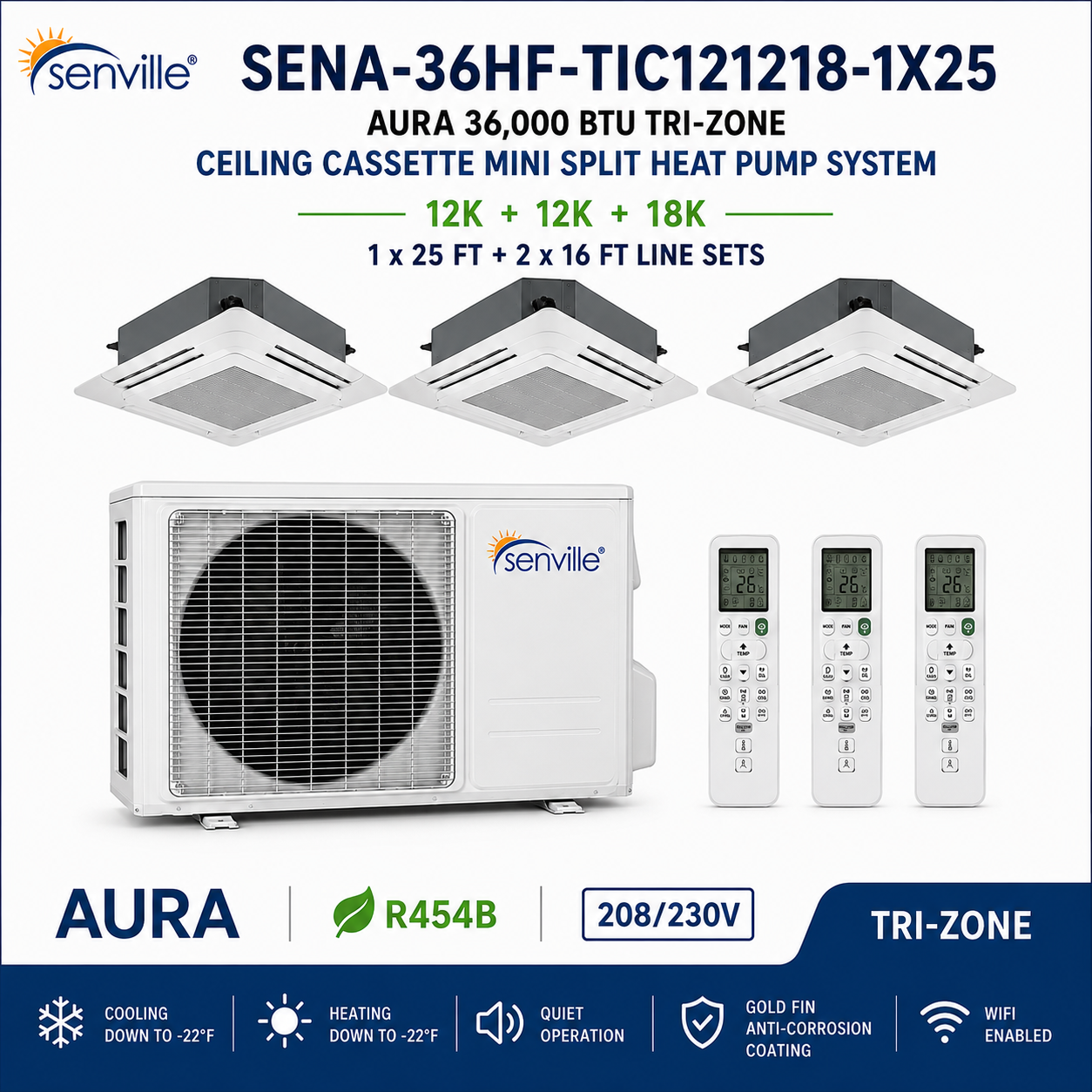

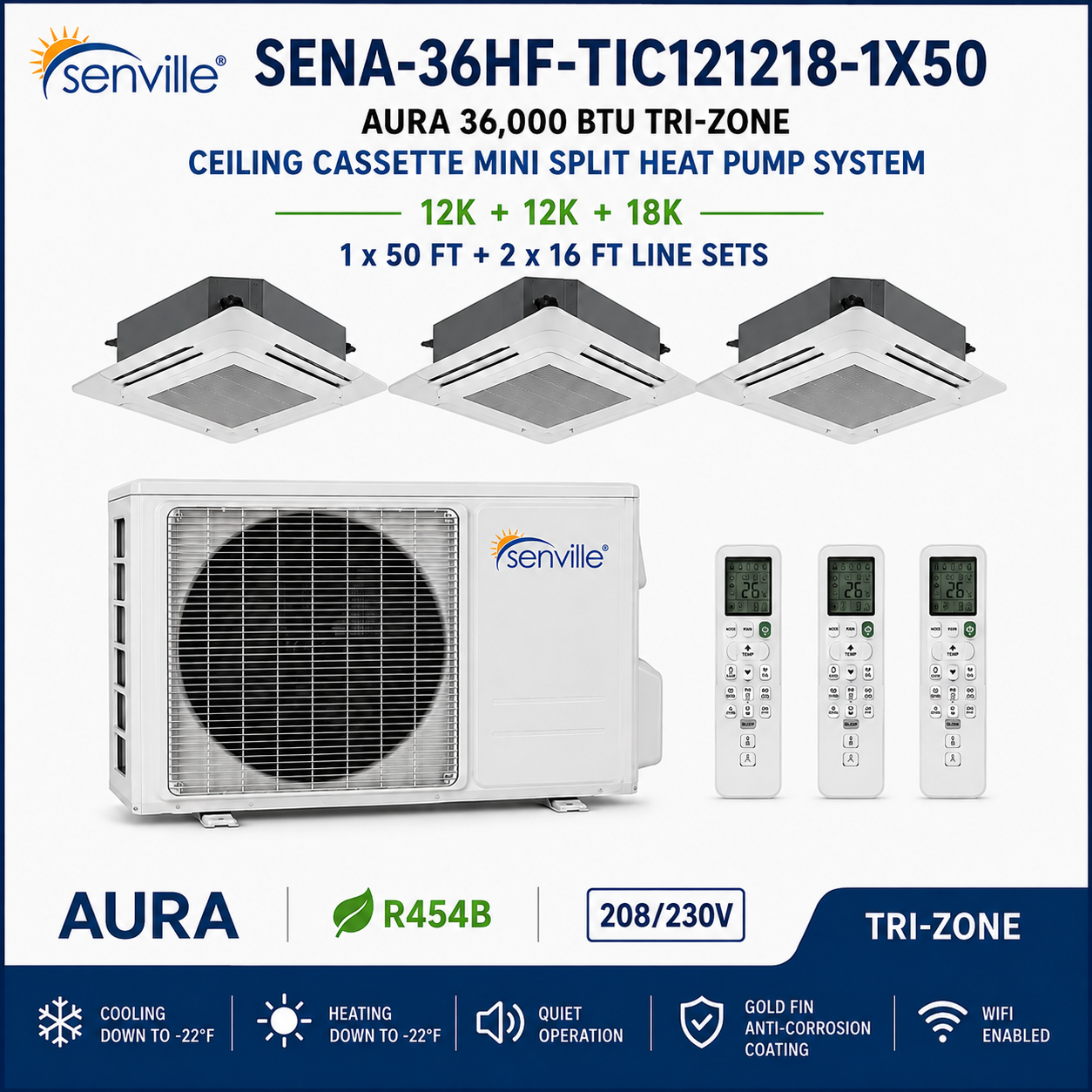

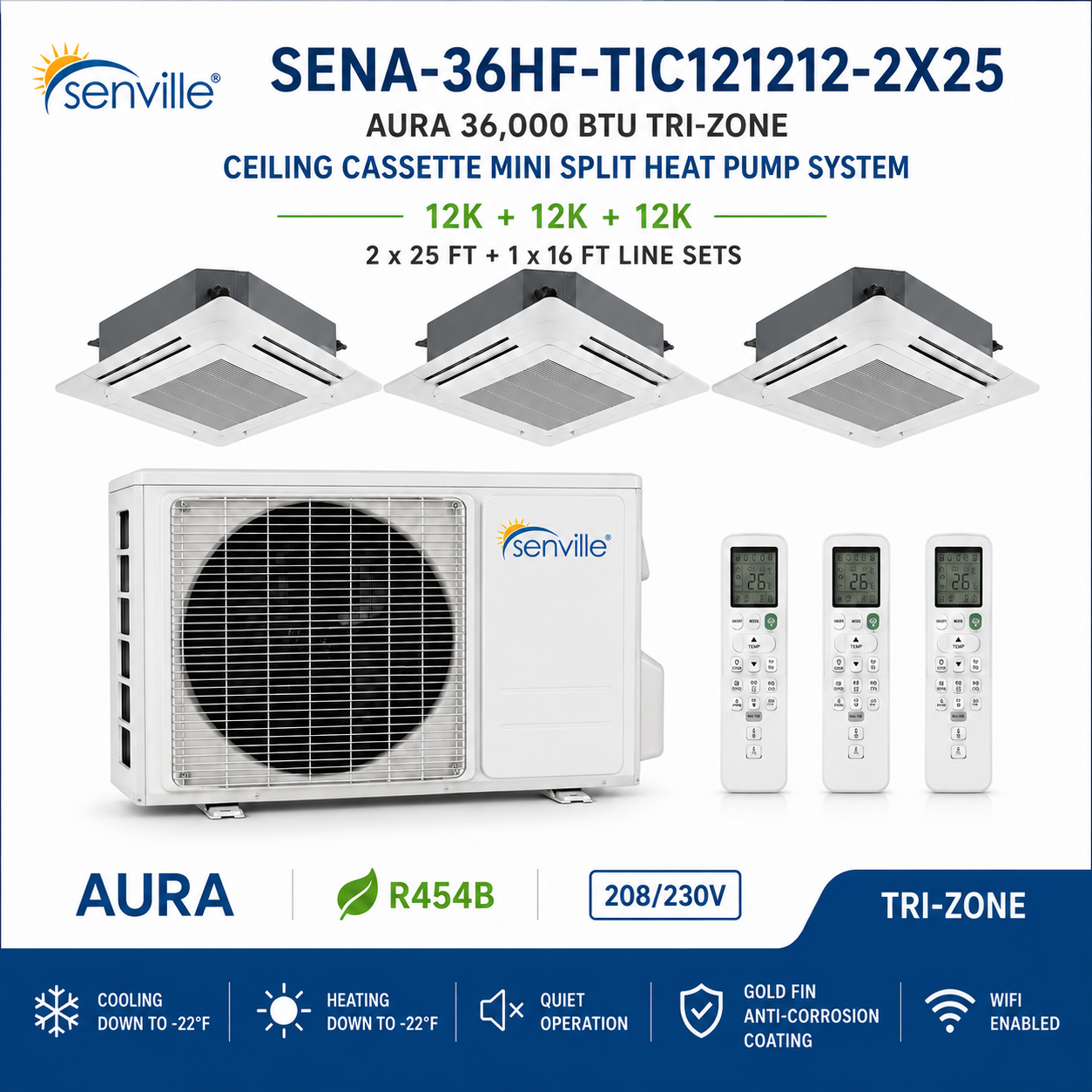

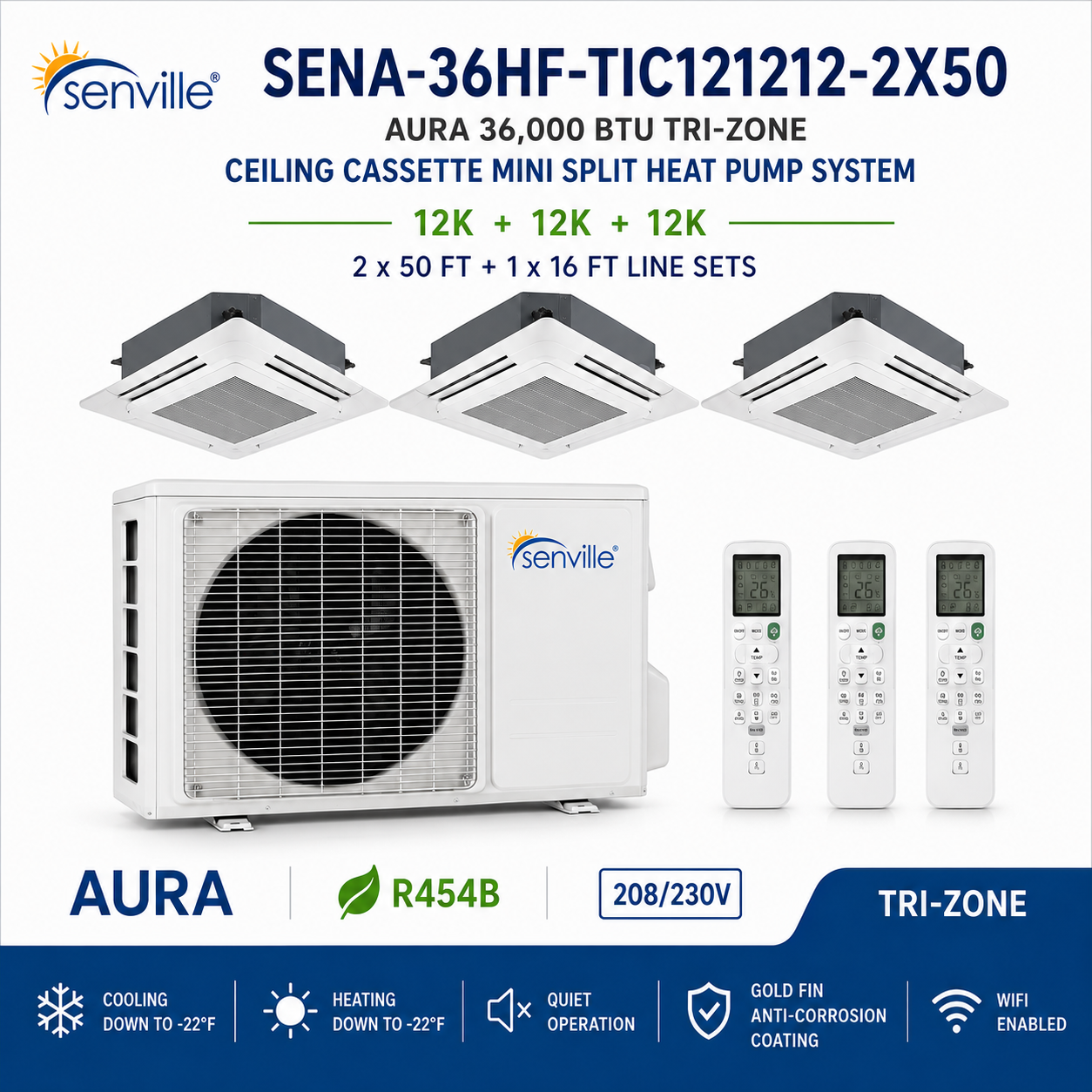

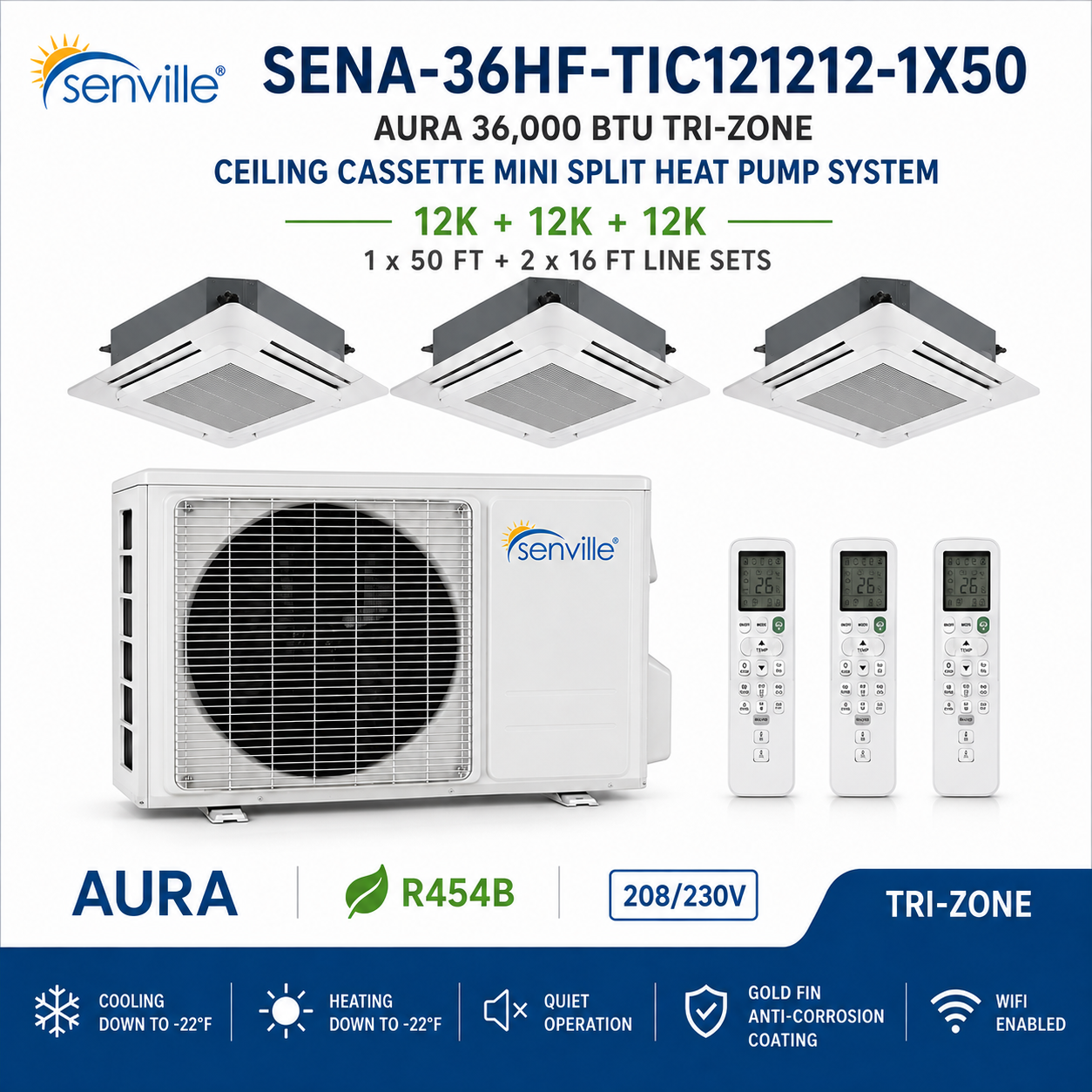

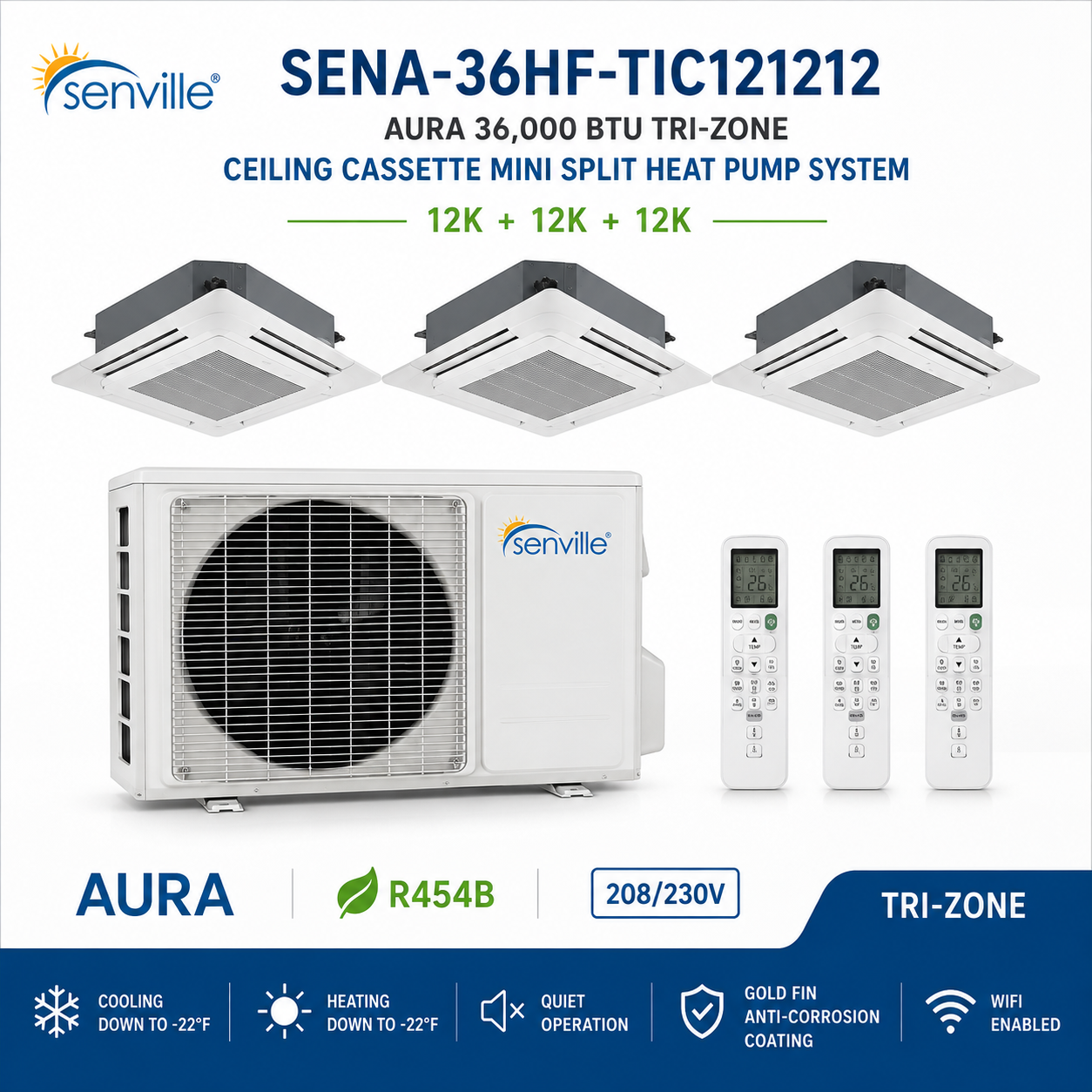

Senville AURA 36,000 BTU Tri-Zone Ceiling Cassette Mini Split Heat Pump – 23 SEER2
Senville AURA 36,000 BTU Tri-Zone Ceiling Cassette Mini Split Heat Pump – 23 SEER2 - 12000/12000/12000 BTU / 16ft / 16 ft / 16 ft is backordered and will ship as soon as it is back in stock.
The Senville AURA 36,000 BTU Tri-Zone Ceiling Cassette Mini Split Heat Pump provides efficient heating and cooling for up to three independently controlled zones from a single outdoor condenser. Designed for installations where a discreet indoor appearance is preferred, the ceiling cassette air handlers mount overhead and distribute conditioned air throughout each space.
Powered by Senville's inverter technology, this system delivers up to 23 SEER2 efficiency while providing both air conditioning and heat-pump operation. The AURA Series is designed for year-round performance, with heating operation down to -22°F (-30°C) and low-ambient cooling capabilities down to approximately 4°F (-15°C).
The system uses R454B refrigerant and includes features such as built-in dehumidification, Follow Me temperature control, self-cleaning operation, refrigerant leak detection and system diagnostics. Senville also provides a 10-year compressor warranty and 5-year parts warranty.
Multiple indoor-unit combinations and installation-kit lengths are available within this PlumbEStore family, allowing the system to be configured for the individual capacity requirements and piping layout of the installation.
Professional installation is required.
⚙️Key Features:
| Key Feature | Family Detail |
|---|---|
| System Type | Tri-Zone Ductless Mini Split Heat Pump |
| Indoor Style | Ceiling Cassette |
| Total System Capacity | 36,000 BTU |
| Number of Zones | 3 |
| Series | Senville AURA |
| Heating & Cooling | Yes |
| Efficiency | Up to 23 SEER2 |
| Low-Temperature Heating | Down to -22°F / -30°C |
| Low-Ambient Cooling | Down to approximately 4°F / -15°C |
| Compressor Technology | Inverter |
| Refrigerant | R454B |
| Dehumidification | Built-In |
| Follow Me Function | Yes |
| Self-Cleaning Mode | Yes |
| Refrigerant Leak Detection | Yes |
| Self-Diagnostics | Yes |
| Vertical Swing | Yes |
| Cold-Weather Equipment | PTC heat belt and pan |
| Outdoor Design | Bucket-free outdoor design |
| Installation Kit | Included; length varies by SKU |
| Warranty | 10-Year Compressor / 5-Year Parts |
| Installation | Professional installation required |
📊 Technical Specifications
| Technical Specification | Family Specification |
|---|---|
| Manufacturer | Senville |
| Series | AURA |
| Outdoor Model | SENA-36HF-MOA |
| Product Type | Ductless Mini Split AC with Heat Pump |
| Indoor Unit Type | Ceiling Cassette |
| Zones Used in This Family | 3 |
| Outdoor Unit Supported Zones | 2–4 |
| Nominal Cooling Capacity | 36,000 BTU |
| Cooling Capacity Range | 9,000–43,000 BTU |
| Nominal Heating Capacity | 36,000 BTU |
| Heating Capacity Range | 10,000–44,000 BTU |
| SEER2 | 23 |
| EER2 | 13 |
| HSPF2 – Region IV | 10.7 |
| HSPF2 – Region V | 8.5 |
| COP | 4.0 |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253V |
| Minimum Circuit Ampacity | 37A |
| Maximum Fuse | 40A |
| Cooling Input Range | 600–4,000 W |
| Cooling Current Range | 5.2–17.8A |
| Heating Input Range | 600–3,750 W |
| Heating Current Range | 5.2–16.6A |
| Refrigerant | R454B |
| Factory Refrigerant Charge | 134.04 oz |
| Factory Pre-Charge | 100 ft |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Maximum Outdoor Airflow | 3,037.2 CFM |
| Outdoor Sound Level | 65 dB |
| Outdoor Dimensions – W × D × H | 38.58 × 16.34 × 38.39 in. |
| Outdoor Unit Weight | 211.86 lb |
| Warranty | 10 Years Compressor / 5 Years Parts |
| Certifications | UL Certified / AHRI Certified |
