Senville AURA SENA-36HF/Q Quad-Zone Mini Split Heat Pump
The Senville AURA SENA-36HF/Q is a 36,000 BTU-class ductless mini split air conditioner and heat pump serving four spaces from one outdoor condenser. Choose one of the three indoor-unit combinations below; each includes four wall-mounted indoor units and four 16-foot installation kits.
Inverter operation, R-454B refrigerant, wireless remotes and Alexa/app-capable control support year-round comfort. Senville lists heating operation down to -22°F / -30°C. Available heating output varies with outdoor temperature and the installed equipment combination.
Family Configurations
| SKU | Indoor Unit Capacities | Included Kits |
|---|---|---|

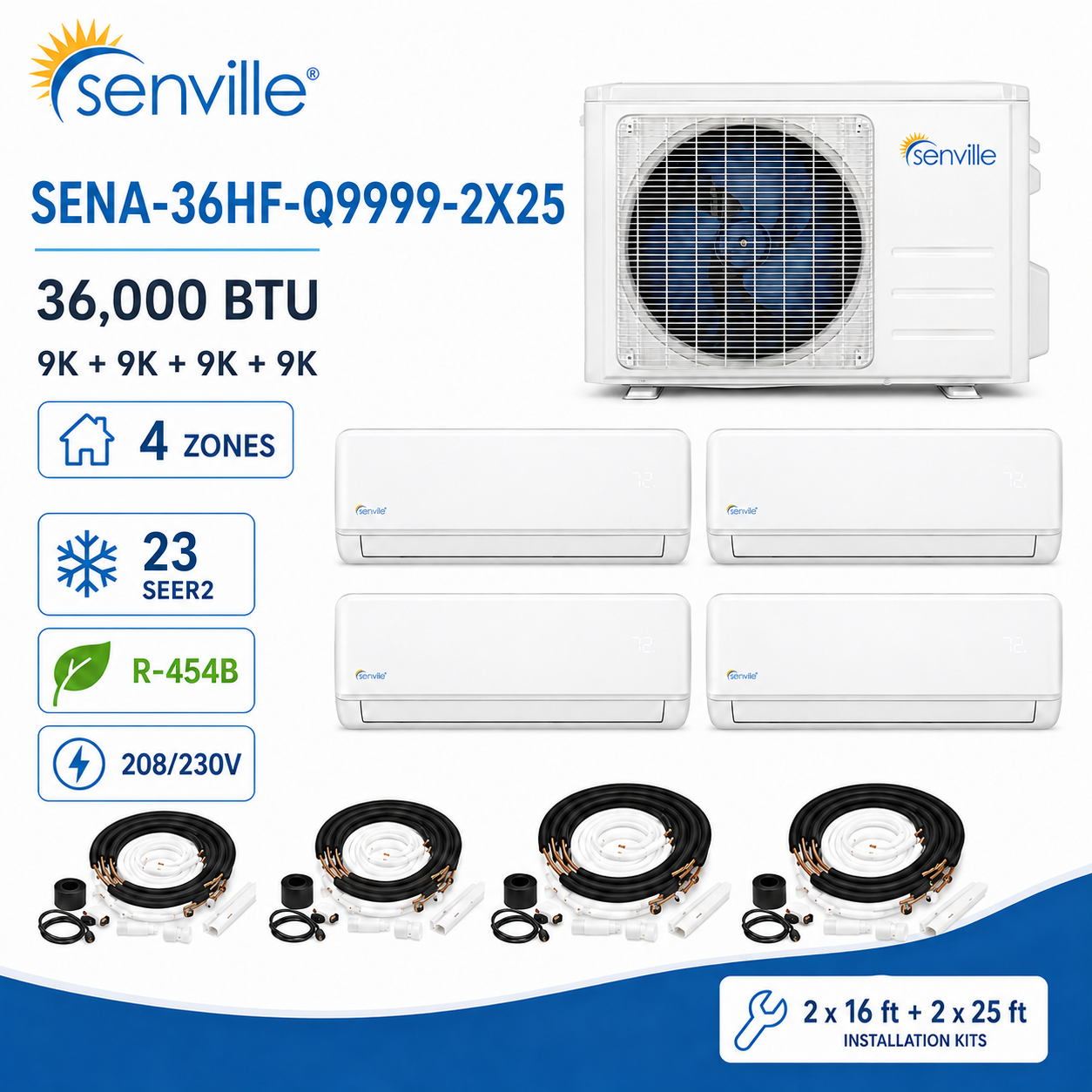

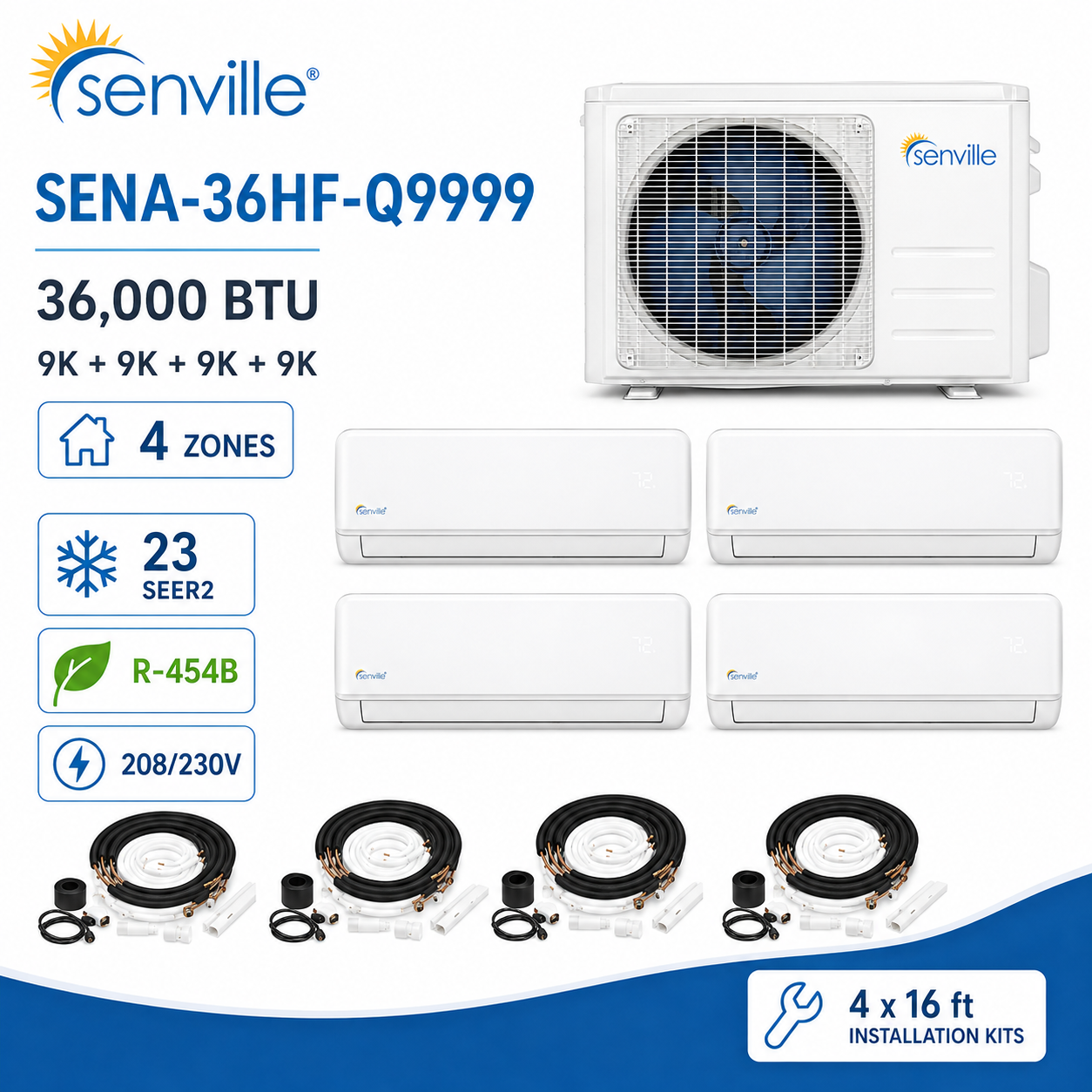

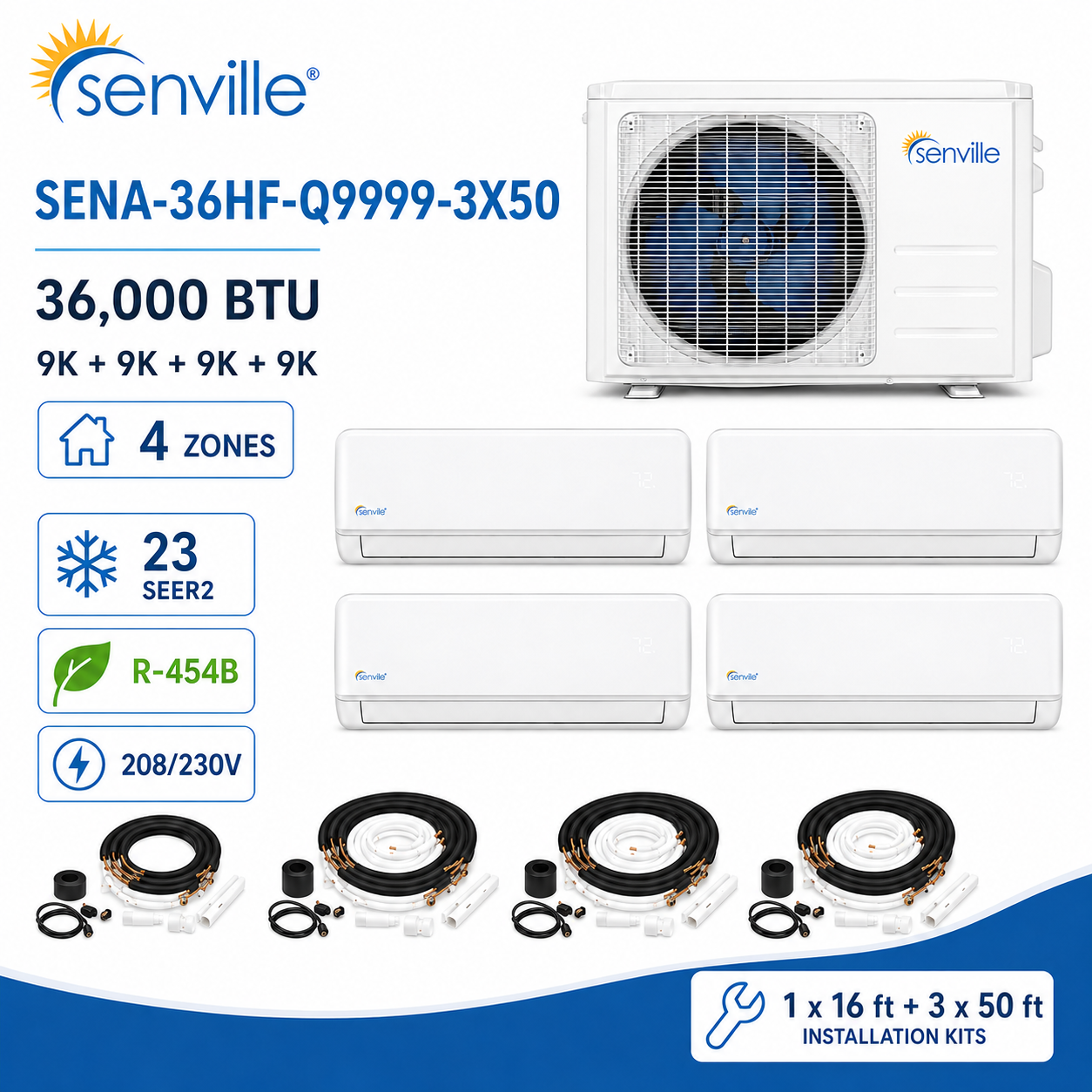

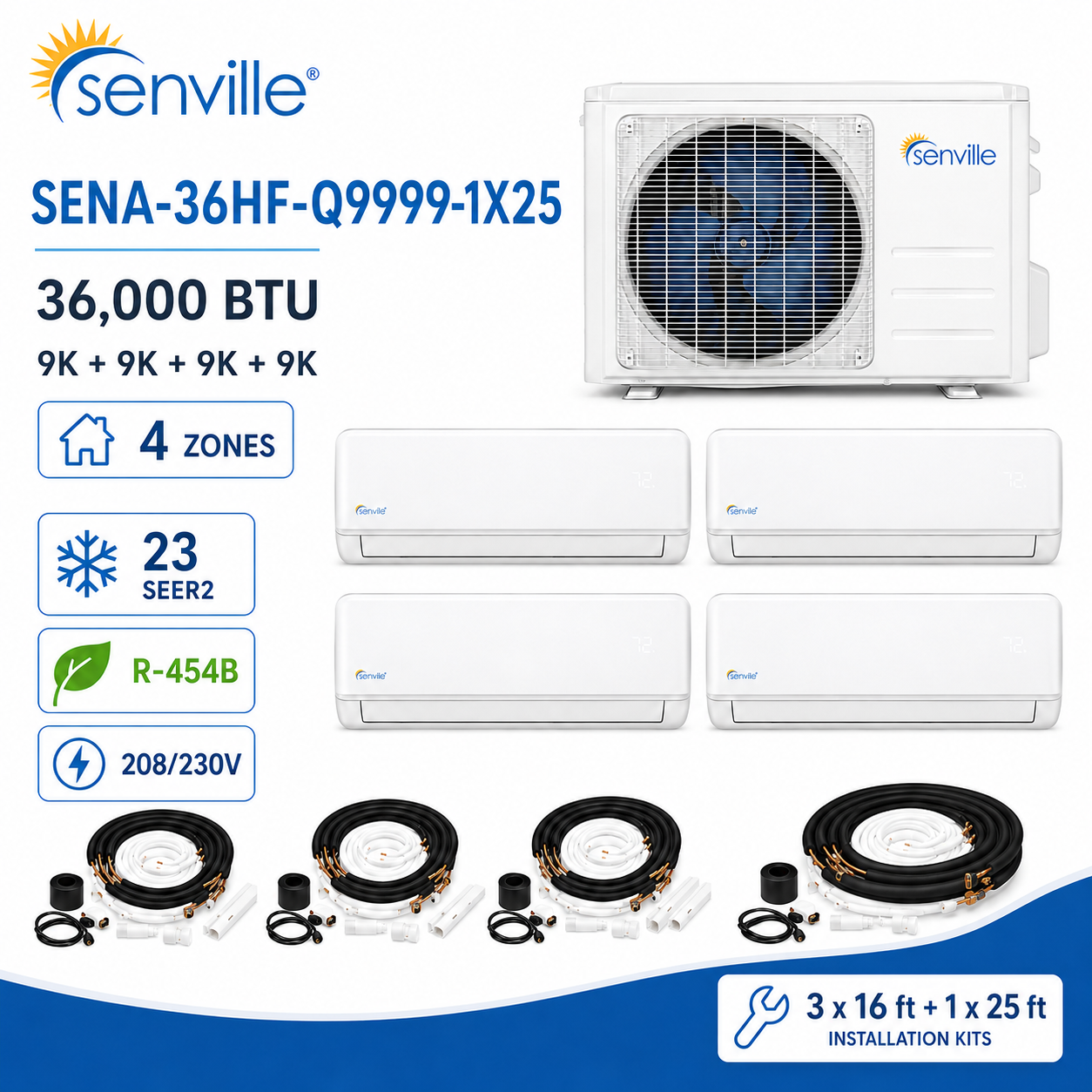

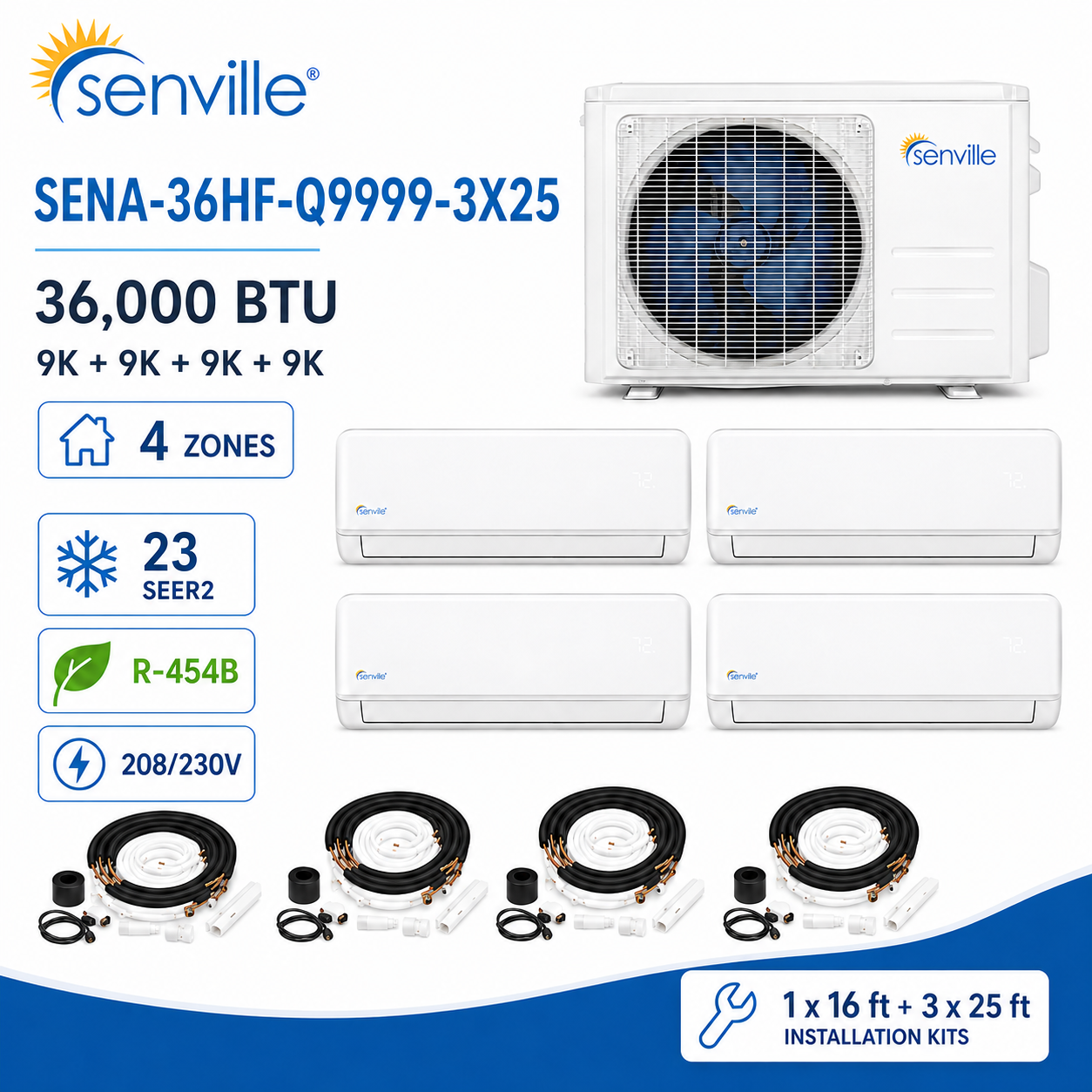

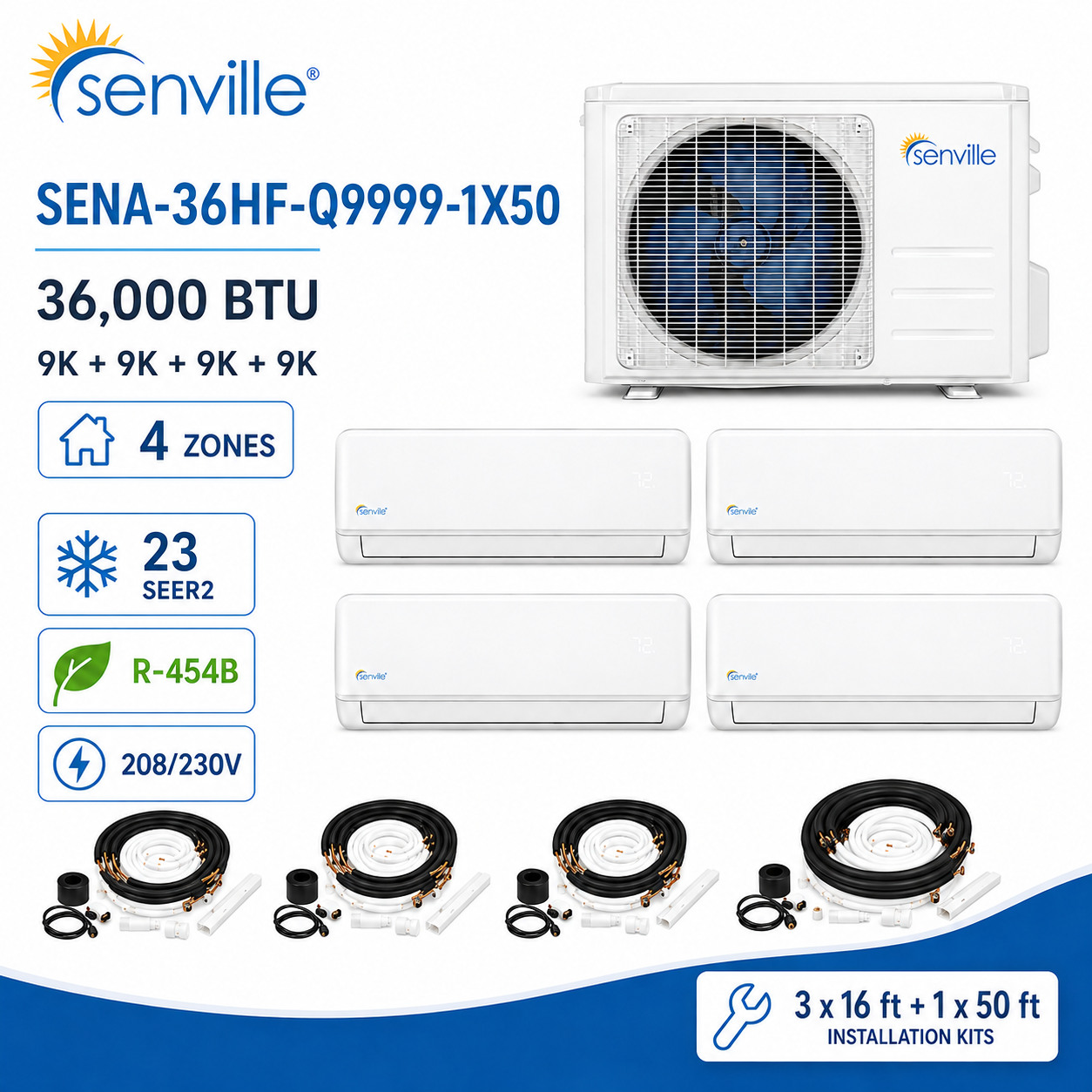

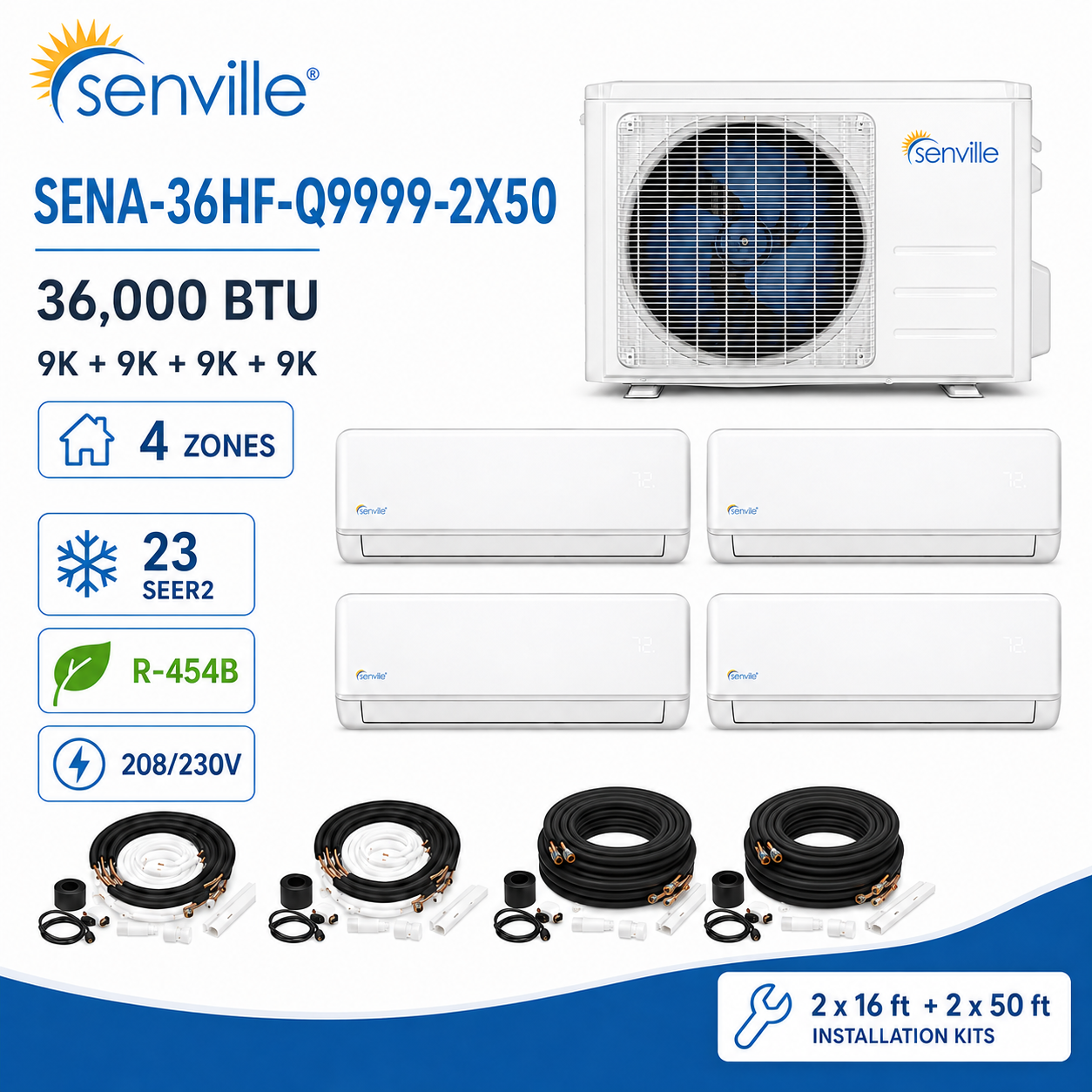

| SENA-36HF-Q9999 | 9K + 9K + 9K + 9K BTU/h | 4 × 16 ft. |

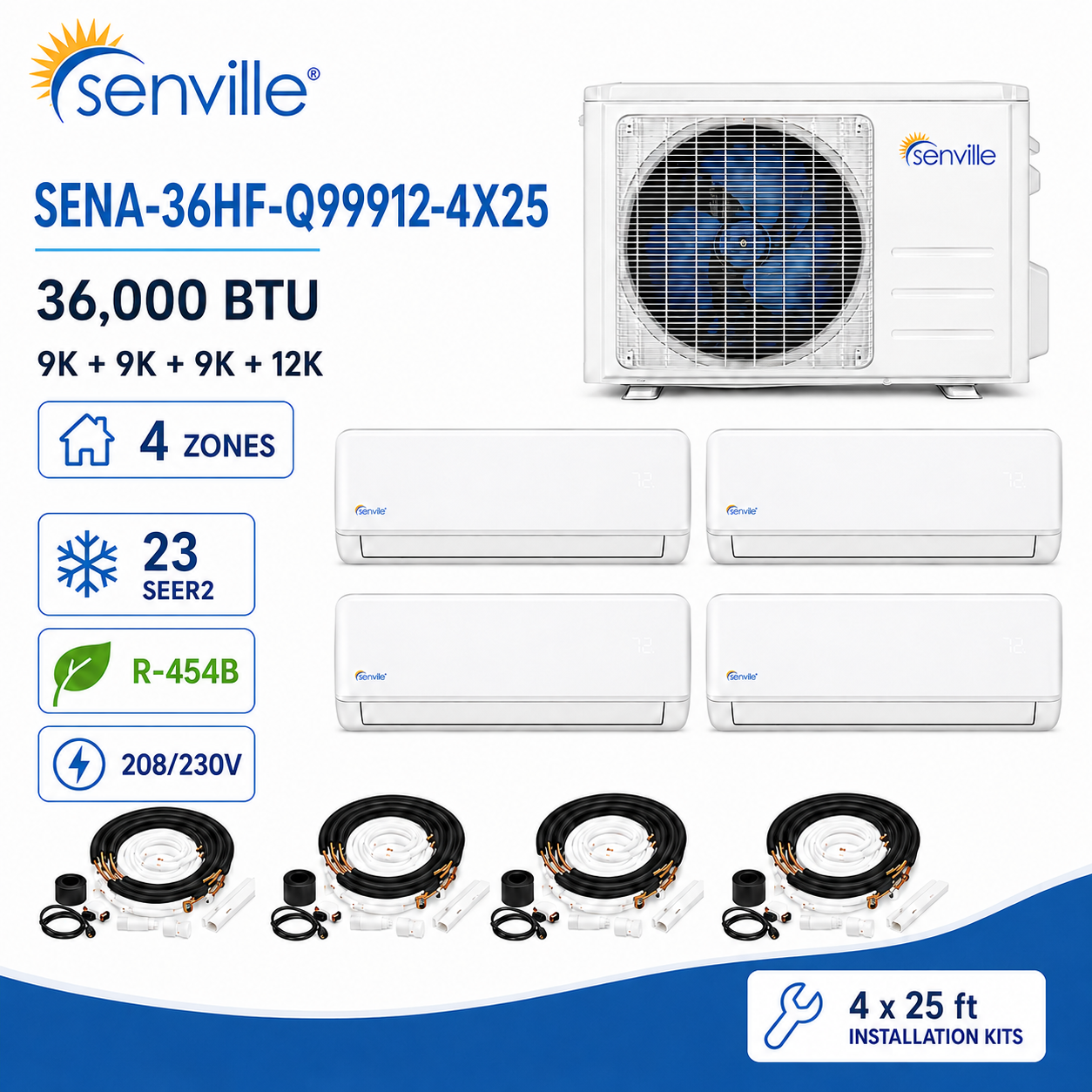

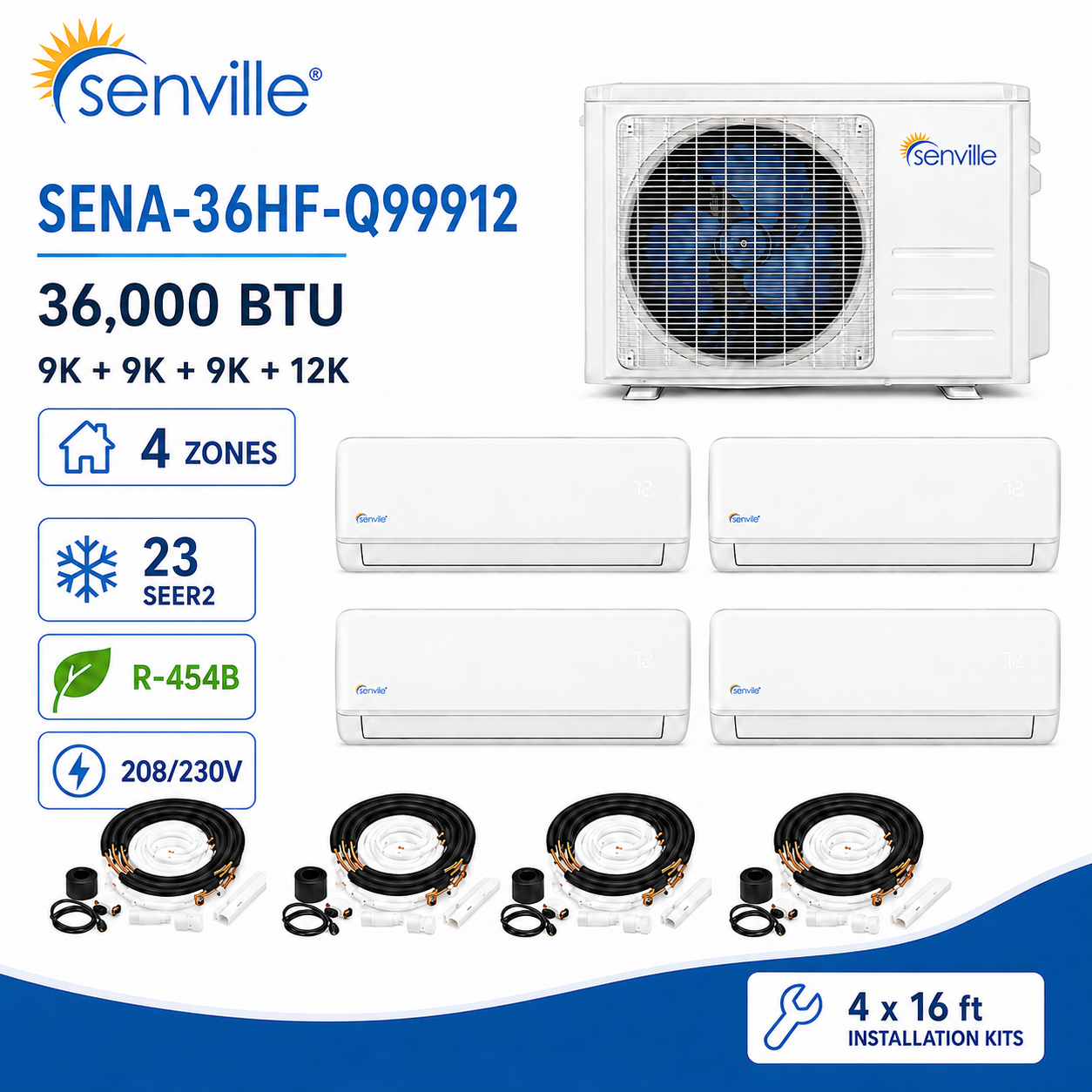

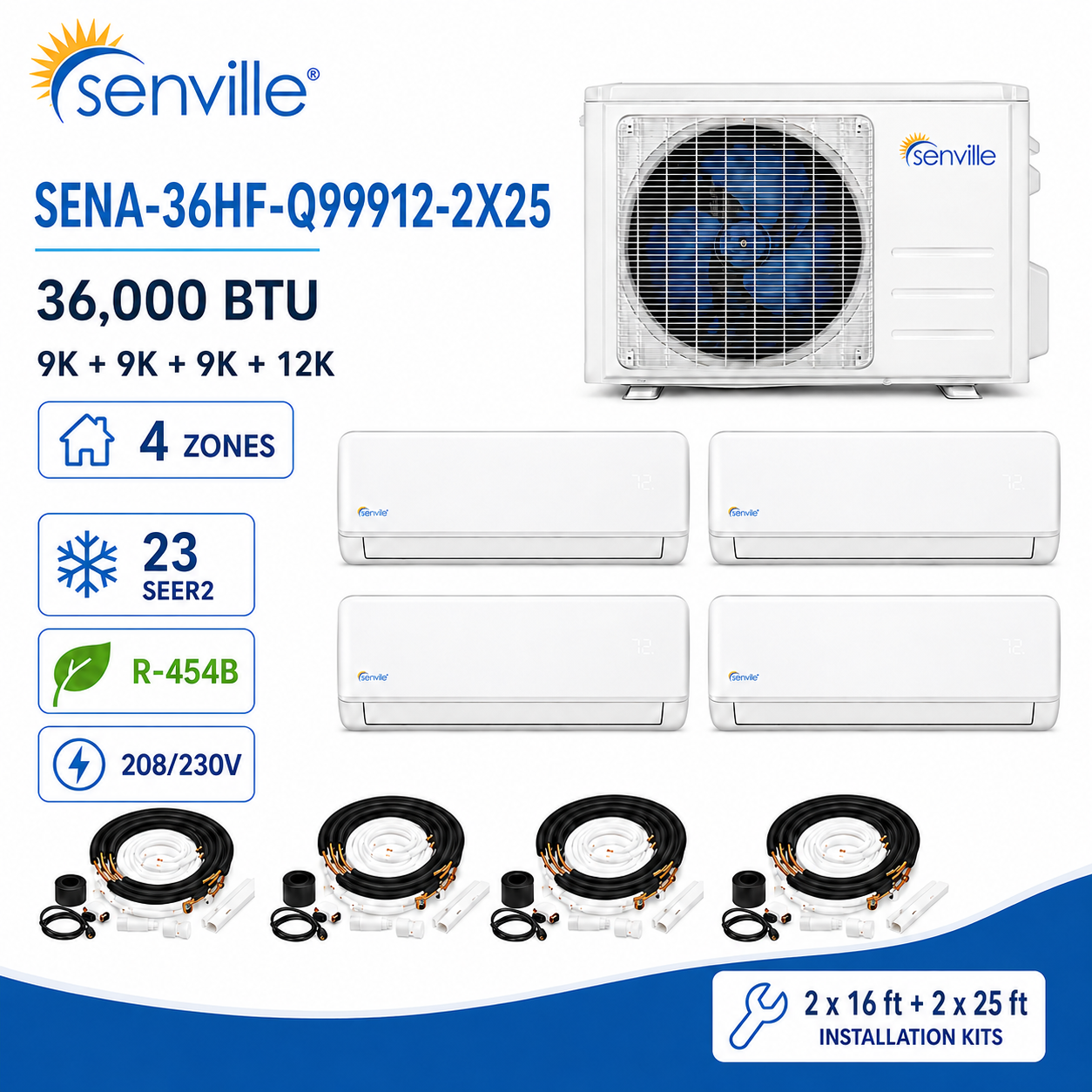

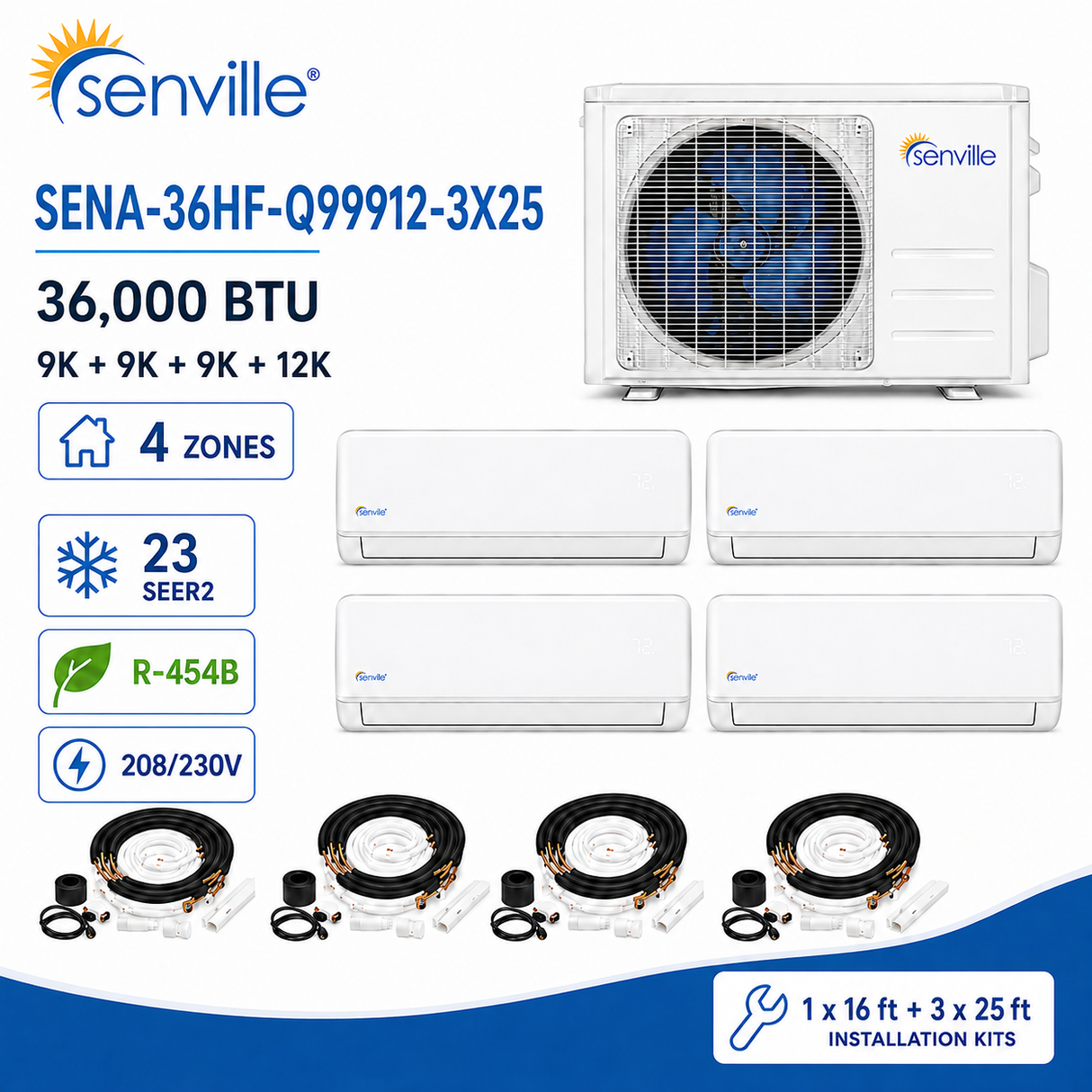

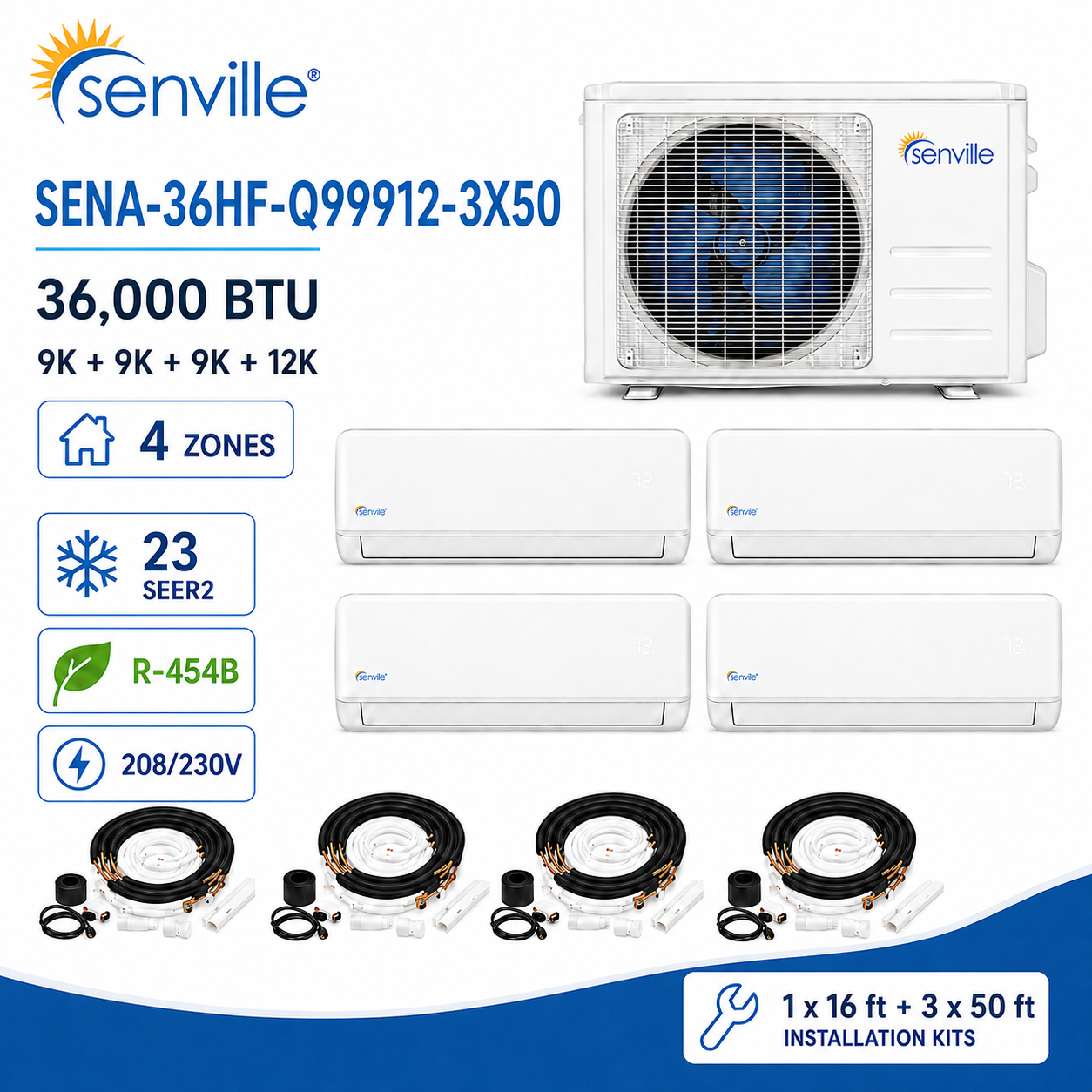

| SENA-36HF-Q99912 | 9K + 9K + 9K + 12K BTU/h | 4 × 16 ft. |

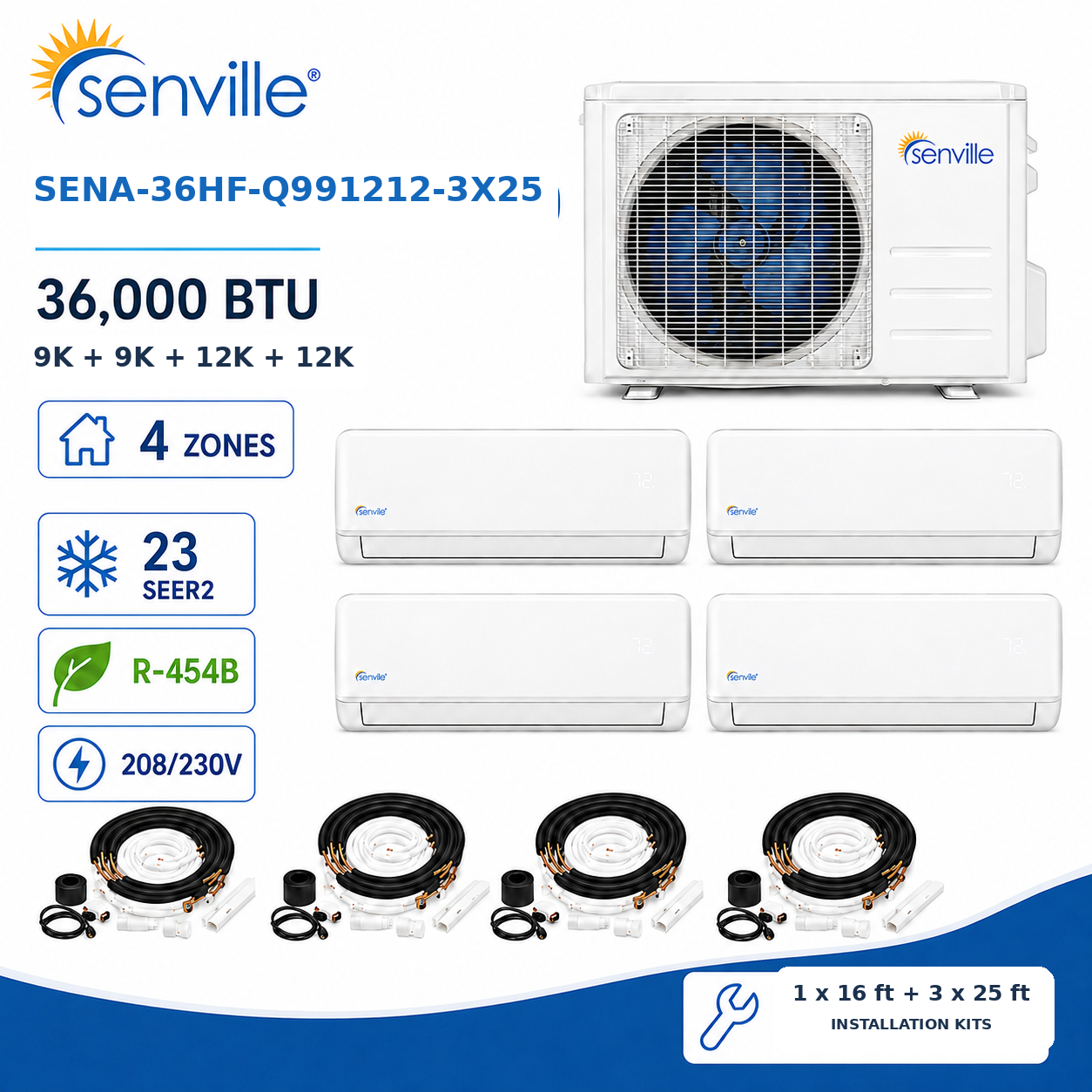

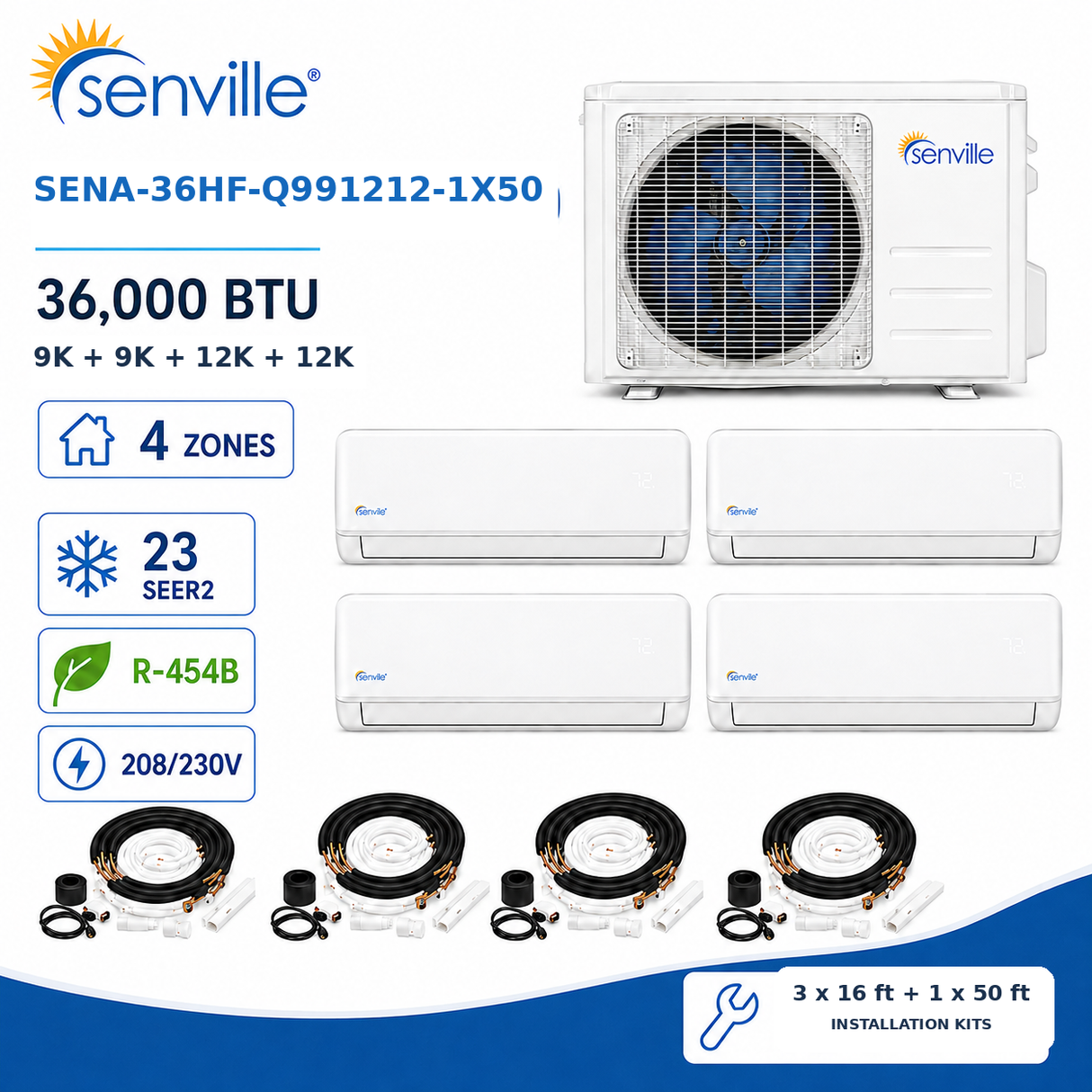

| SENA-36HF-Q991212 | 9K + 9K + 12K + 12K BTU/h | 4 × 16 ft. |
The sum of the indoor-unit nominal capacities does not increase the outdoor system’s rated capacity. Have a qualified contractor size each zone and confirm the approved indoor/outdoor combination.
Key Features & Included Equipment
- Four-zone layout: Four wall-mounted indoor units connect to one outdoor heat pump, with separate temperature settings for each zone.
- Inverter technology: Modulates output to support steady temperature control.
- Cold-climate heating: Manufacturer-listed operation down to -22°F outdoor temperature.
- Controls: Wireless remote controls and Alexa USB control kit.
- Installation materials: Four 16-foot installation kits and an indoor-to-outdoor wiring harness.
Technical Specifications
The following are the manufacturer’s published family specifications. Confirm certified ratings and indoor-unit details for the exact selected equipment combination before purchase.
| Specification | Value |
|---|---|
| Manufacturer / series | Senville / AURA |
| Model family | SENA-36HF/Q |
| Zones in these bundles | 4 |
| Power supply | 208/230V, single-phase, 60 Hz |
| Voltage range | 187–253V |
| SEER2 / EER2 | 23 / 13 |
| HSPF2 — Regions IV / V | 10.7 / 8.5 |
| Rated cooling / heating capacity | 36,000 / 36,000 BTU/h |
| Cooling output range | 9,000–43,000 BTU/h |
| Heating output range | 10,000–44,000 BTU/h |
| Cooling input / current range | 600–4,000 W / 5.2–17.8A |
| Heating input / current range | 600–3,750 W / 5.2–16.6A |
| Published COP | 4.0 |
| Minimum circuit ampacity | 37A |
| Maximum fuse rating | 40A |
| Outdoor airflow — maximum | 3,037.2 CFM |
| Outdoor noise level | 65 dB |
| Outdoor dimensions — W × D × H | 38.58 × 16.34 × 38.39 in. |
| Outdoor unit weight | 211.86 lb |
| Refrigerant / listed charge | R-454B / 134.04 oz |
| Factory pre-charge piping allowance | 125 ft. combined piping length |
| Minimum outdoor heating temperature | -22°F / -30°C |
Installation & System Selection
Professional installation is required. Follow the manufacturer’s instructions and applicable codes for R-454B handling, electrical service, piping, drainage, clearances and commissioning. Installation labor and building-specific materials are not included.
Four 16-foot line sets total 64 feet. The 125-foot factory pre-charge allowance describes combined piping length; it is not the amount of line set supplied and does not replace individual line-length limits or refrigerant adjustment instructions.
Indoor-unit dimensions, net weights and exact certified combination ratings should be confirmed for the selected bundle. Each indoor capacity must suit the room’s calculated load.
Manufacturer Warranty
Senville lists a 10-year compressor and 5-year parts limited warranty for this AURA family. Coverage is subject to professional installation, registration, maintenance, eligibility and the manufacturer’s exclusions. Repair labor is not covered.
Product Video
General Senville product overview; depicted equipment and accessories may differ from the selected configuration.
