Senville  |  SKU: SENA-09HF-IDNL

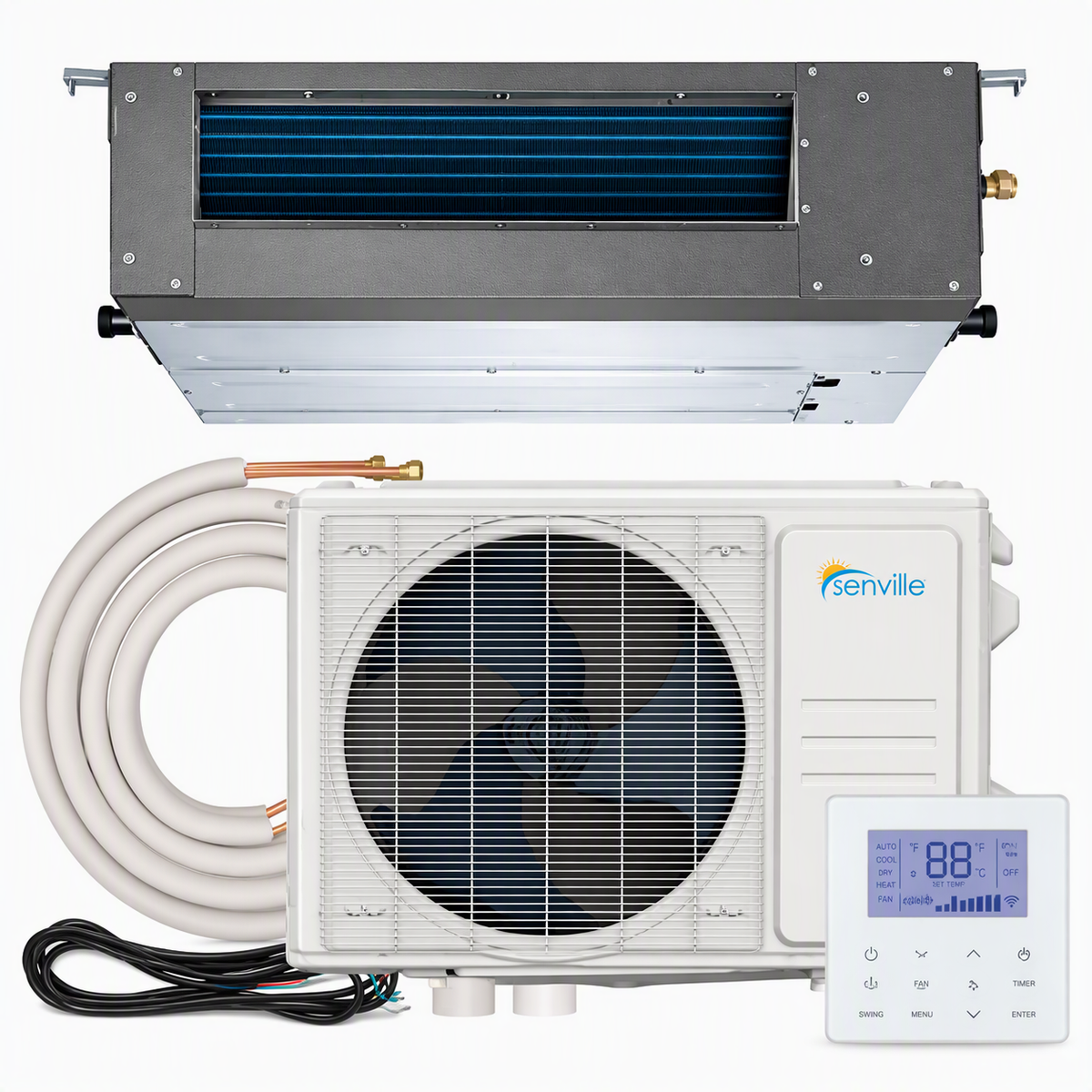

Senville AURA Concealed Duct Mini Split Heat Pumps | 9K–24K

Regular price $1,269.99
Shipping calculated at checkout.
BTU
Installation Kit Length

Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.

Description

The Senville AURA Concealed Duct Mini Split Heat Pump family provides discreet, single-zone heating and cooling. Its indoor air handler installs in a concealed location and connects to ductwork, leaving supply and return grilles visible in the occupied space.

Choose a 9,000, 12,000, 18,000 or 24,000 BTU size class. Systems use R-454B refrigerant and 208/230V single-phase power, with heating operation listed down to -22°F / -30°C. Actual heating output varies with outdoor conditions.

Both indoor and outdoor units are included. Select no installation kit, a 16 ft kit or an available 25 ft kit. The 24,000 BTU configuration is offered here with no kit or a 16 ft kit.

Key Features

Feature Details
Manufacturer / Series Senville / AURA
System Type Single-zone concealed duct mini split heat pump

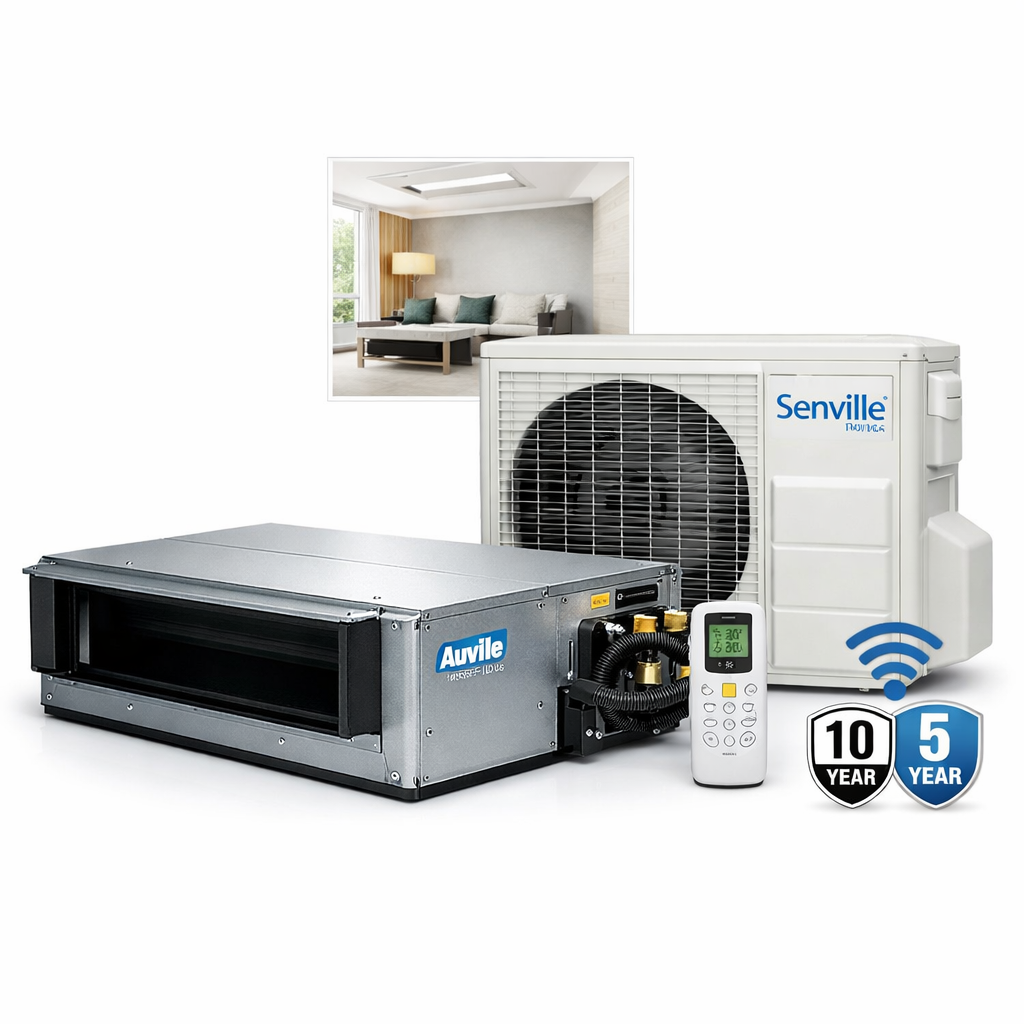

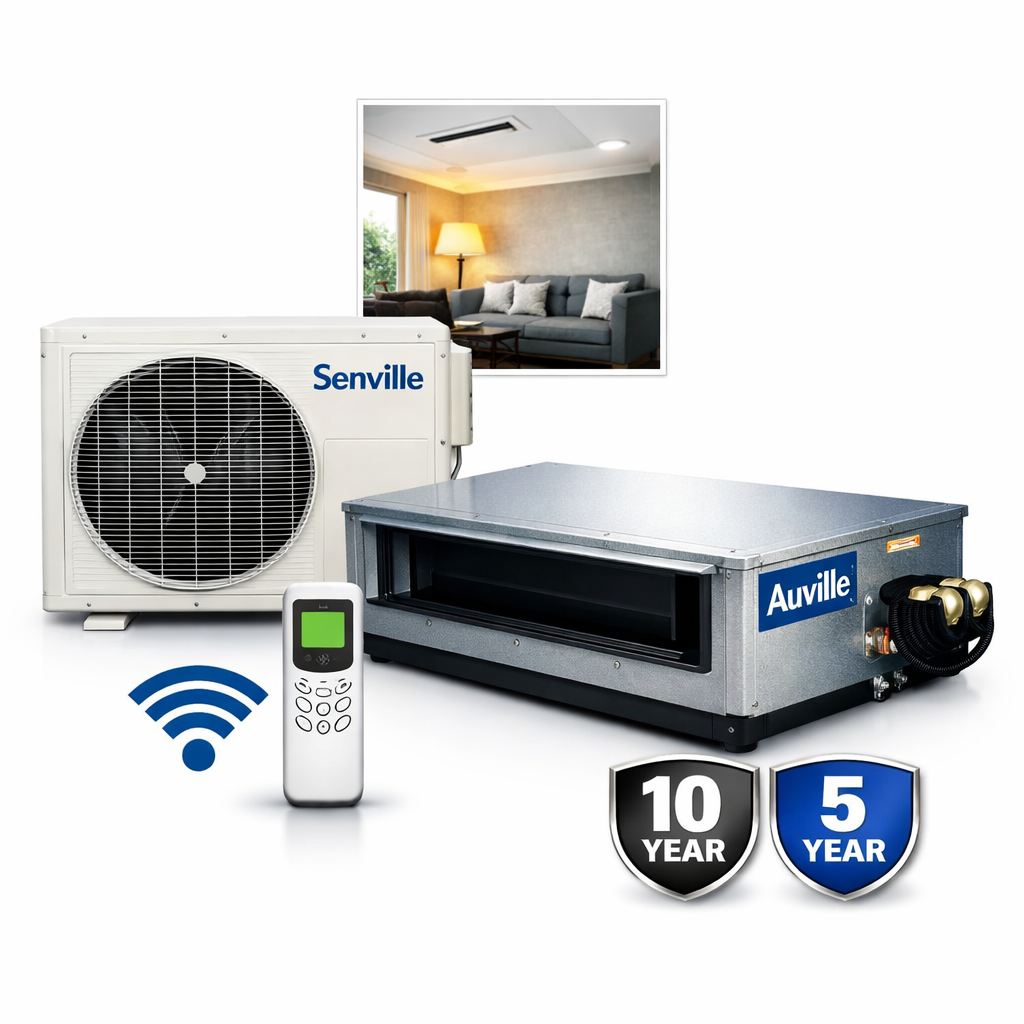

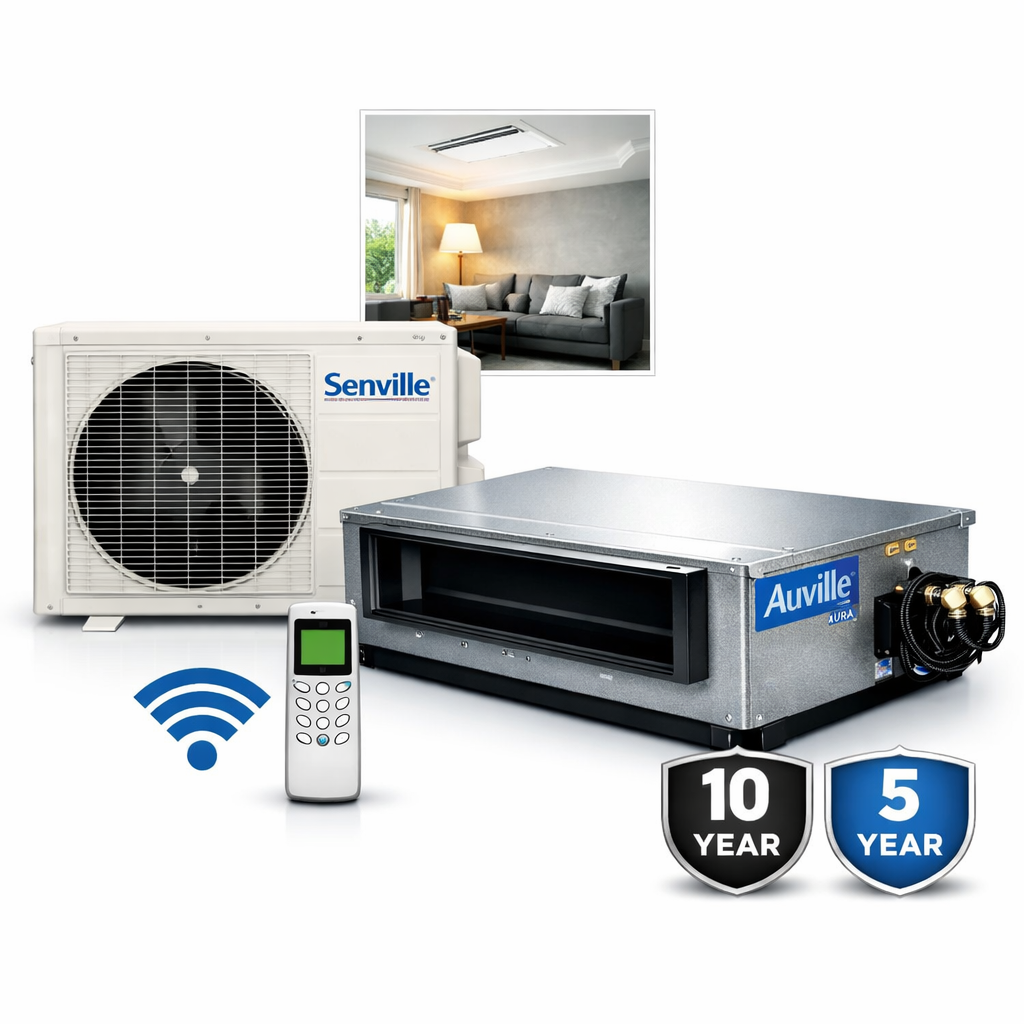

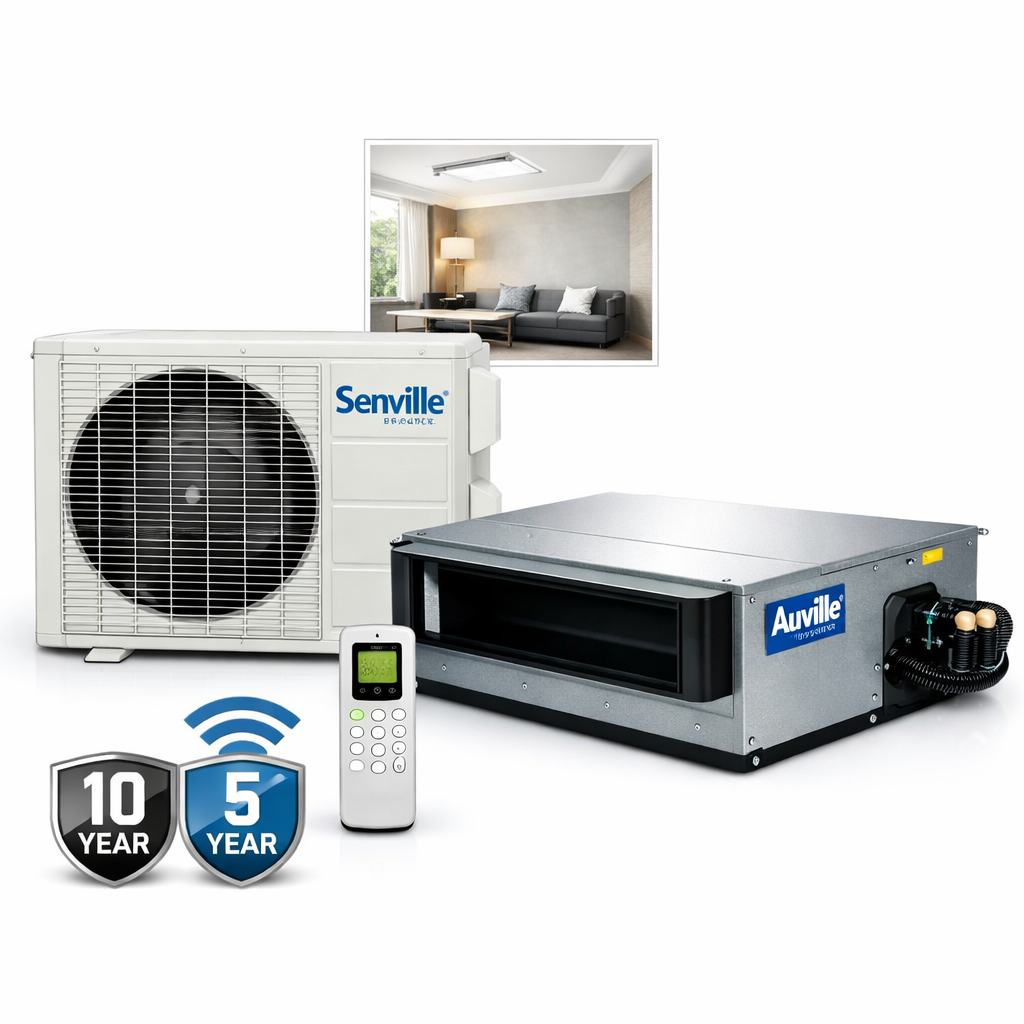

Equipment Included Concealed indoor air handler and matched outdoor unit
Capacity Classes 9K / 12K / 18K / 24K BTU
Refrigerant R-454B
Power Supply 208/230V, single phase, 60 Hz
Controls Wired control
Installation Professional HVAC installation required

Capacity & Efficiency

Nominal size identifies the model family. Confirm the exact supplied equipment combination and current AHRI certificate before relying on certification or incentive eligibility.

Specification 9,000 BTU 12,000 BTU 18,000 BTU 24,000 BTU
Base Model SENA-09HF-ID SENA-12HF-ID SENA-18HF-ID SENA-24HF-ID
SEER2 21.4 20 18 19
EER2 13.4 12 12 12
HSPF2 Region IV / V 12.5 / 9.7 10 / 8 10.5 / 9 11.7 / 9.3
Rated Cooling — BTU/h 9,000 12,000 17,000 24,000
Rated Heating — BTU/h 10,000 12,500 19,000 26,000

Installation Kit Options

NL means no installation kit. Indoor and outdoor equipment remain included. The 16 and 25 suffixes identify kit length in feet.

Installation Kit 9,000 BTU 12,000 BTU 18,000 BTU 24,000 BTU
No Kit SENA-09HF-IDNL SENA-12HF-IDNL SENA-18HF-IDNL SENA-24HF-IDNL
16 ft Kit SENA-09HF-ID16 SENA-12HF-ID16 SENA-18HF-ID16 SENA-24HF-ID16
25 ft Kit SENA-09HF-ID25 SENA-12HF-ID25 SENA-18HF-ID25 Not currently offered

Product Dimensions & Weight

Dimensions are width × depth × height in inches. Weights describe the equipment, not shipping cartons. Confirm service access and installation clearances before ordering.

Specification 9,000 BTU 12,000 BTU 18,000 BTU 24,000 BTU
Indoor Dimensions 27.56 × 19.92 × 7.87 in. 27.56 × 19.92 × 7.87 in. 34.65 × 26.54 × 8.27 in. 39.37 × 29.53 × 9.65 in.
Indoor Weight 39.46 lb 39.46 lb 54.45 lb 80.47 lb
Outdoor Dimensions 31.69 × 12.99 × 21.81 in. 31.69 × 12.99 × 21.81 in. 35.04 × 13.46 × 26.50 in. 37.24 × 16.14 × 31.89 in.
Outdoor Weight 72.75 lb 72.75 lb 99.87 lb 130.29 lb

Electrical & Refrigerant

Specification 9,000 BTU 12,000 BTU 18,000 BTU 24,000 BTU
Minimum Circuit Ampacity 15 A 15 A 19 A 25 A
Maximum Fuse Rating 15 A 15 A 20 A 25 A
Factory Pre-Charge Coverage 25 ft 25 ft 25 ft 25 ft

Product Highlights

  • Concealed indoor design preserves wall space.
  • Single-zone heating and cooling.
  • Four capacity classes from 9,000 to 24,000 BTU.
  • Indoor and outdoor units included.
  • R-454B refrigerant.
  • Wired control.
  • Heating operation listed down to -22°F / -30°C.
  • Professional installation required.

Installation Notes

Professional HVAC installation is required. Confirm the approved indoor-unit orientation, duct design, room load, drainage, service access, piping and electrical requirements before ordering. The concealed indoor unit must be installed in its approved horizontal orientation.

Factory refrigerant pre-charge covers up to 25 ft. The installer must follow the exact system’s instructions for piping limits, refrigerant adjustments and commissioning. Building-specific ductwork, grilles, drainage and electrical materials are supplied as part of the installation.

Warranty

  • 10 years: Compressor.
  • 5 years: Parts.

Coverage is subject to Senville’s complete warranty terms, installation requirements and applicable registration requirements.
