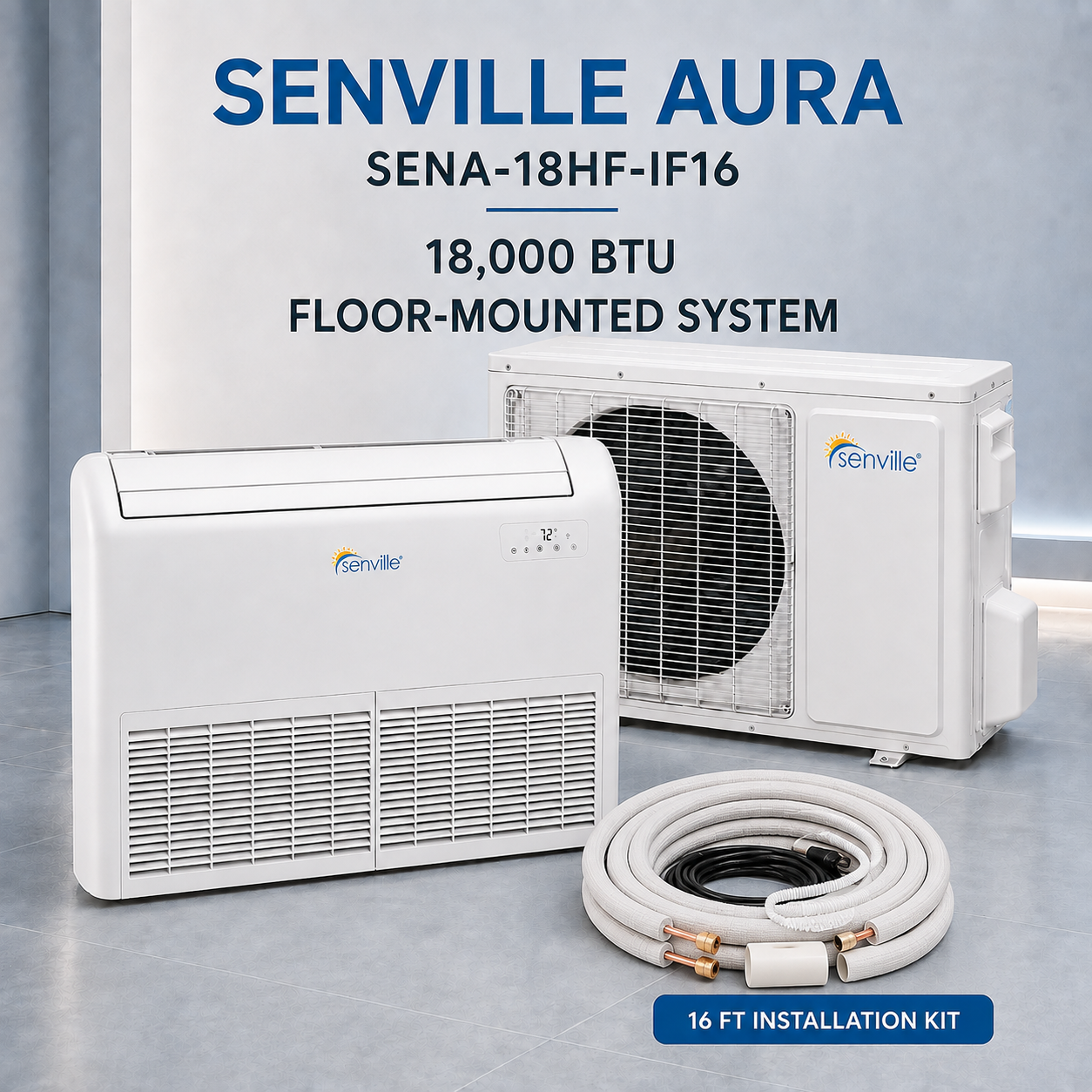

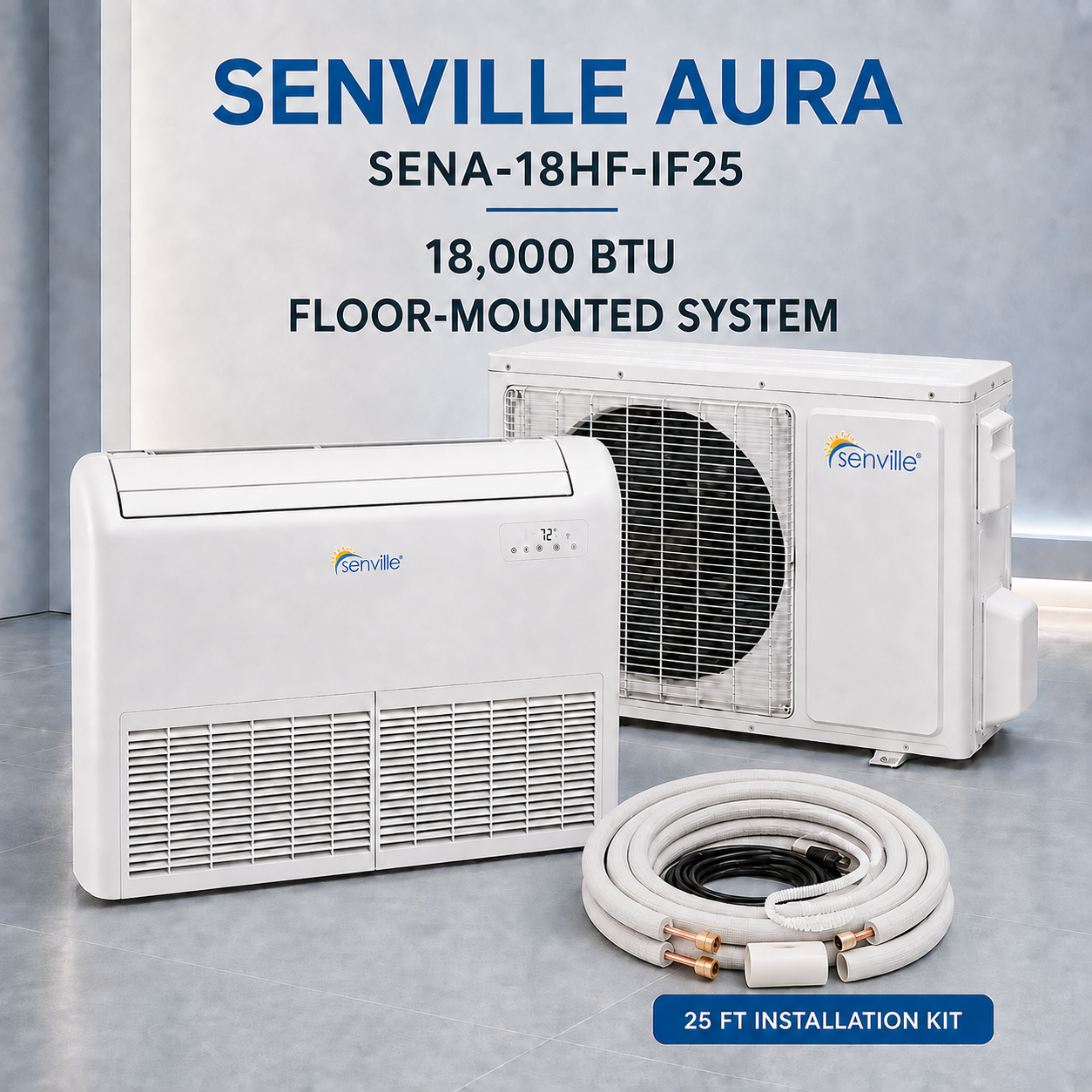

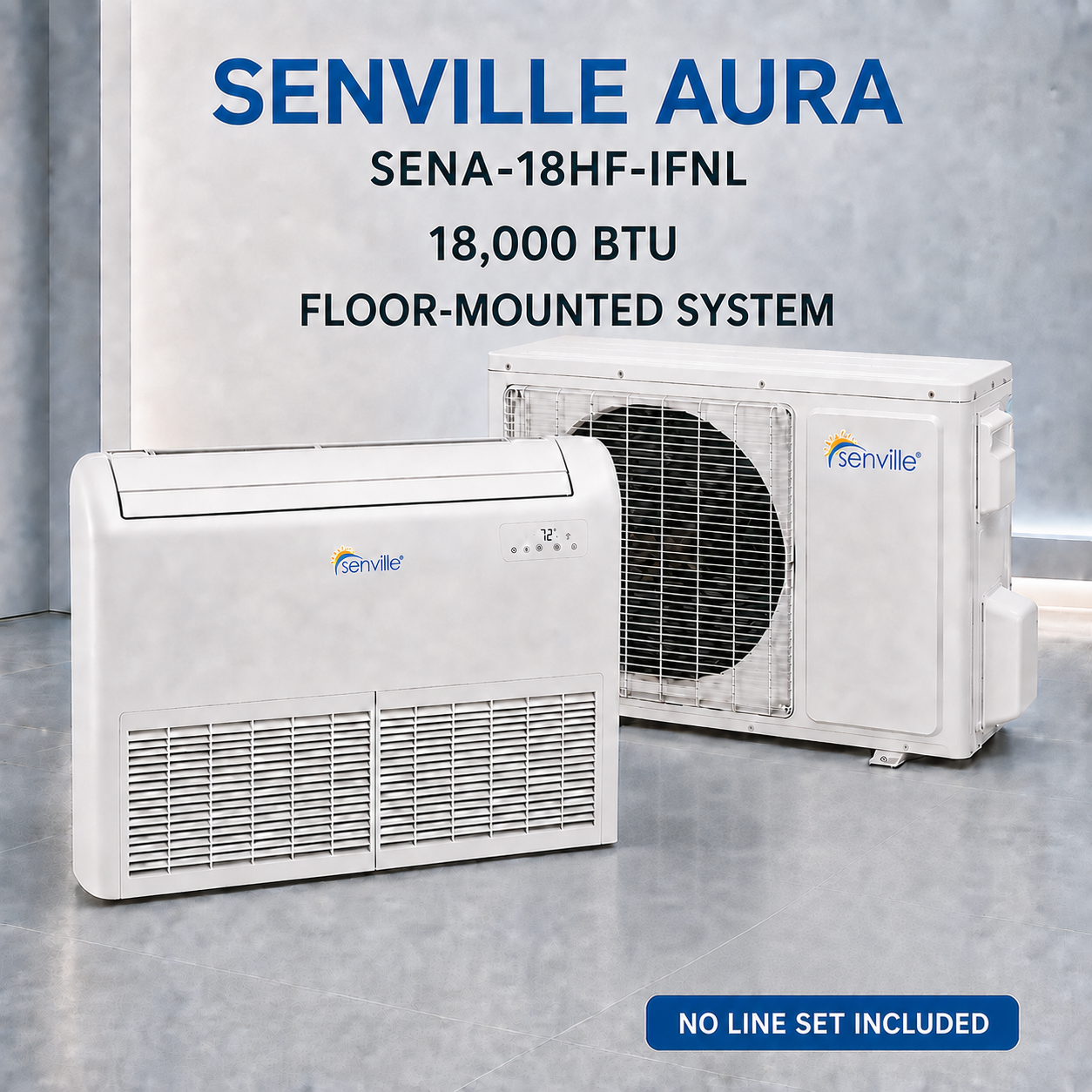

Senville AURA Floor-Mounted Mini Split Heat Pump – 12K, 18K and 24K BTU
Senville AURA Floor-Mounted Mini Split Heat Pump – 12K, 18K and 24K BTU - 12000 BTU / No Kit is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.

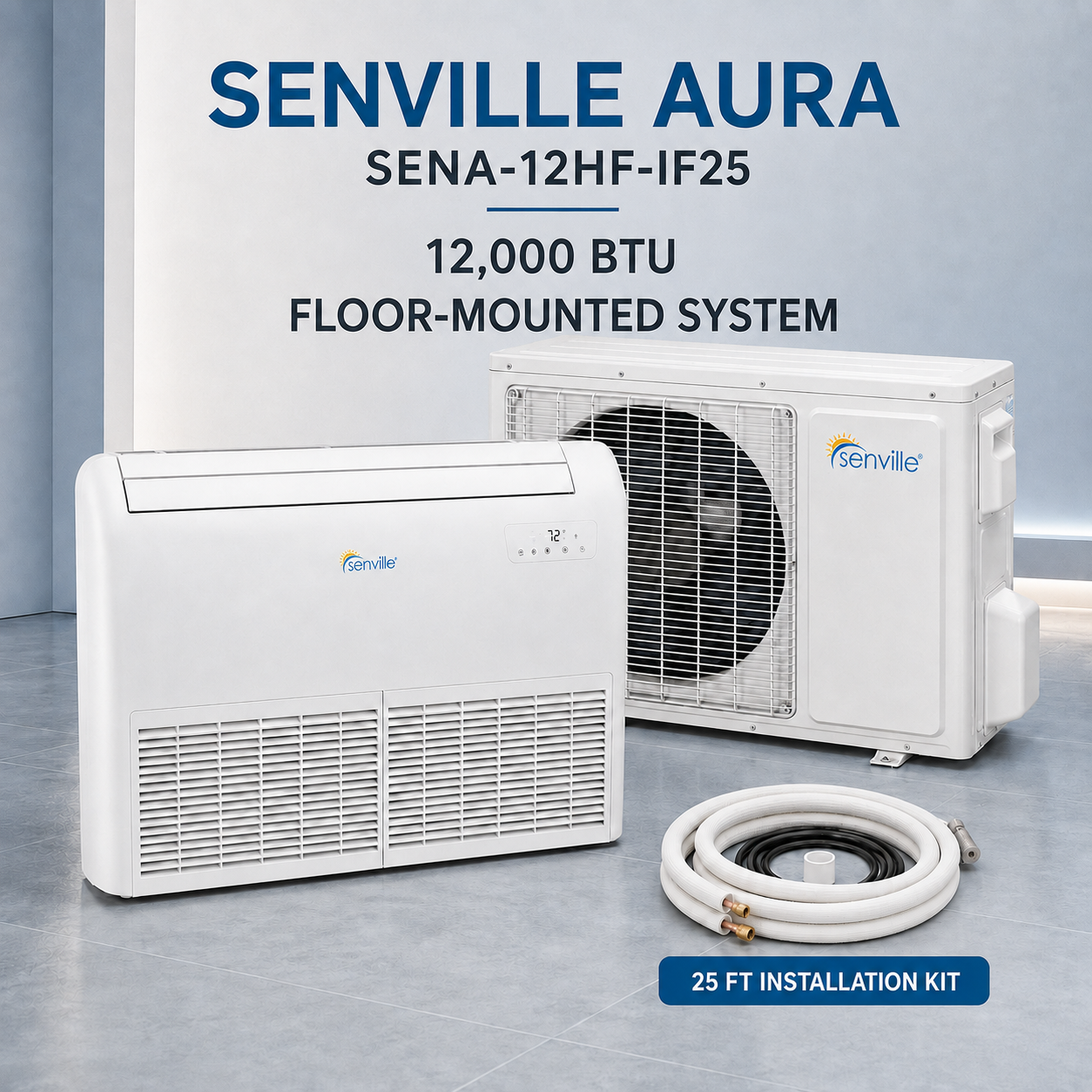

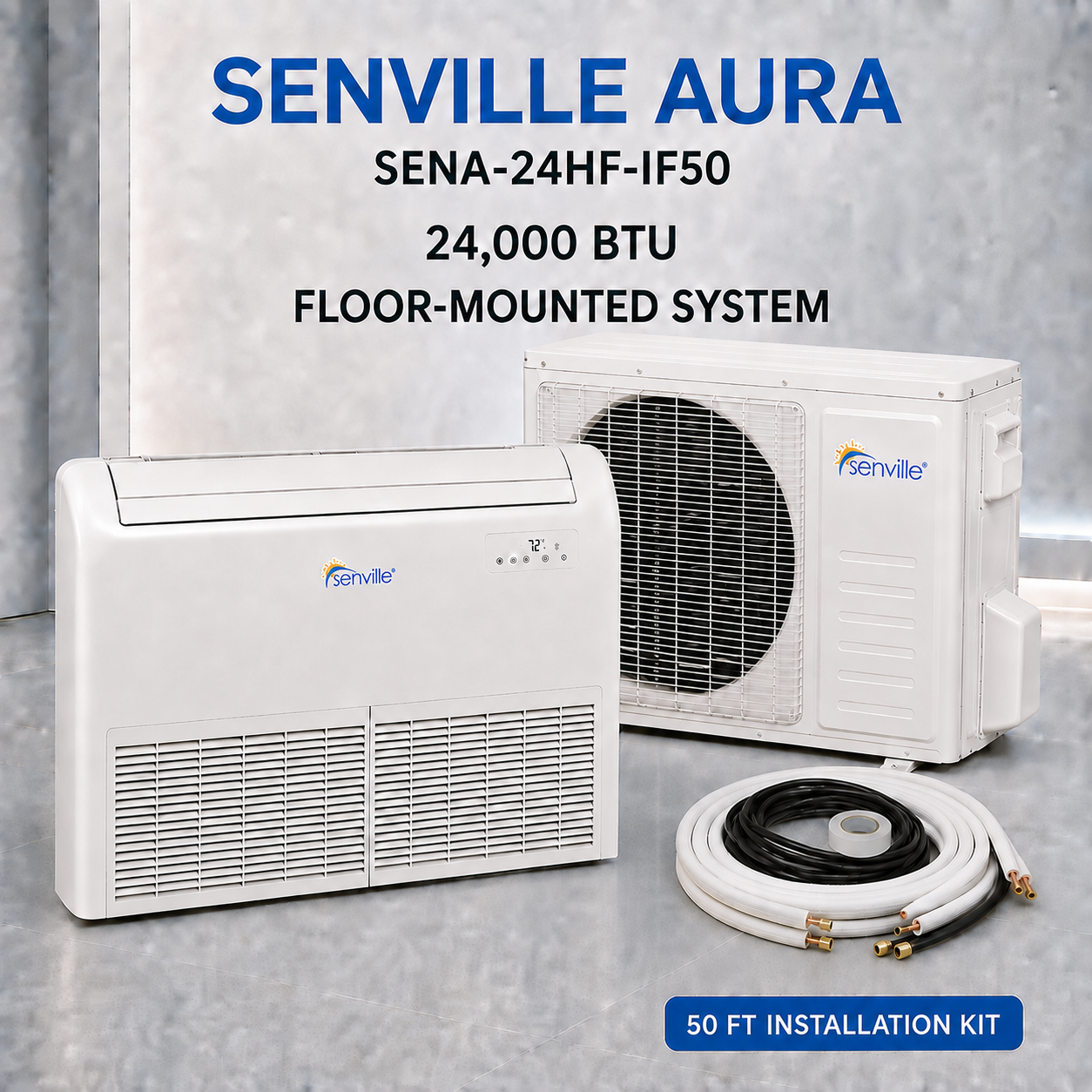

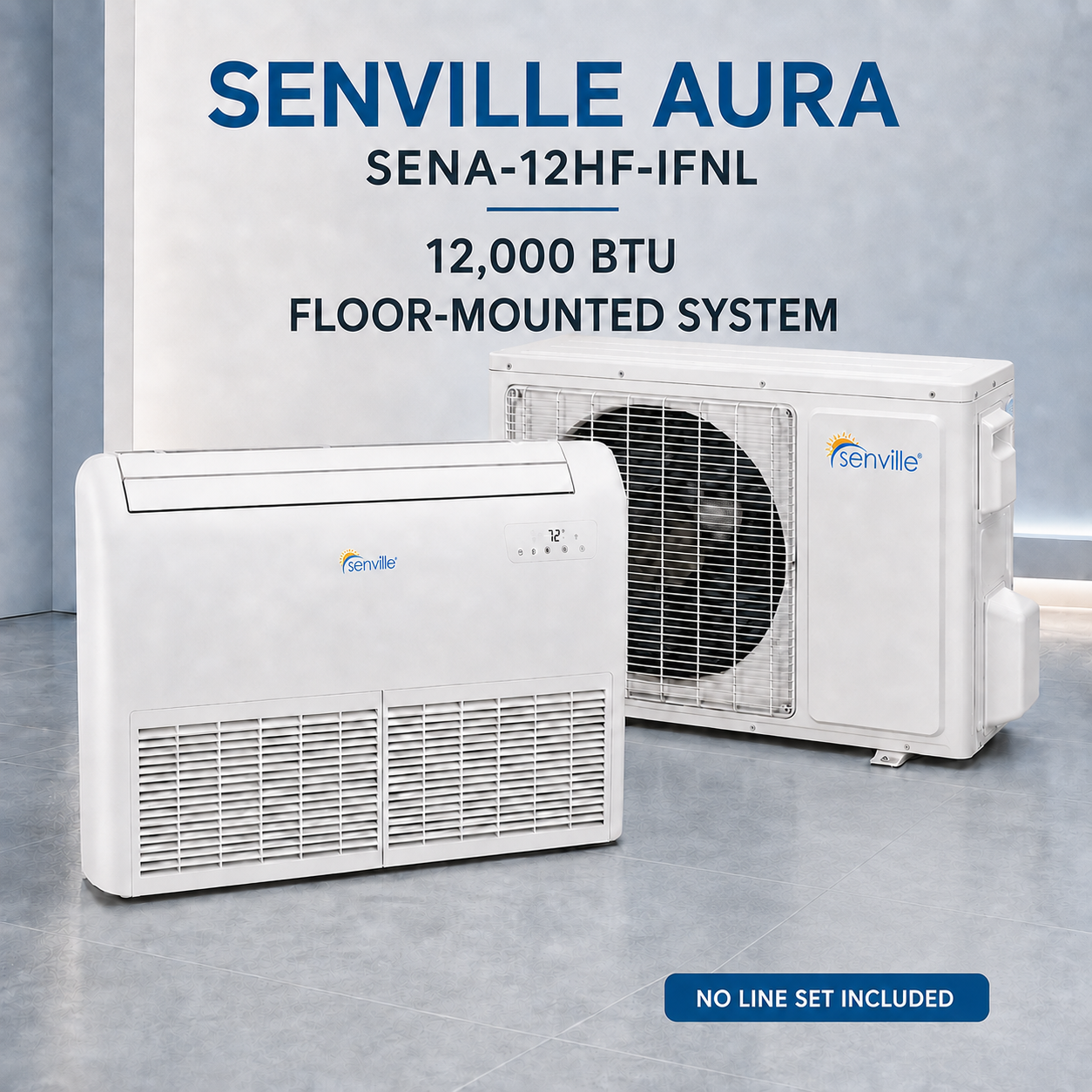

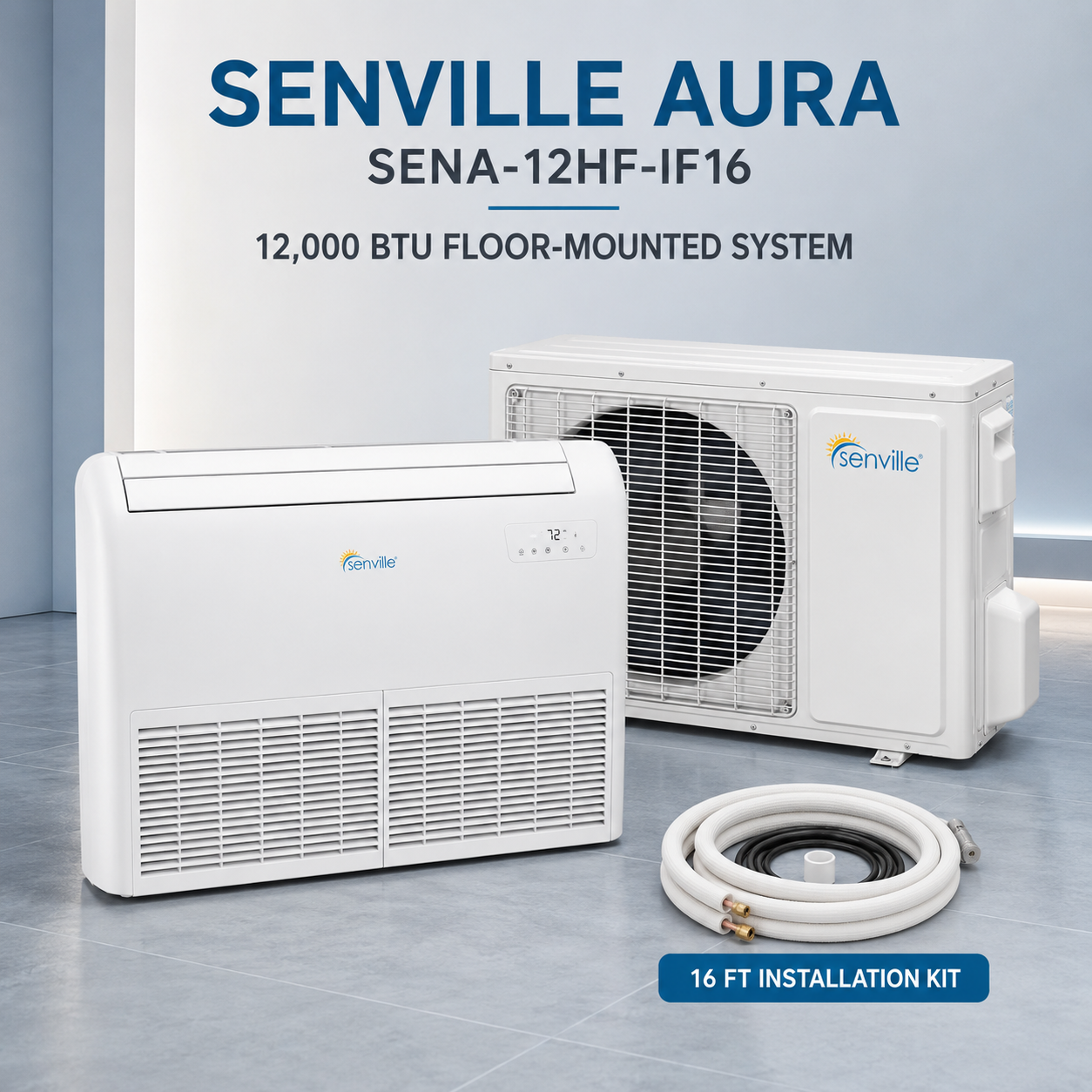

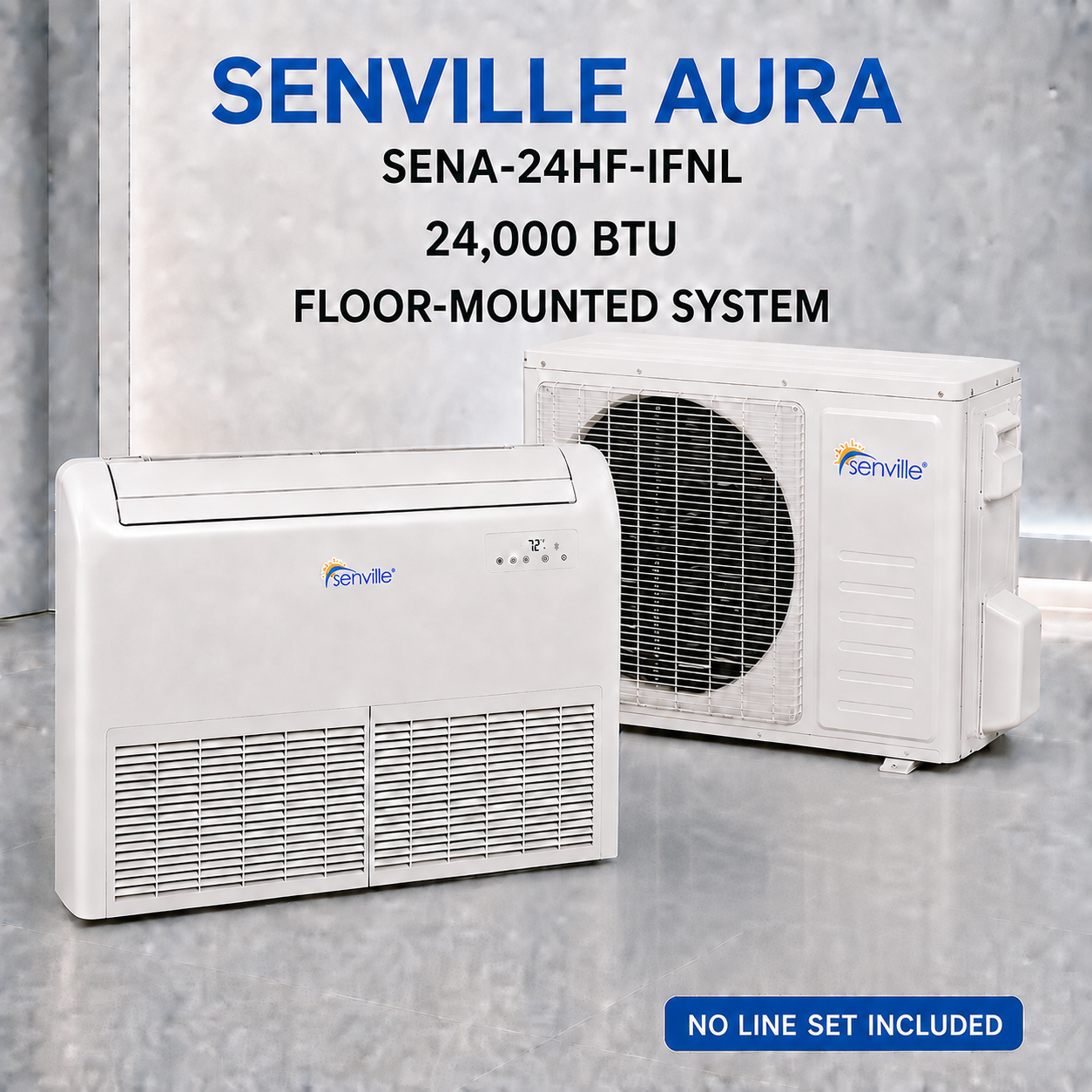

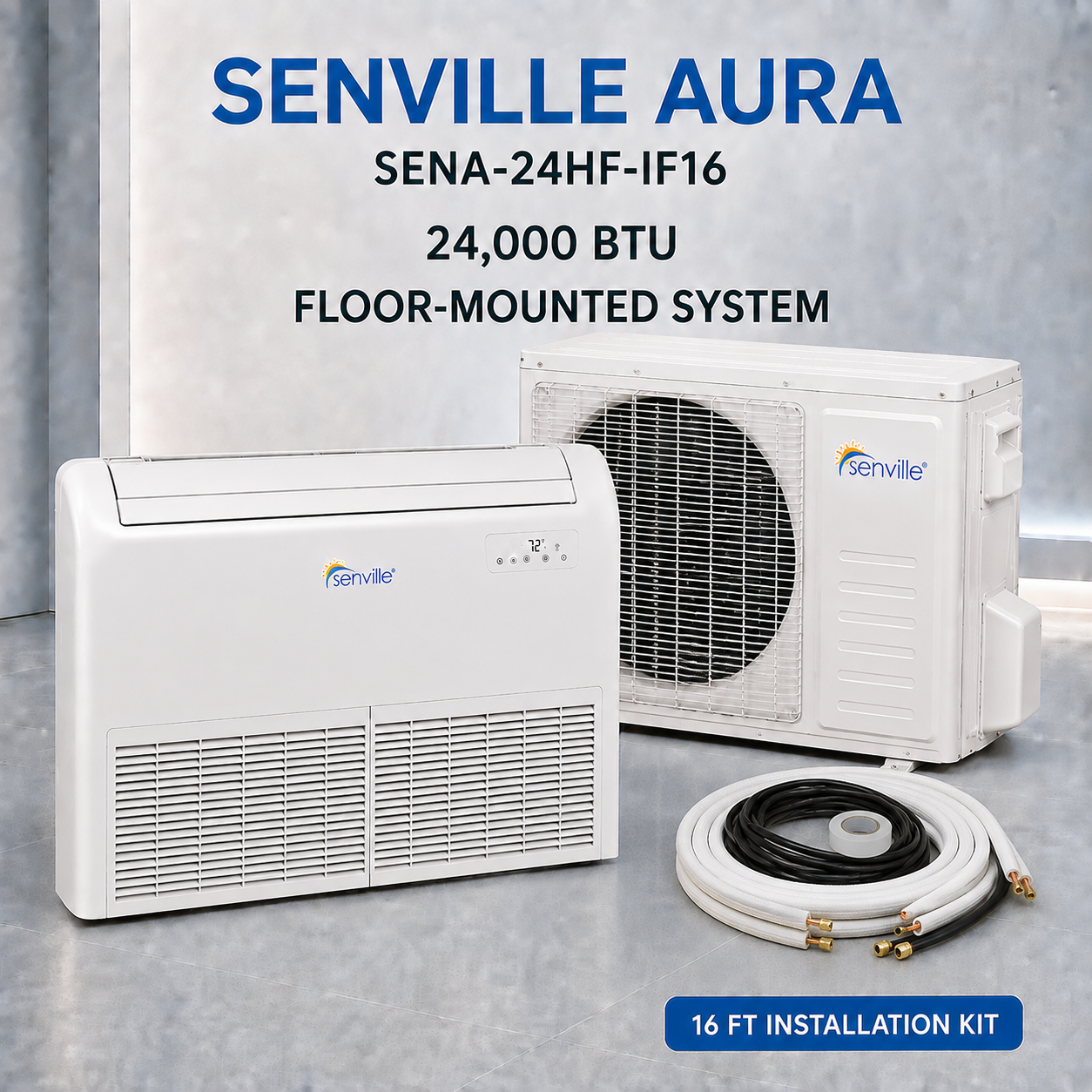

The Senville AURA floor-mounted mini-split family provides heating and cooling in spaces where a traditional high-wall indoor unit may not be practical. Available in 12,000 and 24,000 BTU sizes, these single-zone systems pair a low-wall indoor air handler with an inverter heat-pump condenser.
Both systems are ENERGY STAR certified and designed for heating operation at outdoor temperatures as low as -22°F (-30°C). The floor-mounted configuration offers an alternative to a conventional high-wall installation.
These systems use R-454B refrigerant, operate on 208/230V single-phase power and include a wireless remote control. Installation-kit selections are None, 16 ft. or 25 ft.
Professional installation required. Select the installation-kit length needed for your installation. Choosing None means no installation kit is included. The systems are factory pre-charged for up to 25 ft. of refrigerant piping.
Key Features
- Single-zone comfort: Inverter-driven heating and cooling with a matching indoor and outdoor unit.
- Two size options: 12,000 and 24,000 BTU models.
- Floor-mounted indoor unit: Low-wall placement where a high-wall unit may not be practical.
- Cold-climate heating: Designed for heating operation down to -22°F (-30°C).
- ENERGY STAR certification: 25 SEER2 for the 12,000 BTU model and 20.4 SEER2 for the 24,000 BTU model.
- R-454B refrigerant: Factory pre-charge supports piping lengths up to 25 ft.
- Wireless control: Remote control included.
- System monitoring: Built-in self-diagnostics and refrigerant leak detection.
- Installation-kit choices: None, 16 ft. or 25 ft.
- Manufacturer warranty: 10-year compressor and 5-year parts coverage, subject to Senville’s warranty terms.
Technical Specifications
| Specification | 12,000 BTU | 24,000 BTU |
|---|---|---|
| Base Model | SENA-12HF-IF |
SENA-24HF-IF |
| Rated Cooling Capacity | 12,000 BTU/h | 22,000 BTU/h |
| Cooling Range | 3,700–14,000 BTU/h | 12,700–25,600 BTU/h |
| Rated Heating Capacity | 12,000 BTU/h | 26,000 BTU/h |
| Heating Range | 4,400–16,100 BTU/h | 11,300–29,500 BTU/h |
| SEER2 | 25 | 20.4 |
| EER2 | 12.5 | 12 |
| HSPF2-4 | 10.5 | 12.1 |
| HSPF2-5 | 8.3 | 9.8 |
| COP | 3.88 | 3.34 |
| Power Supply | 208/230V, 1-phase, 60Hz | 208/230V, 1-phase, 60Hz |
| Voltage Range | 187–253V | 187–253V |
| Minimum Circuit Ampacity | 15A | 25A |
| Maximum Fuse / Breaker | 15A | 25A |
| Minimum Heating Temperature | -22°F (-30°C) | -22°F (-30°C) |
| Refrigerant | R-454B | R-454B |
| Factory Pre-Charge Length | Up to 25 ft. | Up to 25 ft. |
| Indoor Sound Range | 26.5–44 dB | 34–51.5 dB |
| Indoor Dimensions | 31.26″ × 7.87″ × 24.45″ | 42.05″ × 26.57″ × 9.25″ |
| Indoor Weight | 32.85 lb | 61.29 lb |
| Outdoor Dimensions | 31.69″ × 12.99″ × 21.81″ | 37.24″ × 16.14″ × 31.89″ |
| Outdoor Weight | 72.75 lb | 130.29 lb |
| Installation-Kit Options | None, 16 ft. or 25 ft. | None, 16 ft. or 25 ft. |
| Warranty | 10-year compressor / 5-year parts* | 10-year compressor / 5-year parts* |
*Warranty coverage is subject to Senville’s terms and installation requirements. Nominal model size may differ from rated capacity. Dimensions and weights describe individual units, not palletized shipping measurements.
Product Highlights
- Low-wall installation offers an alternative to high-wall equipment.
- One matched system provides heating and cooling throughout the year.
- Choose between 12,000 and 24,000 BTU model sizes.
- Select no installation kit, a 16 ft. kit or a 25 ft. kit.
Standard System Components
- Floor-mounted indoor unit.
- Matching outdoor heat-pump condenser.
- Wireless remote control.
- Indoor-to-outdoor wiring harness.
- Installation kit when the 16 ft. or 25 ft. option is selected.
- Installation and user documentation.
