Senville AURA Concealed Duct Indoor Units
Senville AURA Concealed Duct Indoor Units - 9000 is backordered and will ship as soon as it is back in stock.
The Senville AURA Concealed Duct Indoor Unit delivers discreet heating and cooling without a visible wall-mounted air handler. Its slim, low-profile cabinet is designed to install inside a ceiling or wall cavity and connect to flexible or rigid ductwork, making it a strong option for homes and light-commercial spaces where a clean, hidden installation is preferred.
Available from 9,000 to 24,000 BTU, the current IDG family is designed for compatible Senville AURA systems using R454B refrigerant. Senville also identifies features such as a quiet blower motor and washable air filter.
Important: This listing is for the concealed duct indoor unit only. Verify the exact model, capacity, refrigerant generation, and approved outdoor-unit compatibility before ordering.
⚙️ Key Features
| Feature | Details |
|---|---|
| Manufacturer | Senville |
| Series | AURA |
| Product Type | Concealed Duct Indoor Unit |
| Configuration | Low-Profile Ducted Air Handler |
| Available Capacities | 9,000–24,000 BTU |
| Refrigerant Generation | R454B |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Installation | Ceiling or Wall Cavity |
| Duct Connection | Flexible or Rigid Ductwork |
| Heating & Cooling | Yes, with compatible system |
| Filter | Washable |
| Blower | Quiet-operation design |
| Application | Residential and Light Commercial |
⚙️Technical Specifications
The dimensions and product weights below are retained from the Phase 1 verified family record rather than replaced with shipping data.
| SKU | Capacity | Product Dimensions | Product Weight |
|---|---|---|---|

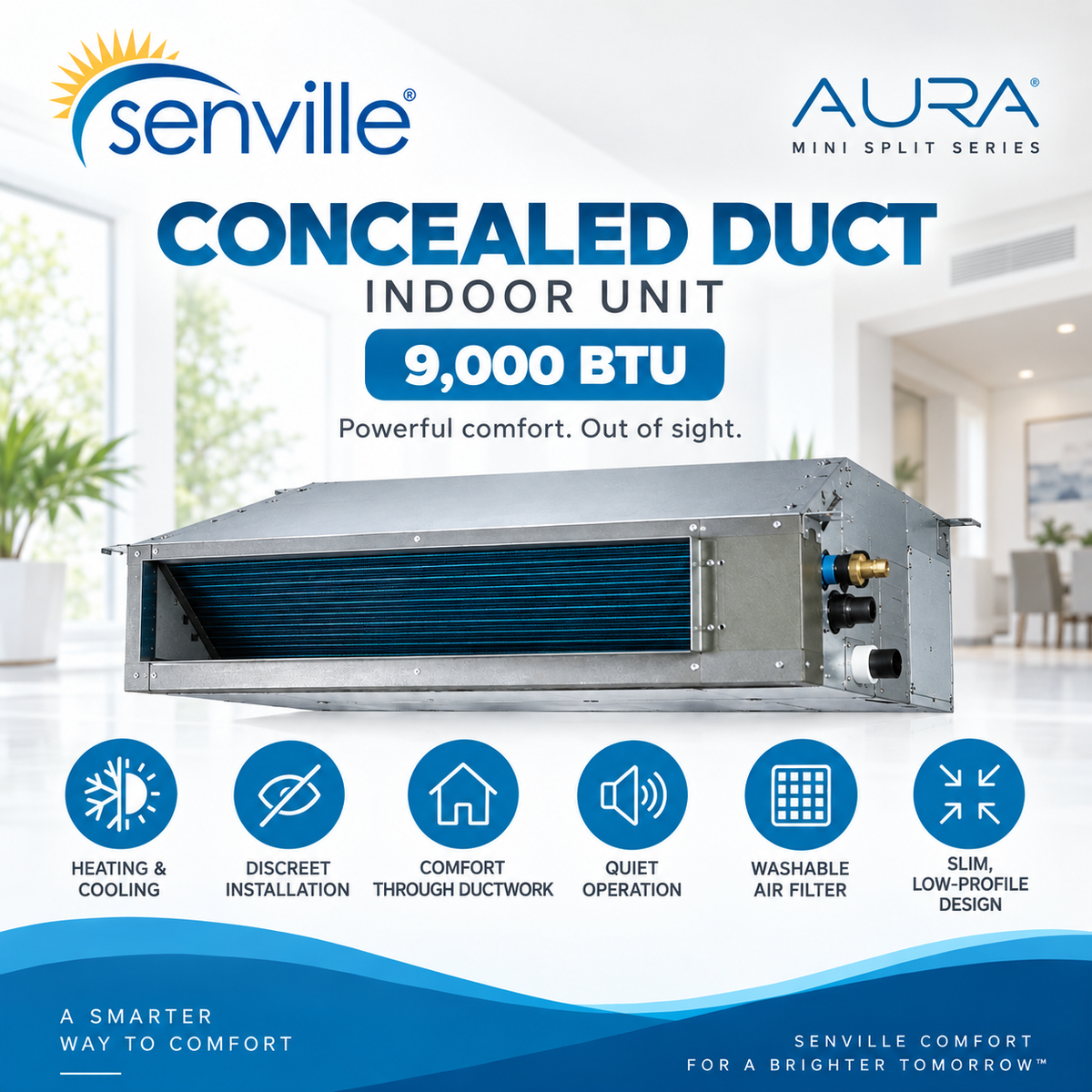

| SENA-09HF-IDG | 9,000 BTU | 27.56 × 19.92 × 7.87 in | 39.46 lb |

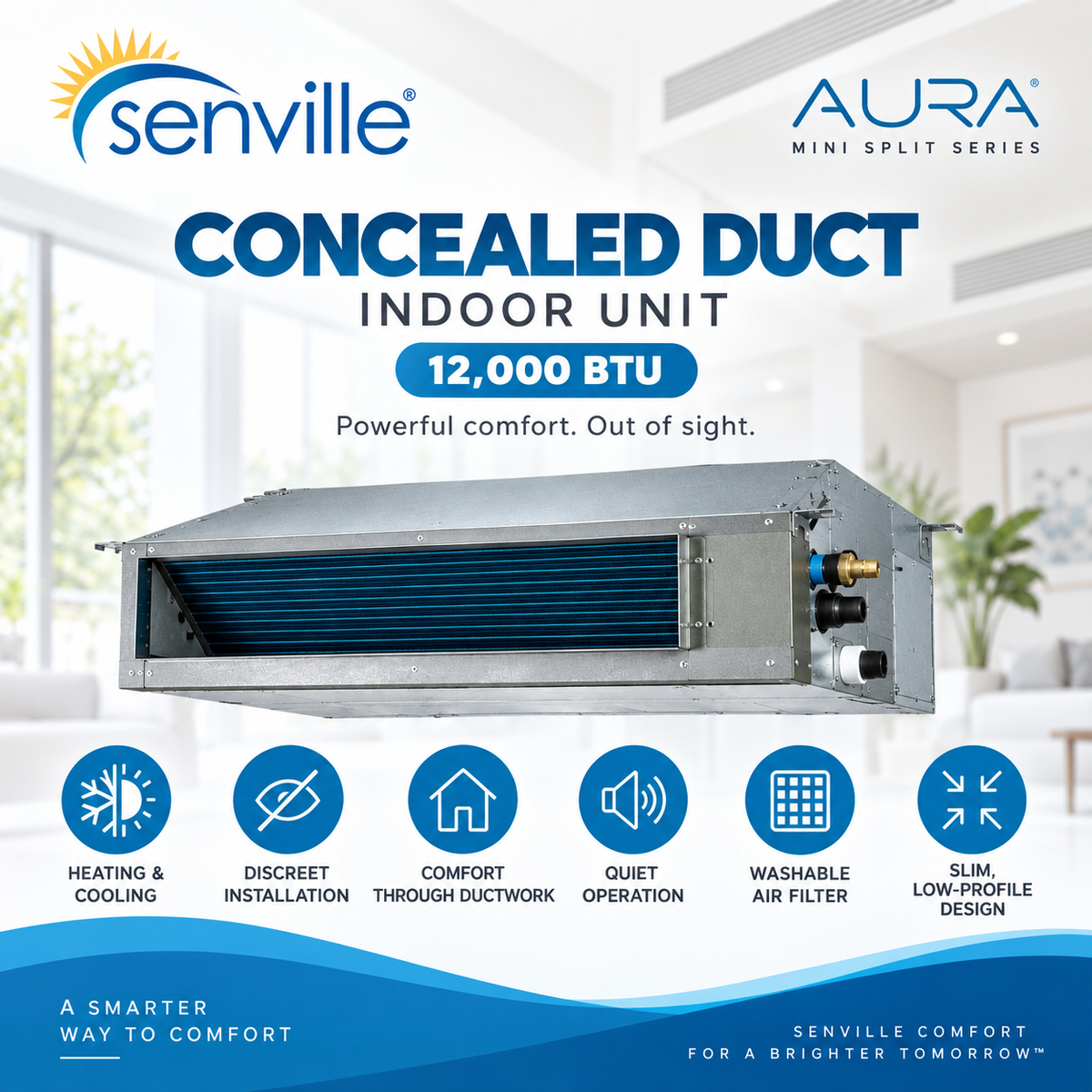

| SENA-12HF-IDG | 12,000 BTU | 27.56 × 19.92 × 7.87 in | 39.46 lb |

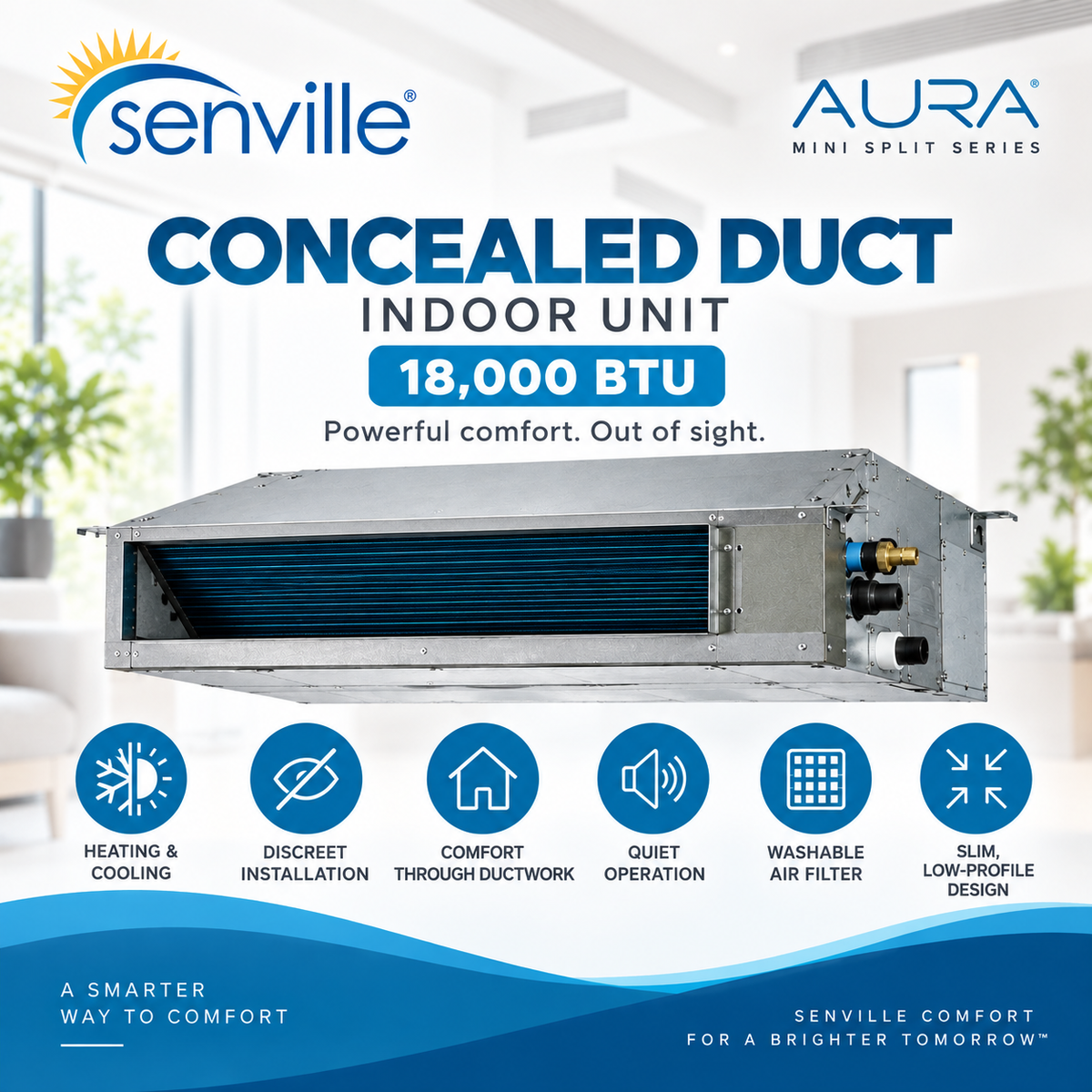

| SENA-18HF-IDG | 18,000 BTU | 34.65 × 26.54 × 8.27 in | 54.45 lb |

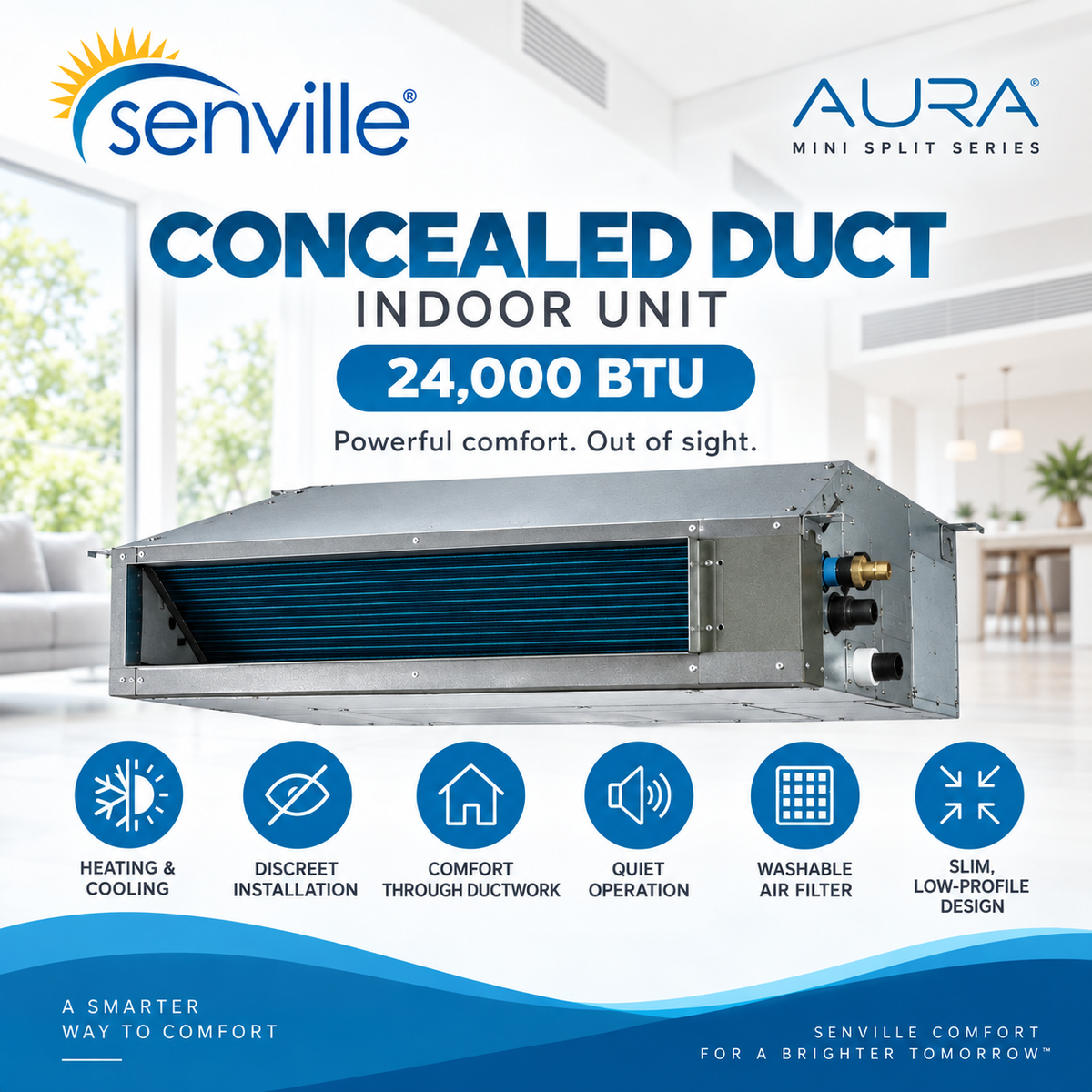

| SENA-24HF-IDG | 24,000 BTU | 39.37 × 29.53 × 9.65 in | 80.47 lb |
Refrigerant: R454B
Indoor Unit Type: Concealed duct
Power Supply: 208/230V, single phase, 60Hz
System Compatibility: Compatible Senville AURA outdoor equipment required.
Compatibility Notice
Do not select an outdoor unit based on BTU capacity alone. Verify the exact model number, refrigerant generation, voltage, and approved indoor-unit compatibility before ordering.
This product is a replacement component and is not a complete mini split system.
Product Highlights
- Genuine Senville concealed-duct indoor unit
- Four capacities from 9,000 to 24,000 BTU
- Slim, low-profile design
- Installs out of sight in a ceiling or wall cavity
- Works with flexible or rigid ductwork
- Quiet blower operation
- Washable air filter
- Heating and cooling when properly matched
- Current R454B
IDGgeneration - Suitable for residential and light-commercial applications
⚙️Technical Documents:
Senville AURA Concealed Duct Indoor Units
