Senville SENDC Central Air Handler Fan Coil Units | 2, 4 & 5 Ton
Senville SENDC Central Air Handler Fan Coil Units | 2, 4 & 5 Ton - 2 Ton is backordered and will ship as soon as it is back in stock.

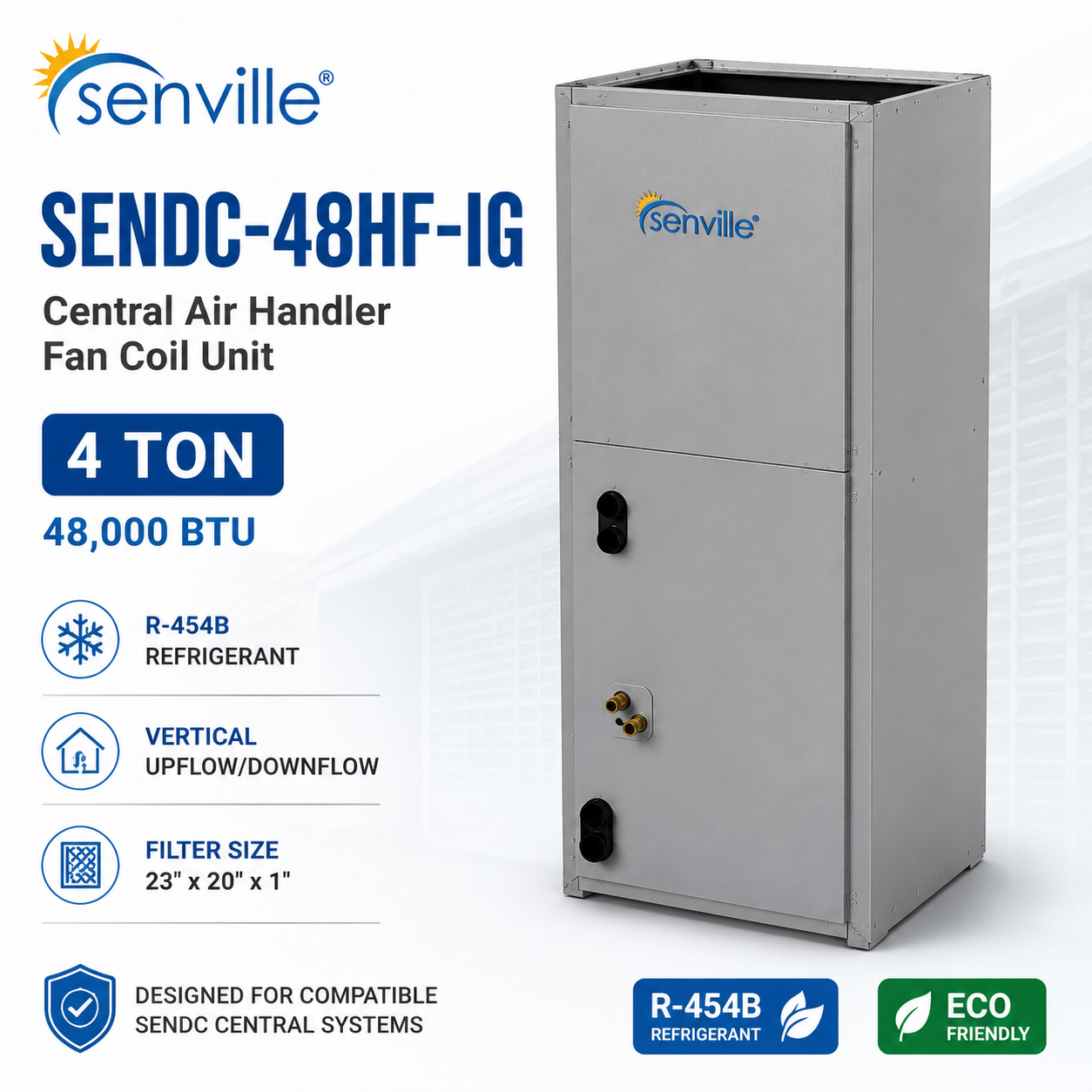

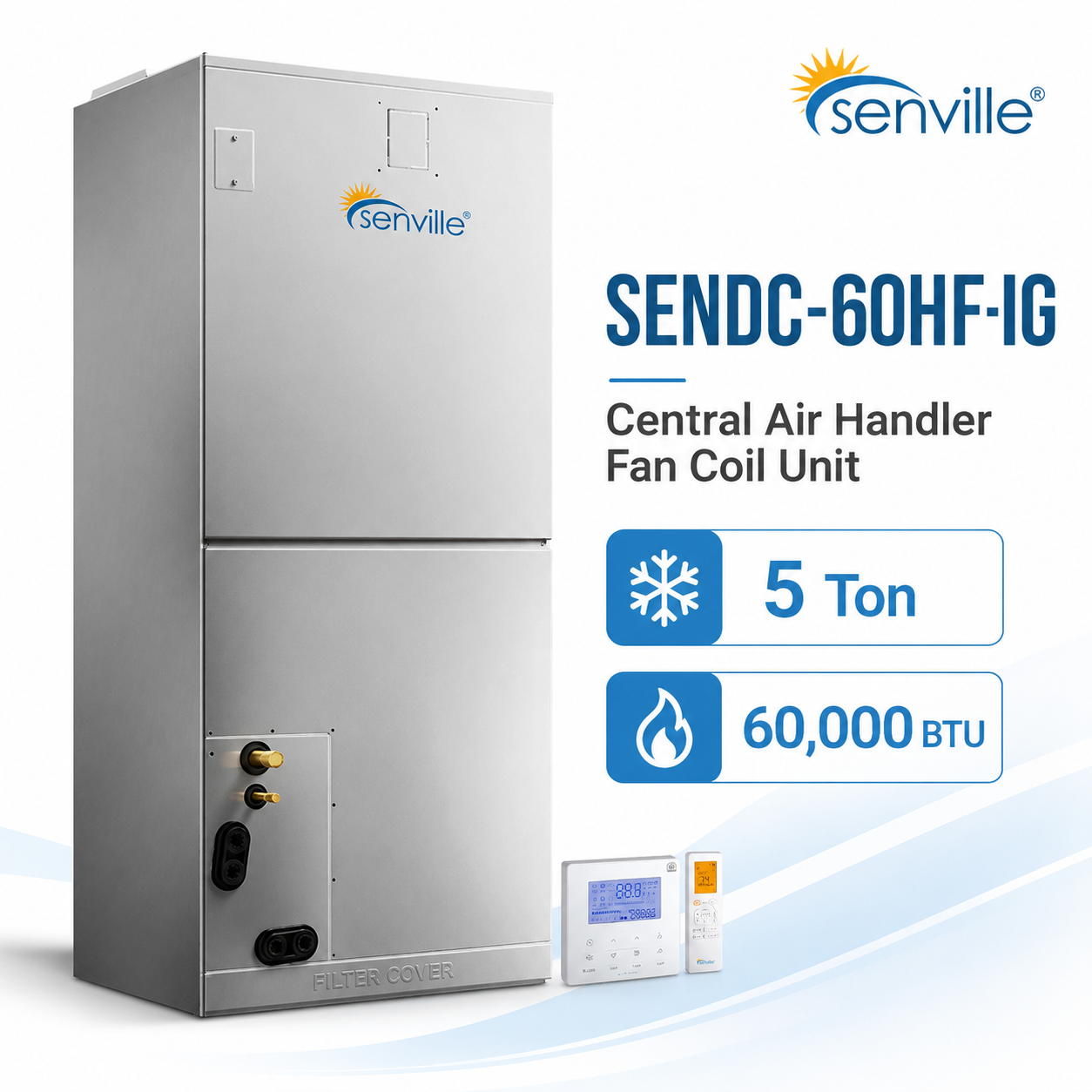

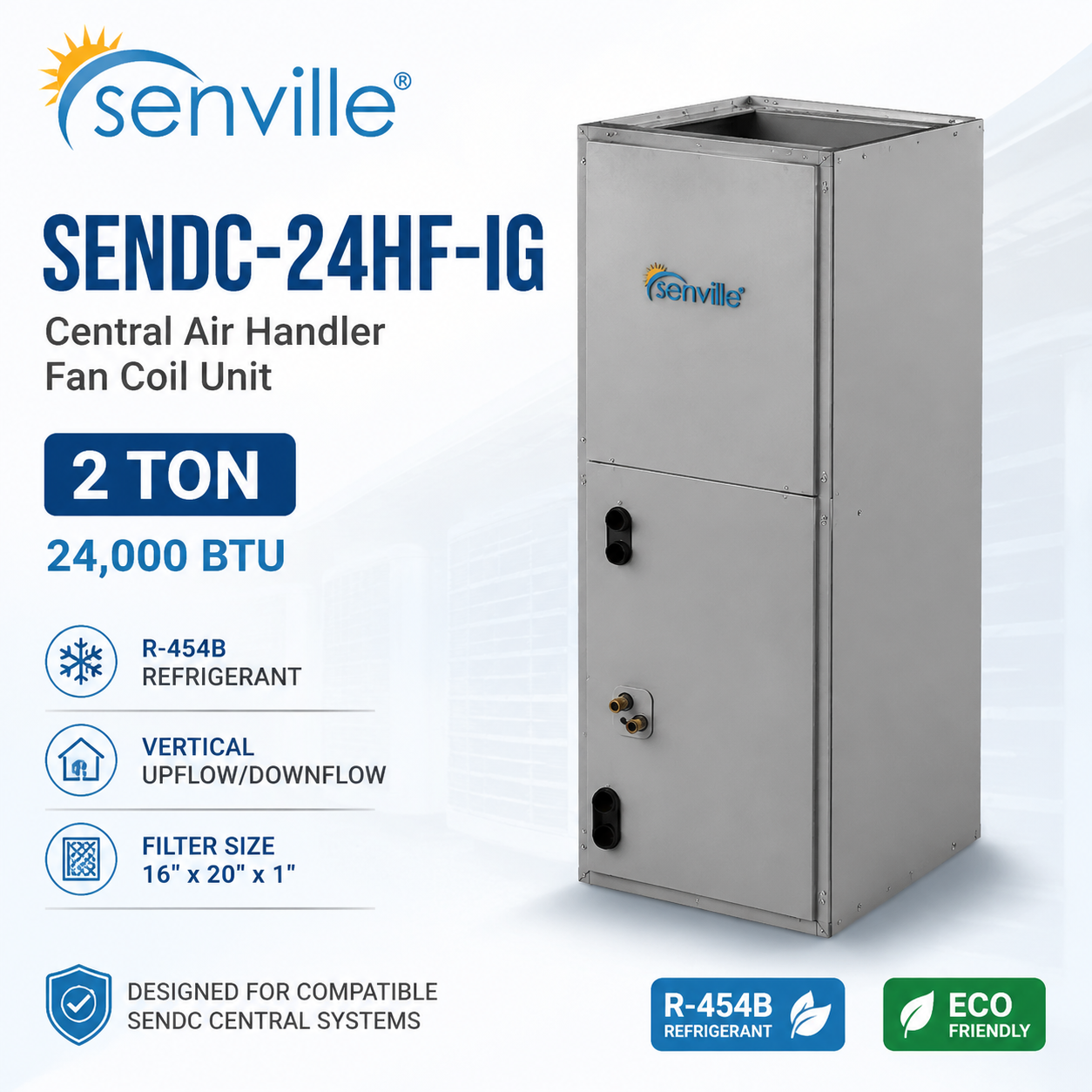

The Senville SENDC Central Air Handler Fan Coil Units are indoor components designed for compatible Senville SENDC central heat-pump systems. This family includes 2-ton, 4-ton, and 5-ton air handlers for ducted residential and light-commercial HVAC applications.
These indoor units house the evaporator coil, blower assembly, and filter section used with the corresponding SENDC outdoor heat-pump system. They are intended as system components or replacement indoor units, so compatibility should be verified against the matching SENDC outdoor model before installation. Senville’s owner manual pairs SENDC-24HF-IG, SENDC-48HF-IG, and SENDC-60HF-IG with their corresponding SENDC outdoor units.
⚙️Key Features:
| Feature | SENDC-24HF-IG | SENDC-48HF-IG | SENDC-60HF-IG |
|---|---|---|---|
| Product Type | Central Air Handler / Fan Coil | Central Air Handler / Fan Coil | Central Air Handler / Fan Coil |
| Nominal Size | 2 Ton | 4 Ton | 5 Ton |
| Indoor Configuration | Ducted | Ducted | Ducted |
| Matching Family | SENDC-24HF | SENDC-48HF | SENDC-60HF |
| Filter Size | 16 × 20 × 1 in | 23 × 20 × 1 in | 23 × 20 × 1 in |
| Refrigerant Family | R-454B compatible system | R-454B compatible system | R-454B compatible system |
📊 Technical Specifications Table
| Specification | SENDC-24HF-IG | SENDC-48HF-IG | SENDC-60HF-IG |
|---|---|---|---|
| Nominal Capacity | 24,000 BTU / 2 Ton | 48,000 BTU / 4 Ton | 60,000 BTU / 5 Ton |
| Product Dimensions | 21.02 × 17.52 × 45.00 in | 24.49 × 21.02 × 52.99 in | 21.02 × 24.49 × 52.99 in |
| Product Weight | 46.4 lb | 162.92 lb | 162.92 lb |
| Indoor Airflow | 824 / 759 / 695 CFM | 1601 / 1471.5 / 1283.1 / 1094.8 CFM | 1807 / 1583.3 / 1359.7 / 1136 CFM |
| Indoor Noise | 44 / 42 / 28 dB | 50 / 50 / 44 dB | 54.5 / 52 / 49.5 / 34.5 dB |
| Filter Size | 16 × 20 × 1 in | 23 × 20 × 1 in | 23 × 20 × 1 in |
| Compatible System | SENDC-24HF | SENDC-48HF | SENDC-60HF |
⚙️Technical Documents:
