Senville AURA 36,000 BTU Tri-Zone Mini Split | 3 x 12K
Senville AURA 36,000 BTU Tri-Zone Mini Split | 3 x 12K - 12000/12000/12000 / 16 Ft + 16 Ft + 16 Ft is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.

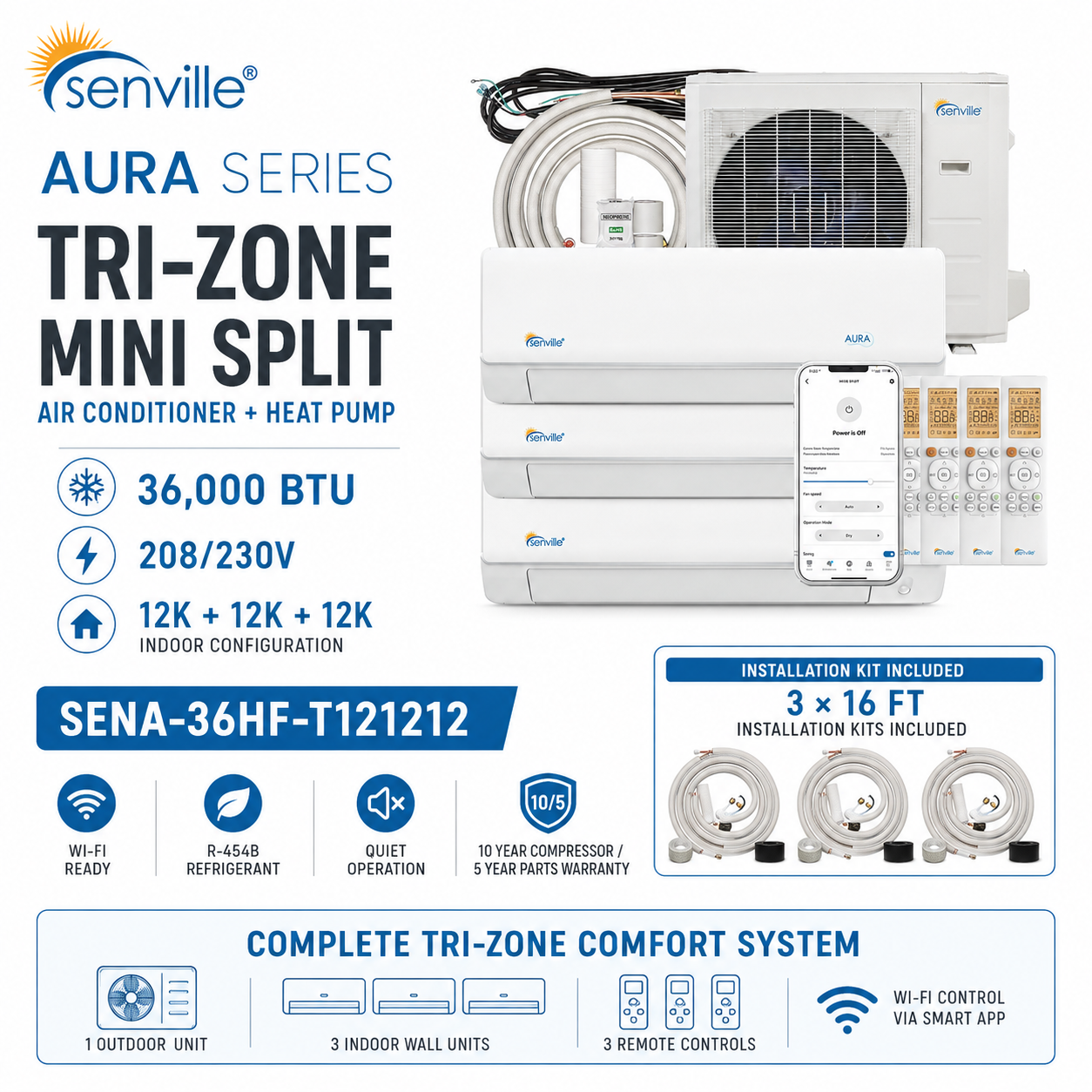

The Senville AURA SENA-36HF-T121212 36,000 BTU Tri-Zone Mini Split Air Conditioner and Heat Pump provides heating and cooling for three separate spaces using one outdoor condenser. This package includes three 12,000 BTU wall-mounted indoor units and three 16-ft installation kits, making it a flexible comfort solution for homes, offices and additions with multiple rooms.
The AURA inverter-driven system offers a manufacturer-published efficiency rating of up to 23 SEER2 and cold-climate heating operation down to -22°F (-30°C). Senville advertises ENERGY STAR certification; certified performance depends on the exact indoor and outdoor equipment combination.
Individual indoor controls allow separate temperature settings in each zone, while Alexa-compatible connectivity adds convenient smart control. All operating indoor units must use the same heating or cooling mode; the system does not provide simultaneous heating and cooling. The equipment uses R-454B refrigerant and operates on 208/230V, single-phase, 60Hz power.

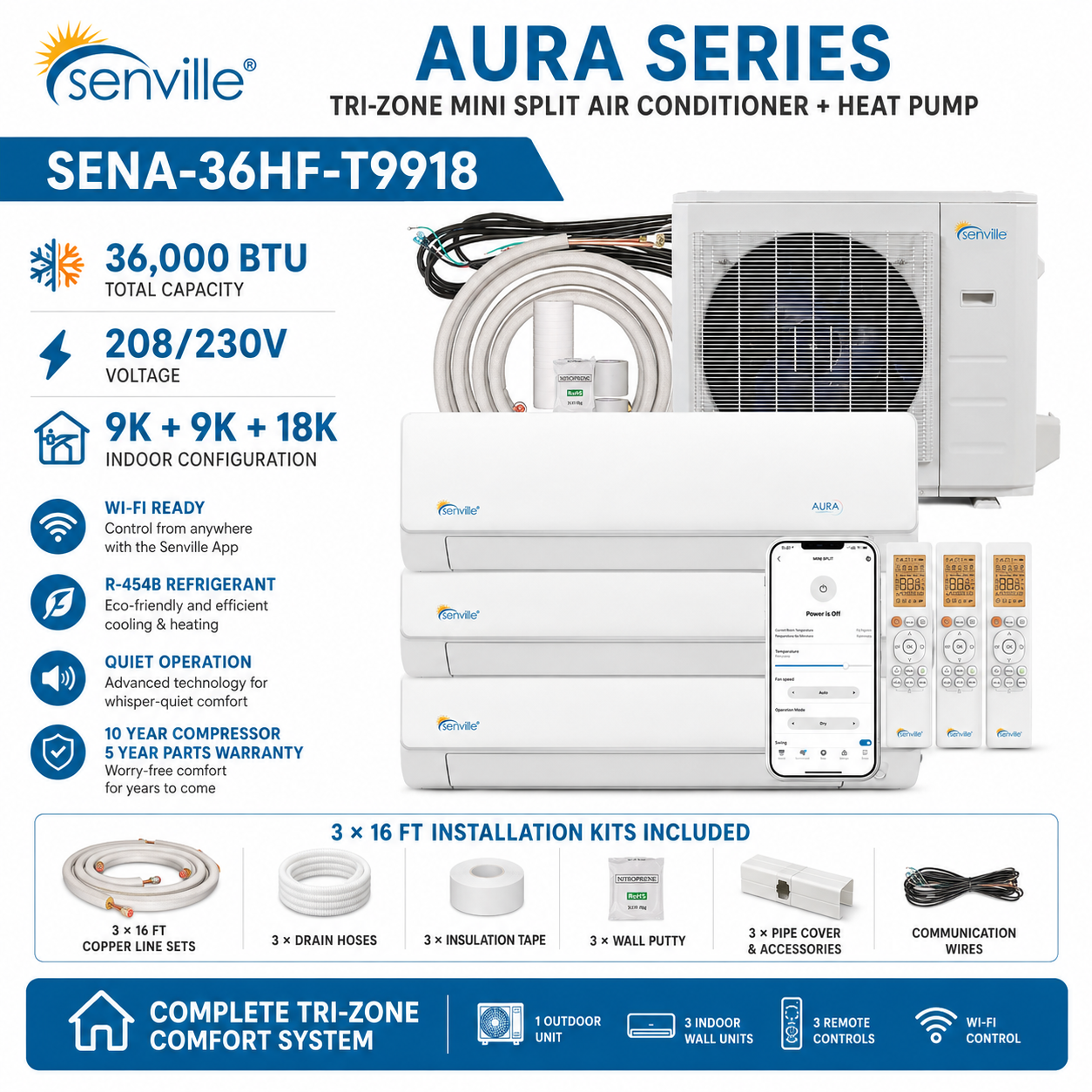

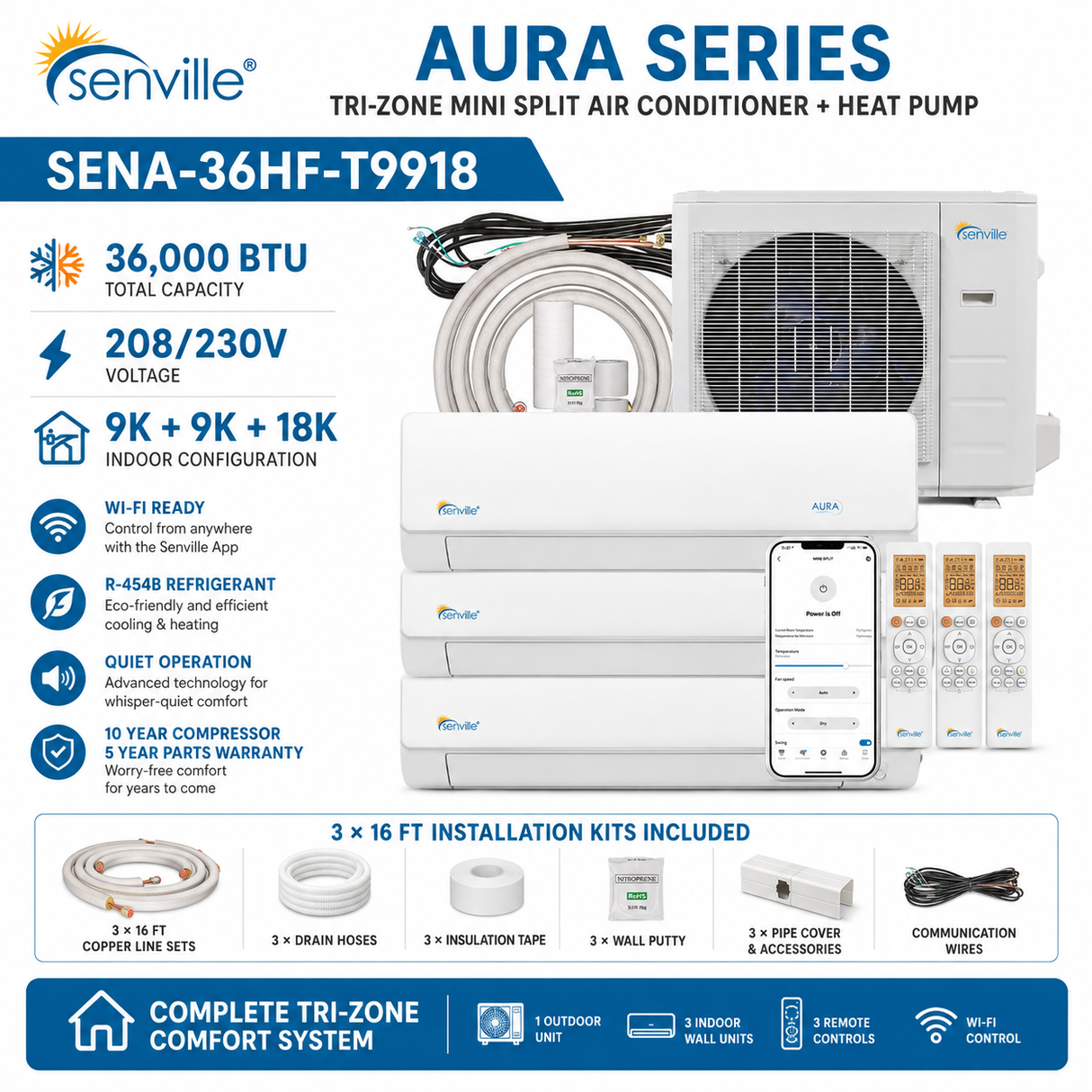

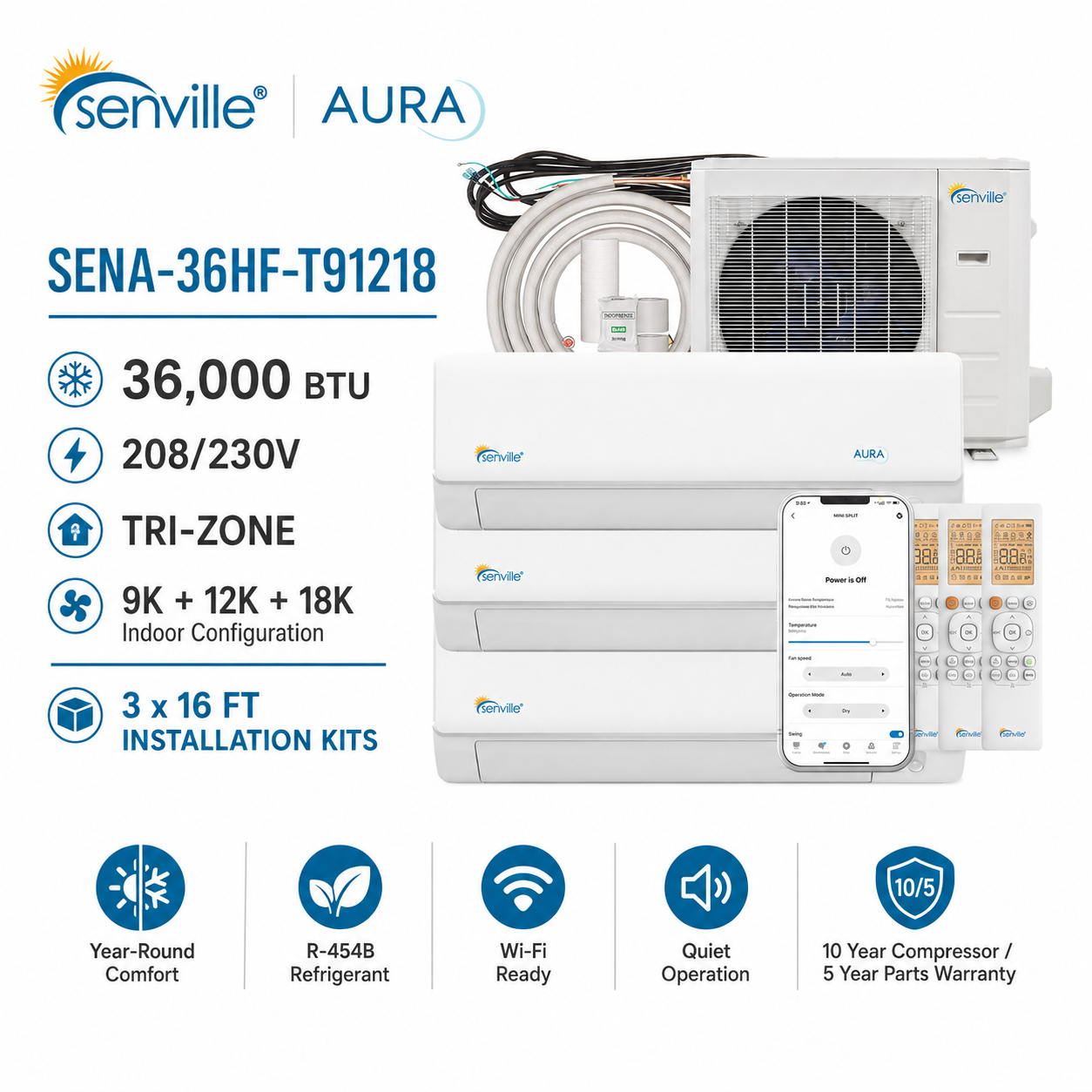

Included equipment consists of one SENA-36HF-MOA outdoor condenser, three wall-mounted indoor units, wireless remote controls, an Alexa USB kit, indoor-to-outdoor wiring, manuals and three 16-ft installation kits. Professional installation is required for proper commissioning and warranty coverage.
Key Features
| Feature | SENA-36HF-T121212 |
|---|---|
| System Type | Tri-Zone Ductless Mini Split Air Conditioner and Heat Pump |
| Package SKU | SENA-36HF-T121212 |
| Product Family | SENA-36HF/T |
| Outdoor Model | SENA-36HF-MOA |
| System Capacity Class | 36,000 BTU |
| Included Zones | 3 independently controlled indoor zones |
| Indoor Configuration | 12,000 + 12,000 + 12,000 BTU |
| Efficiency | Up to 23 SEER2; performance depends on the certified equipment combination |
| ENERGY STAR | Manufacturer-advertised certification; confirm the exact equipment match |
| Heating and Cooling | Year-round inverter heat-pump operation |
| Cold-Climate Heating | Operation down to -22°F (-30°C) |
| Smart Controls | Alexa-compatible connectivity and included wireless remotes |
| Zone Control | Separate temperature settings; all operating zones must use the same heating or cooling mode |
| Power Supply | 208/230V, single-phase, 60Hz |
| Included Installation Kits | Three 16-ft kits, one for each indoor unit |
| Warranty | 10-year compressor / 5-year parts, subject to manufacturer terms |
| Installation | Professional installation required |
Included System Configuration
| Component | Package Detail |
|---|---|
| System SKU | SENA-36HF-T121212 |
| Outdoor Condenser | One SENA-36HF-MOA |
| Indoor Units | Three wall-mounted units, 12,000 BTU each |
| Zone Capacity Combination | 12K + 12K + 12K |
| Installation Kits | Three 16-ft kits |
| Controls and Accessories | Wireless remotes, Alexa USB kit, indoor-to-outdoor wiring and manuals |
Technical Specifications
| Technical Specification | SENA-36HF/T Platform |
|---|---|
| Outdoor Model | SENA-36HF-MOA |
| Product Style | Ductless Mini Split AC with Heat Pump |
| Outdoor Platform Supported Zones | 3-5, per current manufacturer listing; this package includes 3 indoor units |
| Nominal Cooling Capacity | 36,000 BTU/h |
| Cooling Capacity Range | 9,000-43,000 BTU/h |
| Nominal Heating Capacity | 36,000 BTU/h |
| Heating Capacity Range | 10,000-44,000 BTU/h |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253V |
| SEER2 | 23 (manufacturer-published family rating) |
| EER2 | 13 |
| HSPF2-4 | 10.7 |
| HSPF2-5 | 8.5 |
| COP | 4.0 W/W |
| Cooling Input Range | 600-4,000 W |
| Cooling Current Range | 5.2-17.8 A |
| Heating Input Range | 600-3,750 W |
| Heating Current Range | 5.2-16.6 A |
| Minimum Circuit Ampacity | 37 A |
| Maximum Fuse (Manufacturer Listing) | 40 A |
| Outdoor Airflow | 3,037.2 CFM |
| Outdoor Noise Level | 65 dB |
| Outdoor Dimensions (W x D x H) | 38.58 x 16.34 x 38.39 in |
| Outdoor Weight | 211.86 lb |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant | R-454B |
| Factory Refrigerant Charge | 134.04 oz |
| Refrigerant Pre-Charge Length | 125 ft combined, per current manufacturer listing |
| Warranty | 10 Years Compressor / 5 Years Parts |
Product Highlights
- One outdoor condenser serves three wall-mounted indoor units.
- Three matching 12,000 BTU indoor units simplify comfort planning for three zones.
- Separate room temperature settings with a shared heating or cooling mode.
- Inverter technology adjusts operation to changing comfort demand.
- Three 16-ft installation kits are included with this package.
- Manufacturer-stated 10-year compressor and 5-year parts warranty.
Installation and System Requirements
Have a qualified HVAC professional confirm room loads, equipment placement, line routing, condensate drainage and electrical requirements before installation. Pressure testing, evacuation, refrigerant work and commissioning must follow the supplied installation manual and applicable requirements.
Installation labor and building-specific materials are not included. The installer must confirm whether additional materials or refrigerant are needed for the completed installation.
Technical Documents
- SENA-36HF-MOA R-454B Installation Manual
- AURA Multizone Owner's Manual
-
SENA-36HF-MOA R-454B Service Manual
- Senville Mini Split Sizing Guide
- Senville Product Catalog
- Senville Warranty Information
Warranty: Senville states 10 years of compressor coverage and 5 years of parts coverage, subject to its installation, registration, maintenance and warranty conditions. Installation and repair labor are not included in the manufacturer warranty.
