Senville AURA 48,000 BTU Five-Zone Mini Split Heat Pump | SENA-48HF/F
Senville AURA 48,000 BTU Five-Zone Mini Split Heat Pump | SENA-48HF/F - 9K + 9K + 9K + 9K +9K is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.

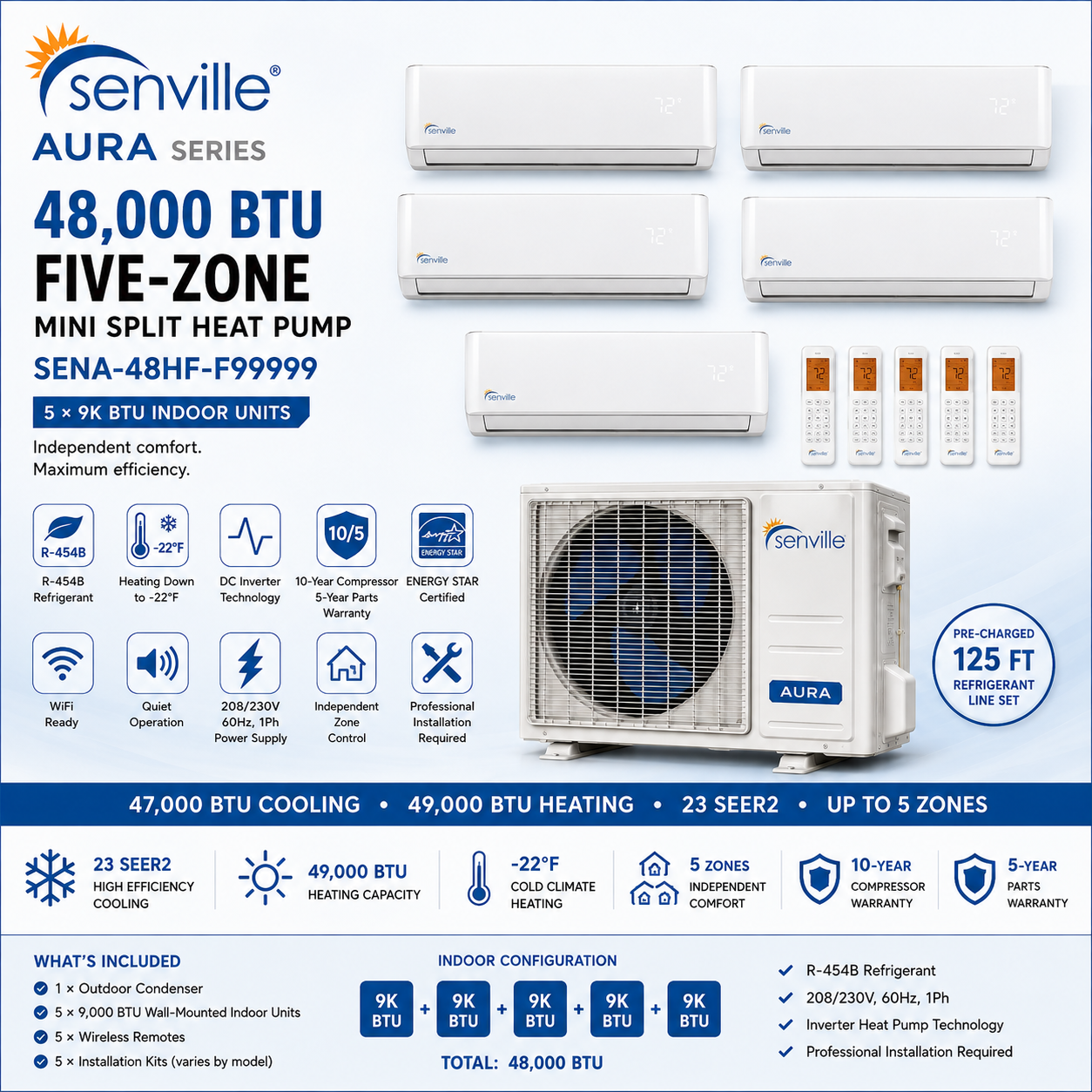

The Senville AURA SENA-48HF/F 48,000 BTU Five-Zone Mini Split Heat Pump provides heating and cooling for five separate spaces using one outdoor condenser. This configuration, SENA-48HF-F99999, includes five 9,000 BTU wall-mounted indoor units and five 16-ft installation kits.
Each indoor unit offers separate temperature settings for its served space. The inverter-driven outdoor unit adjusts output to support the connected zones. Your installer should size each zone and confirm the system’s total capacity for the application.
The system uses R-454B refrigerant, operates on 208/230V single-phase power and is designed for heating operation at outdoor temperatures down to -22°F (-30°C).
Professional installation required. The outdoor unit is factory pre-charged for up to 150 ft. of combined refrigerant piping across the connected zones. This is a total system allowance, not a 150-ft allowance for each indoor unit.
Separate temperature settings do not mean the system can heat one zone while cooling another. Confirm multi-zone operating requirements with your installer.
Key Features
- Five-zone configuration: Five 9,000 BTU wall-mounted indoor units connect to one outdoor unit.
- Separate temperature settings: Adjust comfort settings for each served space.
- Inverter heat pump: Provides heating and cooling with variable output.
- Cold-climate operation: Designed for heating down to -22°F (-30°C).
- Efficiency: Manufacturer-listed 23 SEER2 and 12 EER2.
- Included installation kits: Five 16-ft kits for this base configuration.
- Factory pre-charge: Up to 150 ft. of combined refrigerant piping.
- Manufacturer warranty: 10-year compressor and 5-year parts coverage, subject to Senville’s terms.
System Configuration
| Configuration | Details |
|---|---|
| System SKU | SENA-48HF-F99999 |
| Family | Senville AURA SENA-48HF/F |
| Outdoor Model | SENA-48HF-MOA |
| Indoor Configuration | 9K + 9K + 9K + 9K + 9K |
| Number of Zones | Five |
| Indoor Style | Wall-mounted |
| Included Installation Kits | Five 16-ft kits |
Technical Specifications
| Specification | Value |
|---|---|
| Nominal System Size | 48,000 BTU class |
| Rated Cooling Capacity | 47,000 BTU/h |
| Rated Heating Capacity | 49,000 BTU/h |
| SEER2 | 23 |
| EER2 | 12 |
| Minimum Outdoor Heating Temperature | -22°F (-30°C) |
| Refrigerant | R-454B |
| Power Supply | 208/230V, 1-phase, 60Hz |
| Minimum Circuit Ampacity | 37A |
| Maximum Fuse | 40A |
| Outdoor Dimensions (W × D × H) | 37.48″ × 16.34″ × 52.48″ |
| Outdoor Weight | 246.47 lb |
| Factory Pre-Charge Length | Up to 150 ft. total across all connected zones |
| Compressor Warranty | 10 years* |
| Parts Warranty | 5 years* |
*Warranty coverage is subject to Senville’s terms and installation requirements. Outdoor weight is equipment weight, not palletized shipping weight. Rated capacities and efficiency values are manufacturer-listed system specifications; individual zone output depends on the connected configuration and operating conditions.
Product Highlights
- Serve five rooms or areas with one outdoor condenser.
- Use the same 9,000 BTU indoor-unit size in each zone.
- Five included 16-ft kits provide a consistent base configuration.
- Heating and cooling support year-round comfort.
Included Components
- Five 9,000 BTU wall-mounted indoor units.
- One matching SENA-48HF-MOA outdoor heat-pump condenser.
- Wireless remote controls.
- Five 16-ft installation kits.
- Indoor-to-outdoor wiring harnesses.
Technical Document References
