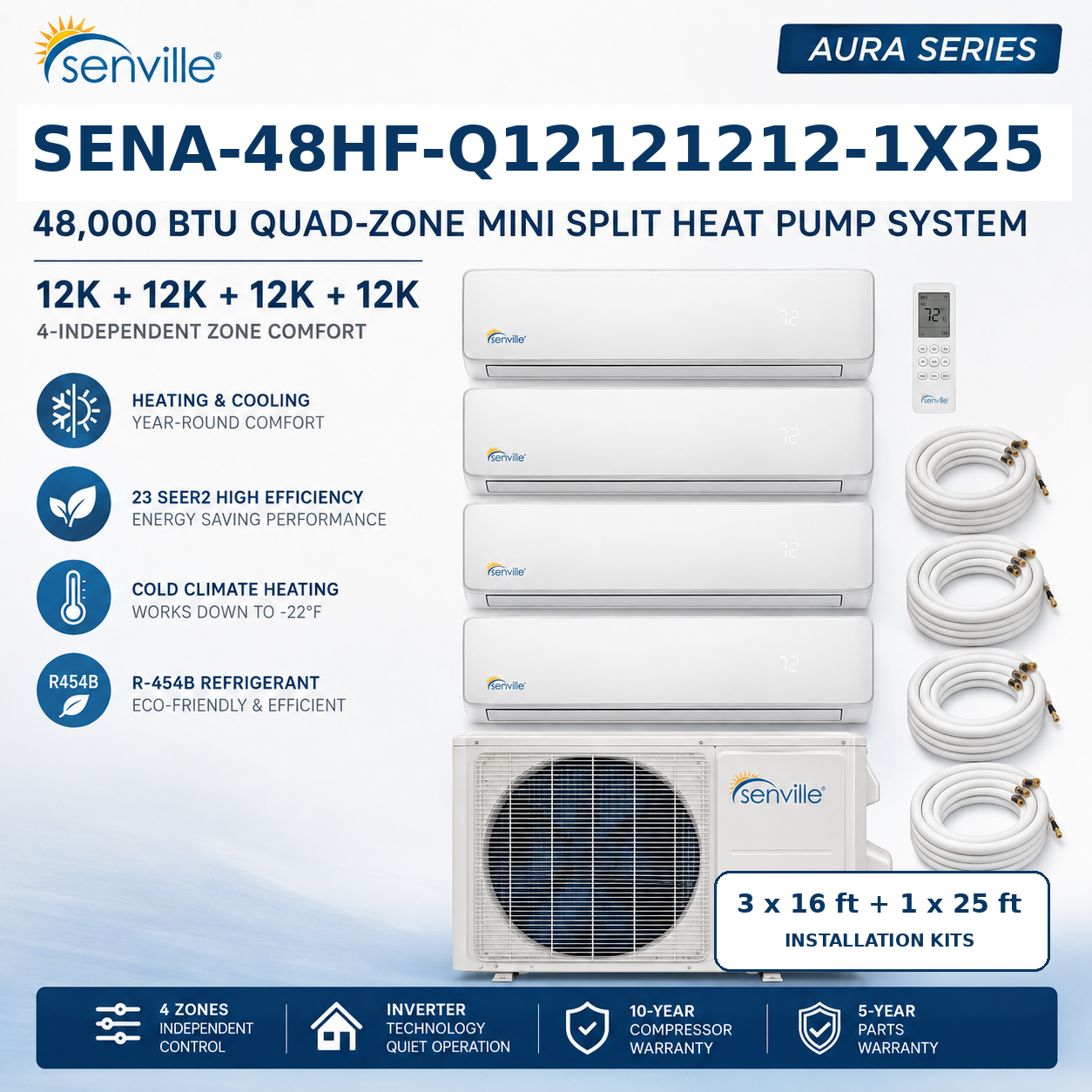

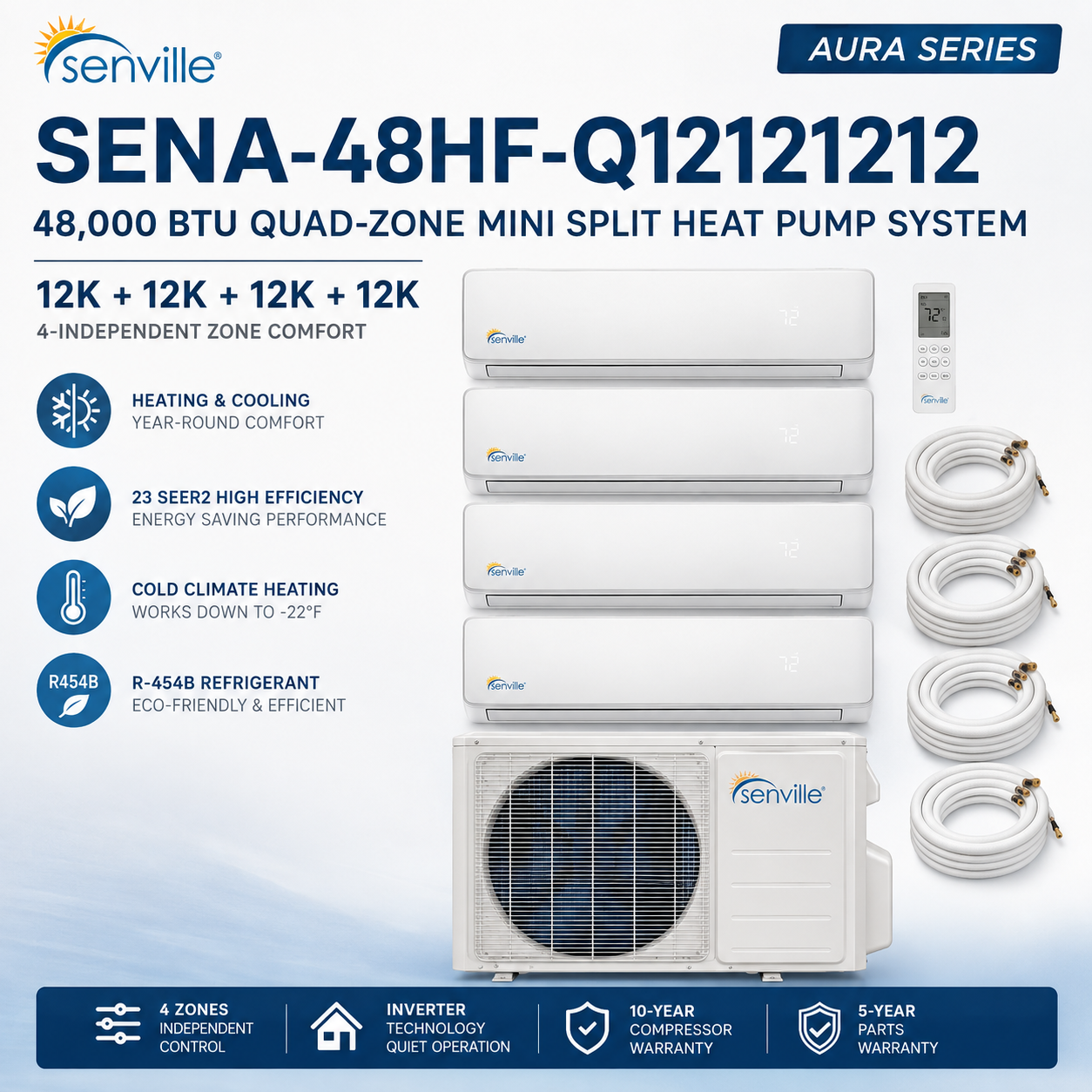

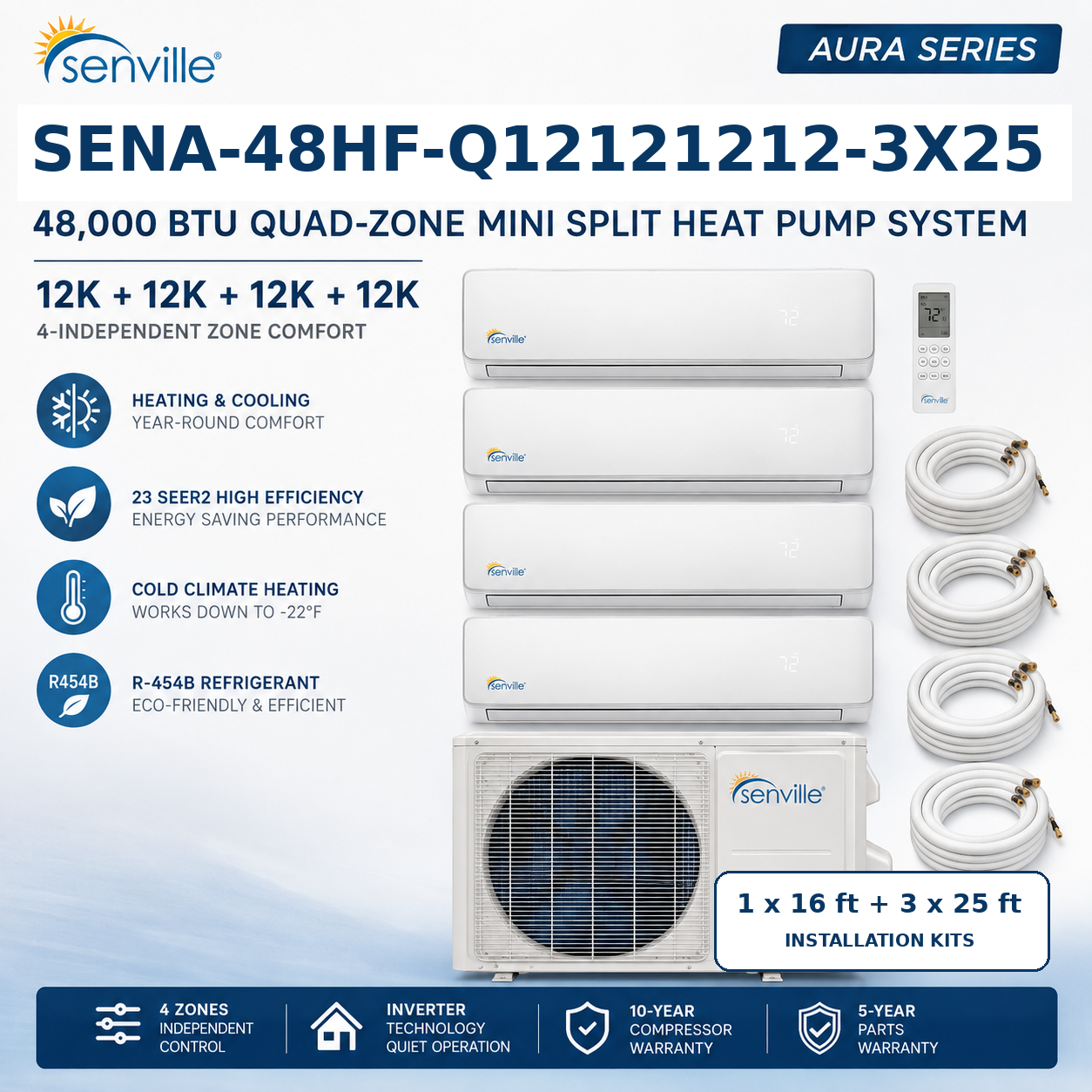

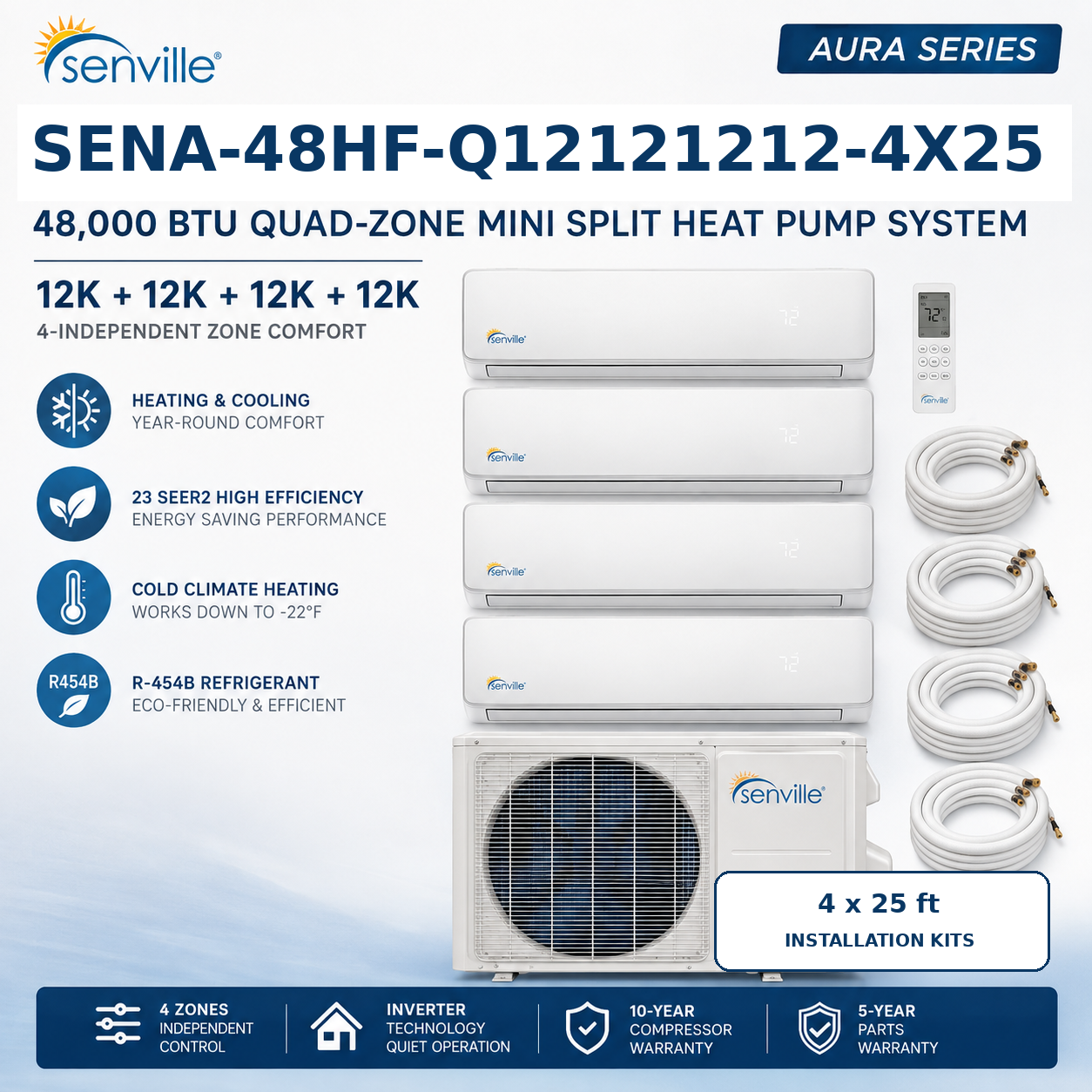

Senville AURA 48,000 BTU Quad-Zone Mini Split Heat Pump | SENA-48HF/Q
Senville AURA 48,000 BTU Quad-Zone Mini Split Heat Pump | SENA-48HF/Q - 12K / 12K / 12K/ 12K BTU / 16ft / 16 ft / 16 ft / 16 ft is backordered and will ship as soon as it is back in stock.
The Senville AURA SENA-48HF/Q 48,000 BTU Quad-Zone Mini Split Heat Pump is designed to provide efficient heating and cooling for up to four separate spaces using a single outdoor condenser.
This configuration includes four 12,000 BTU wall-mounted indoor units, allowing independent temperature control in each zone. With inverter-driven operation, high-efficiency performance, and cold-climate heating capability down to -22°F, the AURA system is well suited for year-round comfort in homes, offices, additions, workshops, and similar multi-room applications.
The system uses R-454B refrigerant and operates on 208/230V single-phase power. Each SKU in this family includes a different combination of installation-kit lengths while maintaining the same 12K + 12K + 12K + 12K indoor configuration.
Professional installation is required.
⚙️Key Features:
| Feature | Specification |
|---|---|
| Product Type | Quad-Zone Mini Split Heat Pump |
| Series | Senville AURA |
| Family Model | SENA-48HF/Q |
| System Capacity | 48,000 BTU Class |
| Indoor Units | 4 |
| Indoor Configuration | 12K + 12K + 12K + 12K |
| Cooling Capacity | 47,000 BTU |
| Heating Capacity | 49,000 BTU |
| SEER2 | 23 |
| EER2 | 12 |
| Cold-Climate Heating | Down to -22°F |
| Refrigerant | R-454B |
| Voltage | 208/230V |
| Phase | Single Phase |
| Technology | Inverter Heat Pump |
| Refrigerant Pre-Charge | 125 ft |
| Warranty | 10-Year Compressor / 5-Year Parts |
| Installation | Professional installation required |
📊 Technical Specifications
| Technical Specification | Value |
|---|---|
| Manufacturer | Senville |
| Series | AURA |
| Model Family | SENA-48HF/Q |
| System Type | Ductless Mini Split Heat Pump |
| Zones | 4 |
| Indoor Unit Type | Wall Mounted |
| Indoor Configuration | 12K + 12K + 12K + 12K |
| Rated Cooling Capacity | 47,000 BTU |
| Rated Heating Capacity | 49,000 BTU |
| SEER2 | 23 |
| EER2 | 12 |
| Minimum Heating Temperature | -22°F / -30°C |
| Refrigerant | R-454B |
| Power Supply | 208/230V, 1 Phase, 60 Hz |
| Minimum Circuit Ampacity | 37A |
| Maximum Fuse / Breaker | 40A |
| Outdoor Unit Dimensions | 37.48 × 16.34 × 52.48 in |
| Outdoor Unit Weight | 246.47 lb |
| Factory Refrigerant Pre-Charge | 125 ft |
| Compressor Warranty | 10 Years |
| Parts Warranty | 5 Years |
| Installation Requirement | Professional installation required |
