Senville ELITE Mini Split Heat Pumps | 9K–24K BTU
Senville ELITE Mini Split Heat Pumps | 9K–24K BTU - 9000 / No Line is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.
Description

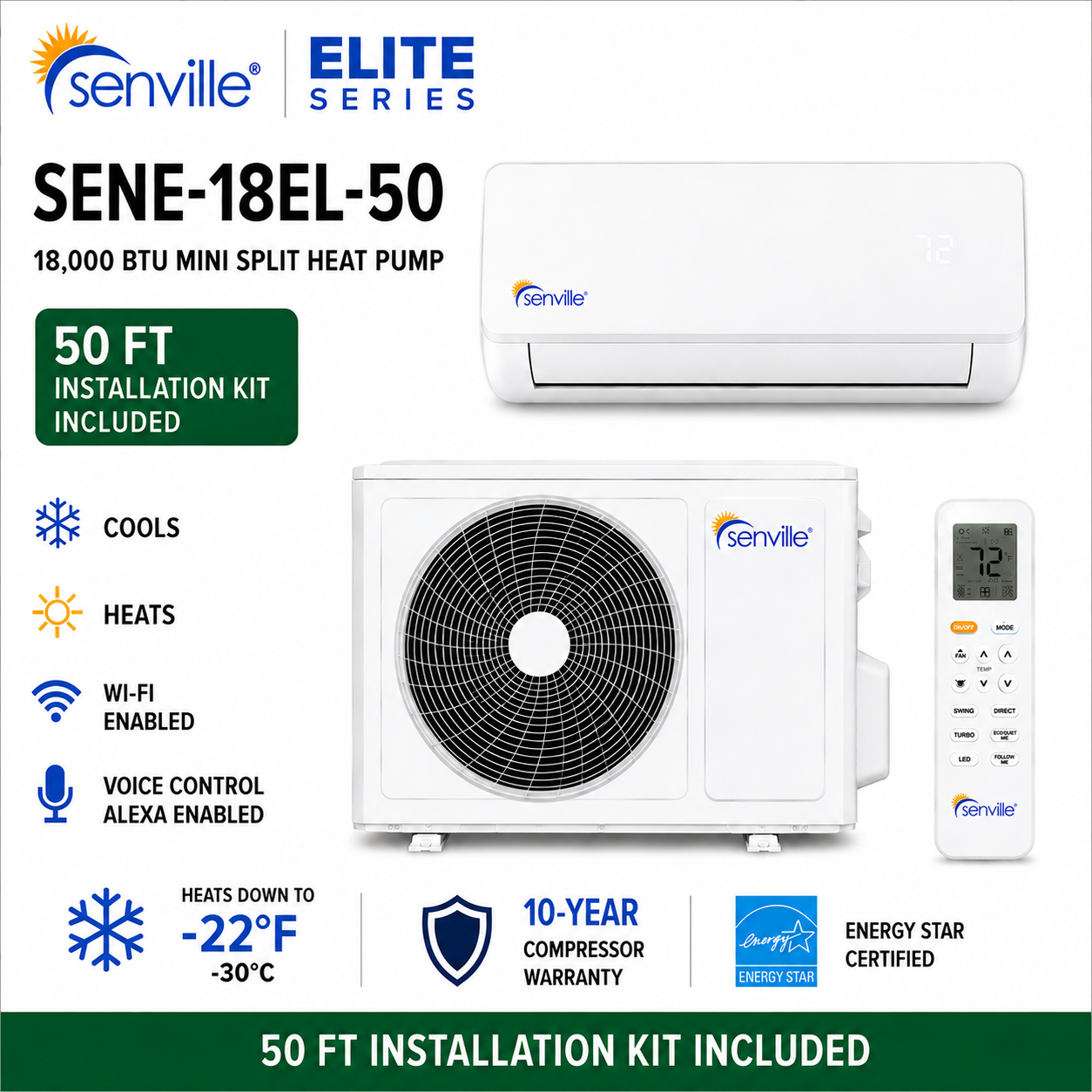

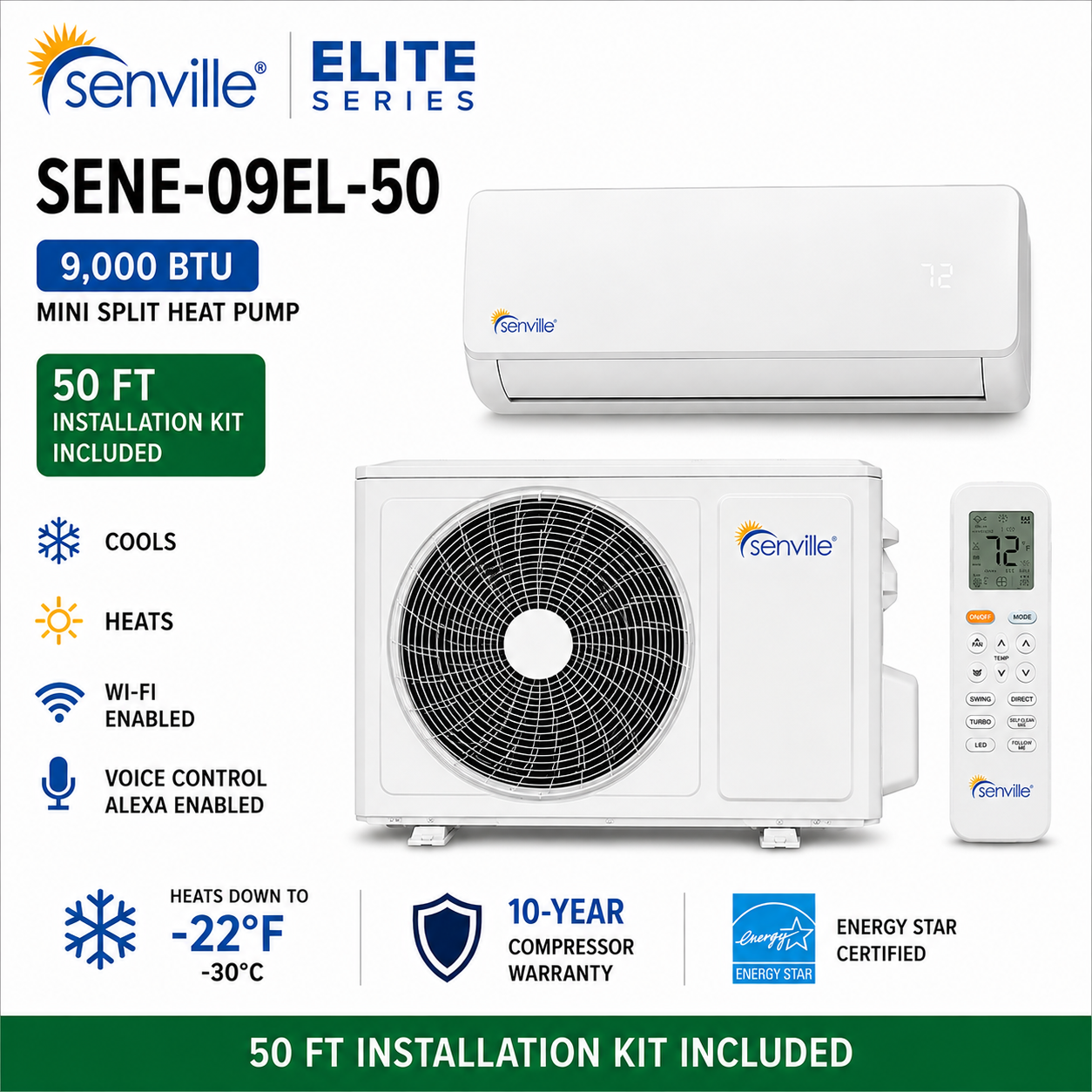

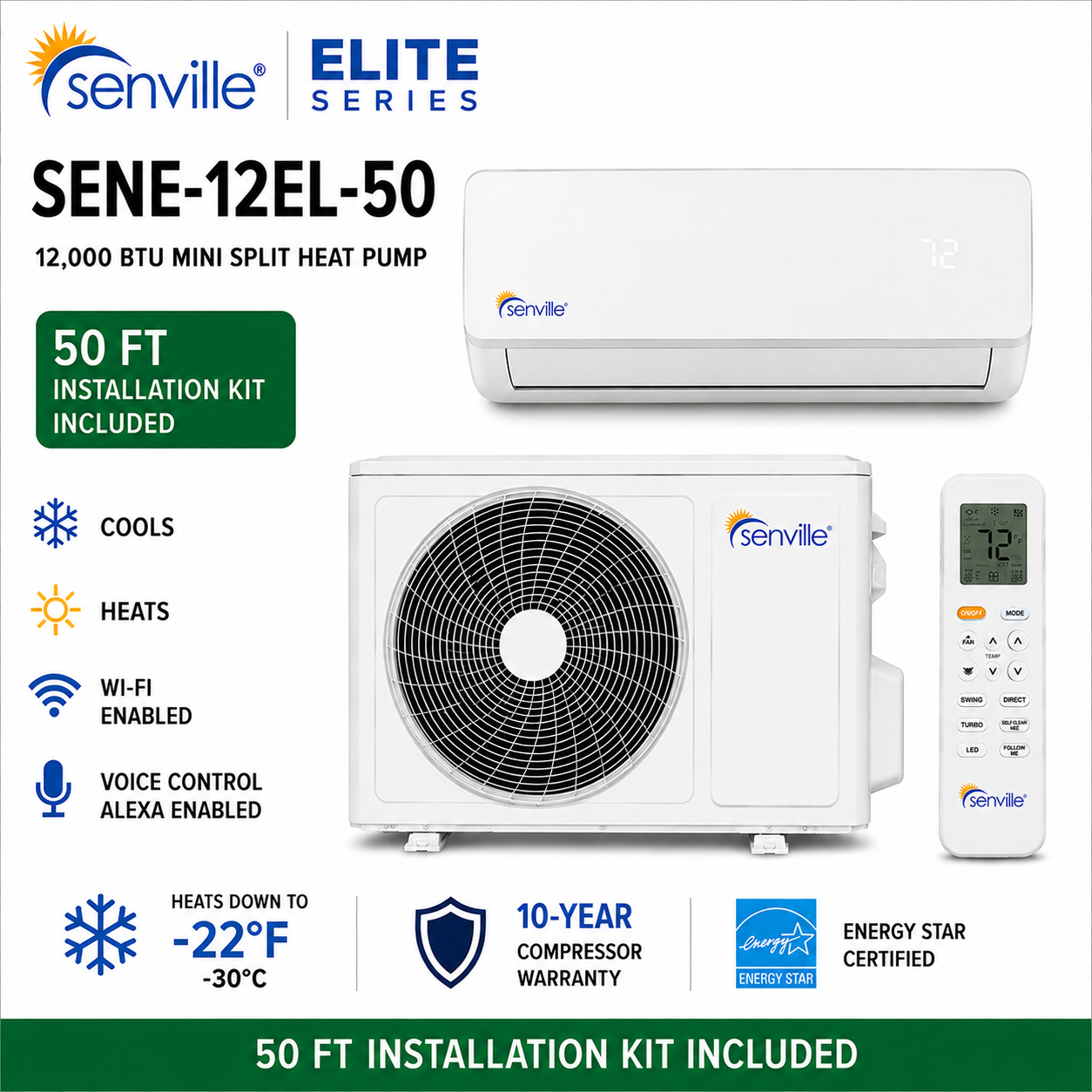

The Senville ELITE Series provides single-zone ductless heating and cooling with a wall-mounted indoor unit and matched inverter-driven outdoor heat pump. Choose 9,000, 12,000, 18,000 or 24,000 BTU nominal cooling capacity for your application.
These systems use R-454B refrigerant and operate on 208/230V, single-phase, 60 Hz power. Senville lists heating operation down to −22°F / −30°C and ENERGY STAR certification for the ELITE family.
Select no installation kit, a 16 ft kit or a 25 ft kit. Each package includes indoor and outdoor equipment, a wireless remote and an Alexa USB kit.
Key Features
- Inverter-driven heating and cooling with variable output.
- Cold-weather heating operation rated down to −22°F / −30°C.
- Manufacturer-listed ENERGY STAR certification.
- Alexa control with the included USB kit.
- Cooling, heating, dehumidification and fan functions.
- Built-in self-diagnostics and refrigerant leak detection.
Capacity & Model Selection
| Specification | 9,000 BTU | 12,000 BTU | 18,000 BTU | 24,000 BTU |
|---|---|---|---|---|
| Base model | SENE-09EL | SENE-12EL | SENE-18EL | SENE-24EL |
| Nominal cooling capacity | 9,000 BTU/h | 12,000 BTU/h | 18,000 BTU/h | 24,000 BTU/h |
| Rated heating capacity | 12,000 BTU/h | 12,000 BTU/h | 20,000 BTU/h | 24,000 BTU/h |
| SEER2 | 33.3 | 29.4 | 25.6 | 24.0 |
| Suggested area | 100–450 sq. ft. | 500–750 sq. ft. | 750–1,000 sq. ft. | 1,000–1,500 sq. ft. |
Area ranges are manufacturer guidance. Have your HVAC contractor size the system for the room's heating and cooling loads, climate, insulation, windows and ceiling height. Minimum operating temperature does not guarantee full rated heating output at that temperature.
Technical Specifications
Dimensions are width × depth × height. Weights are the manufacturer-listed unit weights, not shipping or palletized weights.
| Specification | 9,000 BTU | 12,000 BTU | 18,000 BTU | 24,000 BTU |
|---|---|---|---|---|
| Indoor dimensions | 40.04 × 9.53 × 12.56 in. | 40.04 × 9.53 × 12.56 in. | 46.85 × 11.02 × 13.46 in. | 46.85 × 11.20 × 14.59 in. |
| Indoor unit weight | 28.22 lb | 28.22 lb | 43.65 lb | 64.2 lb |
| Outdoor dimensions | 35.04 × 13.46 × 26.50 in. | 35.04 × 13.46 × 26.50 in. | 37.24 × 16.14 × 31.89 in. | 37.24 × 16.14 × 31.89 in. |
| Outdoor unit weight | 99.65 lb | 99.65 lb | 130.29 lb | 130.29 lb |
Installation Kit Options
| Specification | 9,000 BTU | 12,000 BTU | 18,000 BTU | 24,000 BTU |
|---|---|---|---|---|

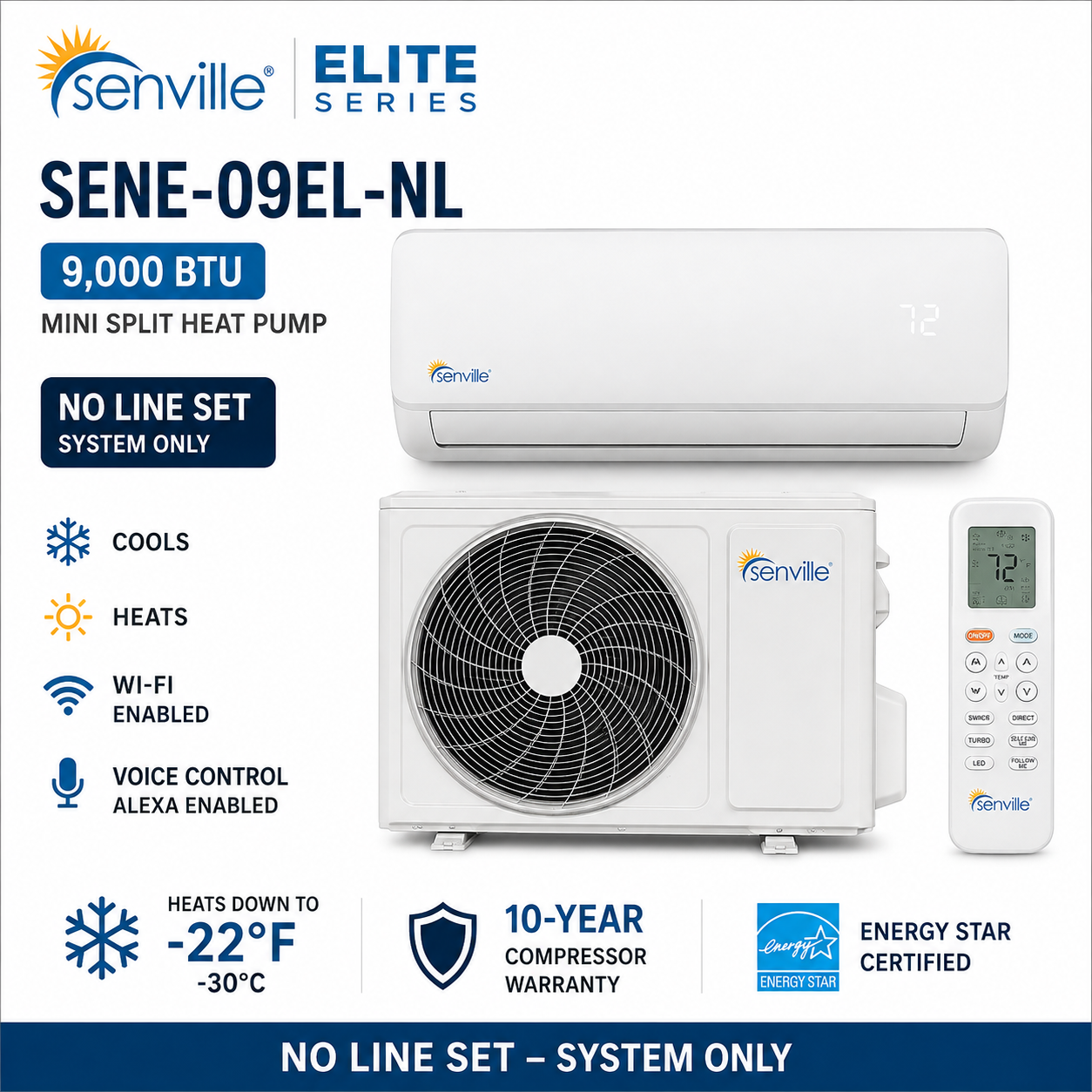

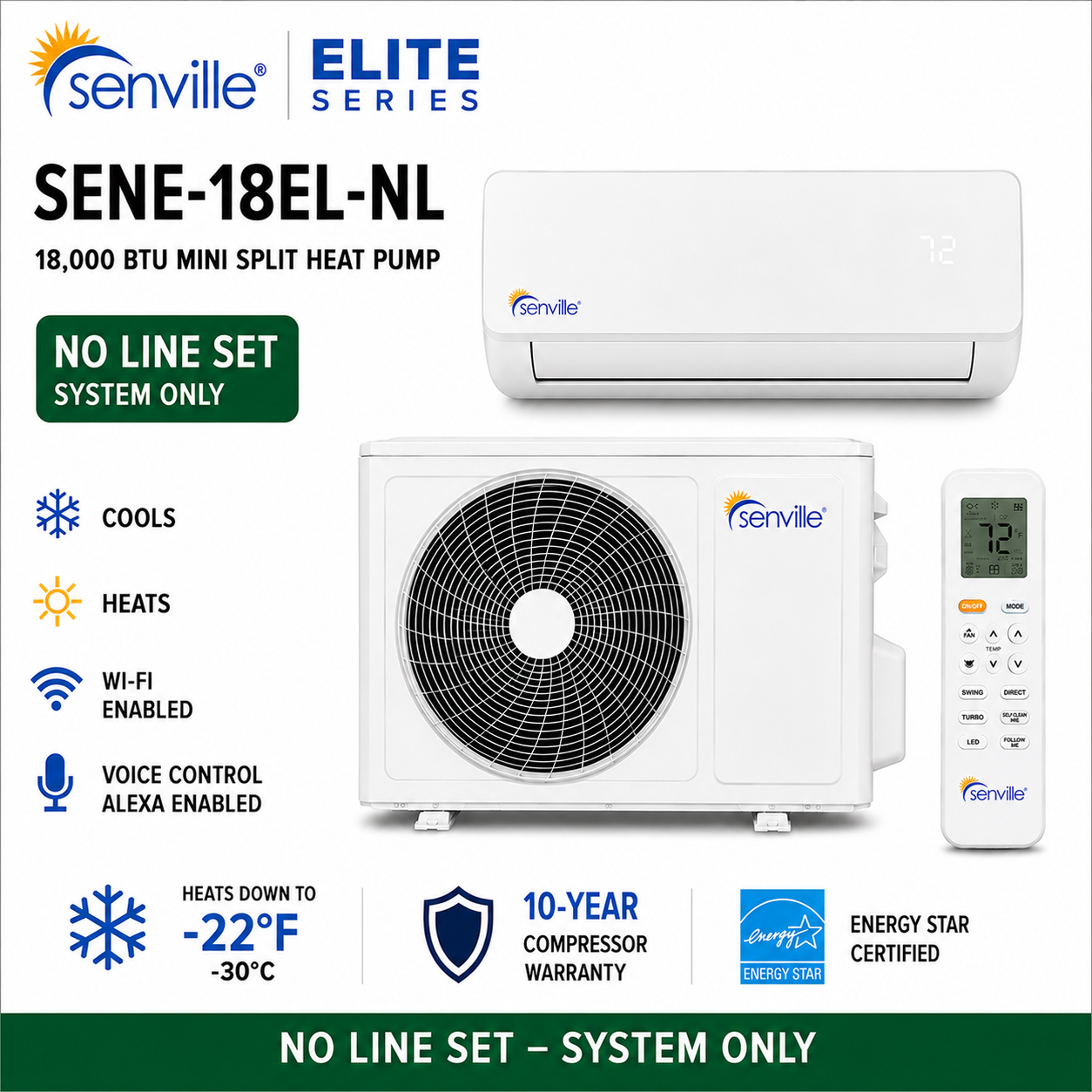

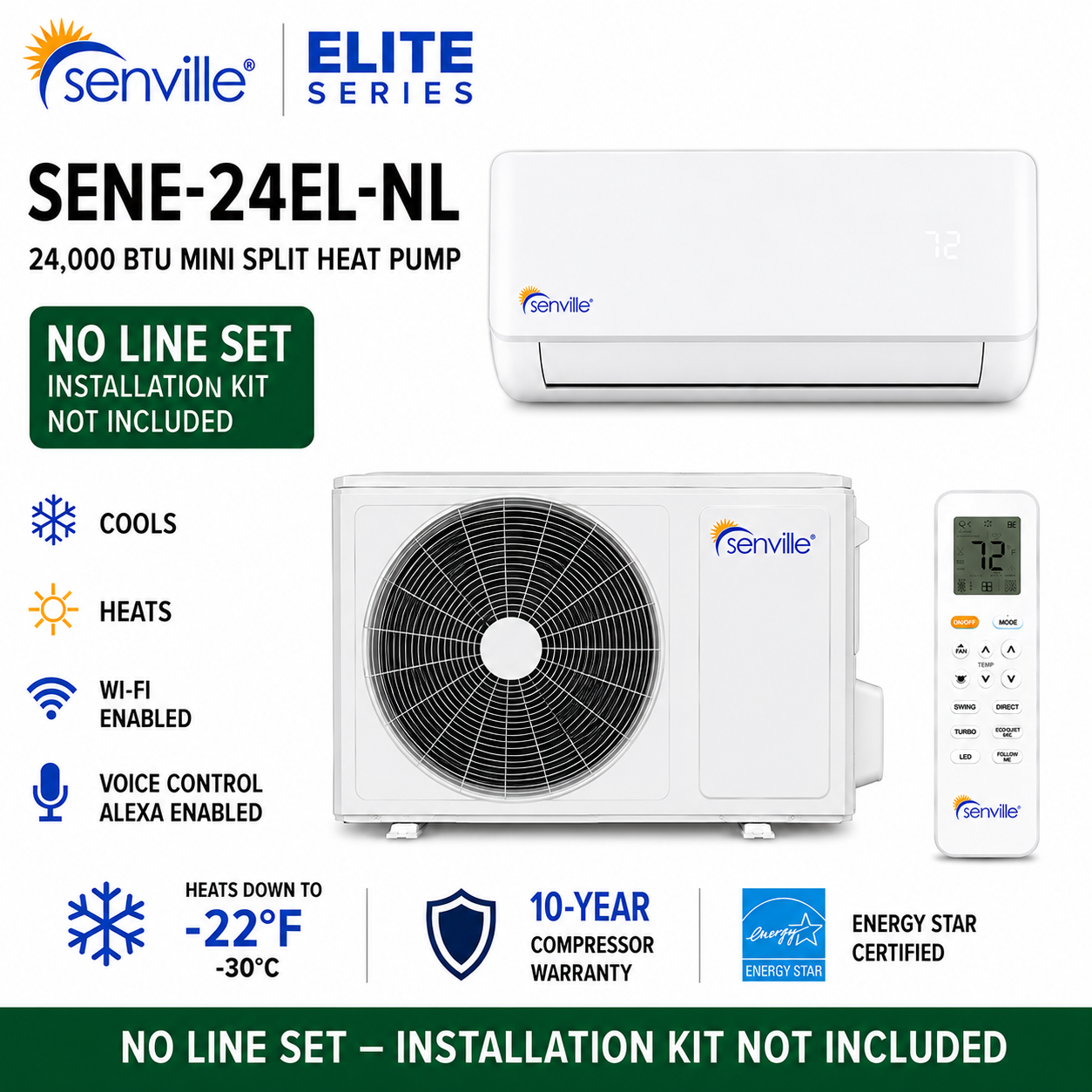

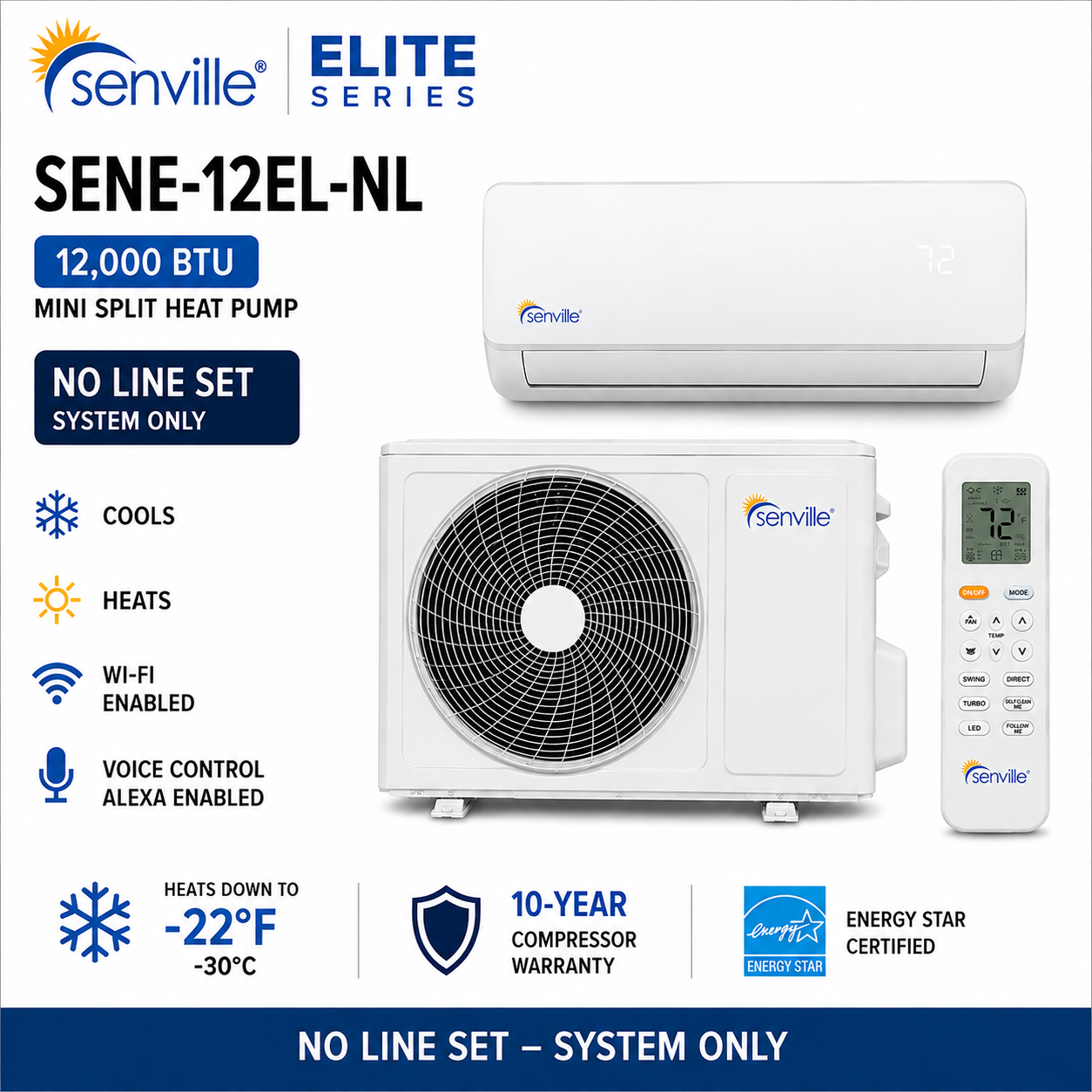

| No kit | SENE-09EL-NL | SENE-12EL-NL | SENE-18EL-NL | SENE-24EL-NL |

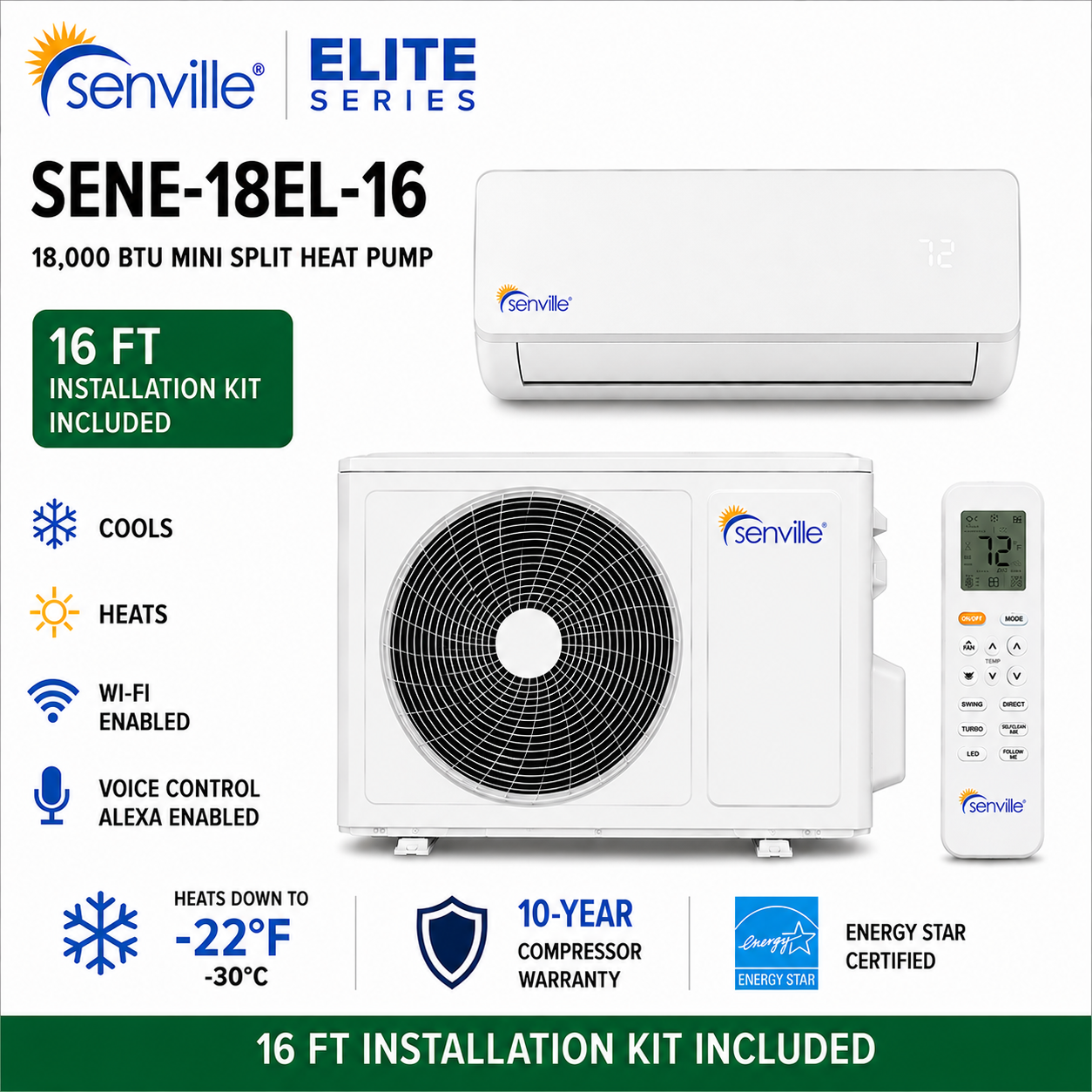

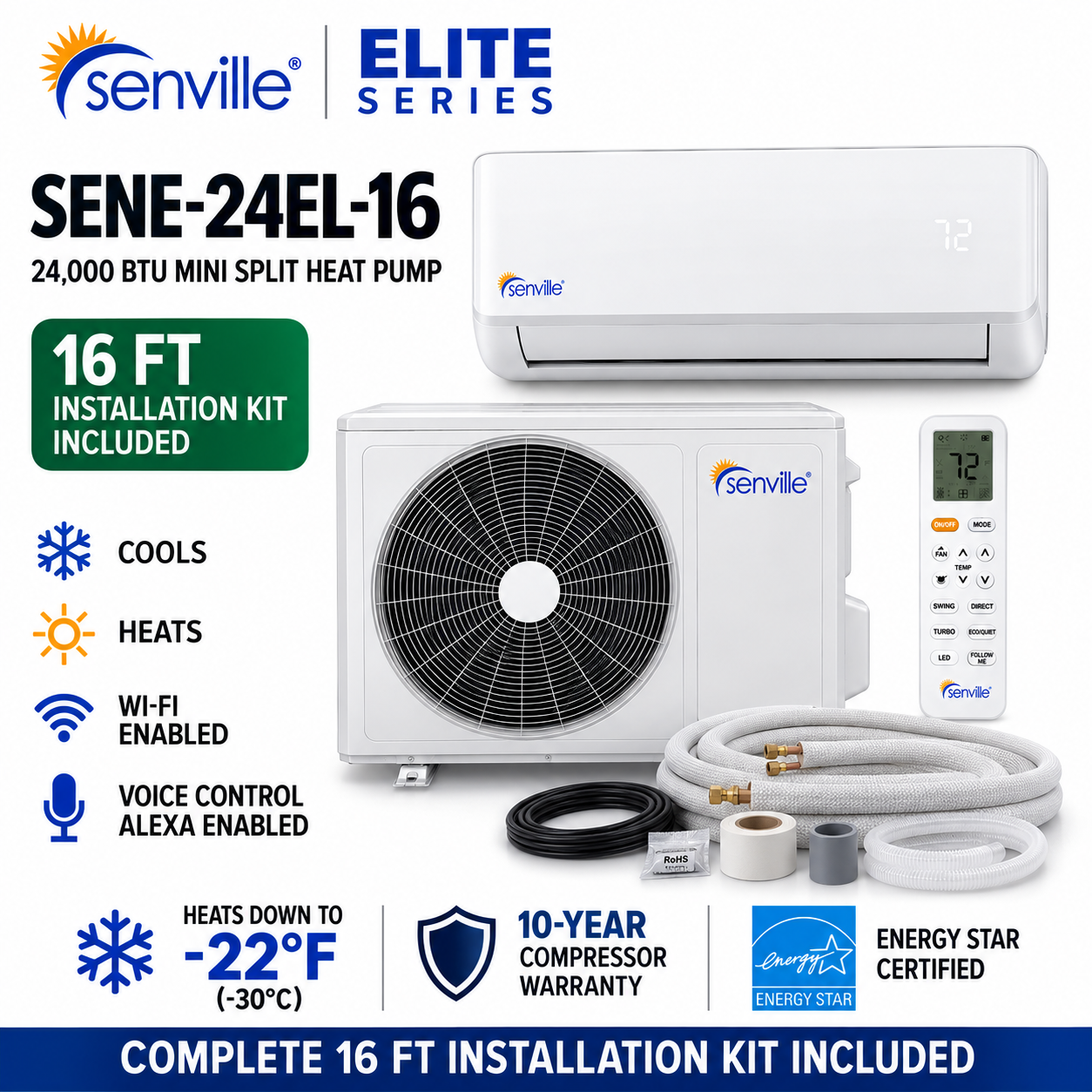

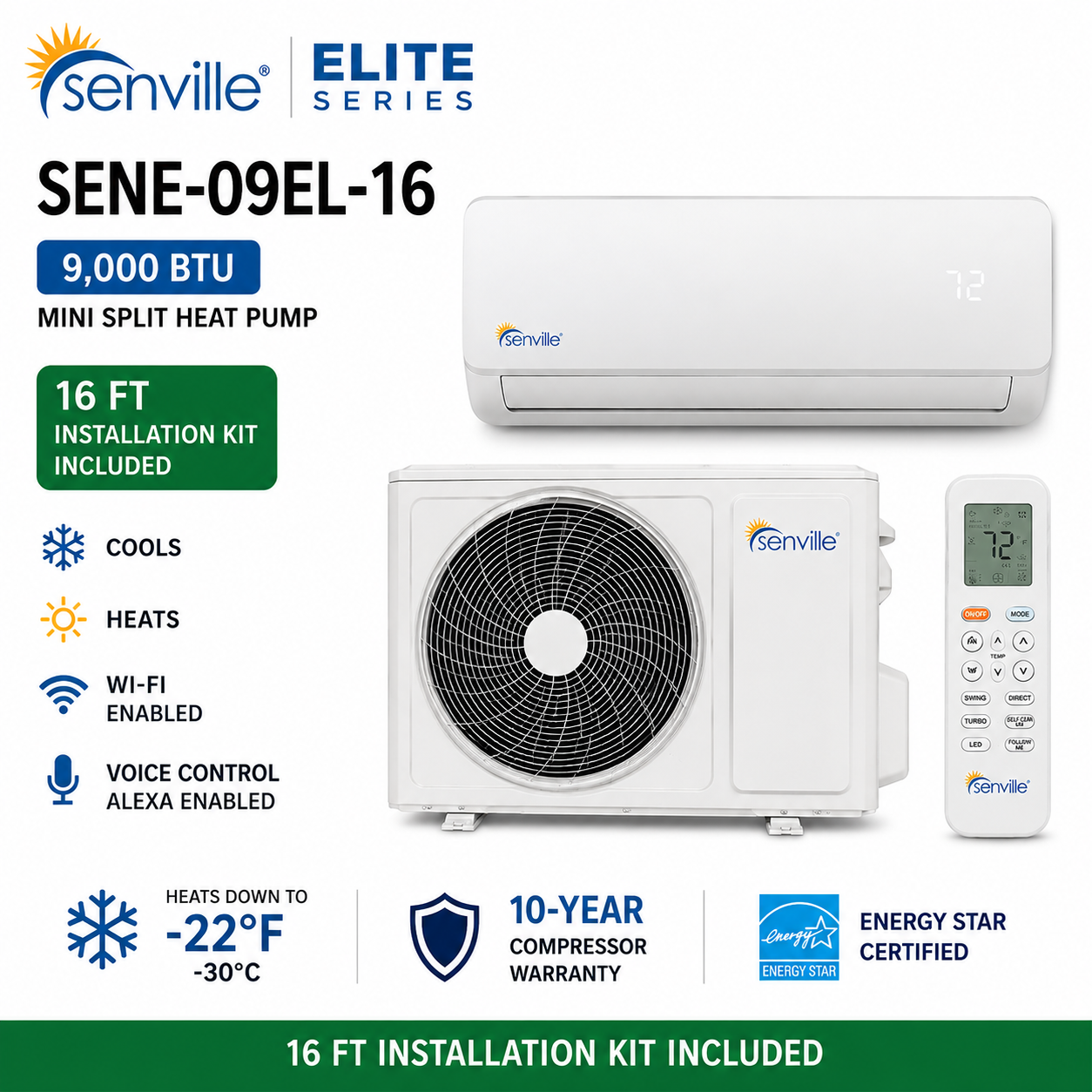

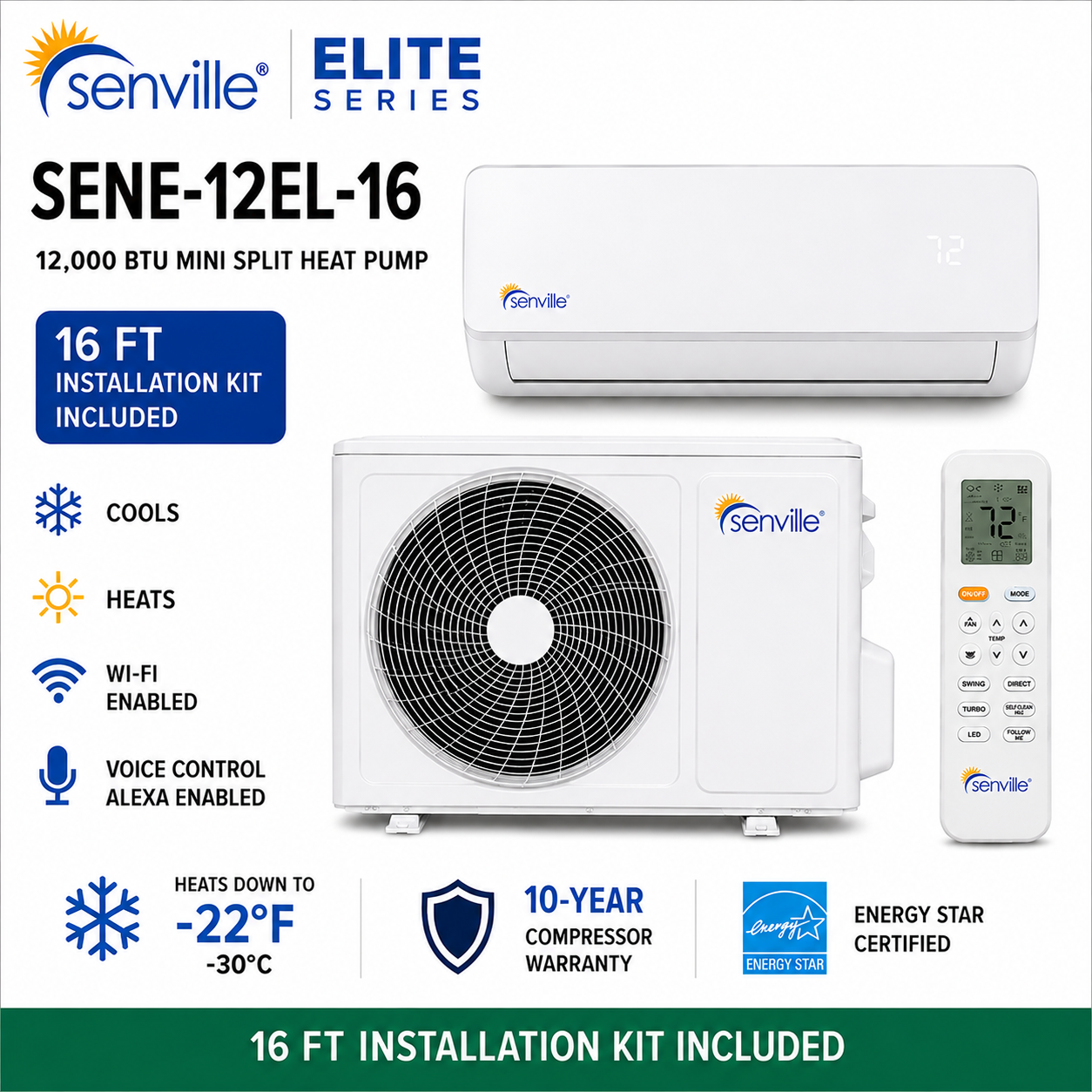

| 16 ft kit | SENE-09EL-16 | SENE-12EL-16 | SENE-18EL-16 | SENE-24EL-16 |

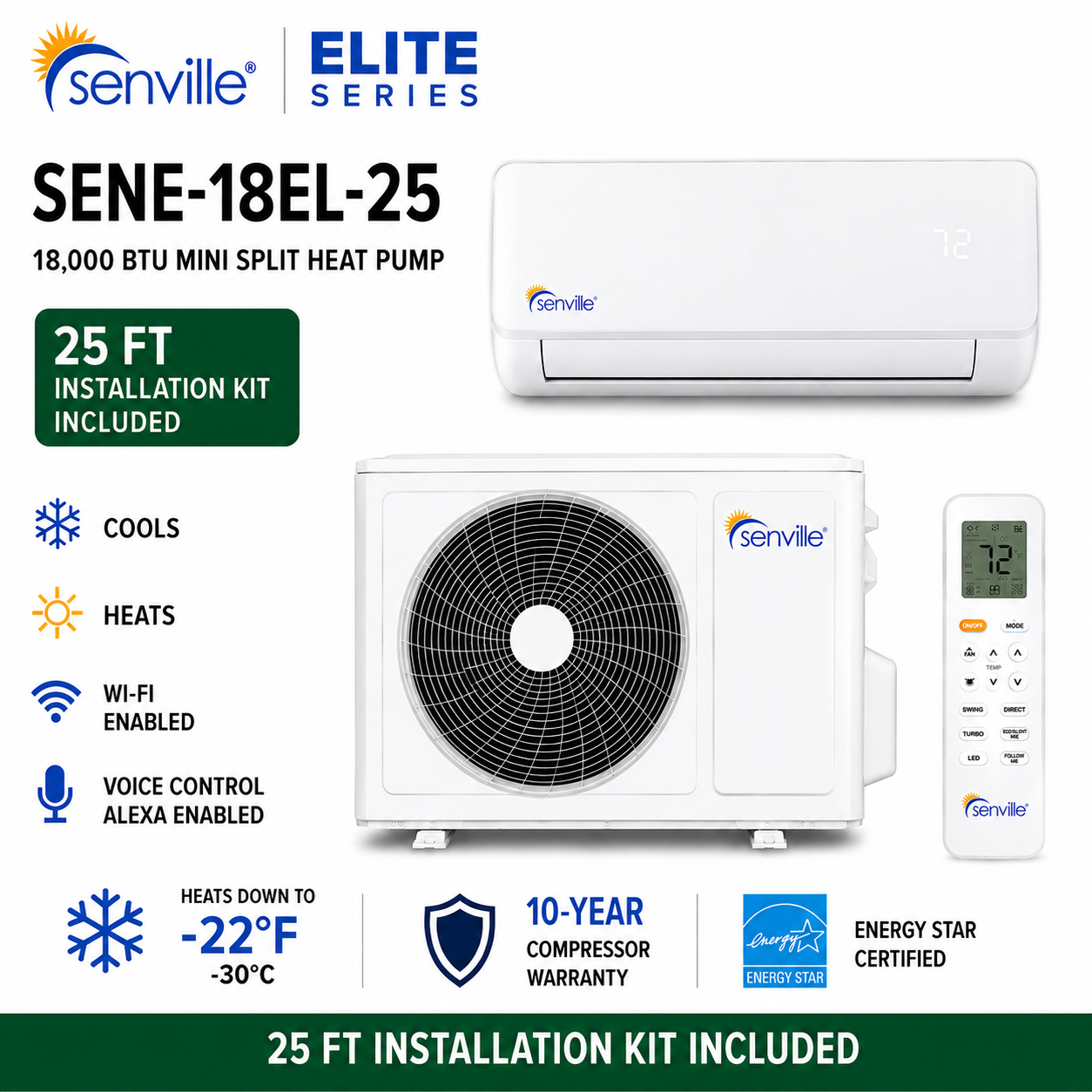

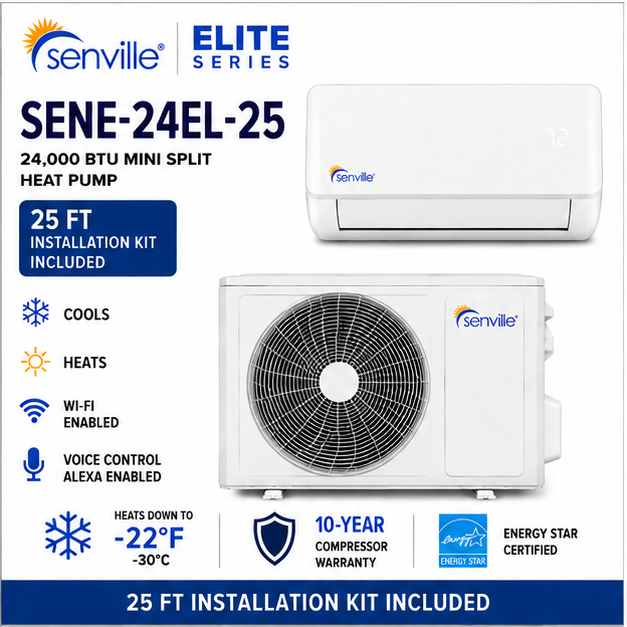

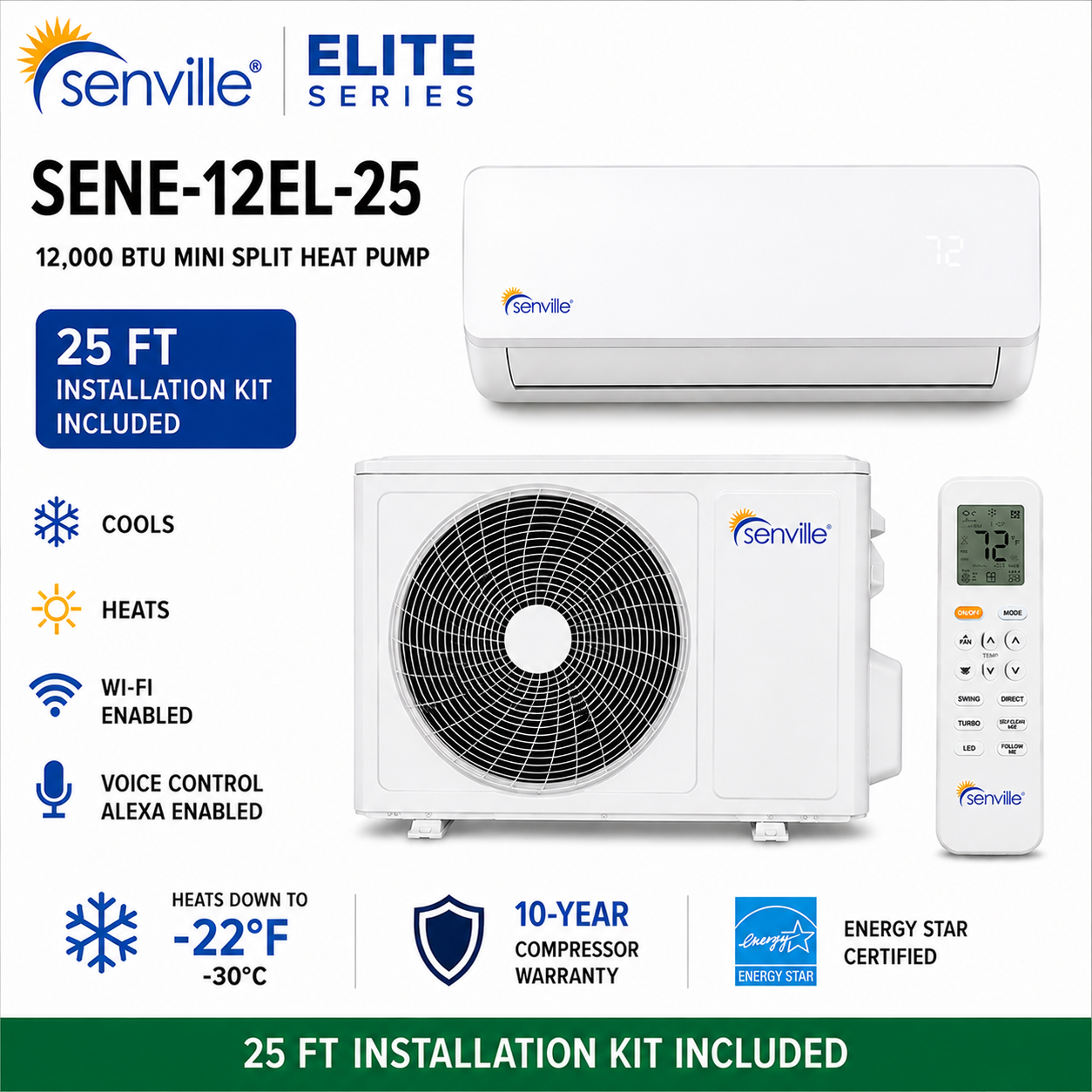

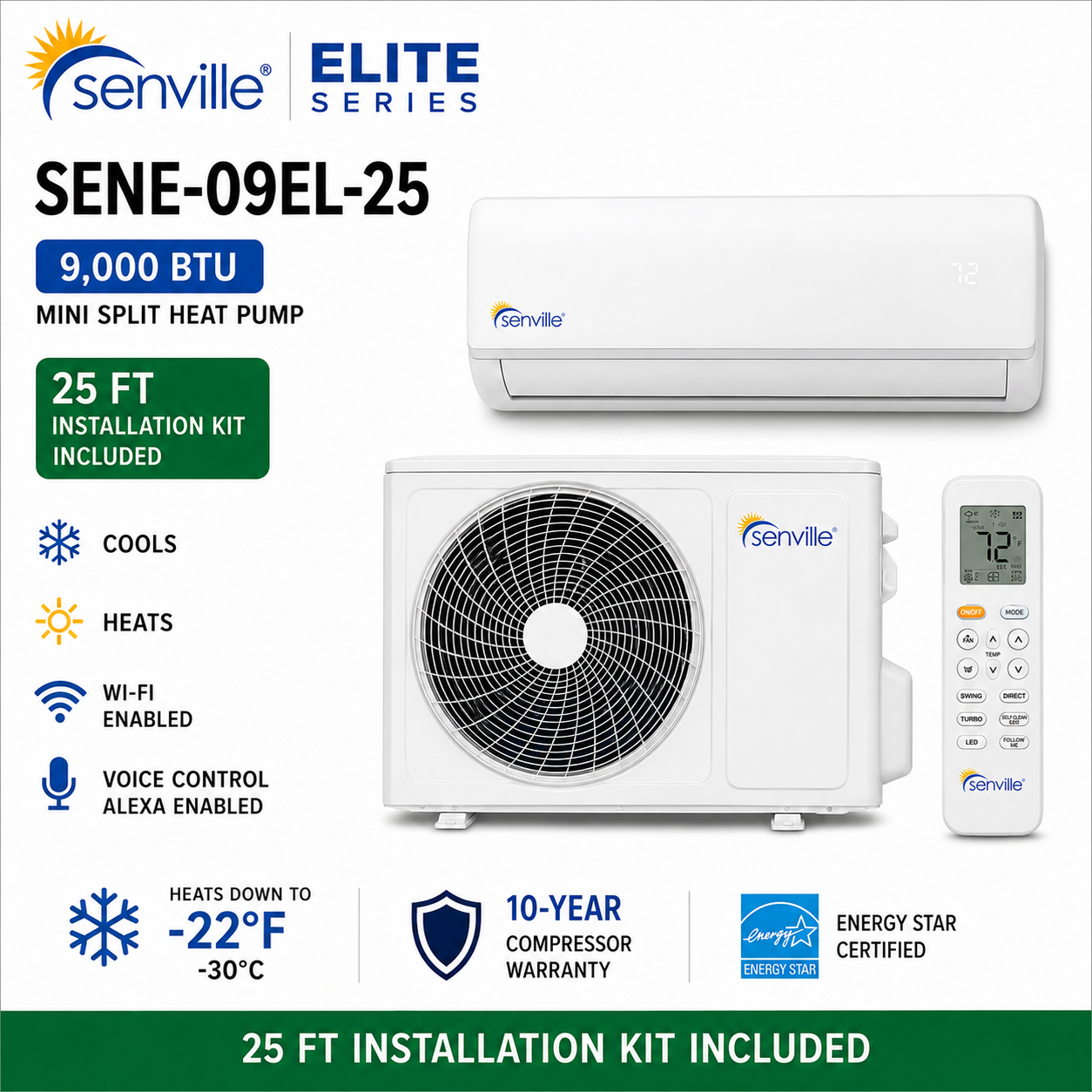

| 25 ft kit | SENE-09EL-25 | SENE-12EL-25 | SENE-18EL-25 | SENE-24EL-25 |
NL means no installation kit. System equipment remains included. Select the kit option that suits the planned installation.
Included Components
- Matched wall-mounted indoor unit and outdoor heat pump.
- Wireless remote control.
- Alexa USB kit.
- Indoor-to-outdoor connection wiring.
- Selected installation kit on 16 ft and 25 ft variants.
- Applicable installation and user documentation.
Professional installation, electrical work, mounting supports and additional site-specific materials are not included.
Product Highlights
- Four capacities for single-room or open-space applications.
- Ductless installation preserves floor space.
- Matched indoor and outdoor equipment in one system package.
- Kit choices for different piping routes.
- Remote and smart-control options for everyday comfort.
Installation Requirements
Professional installation is required. Have a qualified HVAC contractor confirm sizing, electrical supply, clearances, drainage, refrigerant piping and commissioning requirements for the exact model. Follow the matched system's installation manual for piping limits and any additional refrigerant charge.
Warranty
Senville lists 10 years of compressor coverage and 10 years of parts coverage for current ELITE IHH / OH systems. Repair labor is not covered. Professional installation and warranty registration are required, subject to the manufacturer's terms.
Refer to the full Manufacturer Warranty for coverage, exclusions, maintenance requirements and claim details.
Technical Documents
