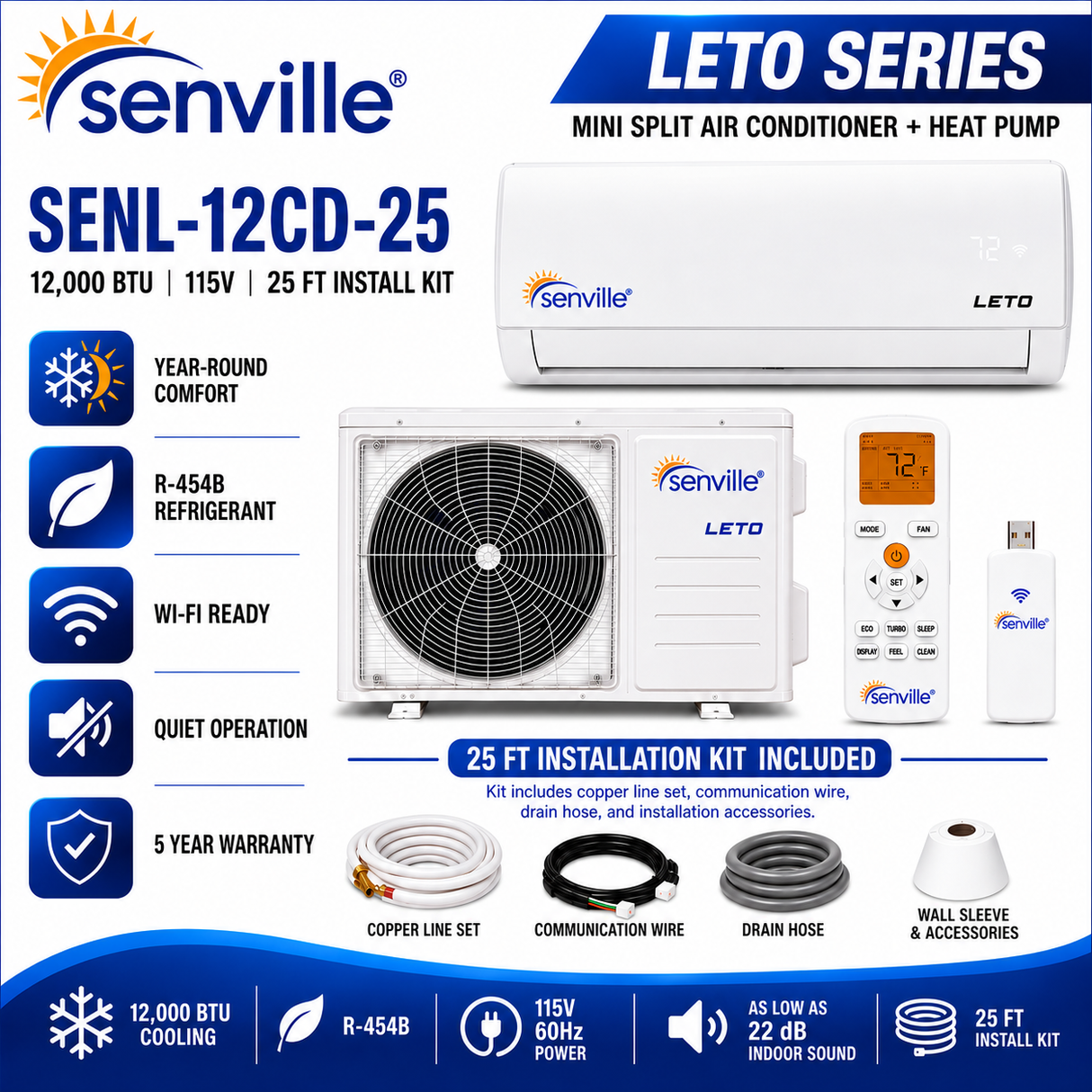

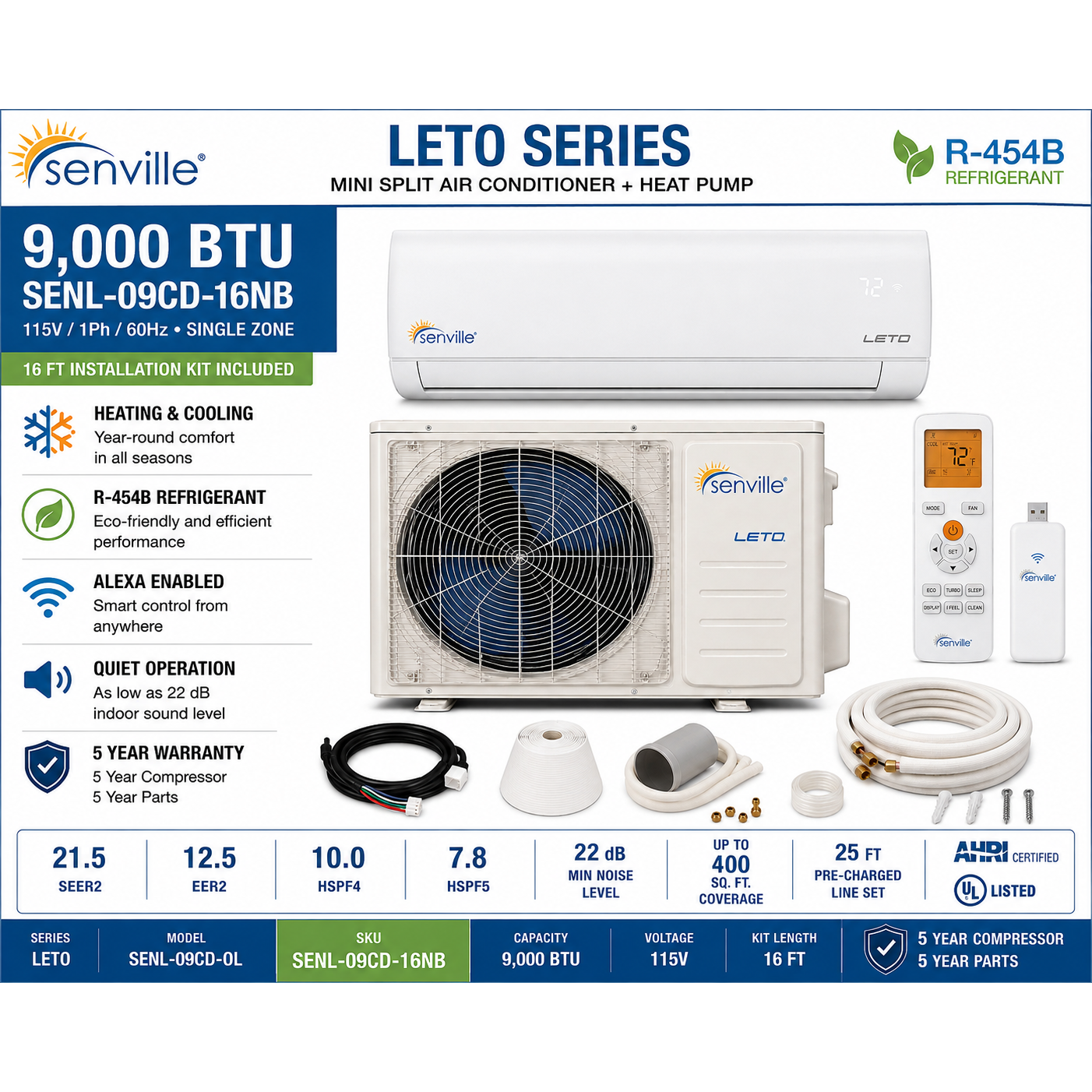

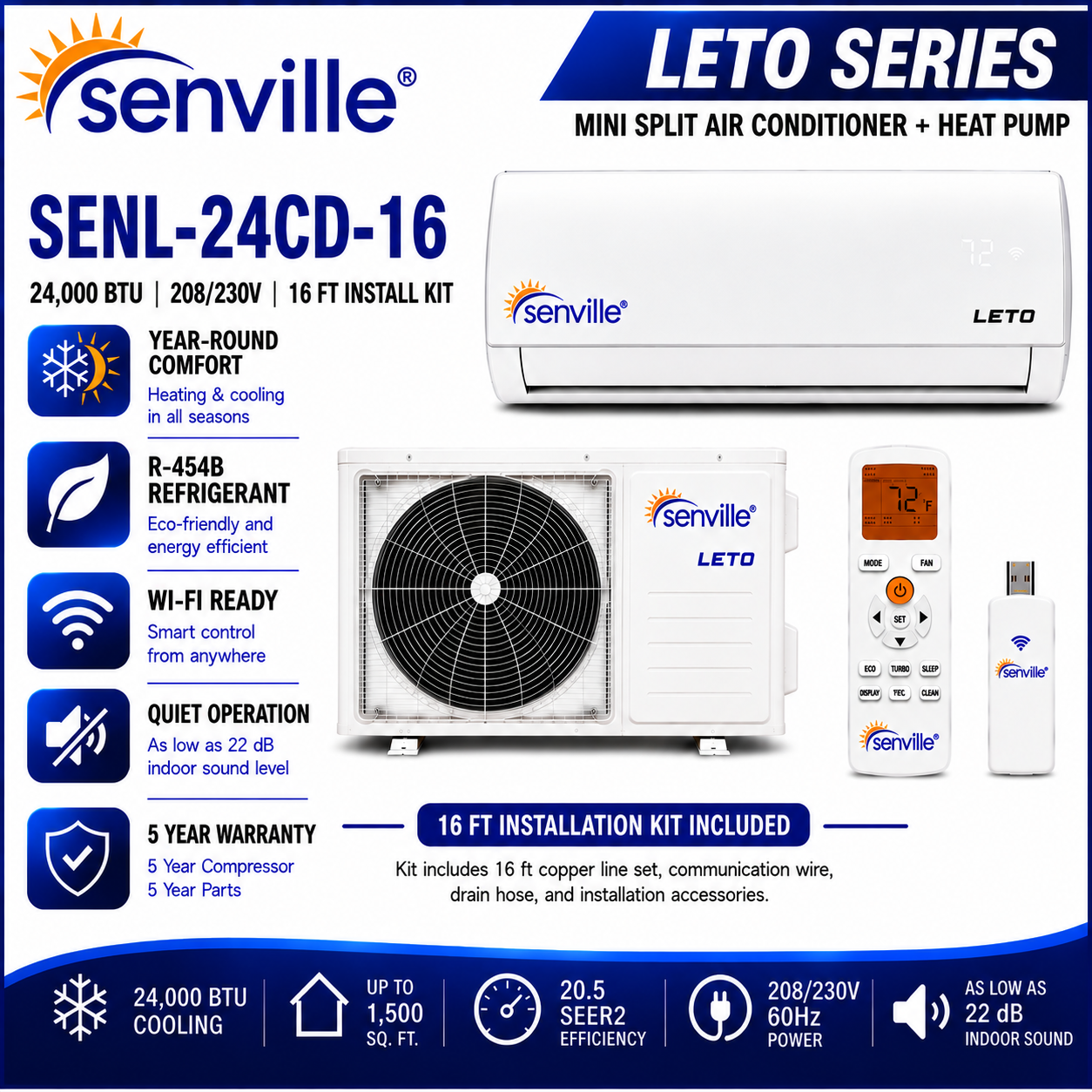

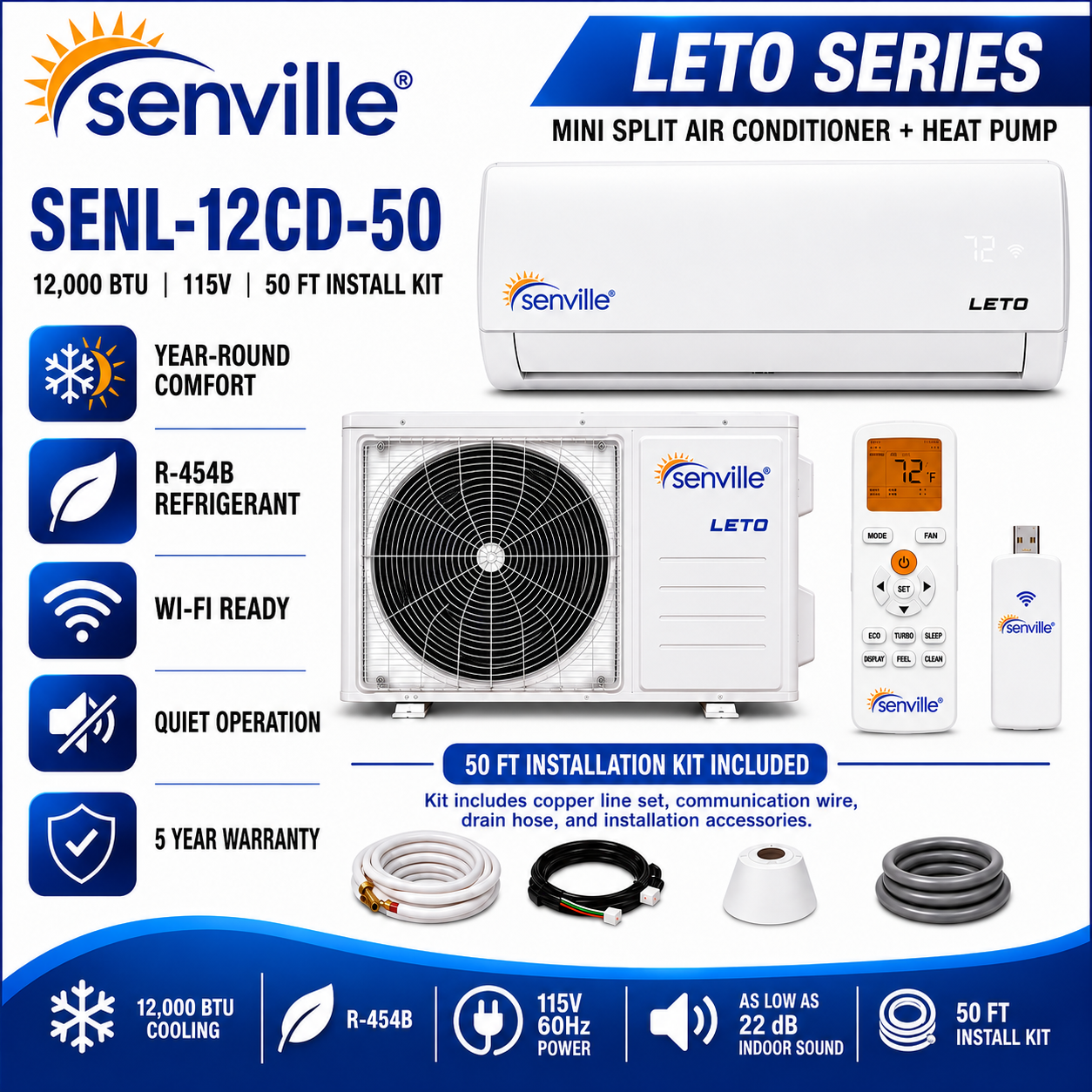

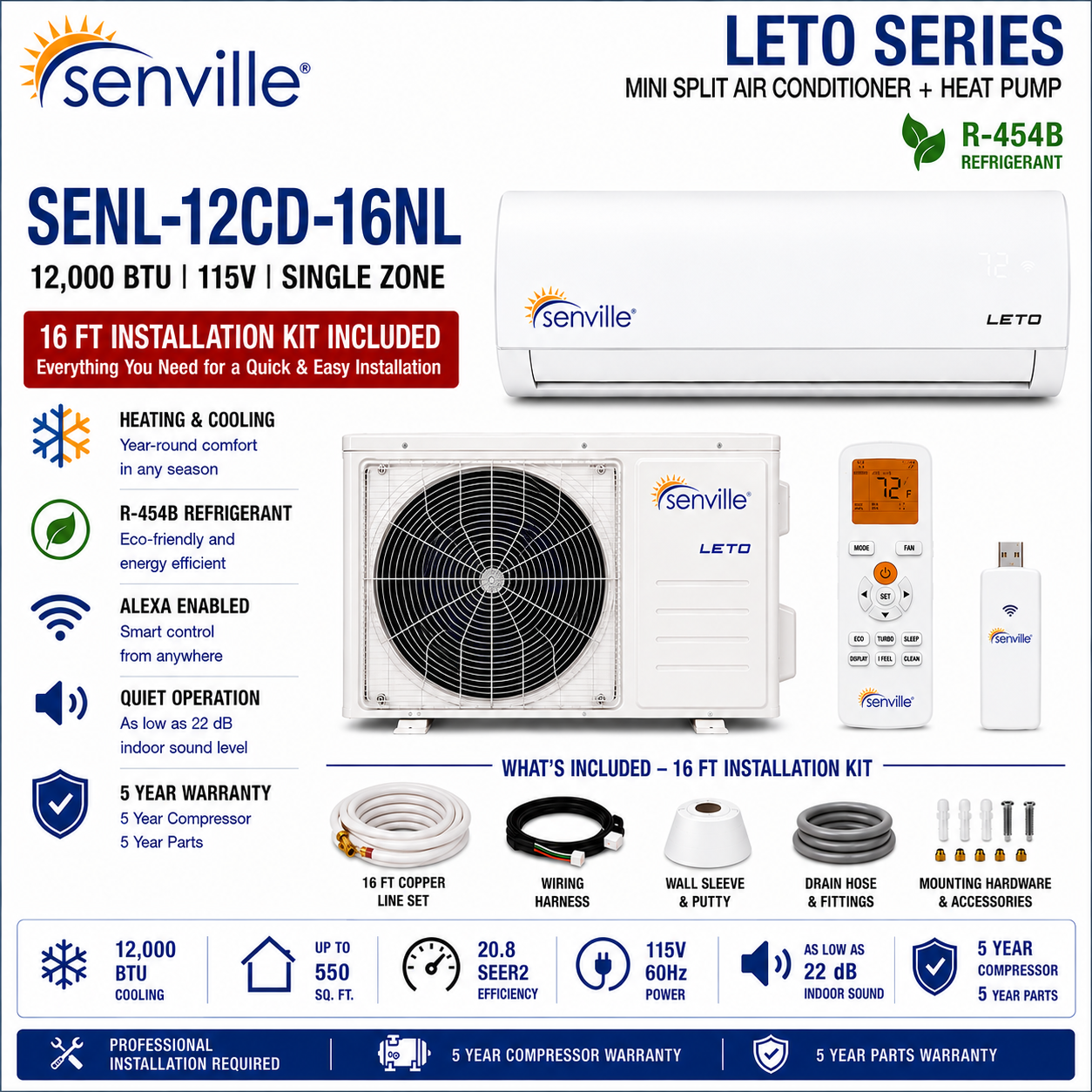

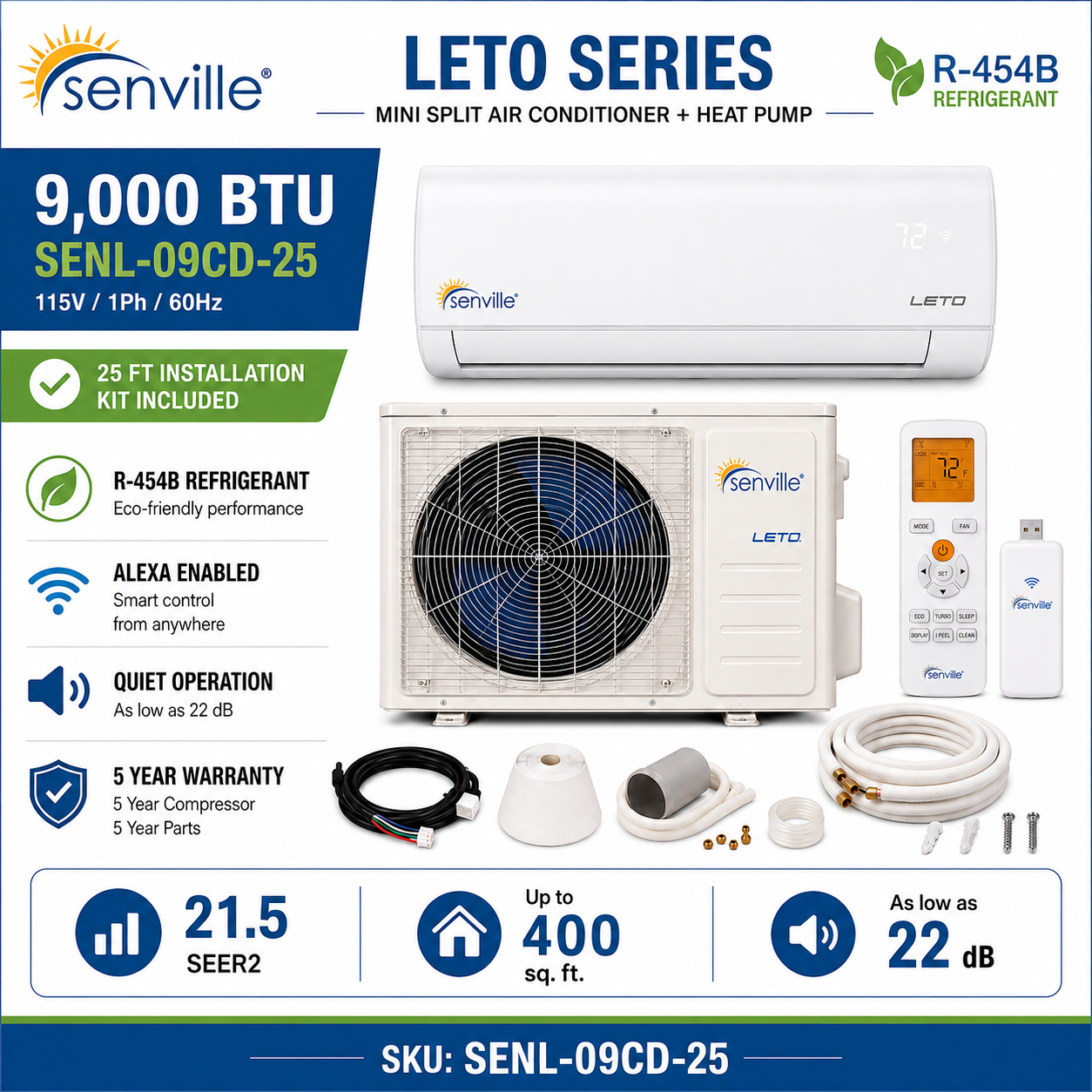

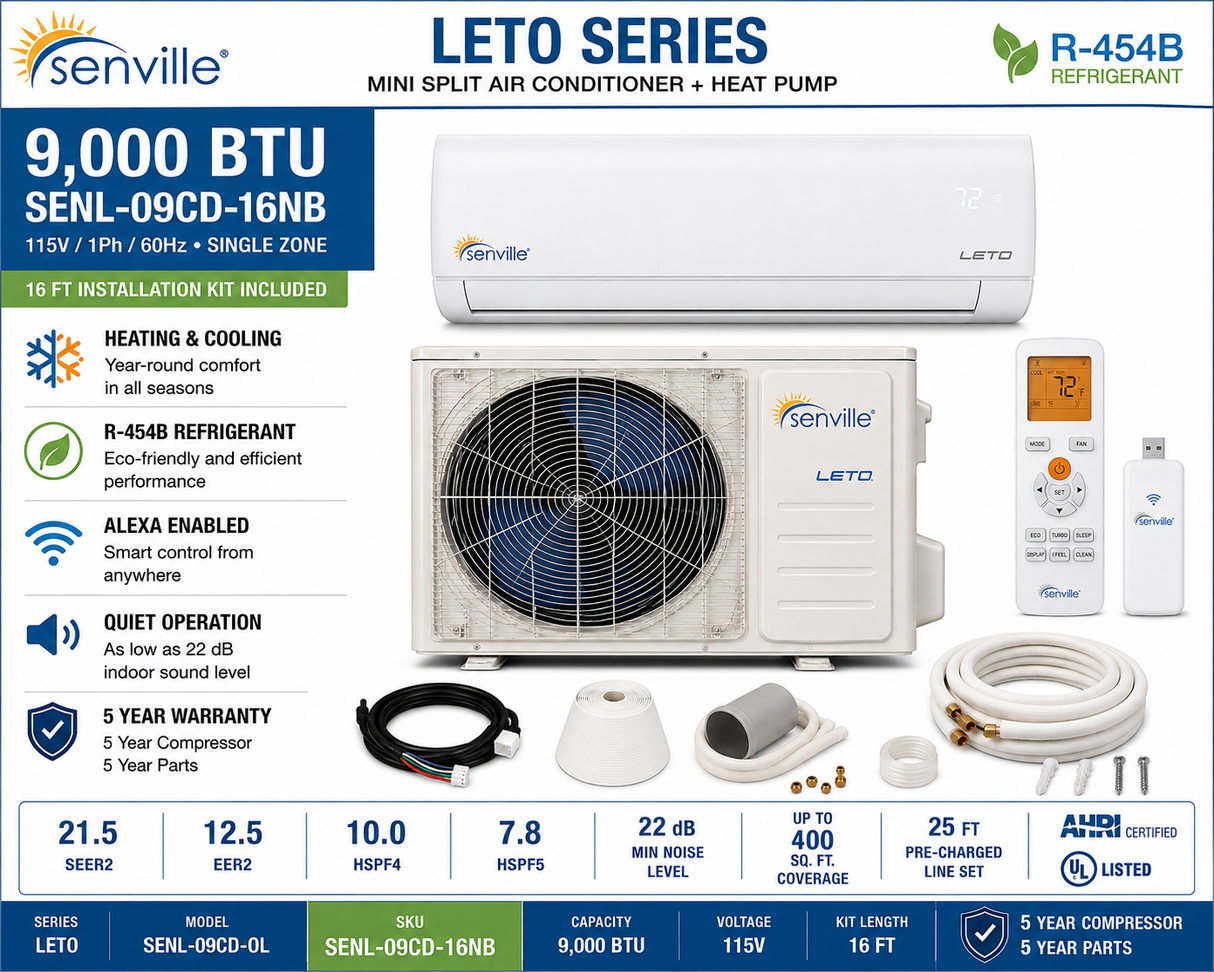

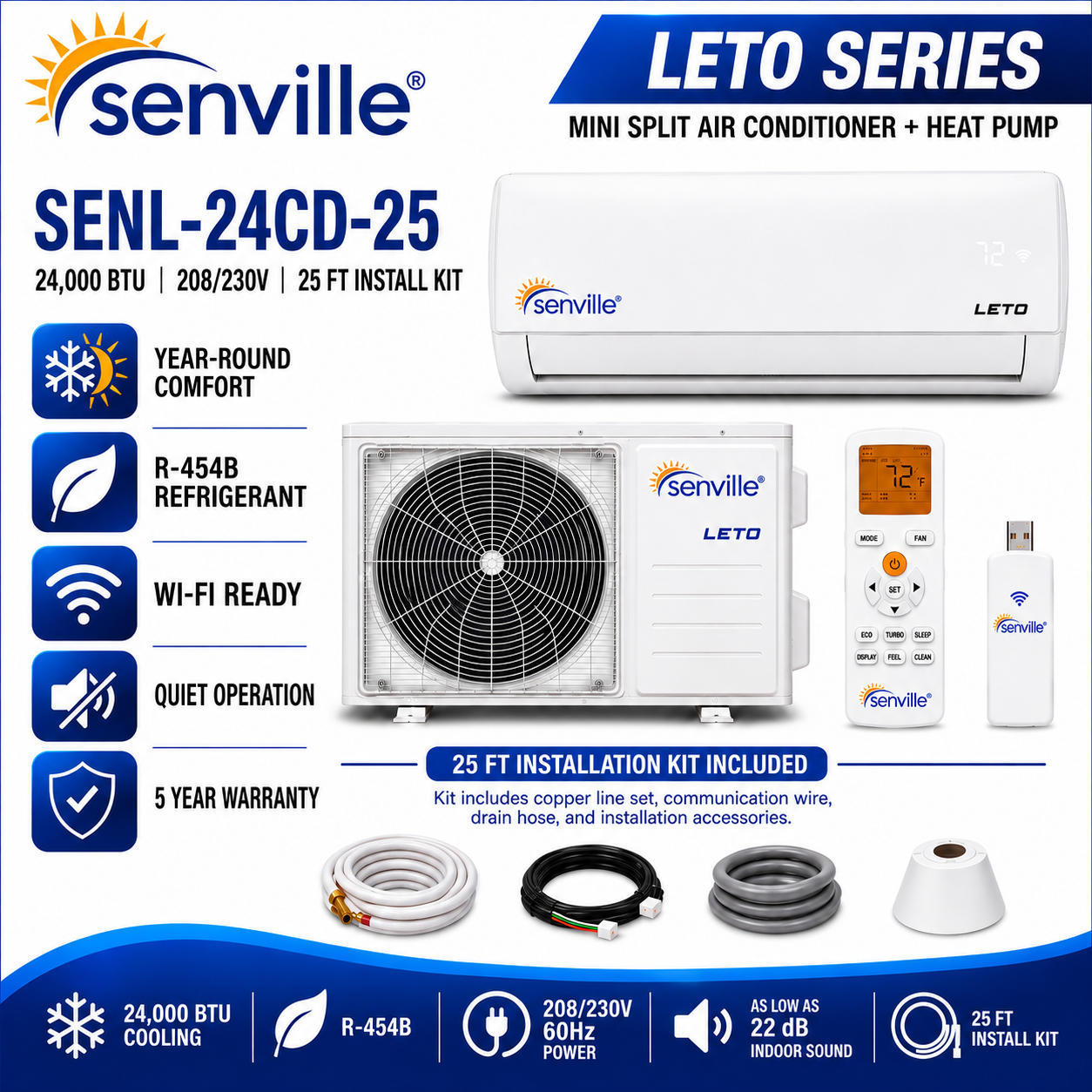

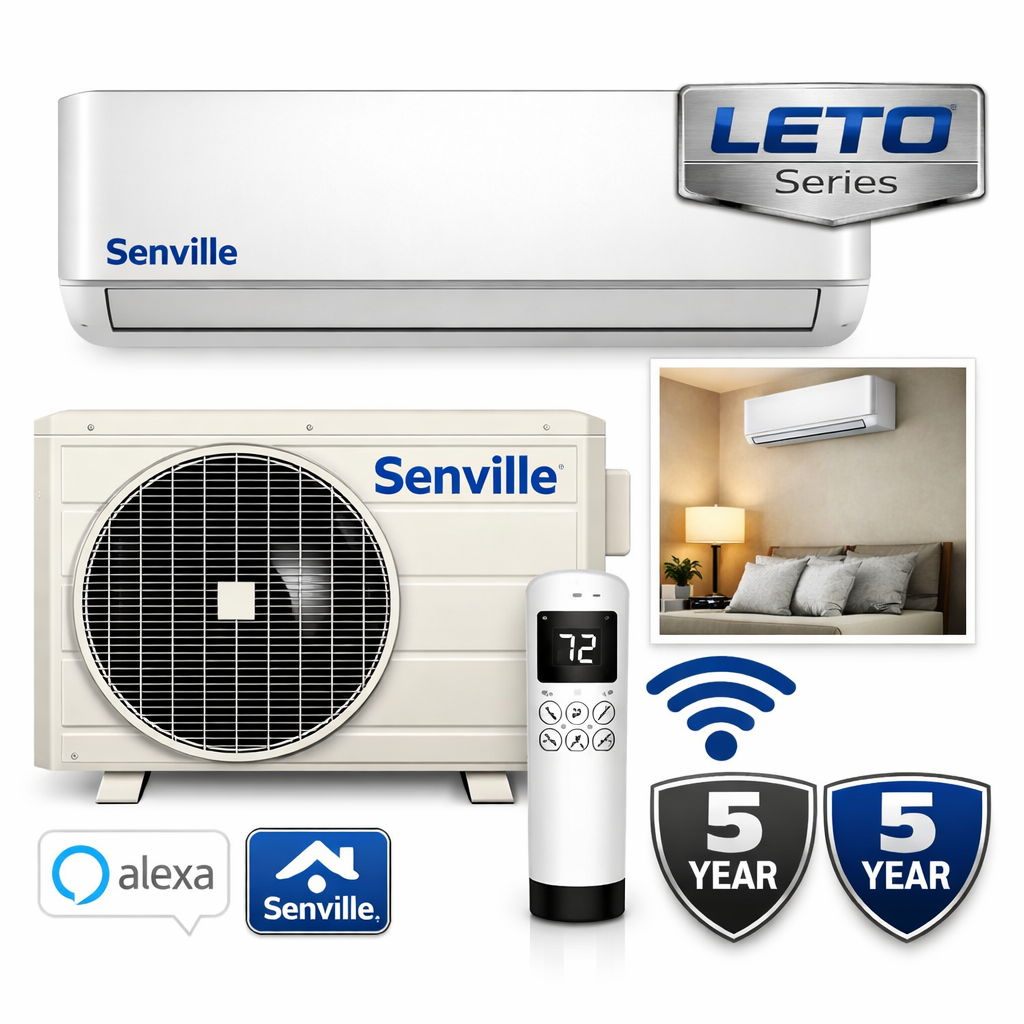

Senville LETO Series Mini Split Air Conditioners & Heat Pumps — 9,000–24,000 BTU

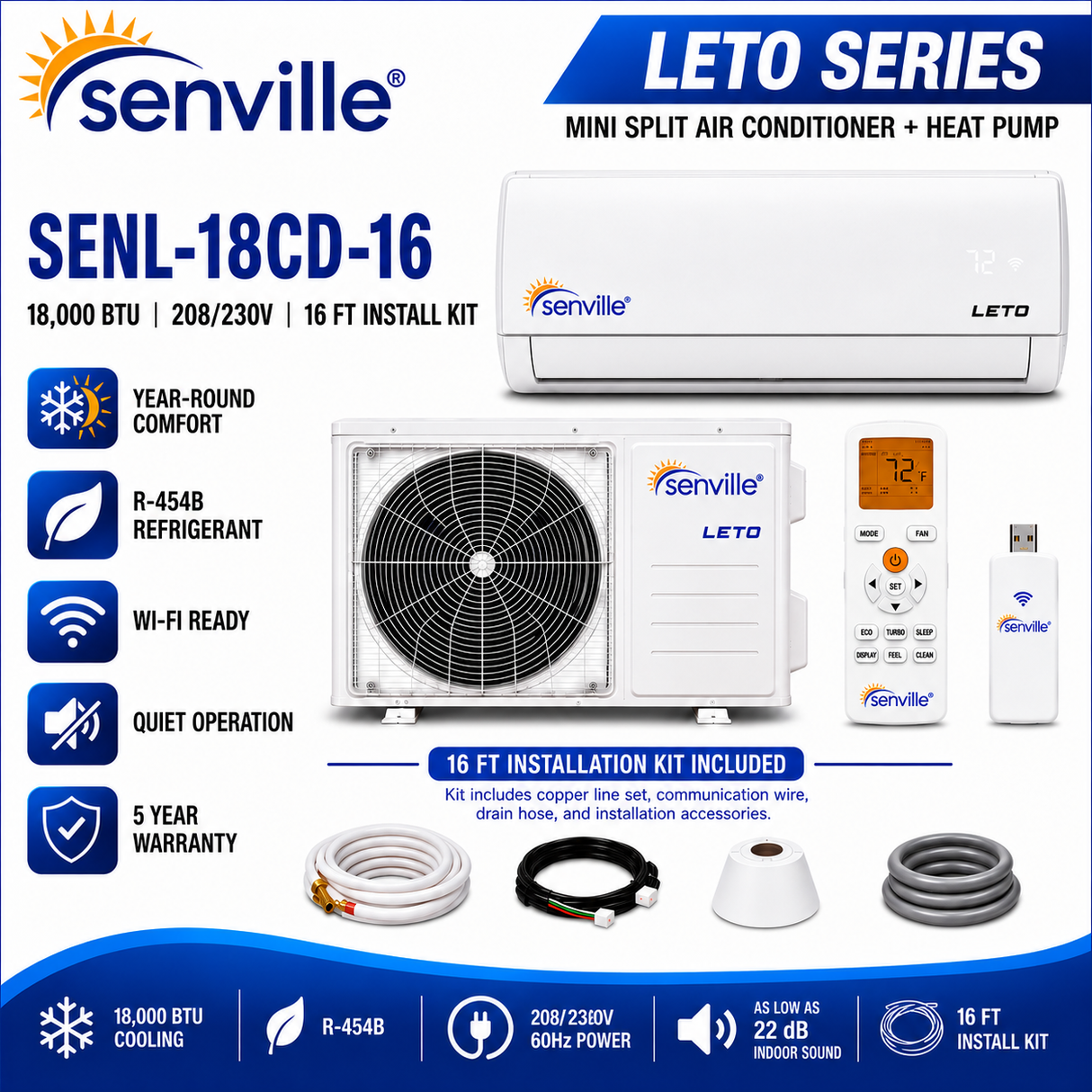

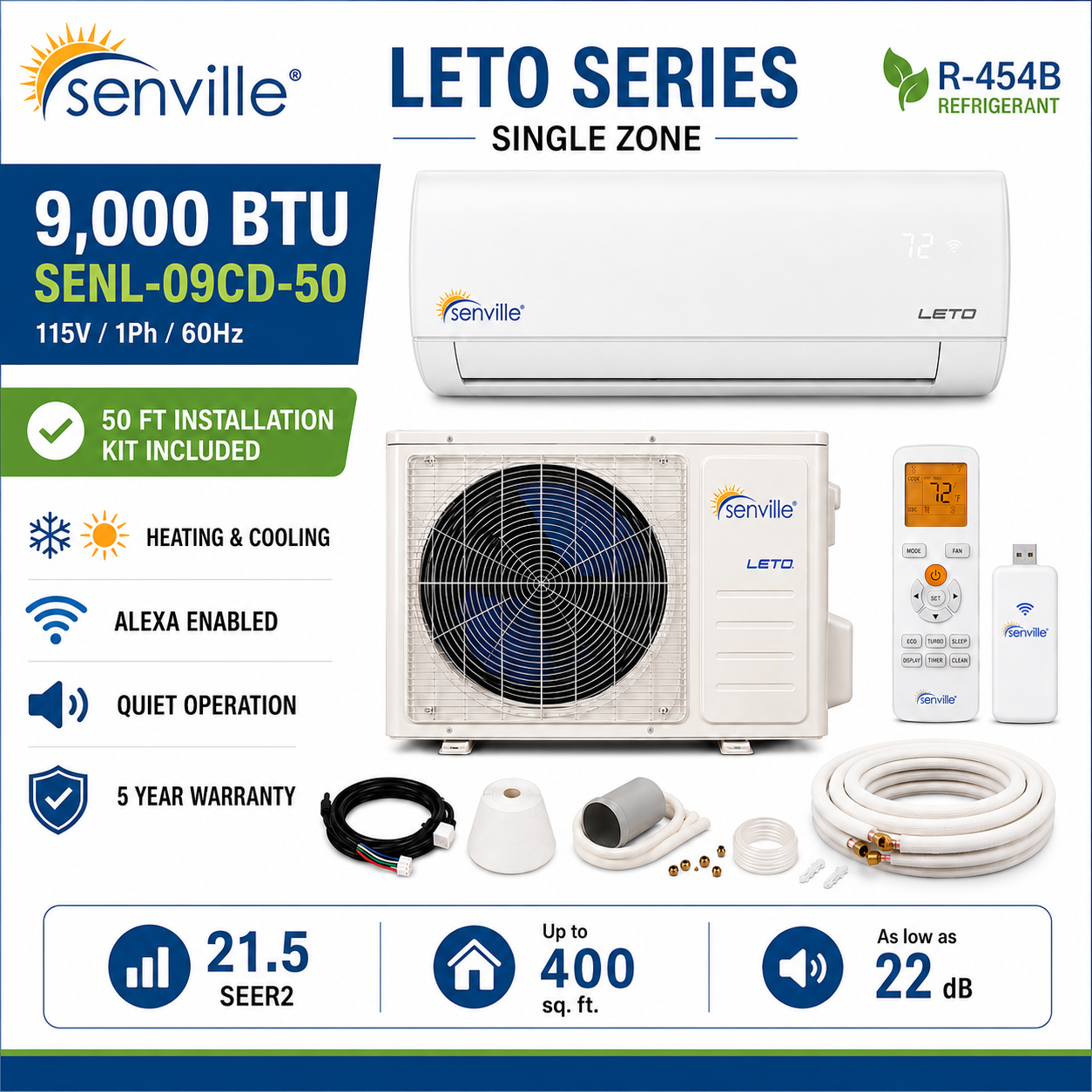

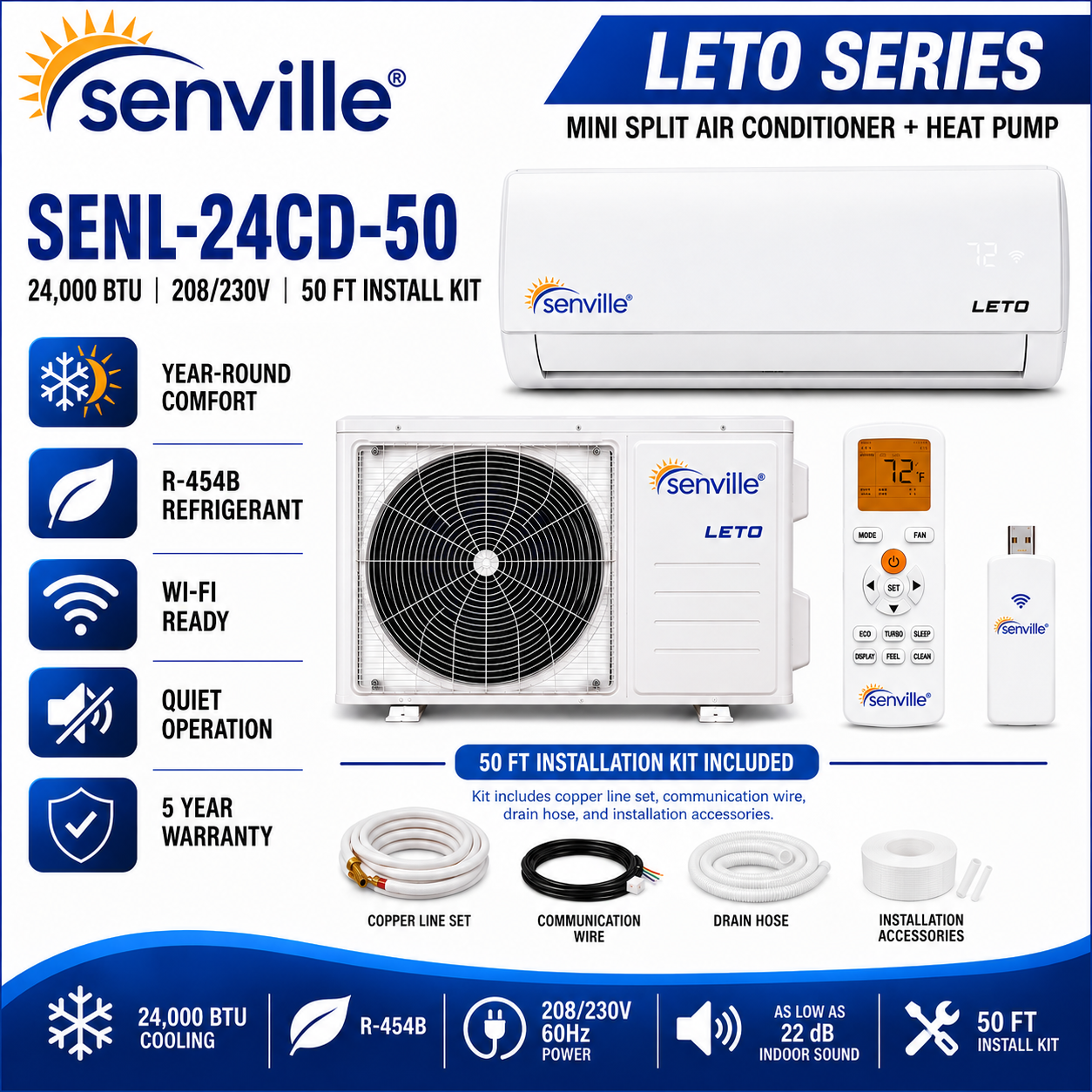

The Senville LETO Series combines single-zone cooling and heat-pump heating in a wall-mounted ductless system. Choose from 9,000, 12,000, 18,000, and 24,000 BTU cooling capacities to suit your project. Each system pairs an indoor air handler with an outdoor inverter heat pump.
Current models use R-454B refrigerant and support Alexa-enabled control, dehumidification, fan operation, and turbo mode. The 9,000 and 12,000 BTU models require 115V; the 18,000 and 24,000 BTU models require 208/230V. Professional installation is required.
Key Features
- Year-round comfort: Air conditioning and heat-pump heating for one independently controlled zone.
- DC inverter technology: Variable-speed operation supports efficient temperature control.
- Smart control: Alexa-enabled operation and included remote control.
- Multiple operating modes: Cooling, heating, dehumidification, fan, and turbo operation.
- Cold-weather heating: Manufacturer lists heating operation down to 5°F outdoor temperature. Available heating capacity varies with conditions.

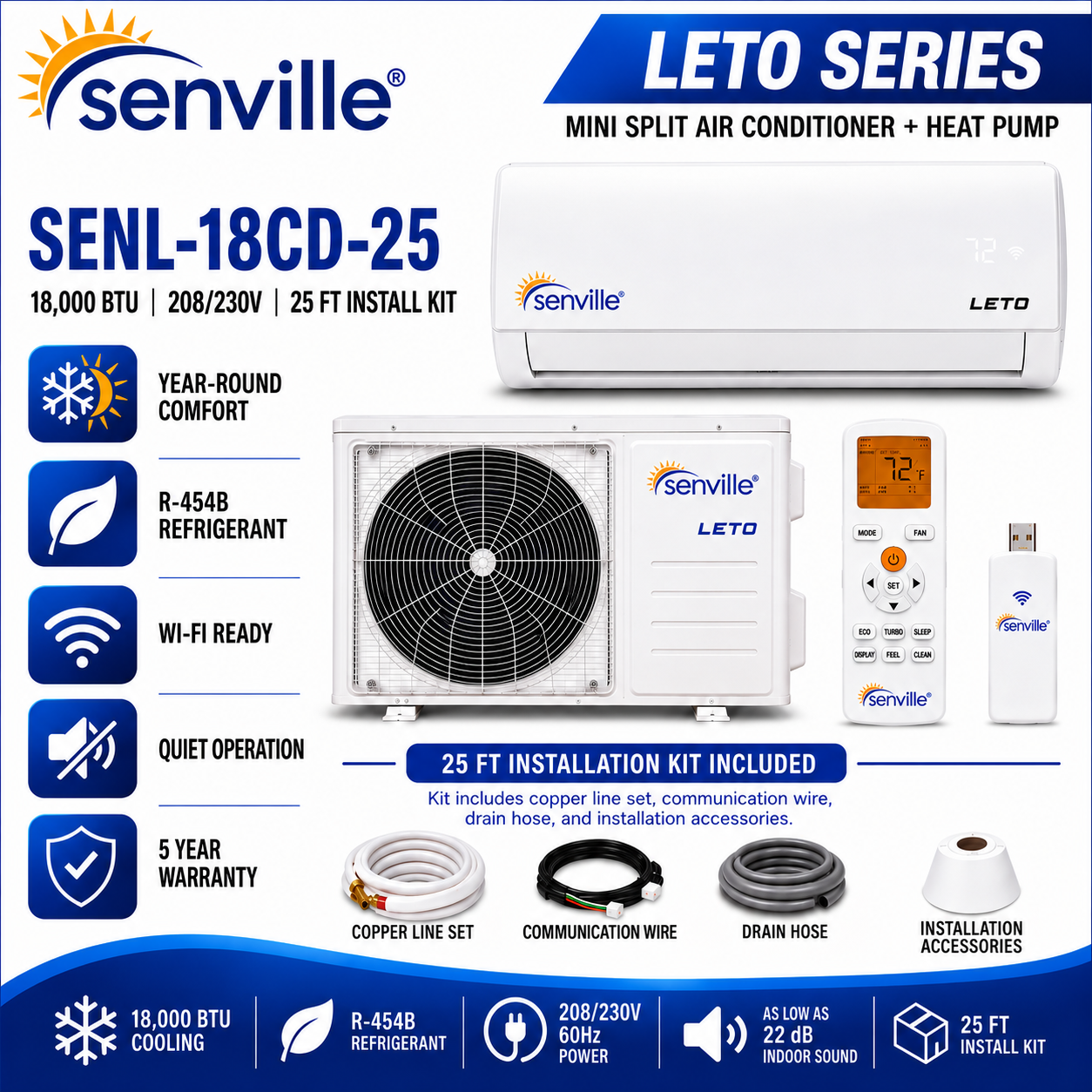

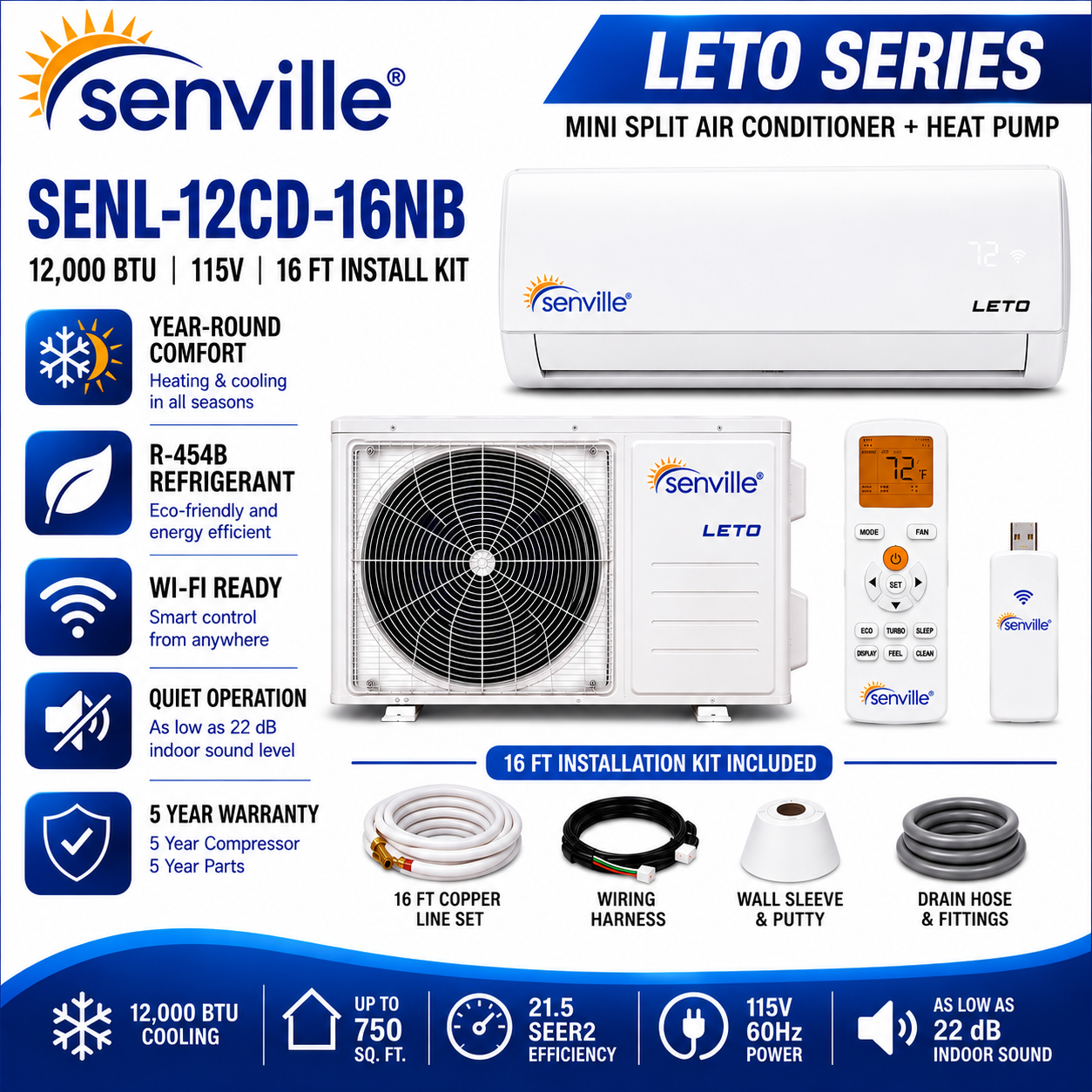

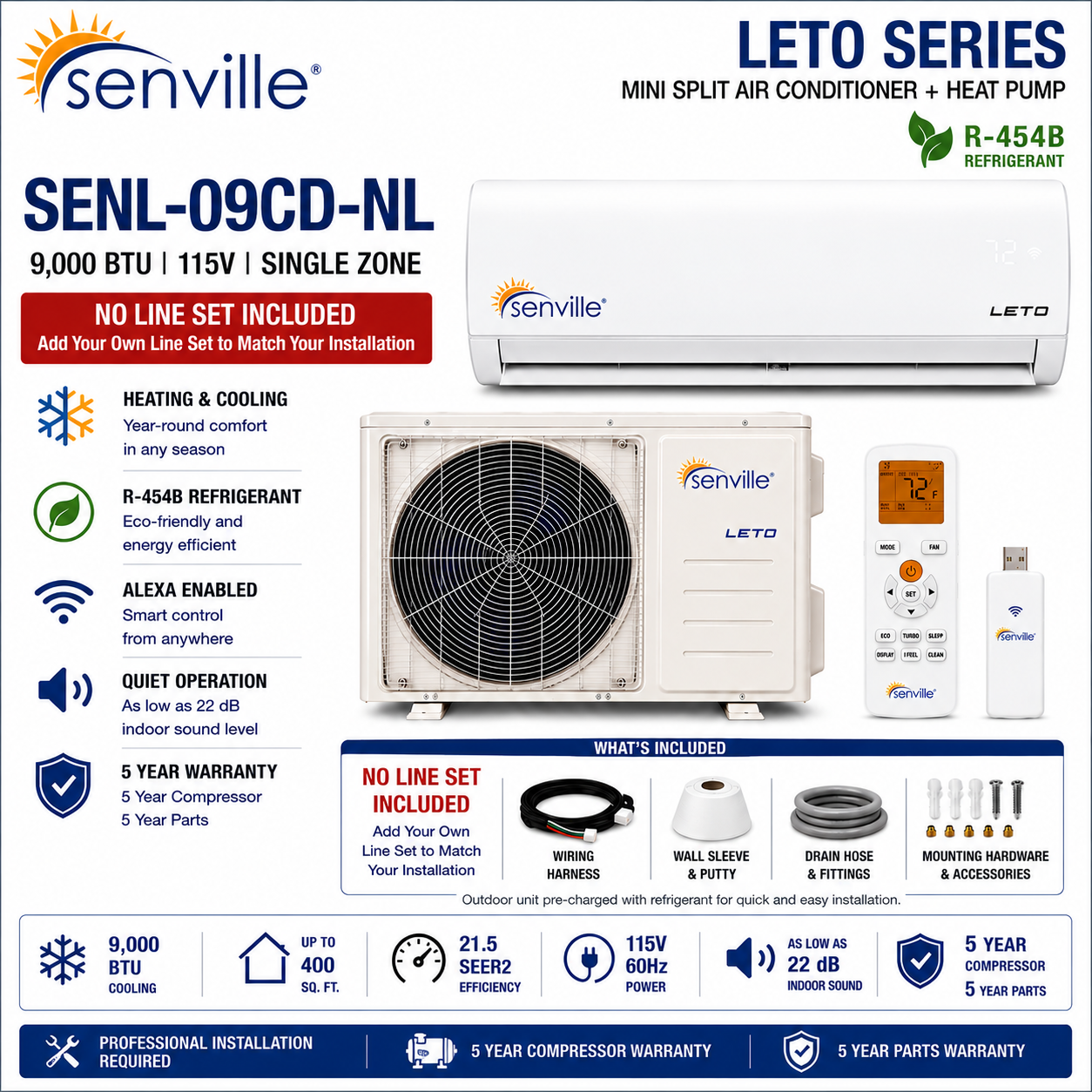

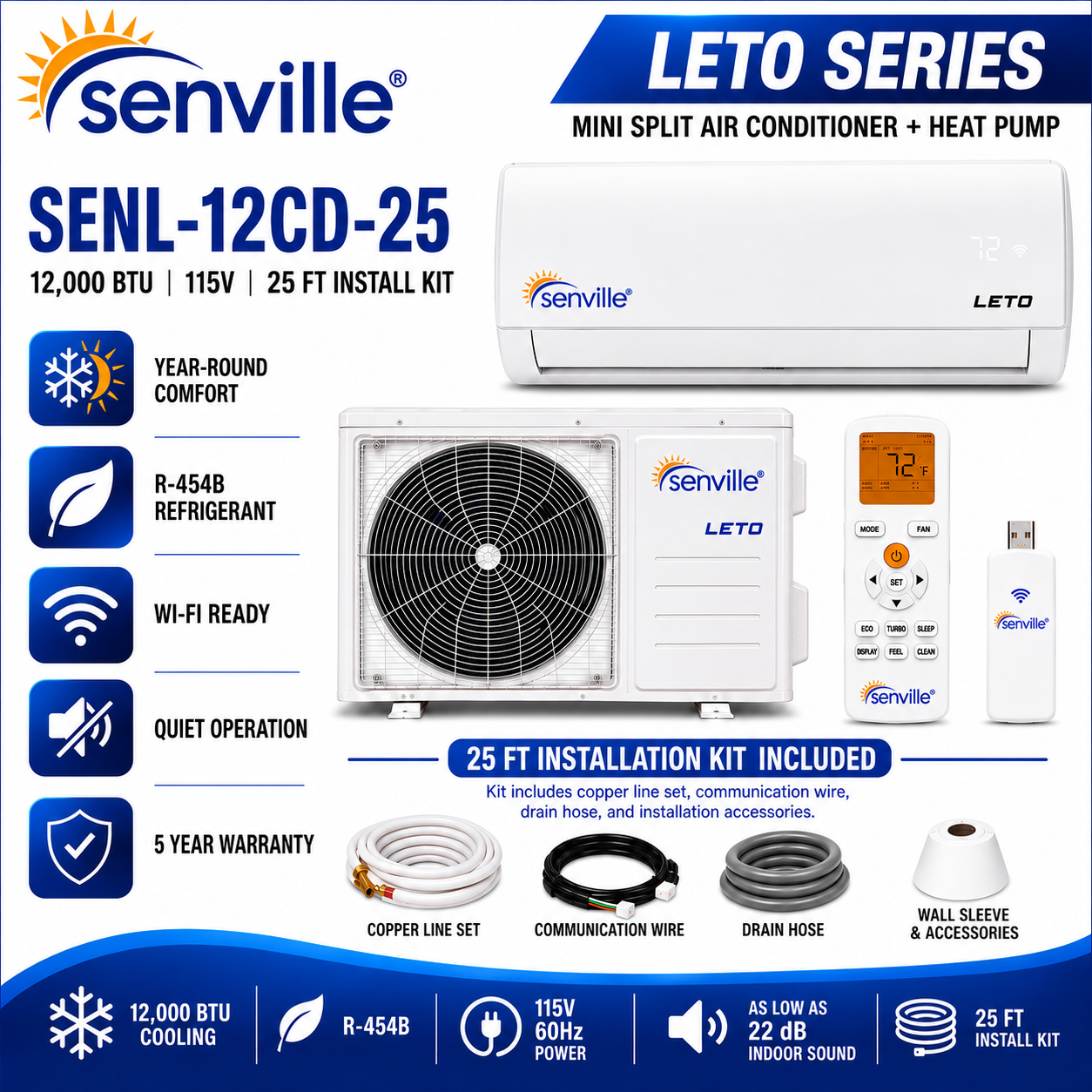

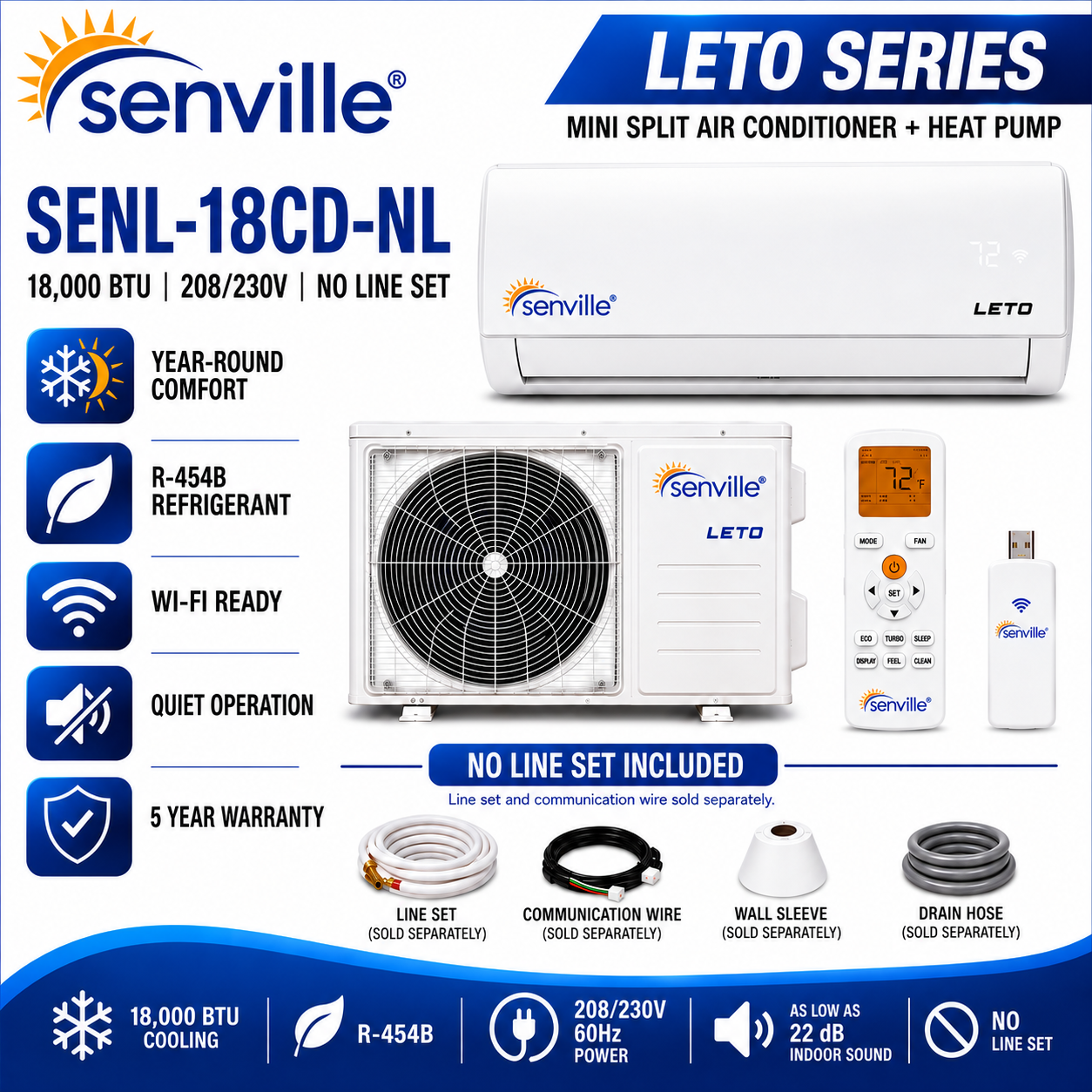

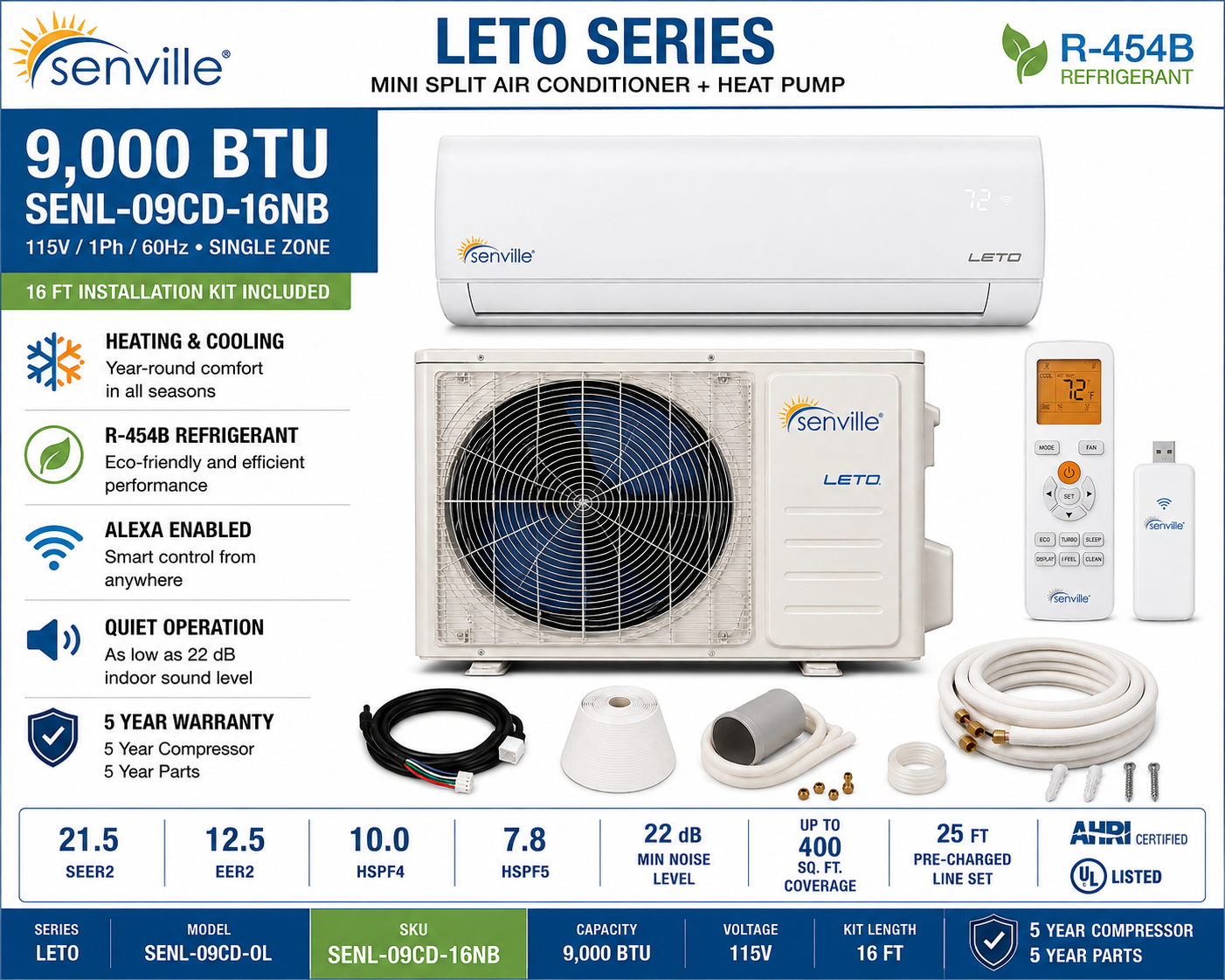

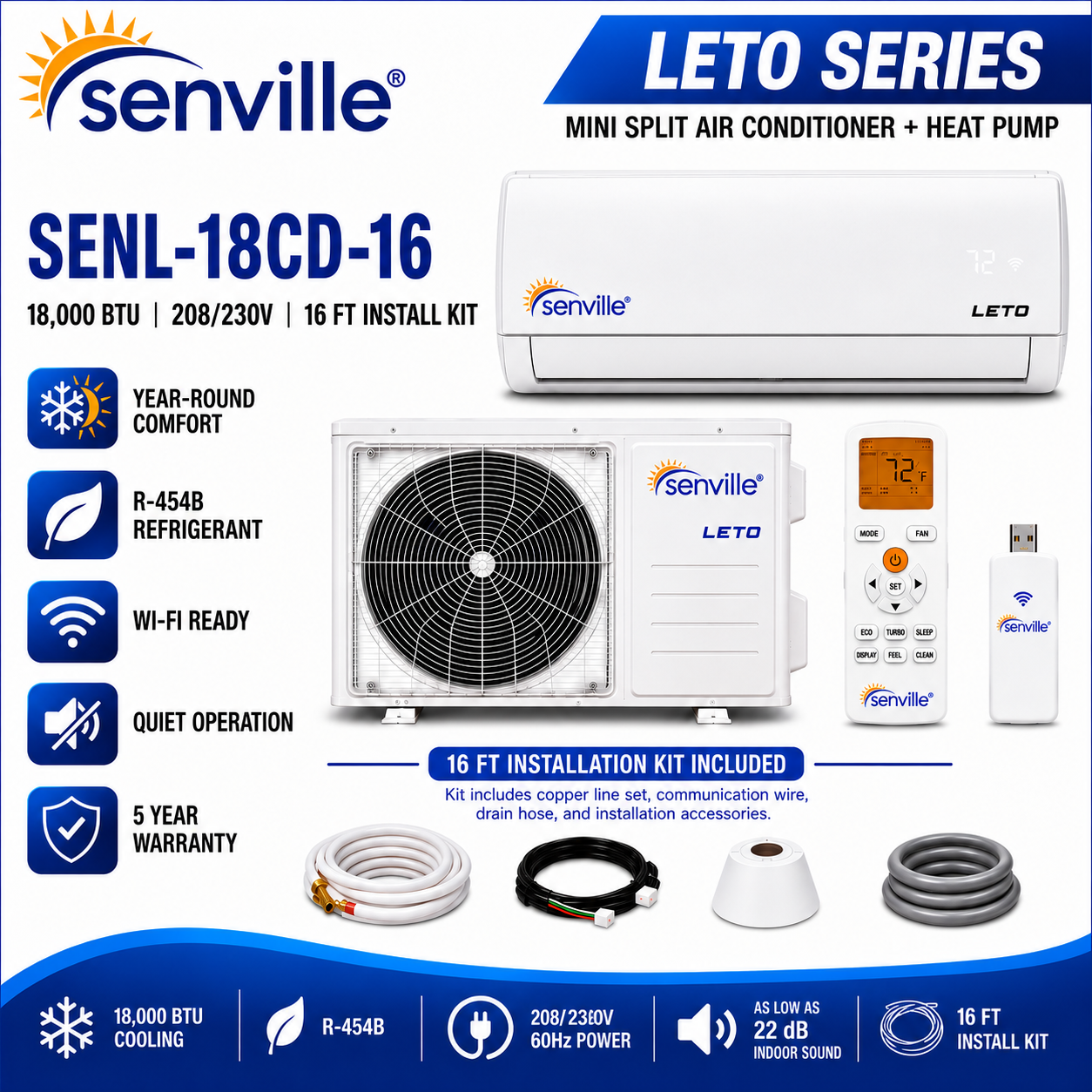

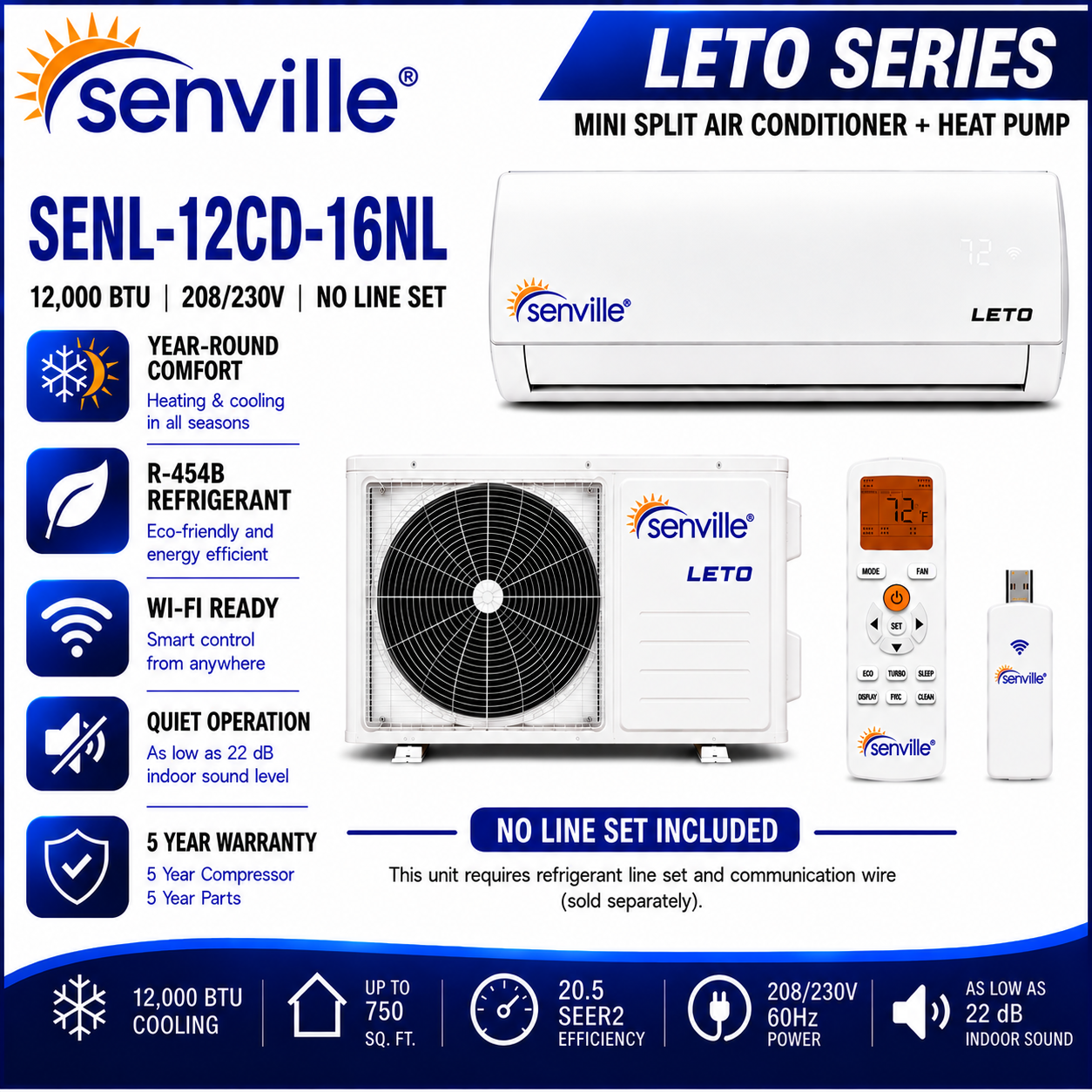

- Installation-kit selection: Kit contents and line-set length depend on the selected variant. A no-kit option does not include an installation line set.
Model Comparison
| Specification | 9K | 12K | 18K | 24K |
|---|---|---|---|---|
| Model family | SENL-09CD | SENL-12CD | SENL-18CD | SENL-24CD |
| Cooling capacity | 9,000 BTU/h | 12,000 BTU/h | 18,000 BTU/h | 24,000 BTU/h |
| Rated heating capacity at 47°F | 10,000 BTU/h | 12,000 BTU/h | 18,800 BTU/h | 24,000 BTU/h |
| SEER2 | 21.5 | 21.2 | 19.2 | 18.7 |
| EER2 | 12.5 | 10.1 | 10.8 | 10.0 |
| HSPF2 — Region IV | 9.0 | 8.7 | 9.6 | 9.3 |
| Electrical supply | 115V | 115V | 208/230V | 208/230V |
| Phase / frequency | 1-phase / 60 Hz | 1-phase / 60 Hz | 1-phase / 60 Hz | 1-phase / 60 Hz |
| Minimum circuit ampacity | 18A | 19A | 15A | 19A |
| Maximum fuse rating | 20A | 20A | 20A | 20A |
| Approximate coverage | 100–450 sq. ft. | 450–750 sq. ft. | 700–1,000 sq. ft. | 1,000–1,250 sq. ft. |
Efficiency and rated capacities above apply to the current manufacturer-listed matched indoor/outdoor combinations. Coverage ranges are general manufacturer guidance; final sizing depends on climate, insulation, windows, ceiling height, and a room-by-room load calculation.
Installation & Electrical Requirements
Installation must be completed by a qualified professional in accordance with the manufacturer’s instructions and applicable codes. Confirm the exact matched equipment, voltage, line-set size, selected kit contents, and installation requirements before ordering.
The manufacturer lists a factory refrigerant charge for up to 25 feet of piping. This does not mean a 25-foot line set is included. Follow the installation manual for evacuation, leak testing, refrigerant adjustments, and R-454B handling requirements.
Limited Warranty
Senville lists a 5-year compressor and 5-year parts limited warranty for LETO systems. Professional installation, eligibility, registration requirements, and the manufacturer’s terms and exclusions apply. Labor is not included under the published warranty exclusions.
