Senville AURA Mini Split Replacement Indoor Wall-Mount Units
Senville AURA Mini Split Replacement Indoor Wall-Mount Units - 6000 is backordered and will ship as soon as it is back in stock.
Replace or expand a compatible Senville AURA mini split system with a genuine AURA Series wall-mounted indoor unit. Available from 6,000 to 33,000 BTU, these indoor heads combine quiet operation, advanced airflow control, and a clean wall-mounted design for comfortable heating and cooling.
Features include 4D airflow with auto-swing louvers, Turbo Mode, Sleep Mode, a programmable timer, auto-restart, self-cleaning operation, a washable air filter, and wireless remote control.
The 6K, 9K, 12K, and 18K IGG models are designed for single-zone applications. The 24K and 33K IGG models may also be used with qualifying Senville multi-zone systems.
Important: This listing is for the indoor unit only. Verify the exact capacity, outdoor-unit compatibility, refrigerant generation, and application before ordering.
⚙️ Key Features
| Feature | Details |
|---|---|
| Manufacturer | Senville |
| Series | AURA |
| Product Type | Wall-Mount Replacement Indoor Unit |
| Configuration | Ductless Indoor Evaporator / Air Handler |
| Available Capacities | 6,000–33,000 BTU |
| System Voltage | 208/230V, 1Ph, 60Hz |
| Refrigerant Generation | R454B |
| Heating & Cooling | Yes, when paired with a compatible AURA system |
| Air Distribution | 4D airflow with auto-swing louvers |
| Turbo Mode | Yes |
| Sleep Mode | Yes |
| Timer | Programmable 24-hour timer |
| Auto Restart | Yes |
| Self-Cleaning | Yes |
| Filter | Washable anti-dust filter |
| Controls | Wireless remote control |
| Mounting | Wall Mount |
⚙️Technical Specifications
| SKU | Capacity | Product Dimensions W × D × H |
Compatibility |
|---|---|---|---|

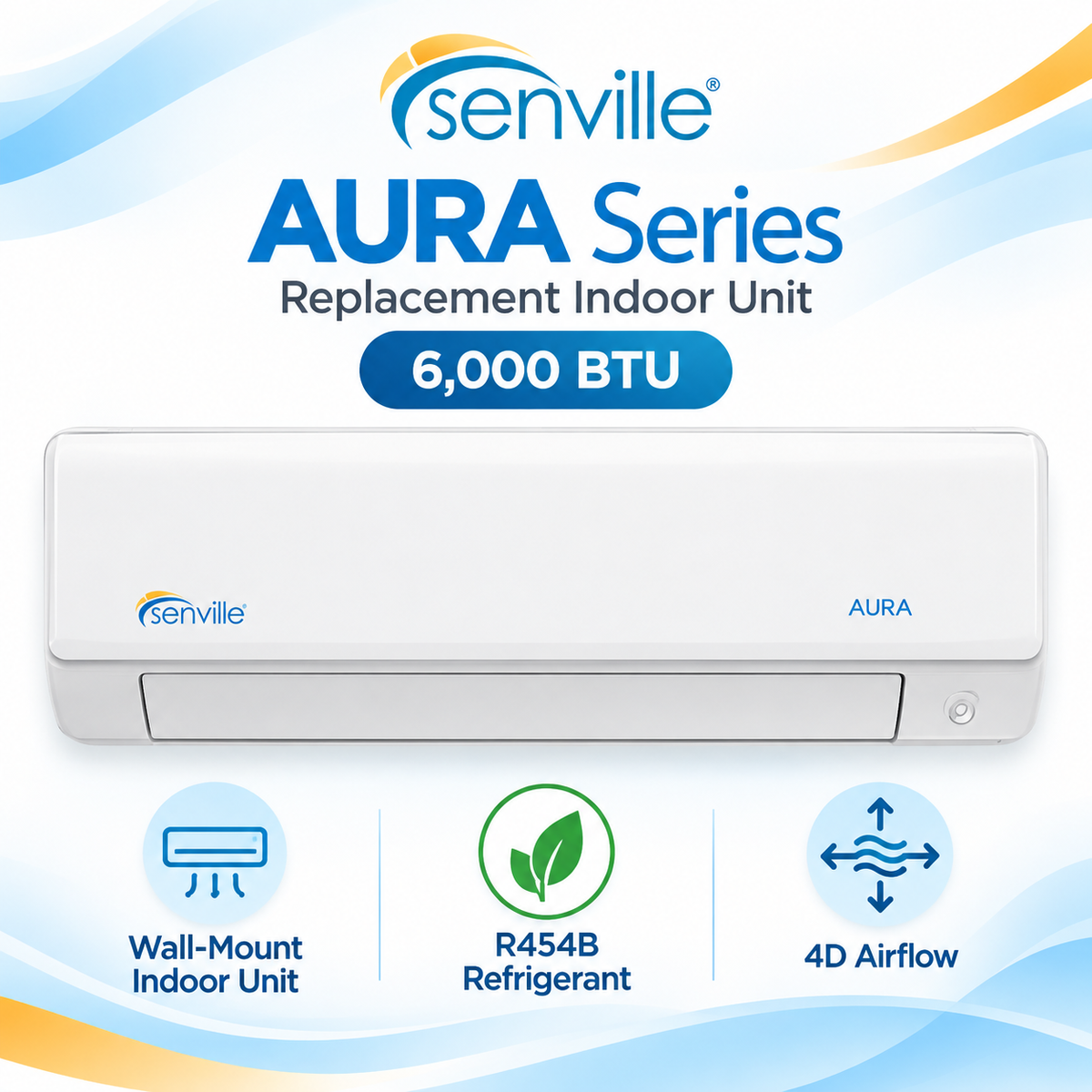

| SENA-06HF-IGG | 6,000 BTU | 33.40 × 9.18 × 11.76 in | Single-Zone |

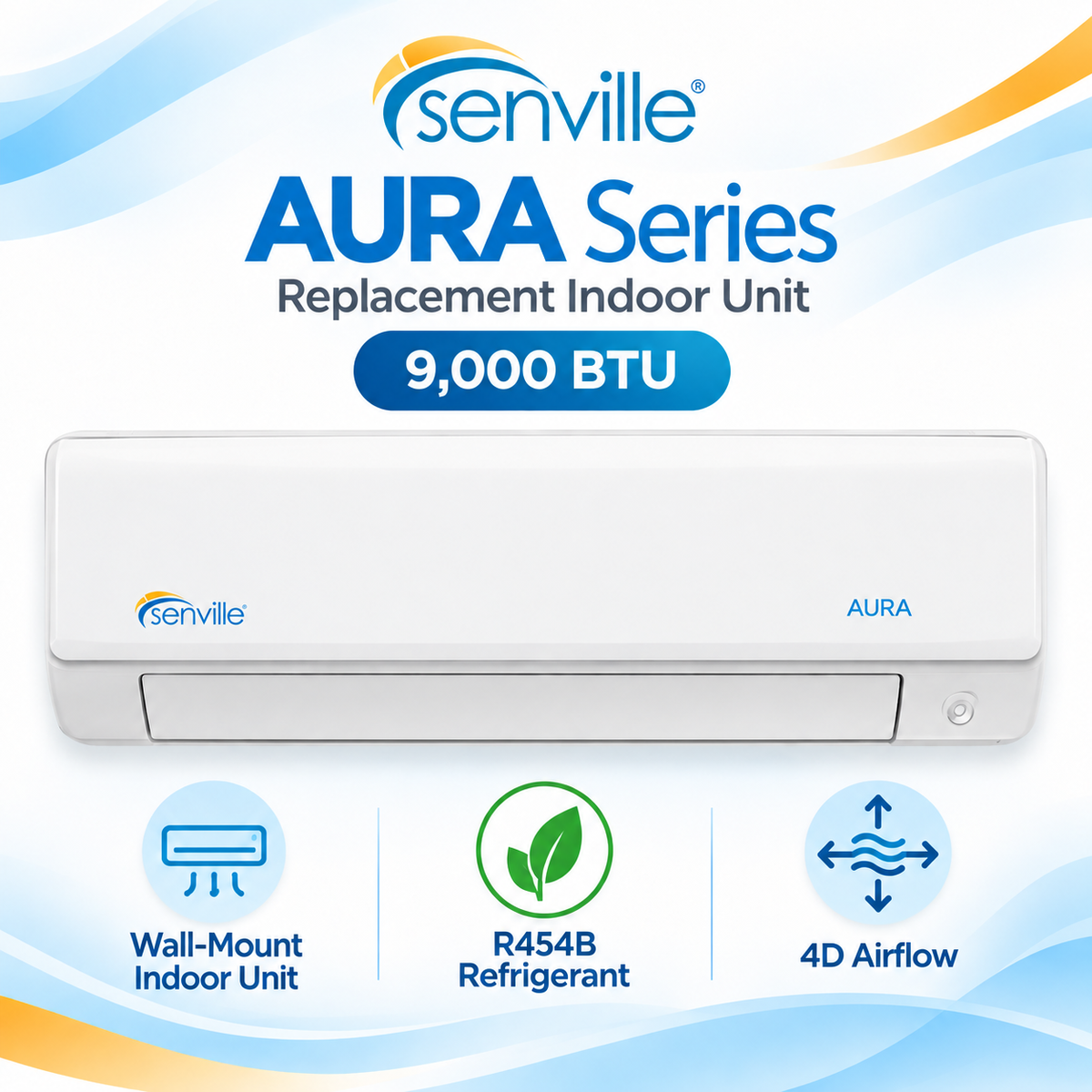

| SENA-09HF-IGG | 9,000 BTU | 33.40 × 9.18 × 11.76 in | Single-Zone |

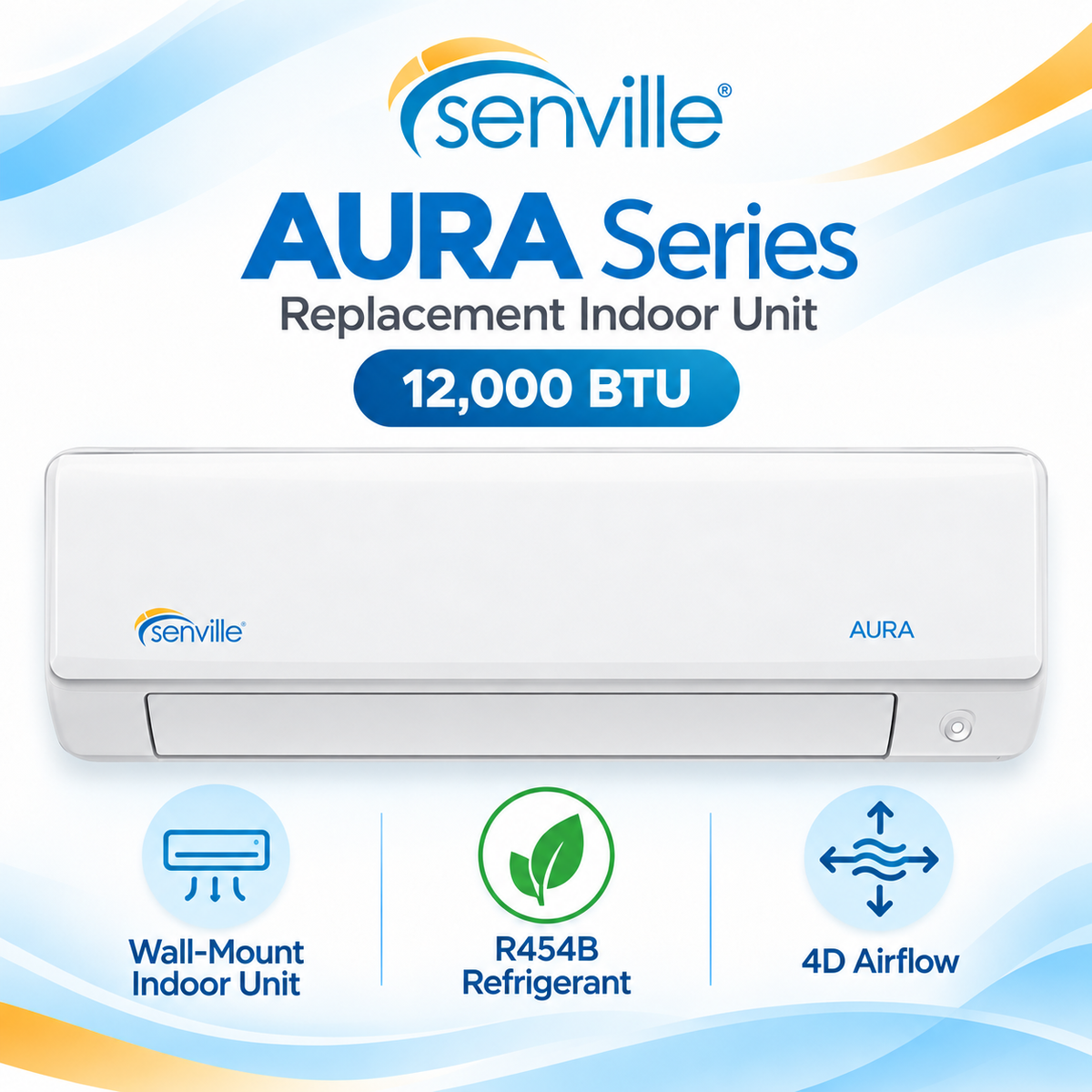

| SENA-12HF-IGG | 12,000 BTU | 33.40 × 9.18 × 11.76 in | Single-Zone |

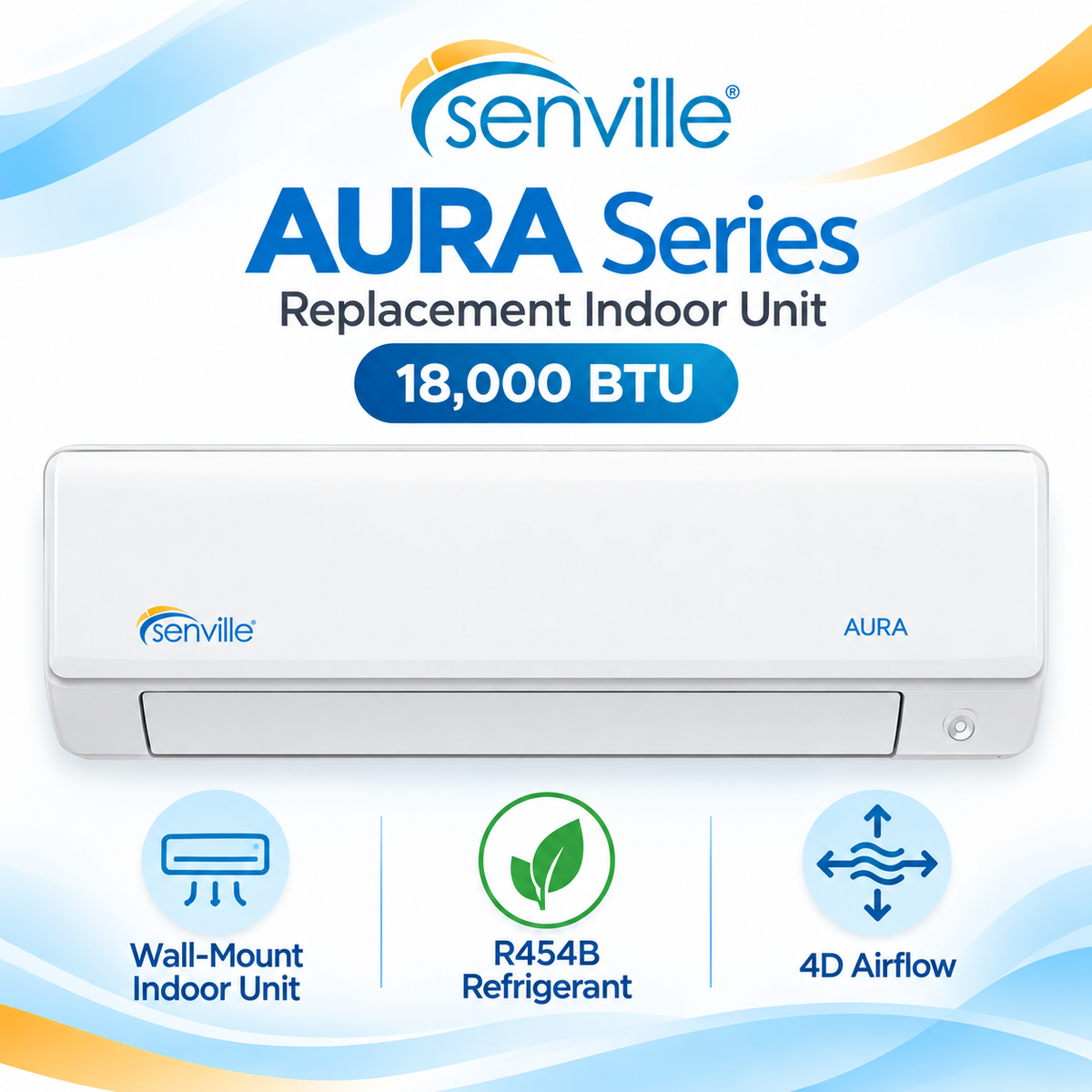

| SENA-18HF-IGG | 18,000 BTU | 40.55 × 8.46 × 13.39 in | Single-Zone |

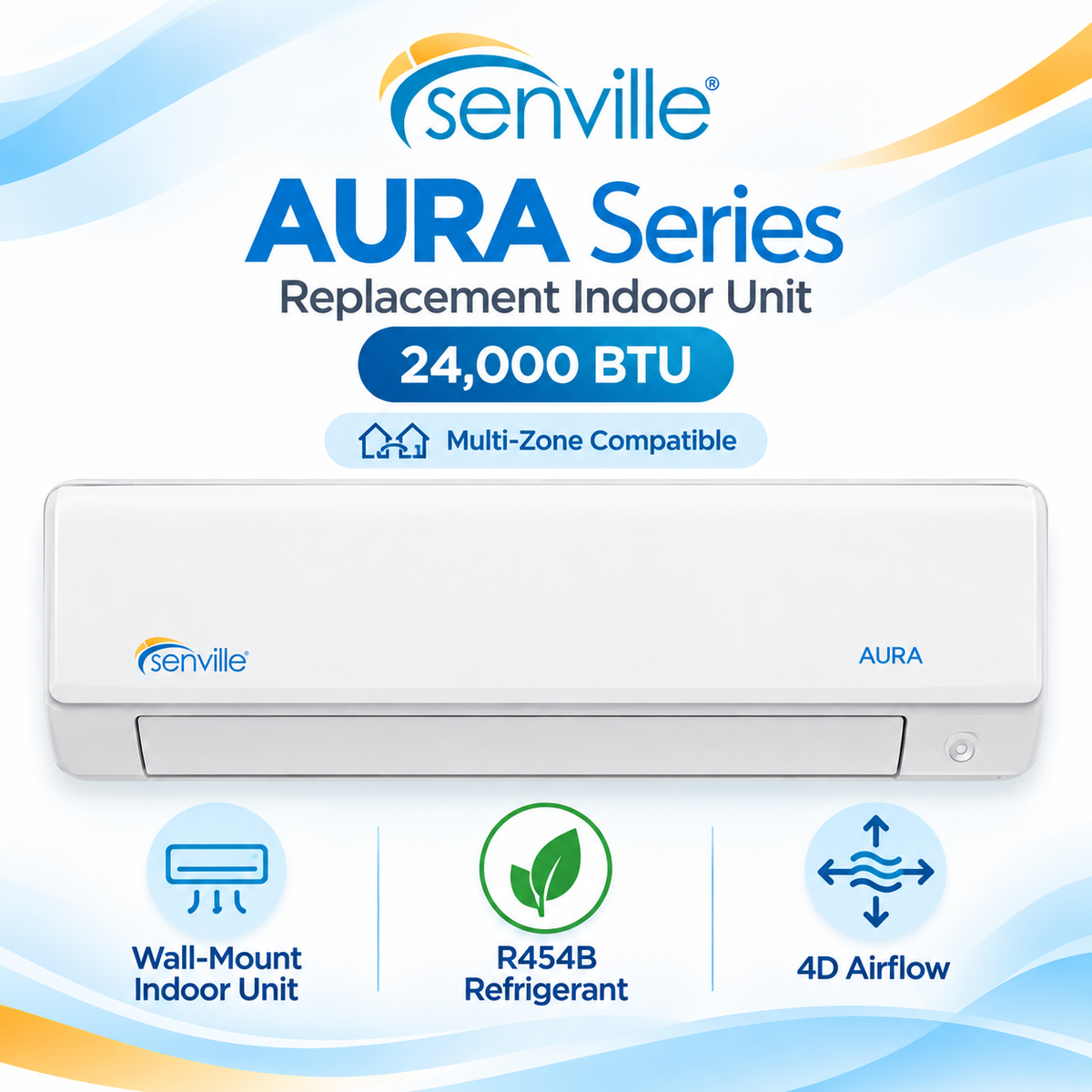

| SENA-24HF-IGG | 24,000 BTU | 46.85 × 11.20 × 14.59 in | Single- or Multi-Zone |

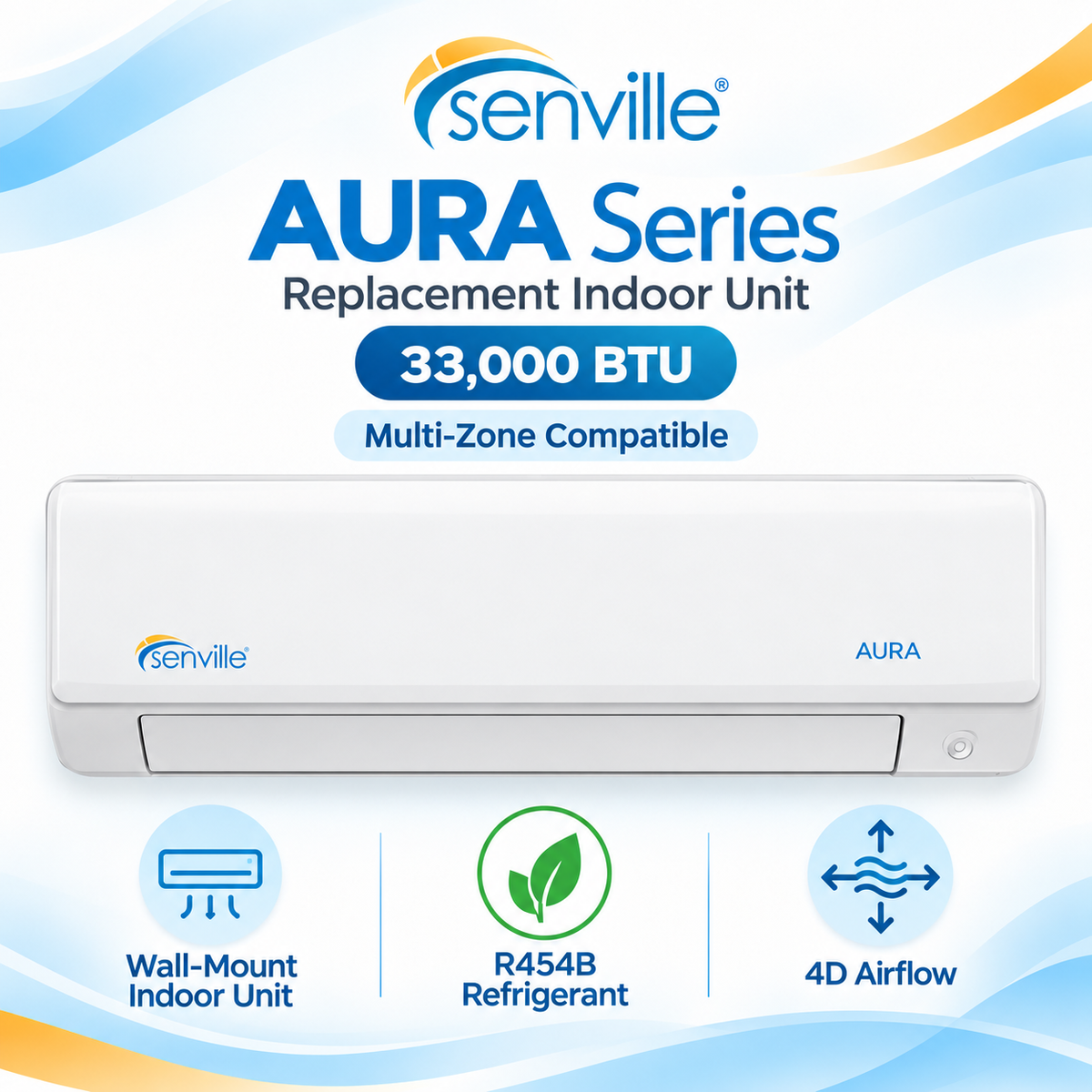

| SENA-33HF-IGG | 33,000 BTU | 48.8 × 11.2 × 14.6 in | Single- or Multi-Zone |
Power Supply: 208/230V, 1Ph, 60Hz
Refrigerant: R454B
Indoor Unit Type: Wall-Mounted
Thermostat / Control: Wireless Remote
System Compatibility: Must be matched to an approved Senville outdoor unit or qualifying multi-zone system.
Compatibility Notice
Do not select a replacement indoor unit by BTU capacity alone. Confirm the exact model number and approved outdoor-unit compatibility before ordering.
The 6K, 9K, 12K, and 18K IGG models are single-zone only. The 24K and 33K IGG models are also approved for qualifying Senville multi-zone applications.
This product is a replacement component and is not a complete mini split system.
Product Highlights
- Genuine Senville AURA replacement indoor unit
- Six capacities from 6,000 to 33,000 BTU
- Quiet indoor operation
- 4D airflow with automatic swing
- Turbo Mode for faster temperature adjustment
- Sleep Mode and programmable timer
- Self-cleaning function
- Washable reusable air filter
- Wireless remote included
- Current R454B generation
- 24K and 33K models support qualifying multi-zone applications
Zone Matrix
| Capacity | Exact SKU | Application |
|---|---|---|
| 6,000 BTU | SENA-06HF-IGG | Single-Zone |
| 9,000 BTU | SENA-09HF-IGG | Single-Zone |
| 12,000 BTU | SENA-12HF-IGG | Single-Zone |
| 18,000 BTU | SENA-18HF-IGG | Single-Zone |
| 24,000 BTU | SENA-24HF-IGG | Single- or Multi-Zone |
| 33,000 BTU | SENA-33HF-IGG | Single- or Multi-Zone |
⚙️Technical Documents:
Senville AURA Mini Split Replacement Indoor Wall-Mount Units
